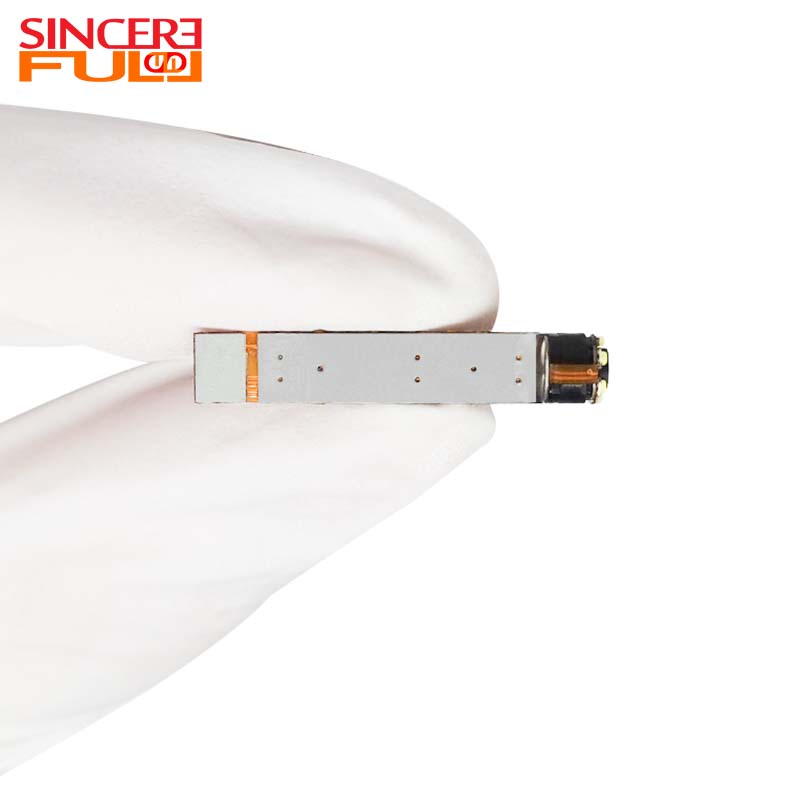

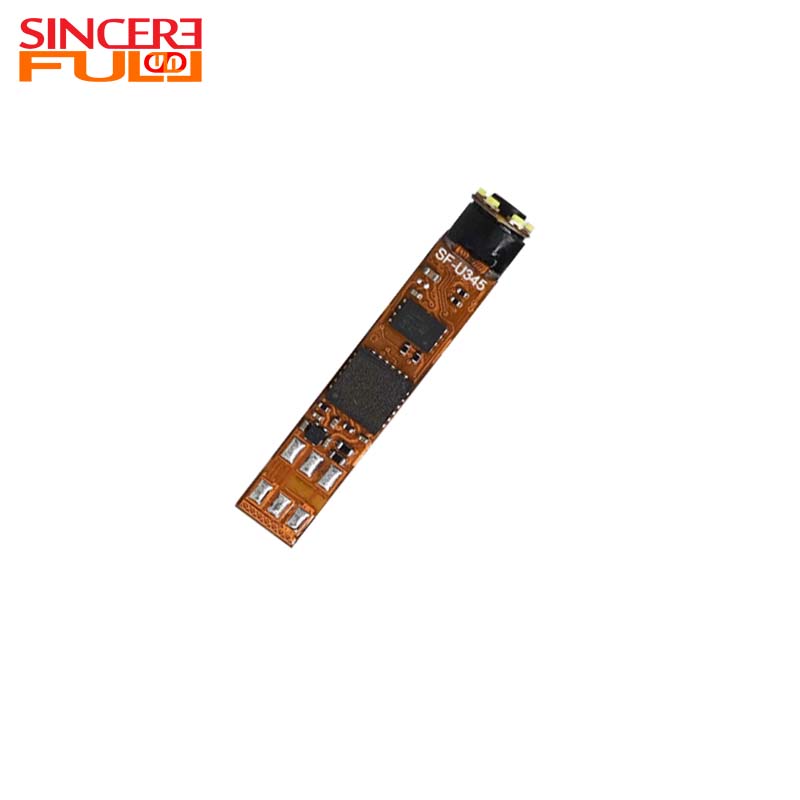

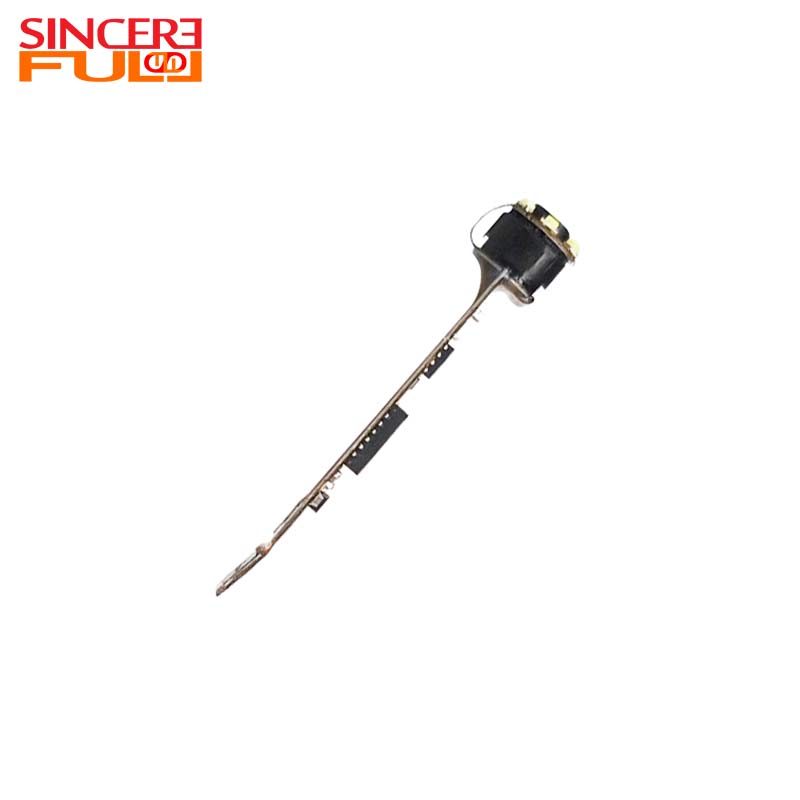

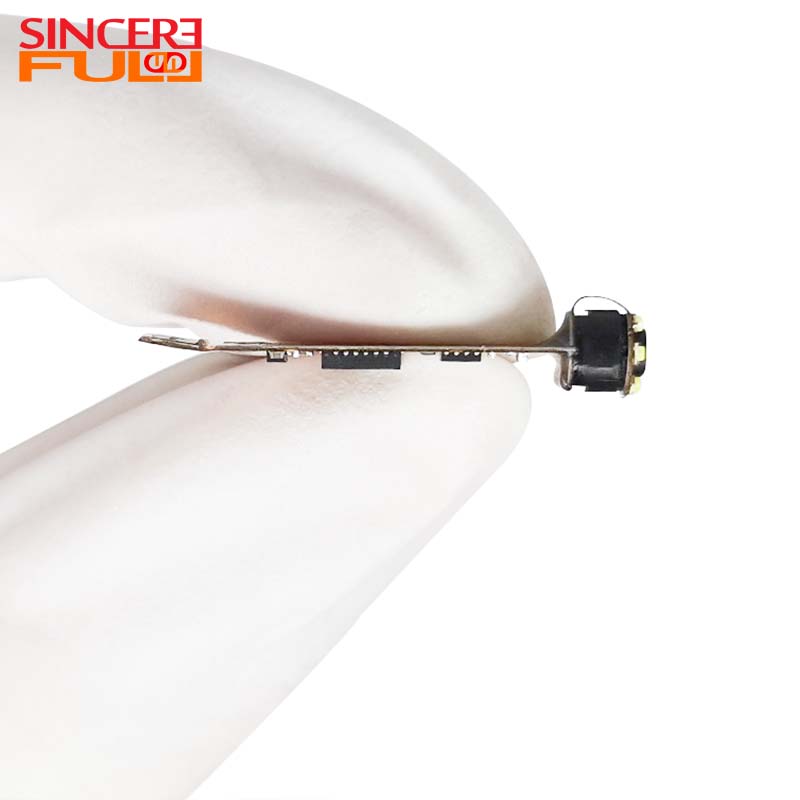

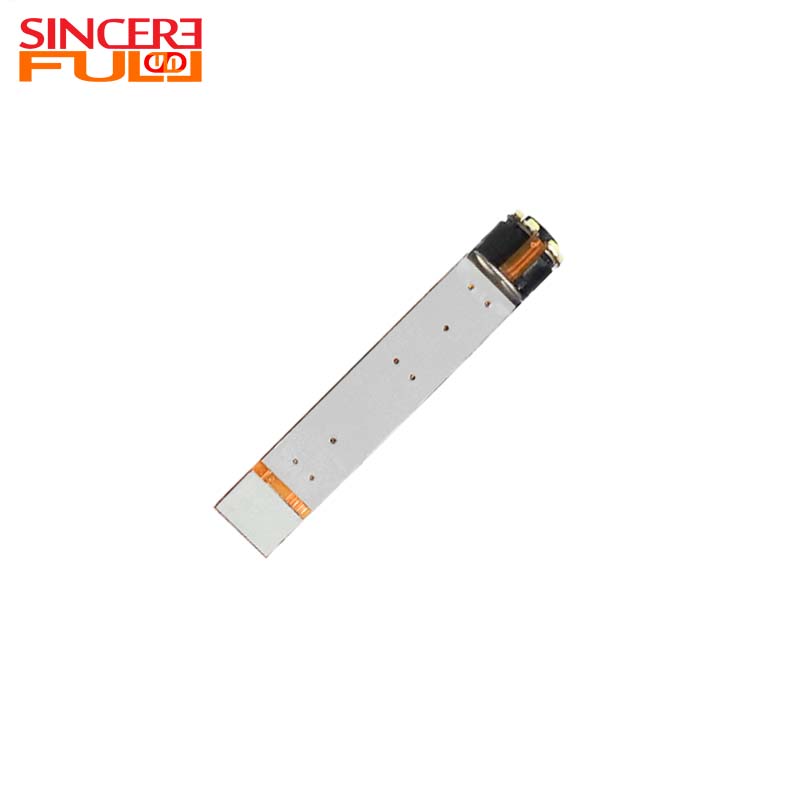

SF-U345
SINCEREFIRST
This camera module featuring the BF20A6 sensor, Which is a 2MP camera module , including medical imaging and surveillance. This high-speed camera module boasts a 1/10-inch lens size, ensuring sharp and clear visuals suitable for a wide array of environments. this endoscope camera module supports a storage temperature range of 0 to 50℃, making it suitable for diverse operational contexts. The fixed focus enhances usability, while the optional four LED lights provide excellent illumination for low-light conditions, ensuring optimal performance during use. this camera module offers impressive features such as YUV 30fps real-time preview, delivering fluid video quality. Its HD pixel resolution guarantees exceptional outdoor performance with vibrant and realistic colors, and this camera module also supports the UVC protocol, allowing for a hassle-free experience with plug-and-play functionality, negating the need for additional drivers. Additionally, compatibility with OTG (On-The-Go) ensures it can be easily connected to various devices. Emphasizing adaptability, this open-source digital endoscope camera module is suitable for engineers and developers seeking customizable imaging solutions. With its robust construction rated IP67 for waterproofing, this image sensor camera module is equally effective in challenging environments, this endoscope camera module is a USB2.0 camera modules. it can see the images captured by the camera in real time, which is very suitable for real-time access scenes such as medical surgery and industrial operations |
|
Product Advantage ◢
1.2MP resolution for sharp and clear visuals.
HD pixel performance with realistic color output, ideal for outdoor use.
2.1/10-inch lens size with fixed focus for ease of use.
Optional 4 LED lights for enhanced low-light visibility.
3.Supports UVC protocol for plug-and-play operation, eliminating the need for additional drivers.
Compatible with OTG (On-The-Go) for easy connection to various devices.
4.IP67 waterproof rating ensures reliability in challenging environments.
Open-source design for customizable applications, suitable for both medical imaging and engineering solutions.
Technical Parameters ◢
Product Name | Endoscope Camera Module |
Features | BF20A6 Endoscope Camera |
DSP | USB2.0 UVC |
Sensor | BF20A6 |
Lens Size | 1/10inch |
Waterproof | IP67 |
Dynamic Range | 73.3dB |
Trademark | SINCERE FIRST |
Interface | USB2.0 |
Storage temperature | 0～50℃ |
Product Uses ◢
Industrial
Medical
Dental
FAQ ◢
Q1: What is a endoscope camera module?
A1: The endoscope camera module is a highly compact visual imaging device that is widely used in medical, industrial and research fields, mainly for visual inspection of internal structures. It consists of a camera lens, a light source, and flexible or rigid tubes that allow easy access to narrow Spaces. On the medical side, endoscopes are used to visualize organs, such as the trachea and esophagus, and can also be used to aid diagnosis and minimally invasive surgery. Industry uses it to inspect machinery and pipes to help identify problems such as leaks and rusting. Some modules are also equipped with additional features, such as video recording and photography, to enhance real-world capabilities.
Q2: Are you factory or trade company?
A2: We are a large camera module production company, with ten floors of clean and sterile automated production workshop to ensure efficient operation. Employees are systematically trained, strictly follow the procedures, wear clean room dustproof clothing, and maintain environmental hygiene. Each endoscope module undergoes a multi-stage inspection to ensure an industry-leading pass rate. The company has a dedicated R & D team to continue to promote product innovation and technological progress to meet market demand.
Q3: How to control an endoscope camera module?
A3: The operation of the endoscope camera module involves several complex steps such as data transfer, software parameter setting and image processing. Its success relies on the seamless coordination of hardware and software, often operating within a specific voltage range. To avoid voltage fluctuations, computers, tablets, or mobile phones are generally connected through USB, micro-USB, HDMI, or wireless Wi-Fi interfaces. Users can install dedicated software to easily adjust parameters such as zoom, focus, resolution and contrast, and can monitor the video feed in real time and adjust accordingly.
Q4: What does an endoscope camera module see?

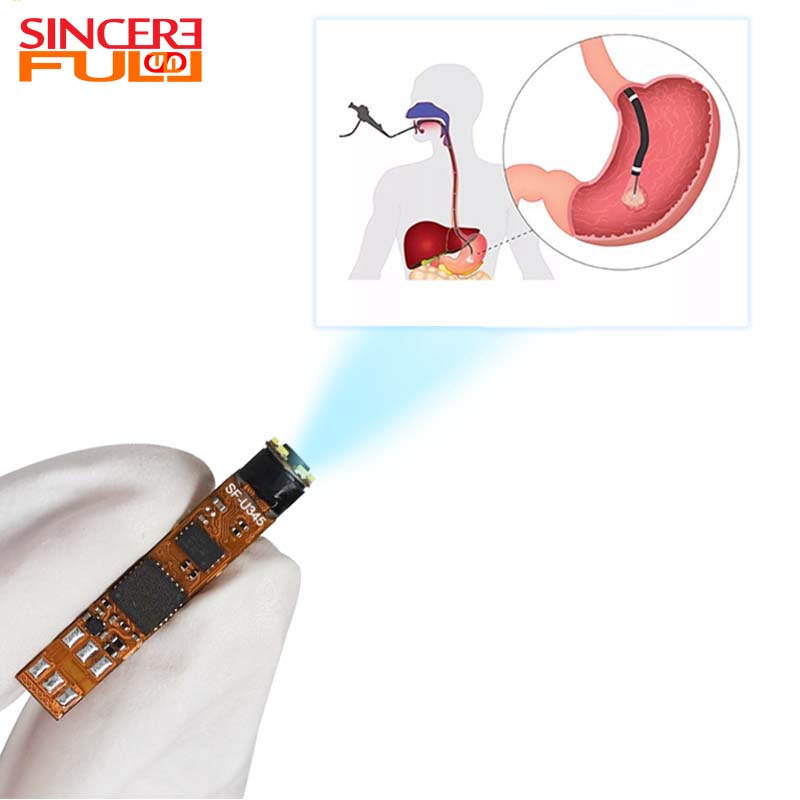

A4: Endoscopy has important applications in medicine, including bronchoscopy to identify airway and lung abnormalities, urology to examine the bladder and urethra, otoscopy to examine the ear, and nasopharyngoscopy to examine the nasal cavity and pharynx. In addition, endoscopes are also used in surgical procedures, such as laparoscopic techniques, which provide high-definition images through small incisions and are equipped with built-in lighting to enhance visibility in dim environments and facilitate patient recovery.
Q5: What can be customized for endoscope camera modules?
A5: The Endoscope camera module is available in a variety of customization options to meet the specific needs of customers. Users can choose from integrated or standalone solutions for medical or industrial applications, and lens diameters can be adjusted for different operating environments to ensure optimal imaging results. In addition, customers can choose whether to add dust - and water-resistant protective steel sleeves to enhance durability. The built-in LED lighting system is also optional to provide high brightness lighting and improve visibility in low light conditions, especially suitable for inspection in medical environments.
