SF-N1050-V1 + SF-YL0320-V1
SINCEREFIRST

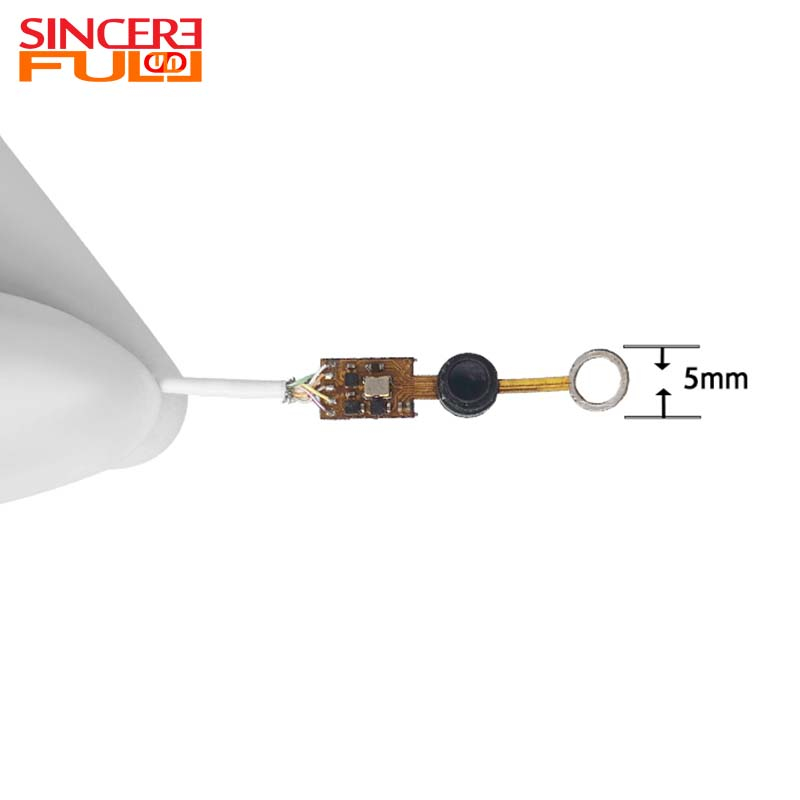

Our USB2.0 interface OV2740 sensor endoscope camera module delivers exceptional imaging quality with 73.3dB dynamic range and 1.4μm pixel size. Designed for compact access channels, this high-definition module supports MJPEG and YUV2 output formats, making it a reliable choice for medical diagnostics and industrial non-destructive testing applications. As a core product of SINCEREFIRST, a leading optical device manufacturer since 1992, this module combines precision optics and durable design to meet the rigorous demands of professional inspection scenarios.
Equipped with the OmniVision OV2740 CMOS sensor, the module boasts 73.3dB dynamic range, capturing crisp, high-contrast details even in low-light or harsh lighting environments. Its 1.4μm square pixel architecture enables micron-level visualization, perfect for examining tiny structures in confined spaces.
Compliant with USB2.0 UVC protocol, the module supports dual output formats (MJPEG compression & uncompressed YUV2), ensuring seamless integration with a wide range of diagnostic platforms, industrial control systems, and portable devices.
The reinforced cable and robust housing can withstand repeated sterilization cycles, meeting the strict hygiene requirements of medical applications. For industrial use, it resists chemical corrosion and mechanical wear, extending service life in harsh working conditions.
With a compact form factor, the module fits narrow access channels (compatible with 1.2mm-10mm diameter requirements), making it a versatile solution for cross-industry inspection tasks.
Parameter | Details |
Product Name | Side View Endoscope Camera Module |
Core Sensor | OV2740 CMOS Sensor |
Lens Size | 1/6inch |
Output Image Format | MJPEG/YUY2 (YUYV) |
Dynamic Range | 73.3dB |
Interface Mode | USB2.0 (TYPE C/5PIN 1.0) |
Operating Voltage | DC5V |
Brand | SINCEREFIRST |
Model | SF-N1050-V1 + SF-YL0320-V1 |
The module’s biocompatible design and high-resolution imaging make it ideal for minimally invasive procedures, such as endoscopic examinations of the digestive tract and respiratory system. It supports repeated sterilization, ensuring patient safety and reducing cross-contamination risks.
Enable non-disassembly inspection of engine cylinder walls, transmission components, and fuel injectors. The compact size allows technicians to reach tight spaces, identifying wear, corrosion, or blockages without costly teardowns.
Conduct non-destructive testing of structural integrity in wall cavities, pipe networks, and ceiling spaces. Detect cracks, water leaks, or mold growth early, preventing major structural damage and reducing maintenance costs.
Document fragile artifacts and subsurface tomb structures with minimal contact. The high-precision imaging preserves detailed visual data, supporting archaeological research without damaging precious cultural relics.
Medical modules prioritize biocompatibility, sterilization resistance, and compliance with FDA/CE certifications to ensure patient safety. Industrial modules focus on durability, corrosion resistance, and wide temperature operation (-20°C to 70°C), along with special light sources (e.g., UV) for specific inspection needs.
Pipeline inspection modules typically require 10–30 meter long cables, which are reinforced with a Kevlar tensile layer and waterproof connectors. This design supports real-time data transmission while resisting internal pipeline friction and chemical corrosion, ensuring stable performance in long-distance inspection tasks.
First, check if the sterilization temperature exceeds the module’s tolerance limit (most models are rated for 120°C maximum). Ensure the power is turned off and the battery is removed before sterilization—this prevents sealant failure or circuit board deformation. If issues persist, contact our technical support team for professional troubleshooting.
