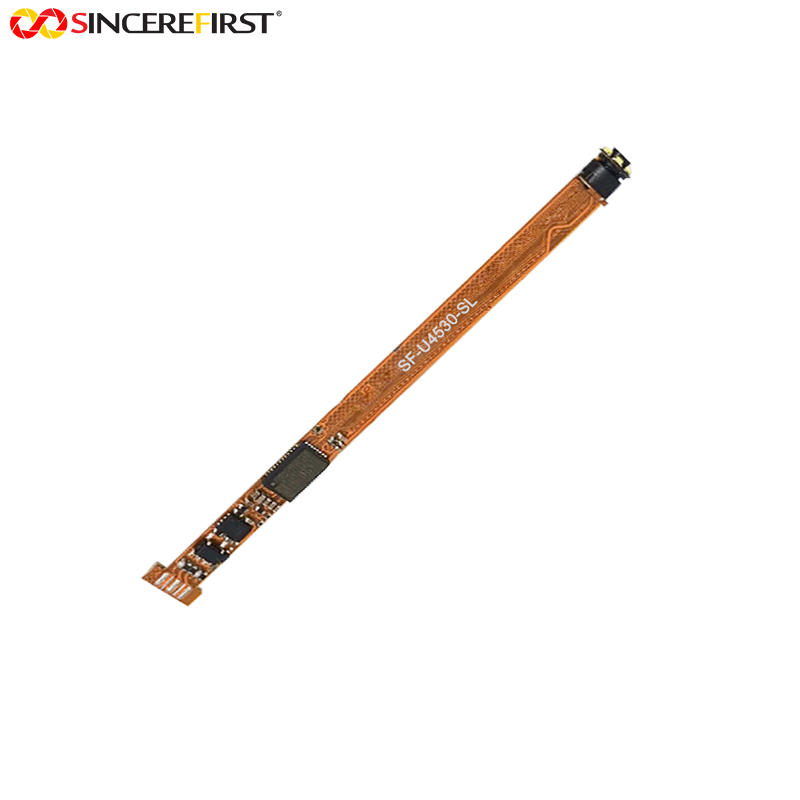

SF-U4530-SL
SINCEREFIRST
BF2013 is a highly integrated VGA camera module that combines a CMOS image sensor (CIS) with advanced image signal processing (ISP) capabilities. Designed using CMOS image sensor technology, it achieves exceptional low dark noise and high sensitivity while consuming minimal power. The sensor features an effective pixel array of 653 x 493, with an optical format of 1/10 inch, making it ideal for applications such as endoscope camera modules. The camera module supports a variety of data formats, including Bayer RGB, RGB444, RGB555, RGB565, and YCBCR 4:2:2, catering to diverse application needs. This VGA camera module can operate at up to 30 frames per second with a 24MHZ clock in VGA mode, giving users comprehensive control over image quality and data formatting. Additionally, all essential image processing functions, such as exposure control, white balance adjustments, and color saturation operation, can be programmed via the two-wire serial bus, enhancing its versatility for various mini camera module applications. |  |
Product Advantage ◢
Integration and Design
Combines a CMOS image sensor (CIS) with image signal processing (ISP) in a single module.
Fabricated using advanced CMOS technology for low dark noise and high sensitivity.
Performance Specifications
Features a pixel array of 653 x 493 effective pixels and a compact optical format of 1/10 inch.
Capable of operating at up to 30 frames per second at a 24MHz clock in VGA mode.
Image Processing Capabilities
Integrated noise-cancelling CDS circuits and programmable analog global gain.
On-chip 10-bit ADC, with control over auto black level, auto exposure (AE), and auto white balance (AWB).
Supports various data formats including Bayer RGB, RGB444, RGB555, RGB565, and YCBCR 4:2:2.
Control and Interface
Utilizes a two-wire serial interface for seamless host control over sensor operations.
Complete programmability for image processing functions such as exposure control, white balance, and color saturation, allowing for tailored image quality adjustments.

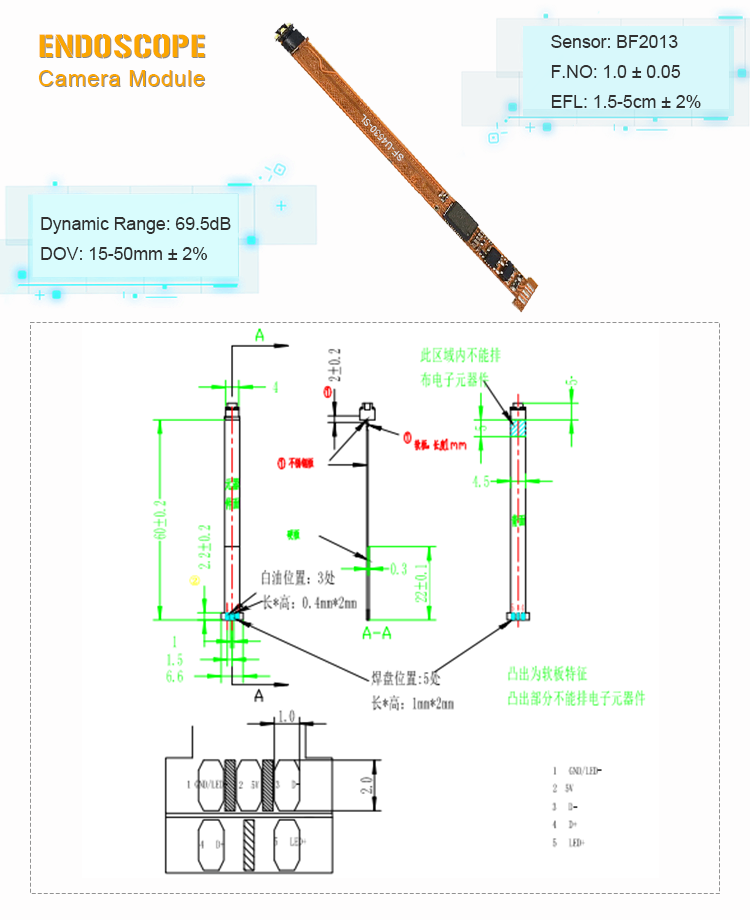

Technical Parameters ◢
Product Name | VGA Sensor Endoscope Camera Module |
Pixel | 0.3MP |
DSP | USB2.0 UVC |
Description | 0.3MP Endoscope Camera Module |
F.No | 2.8 |
Transport Package | Carton Box |
Specification | Camera Module |
Trademark | SINCERE FIRST |
Image Sensor | Bf2013 |
Diameter | 1080P |
Product Uses ◢
Dental Plaque Detection
Hysteroscope
Drug Screening Equipment
FAQ ◢
1. How to evaluate the cost performance of the module?
For comprehensive resolution, durability, and after-sales support (such as medical modules that require calibration services from manufacturers), industrial scenarios can prioritize MTBF (mean time to failure) indicators.
2. Advantages of AI-assisted endoscope module?
It integrates real-time lesion labeling (such as polyp recognition), surgical navigation (blood vessel positioning), automatic exposure and other functions, and relies on edge computing chips (such as NVIDIA Jetson) for low latency processing.
3. How does 3D endoscope achieve stereoscopic vision?
Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.
