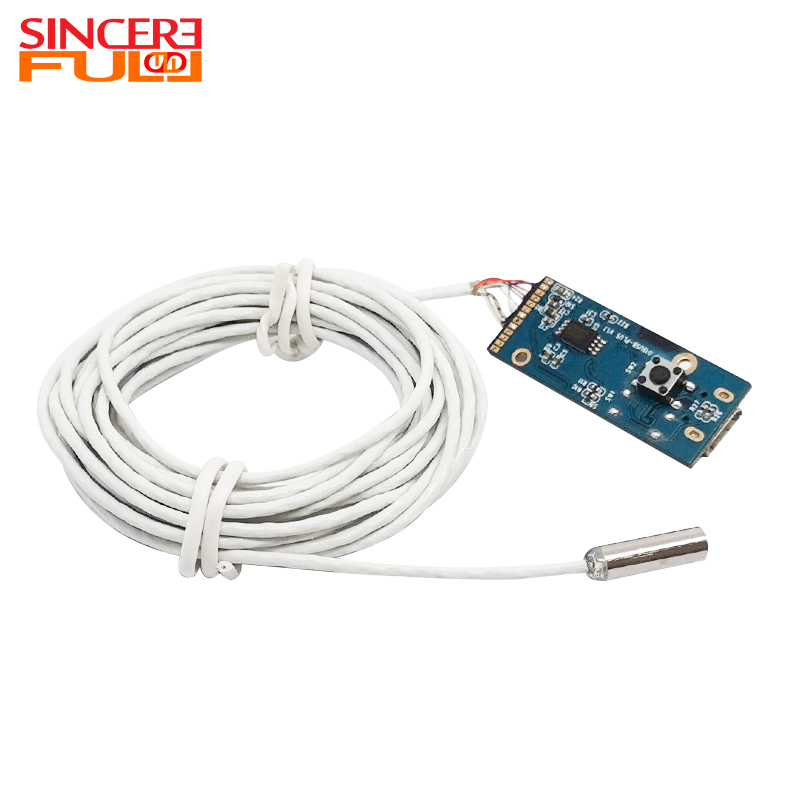

3.9mm Waterproof 720P Wide Angle Separate USB2.0 UVC Endoscope Camera Module

This 3.9mm Waterproof 720P Wide Angle Separate USB2.0 UVC Endoscope Camera Module ，is a 720P HD endoscope camera module equipped with an OV9734 sensor, specifically designed for medium-to-close range observation in confined spaces. With a lens diameter of just 3.9mm including its steel shell, this module effortlessly penetrates narrow cavities and humid environments, providing stable, waterproof close-range observation capabilities for endoscopic instrument channels. Featuring a 95° wide field of view, the module captures broader areas in a single shot, minimizing the need for frequent repositioning. Its flexible 10-100mm focus range ensures stable imaging from close to medium distances without repeated refocusing. Optional 4 x 0402 LED fill lights with a dedicated dimming button allow manual brightness adjustment based on ambient light, ensuring clear detail capture in both low-light and bright environments. Compatible with USB 2.0 UVC plug-and-play protocol, it supports dual YUV and MJPEG output formats to flexibly meet various device image processing requirements. Featuring a 1.08mm short focal length, F4.0 aperture, and up to 30fps frame rate, it delivers smooth, clear visuals. Ideal for industrial inspection, equipment maintenance, non-invasive medical observation, and precision component inspection, it provides reliable visual support for visualization tasks in confined spaces.

Product Advantage ◢

1. Wide Field of View Coverage: 95° wide field of view captures more area in a single image, reducing frequent repositioning and boosting inspection efficiency.

2. Flexible Focus Adaptability: 10-100mm focus range delivers stable imaging from close-up to medium distances without repeated refocusing, accommodating diverse observation scenarios.

3. Convenient and Adaptable Lighting: Optional 4 LED fill lights with built-in brightness control buttons for manual adjustment, effortlessly handling low-light, high-glare, and other varied lighting conditions;

4. Driverless and Easy Integration: Supports USB 2.0 UVC driverless protocol for plug-and-play operation; compatible with dual YUV/MJPEG formats for flexible device integration, reducing implementation complexity.

Application of Endoscope Camera Module

1. Industrial confined space inspection: Suitable for detecting wear, blockages, or defects in small pipelines, internal mechanical components, and electronic device crevices, meeting mid-to-close-range observation needs in confined spaces;

2. Equipment maintenance and repair: Enables inspection of hidden areas inside home appliances and minute automotive components, facilitating assessment of hard-to-reach zones to enhance maintenance efficiency;

3. Non-invasive Medical Assistance: Paired with compact medical endoscopes for visual anatomical observation on body surfaces or shallow cavities, providing auxiliary support through its miniature size and clear imaging;

4. Precision Object Inspection: Suitable for close-range detail examination and quality control of micro-components, jewelry, small artifacts, and similar items, accurately capturing minute object features.

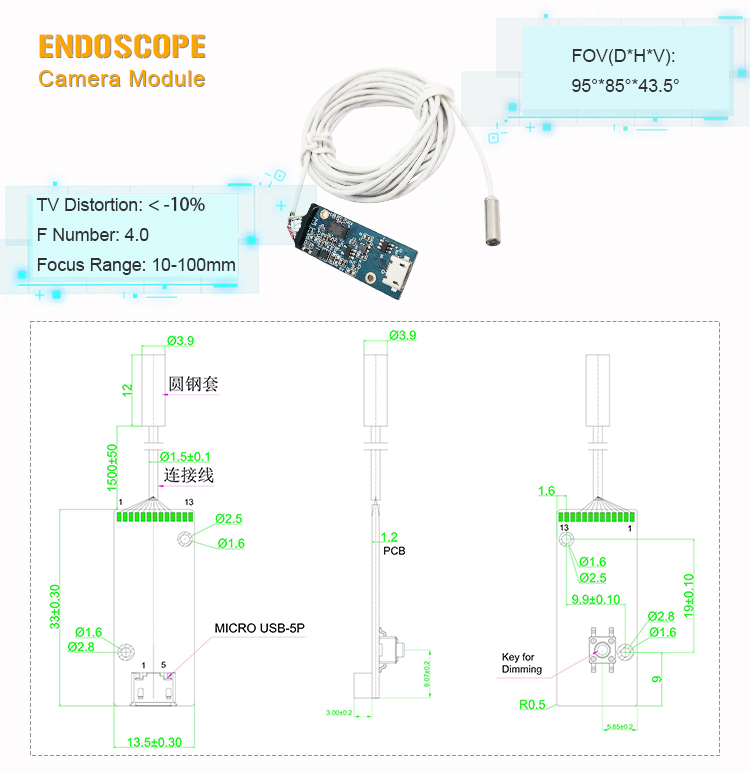

Technical Parameters ◢

FAQ

1. Why is low illumination performance important for endoscope modules?

In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.

2. What is the significance of the depth of field range of the module?

Large depth of field (such as 5mm to 50mm) can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.

3. How to achieve waterproof and sterilization design?

The medical-grade module uses IP68 waterproof seal, the housing material is resistant to high temperature and pressure (such as epoxy resin), and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design (IP54).
