Availability: | |
---|---|
Quantity: | |
SF-C0310USB-D3.9-L16
SINCEREFIRST

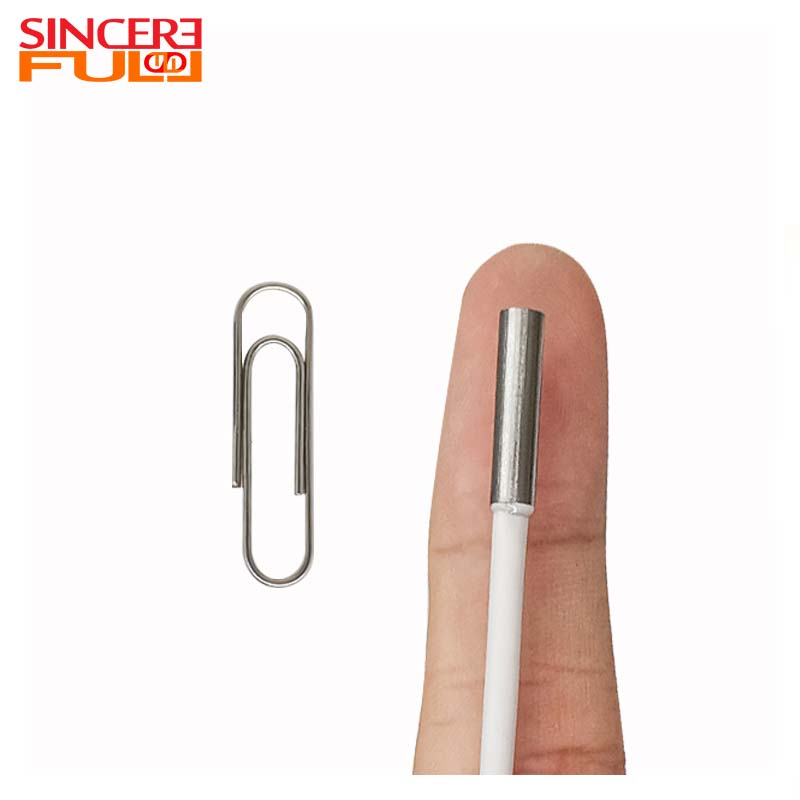

The GC032A is a mini camera module that delivers impressive 640H x 480V resolution, utilizing a 1/10-inch optical format. Integrated with a powerful 10-bit ADC and an embedded image signal processor (ISP), including USB2.0 camera modules in smartphones and PDAs. the GC032A incorporates high-performance, low-power functionalities, making it an excellent choice for extending battery life in various mobile applications. This versatile endoscope camera module is perfect for medical and industrial uses, particularly in a 3.9mm diameter endoscope camera module setup. The GC032A facilitates a variety of data formats, including Bayer RGB, RGB565, and YCbCr 4:2:2, and features a two-wire serial interface for straightforward control of the sensor’s operations. Additionally, it supports DVP and SPI interfaces, further broadening its compatibility and application scope in devices, including the USB2.0 medical endoscope camera module.
Product Advantage ◢
Resolution: Delivers 640H x 480V resolution with a 1/10-inch optical format.
Image Quality: Features a 4-transistor pixel structure and a 10-bit ADC for low noise and high fidelity.
ISP Functionality: On-chip image signal processor for smooth auto exposure and auto white balance.
Versatile Interfaces: Supports multiple data formats and communication interfaces, including DVP and SPI.
1. Biomedical micro-robot: equipped at the front end of 2mm intervention catheter, it can achieve 1080i signal output through DVP interface to assist embolization treatment of neurovascular malformation.
2. 3.9mm neuroendoscopy: Used for transnasal pituitary tumor resection. The ultra-fine probe can reach the sella region and transmit the three-dimensional relationship between pituitary microadenoma and surrounding blood vessels in real time to assist precise resection.
3. Aero engine hole detection: Detect internal cracks through turbine blade cooling holes, and support seamless connection between SPI interface and existing detection robots to achieve intelligent diagnosis.
Technical Parameters ◢
Product Name | 3.9mm Endoscope Camera Module |
Features | Smallest Endoscope Camera Module |
Output Interface | USB2.0 |
Sensor | VGA |
Focusing Range | 20-60mm |
TV Distortion | <-5% |
Focal Length | 1.72mm |
Keyword | camera module |
Lens | DFOV85 |
TV Distortion | 0402 White Led |
FAQ ◢
1. What can be customized for endoscope camera modules?
A5: The endoscope camera module can be selected as integrated or separated, and the diameter size, and whether it comes with a steel sleeve and LED light can also be customized.
2. How to control the transmission delay of wireless endoscope module?
By optimizing the coding algorithm and transmission in the 5GHz band, the delay can be controlled within 50ms, ensuring real-time operation. Some products use dedicated RF protocols to reduce interference.
3. What are the interface types of the module?
Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices are multi-integrated dedicated medical image interfaces.
