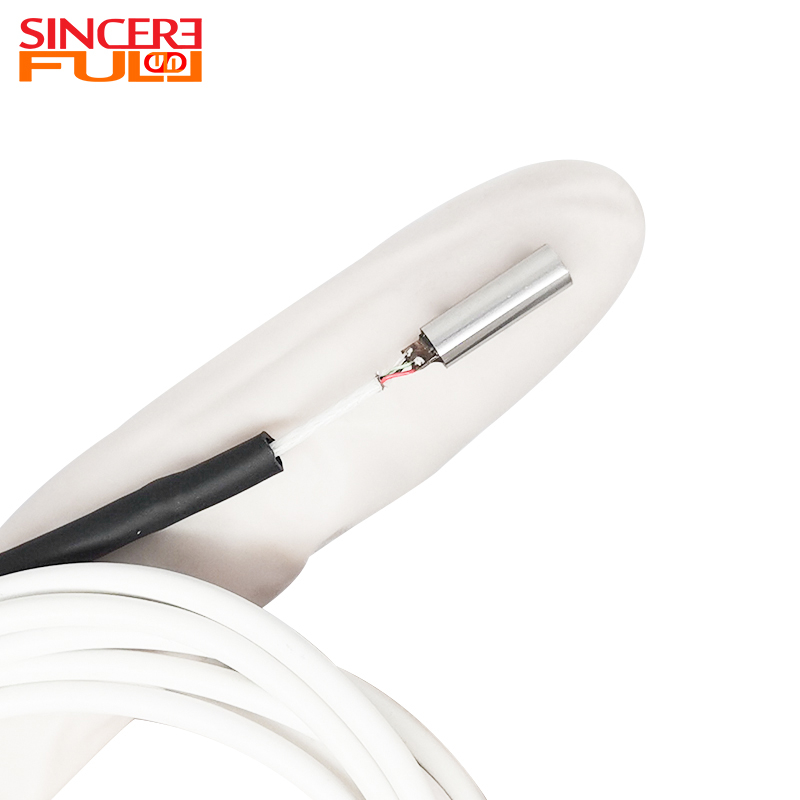

3.6mm USB2.0 OV9734 Endoscope Camera Module

This 3.6mm USB2.0 OV9734 Endoscope Camera Module.This module features a miniaturized design, integrating the high-performance OV9734 sensor with an optical system within a compact structure measuring just 3.6mm in outer diameter, ensuring clear and stable imaging. In terms of optical performance, this module features a 95° FOV, balancing a wide perspective with detailed rendering capabilities. Combined with less than -20% barrel distortion control, it ensures true-to-life, distortion-free edges. The F4.0 aperture paired with a versatile 10–100mm focal length range delivers exceptional depth of field and flexible focusing, enabling rapid, sharp imaging of both close-up textures and distant structures. This module,with its ultra-compact dimensions, can penetrate deep into human body cavities, industrial pipelines, and the interiors of precision instruments for high-definition, non-destructive inspection. Its superior optical control and stable imaging quality make it particularly suitable for intricate applications such as endoscopic examinations, weld seam detection, and internal defect identification in components, establishing it as a reliable tool in professional visual inspection.

Features ◢

1. Ultra-Compact Design: With an outer diameter of just 3.6mm, it effortlessly navigates confined cavities and intricate pipelines, overcoming the physical limitations of conventional cameras.

2. High-Definition Low-Distortion Imaging: Equipped with the OV9734 sensor, featuring a 95° optimized field of view and -20% TV distortion control, it delivers true-to-life high-definition images from center to edge, ensuring the usability and accuracy of inspection imagery.

3. Professional Calibration:The F4.0 fixed aperture ensures consistent light intake, combined with a wide 10-100mm focal length range. This enables clear focusing throughout the entire range—from close-up fine tissues to distant cavity structures.

4. Stable Reliability:Maintains imaging stability and device durability in complex environments, meeting reliability requirements for prolonged, high-load operations.

Application Of Endoscope Camera Module ◢

1.Industrial Endoscopy: Utilizing a 3.6mm ultra-thin lens to penetrate deep into equipment interiors, it delivers high-definition visualization of defects such as cracks and weld seams, enabling efficient non-destructive testing.

2. Medical Endoscopy: Its miniaturized design integrates seamlessly with endoscopic instruments, providing high-definition, low-distortion imaging that clearly reveals tissue details, offering reliable visual support for minimally invasive surgeries.

3.Security Surveillance: Ultra-compact size enables covert installation, while wide focal length balances overall views with detailed close-ups, suitable for internal monitoring in specialized scenarios.

4.Electronic Quality Inspection: High-resolution imaging precisely captures minute imperfections like solder joints and chips, making it an ideal solution for automated quality control in SMT and semiconductor packaging.

Product Details ◢

FAQ

1. How to achieve stereoscopic vision with 3D endoscope?

Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.

2. Why is low illumination performance important for endoscope modules?

In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.

3. What is the significance of the depth of field range of the module?

Large depth of field can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.
