SF-C0310USB-D3.9-L20 V1.0
SINCEREFIRST

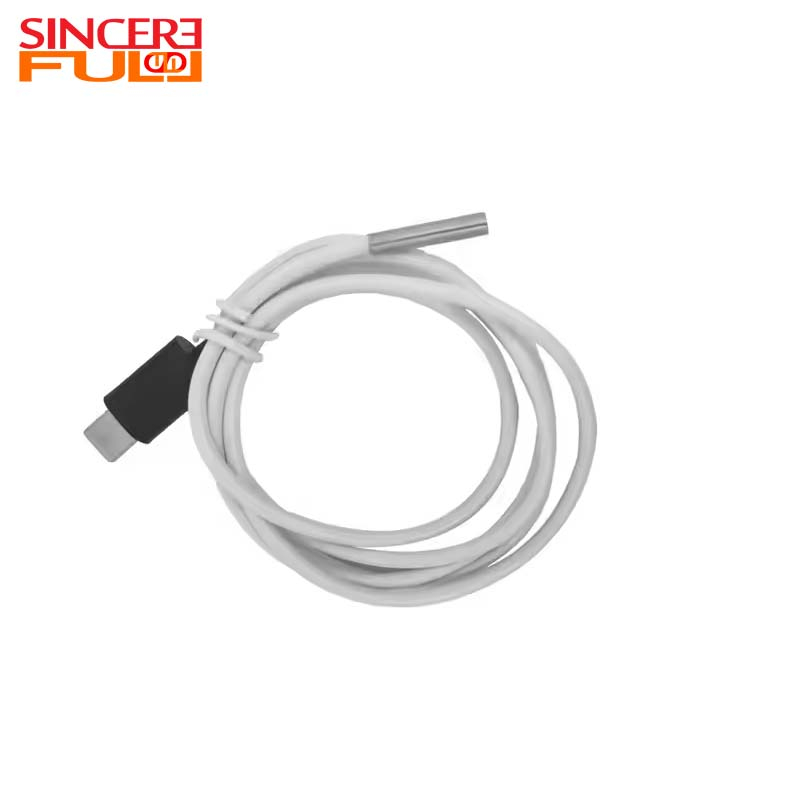

This 3.9mm GC030A Type-C endoscope camera module features a 640×480 resolution sensor supporting 30FPS HD video transmission. Its short focal length combined with a large aperture ensures clear and bright imaging within common focusing distances. The 85° field of view balances visibility and detail, with well-controlled lens distortion. Built-in high-brightness LED illumination adapts to low-to-medium light environments, making it suitable for mechanical inspections, automotive maintenance, and similar scenarios. The Type-C interface enables plug-and-play functionality for convenient use. |  |
Exceptional Image Clarity and Wide Field of View: The large aperture combined with an 85° wide-angle lens and low-distortion optics delivers bright, true-to-life, and minimally distorted images across all working distances.
Superior Low-Light Performance: Integrated high-brightness white LEDs effectively illuminate dark environments like pipelines and equipment interiors, ensuring usable images during mid-to-long-range inspections.
User-Friendly and Efficient: Plug-and-play with a standard Type-C interface, compatible with most devices and supporting fast charging. Ready to use out of the box, significantly boosting inspection startup and operational efficiency.
1. Industrial Inspection and Equipment Maintenance
Internal flaw detection in pipelines and vessels, weld inspection
Internal structure observation and fault diagnosis in precision machinery
Quality control during equipment assembly and reverse engineering analysis
2. Automotive Maintenance and Fault Diagnosis
Internal condition assessment of engine blocks, fuel tanks, and transmissions
Visual inspection of confined spaces like automotive AC ducts and brake systems
Vehicle accident investigation and insurance claims assessment support
3. Specialized Industry Applications
Covert surveillance and anti-surveillance detection in security operations
Microscopic structure observation in cultural relic restoration and archaeological excavations
Anatomical demonstrations and mechanical principle exhibits in educational training

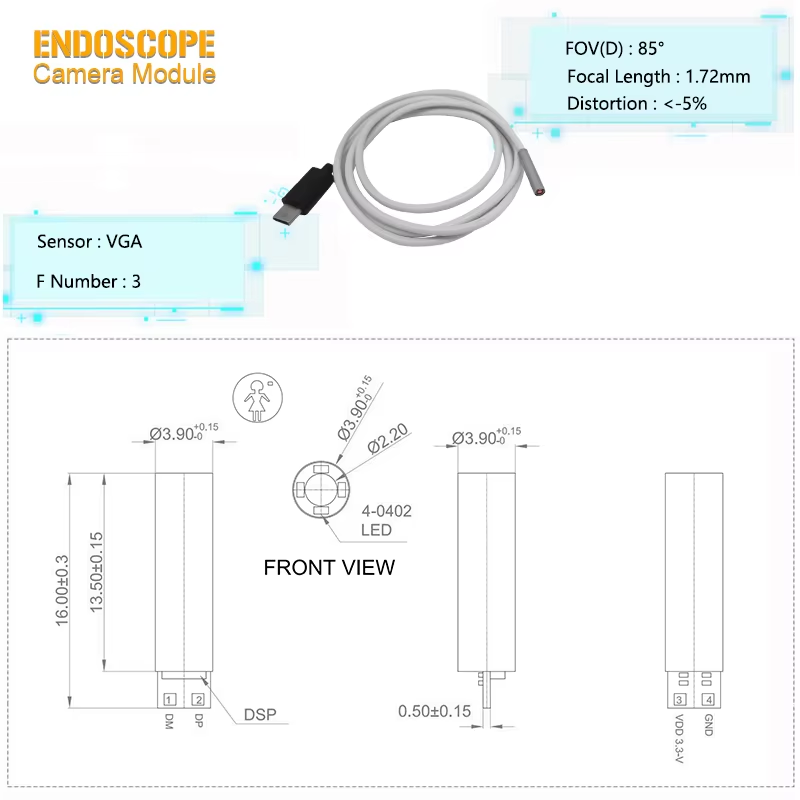

Product Name | Type C Endoscope Camera Module |
Features | 3.9mm Endoscope Camera Module |
Interface | Type C |
Sensor | VGA |
Focusing Range | 20mm-60mm |
Led | 4pcs |
Focal Length | 1.72mm |
TV Distortion | <-5% |
F Number | 3 |
Fov(D) | 90° |
FAQ
1. What are the typical requirements for custom modules?
Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
2. Why do some modules differ several times in price?
The difference is due to sensor brands (such as SONY IMX series vs domestic), optical lens groups (aspherical lenses cost more), medical certification (such as FDA process takes 2-3 years) and other factors.
3. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
4. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
5. What are the features of the dental endoscope module?
Integrated high color rendering ring LED light, resolution ≥1080p, some equipped with wireless handheld design, easy to take multi-angle photography in the mouth and connect to the diagnosis and treatment system.
