Mini 2MP OV2740 Sensor 5MM Inspection Endoscope Camera Module 1080P

This compact 5mm 2MP Endoscope Camera Module features an OV2740 sensor for 1080P video at 60fps, a 140° field of view, and IP67 waterproof protection, making it ideal for medical applications like gynecology and laparoscopy.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C2016USB-1080P60-D5

  • SINCEREFIRST

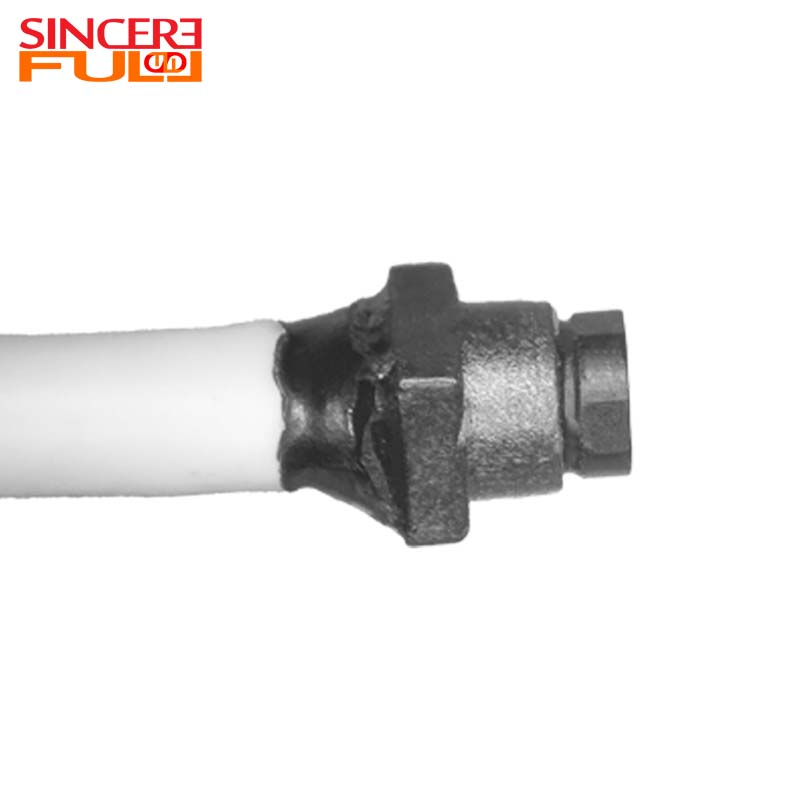

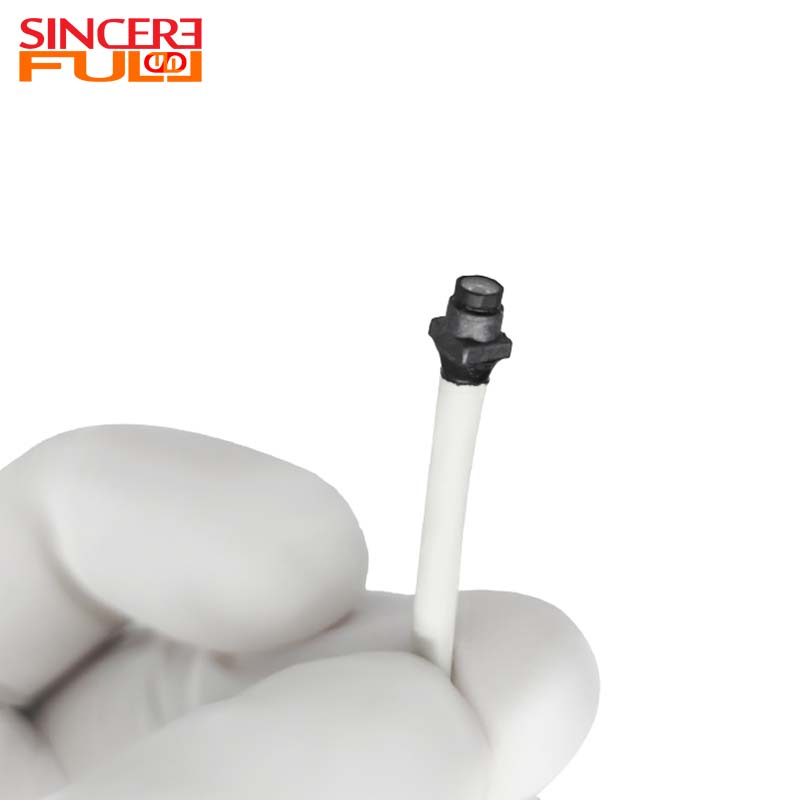

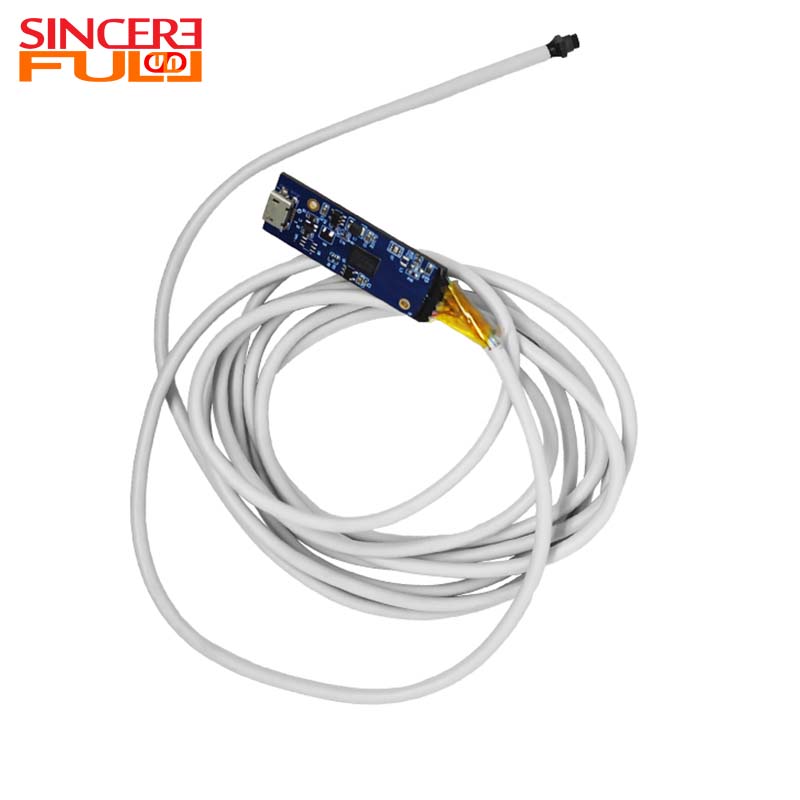

This 2MP Endoscope Camera Module featuring a compact design with a diameter of just 5mm.  This Mini Camera Module is equipped with the advanced OV2740 Sensor, capable of delivering high-definition 1080P video at a maximum frame rate of 60fps, with a resolution of 1920*1080.  With a 140° diagonal field of view and a depth of field ranging from 8-80mm, this endoscope camera excels in various medical applications, including gynecological examinations, colonoscopy, laparoscopy, dental imaging, and more.  Additionally, the unit is highly durable, offering waterproof and oil-proof protection rated at IP67, making it a reliable choice for various clinical settings.  The 2MP camera module ensures high-quality imaging for precise diagnostic purposes.


规格图


Product Advantage ◢

  • High integration: OV2740 sensor combines CMOS image sensor .

  • IP67 Waterproof: With an IP67 waterproof rating,

  • 140° DFOV & 8-80mm DOF: The 140-degree diagonal field of view combined with a suggested depth of field of 8-80mm allows for comprehensive imaging in diverse situations, enhancing diagnostic accuracy.


Application Of Endoscope Camera Module ◢

1. Dental implant surgery navigation: real-time display of the three-dimensional structure of the alveolar bone, auxiliary implant accurate implantation.


2. Material science: Observe the microscopic fracture surface of composite materials and analyze crack expansion with depth measurement software

Spread the path.


3. Arthroscopic diagnosis and treatment: During knee replacement, the surface of cartilage and deep bone structure are observed at the same time through 8-80mm depth of field to improve the meniscus repair accuracy.





Technical Parameters ◢

Product Name

5mm Endoscope Camera Module

Features

5mm Inspection Endoscope Camera

Pixel

8MP

Sensor

OV2740 OmniVision

Interface

USB2.0 UVC

Focus Range

8-80mm

Focal Length

1.29mm

Trademark

SINCERE FIRST

Fov(D)

140°

TV Distortion

<-53%



FAQ ◢

1. Advantages of AI-assisted endoscope modules?

It integrates real-time lesion marking, surgical navigation, automatic exposure and other functions, and relies on edge computing chip to achieve low latency processing.


2. How to clean the endoscope camera lens?

Use a sterile soft cloth and special lens cleaner to avoid alcohol damage to the coating. Industrial modules can be blown with air to remove dust, oil environment should be combined with oil resistant solvent.


3. What are the features of the dental endoscope module?

Integrated high color rendering ring LED light, resolution ≥1080p, some equipped with wireless handheld design, easy to take multi-angle photography in the mouth and connect to the diagnosis and treatment system.
