SF-C0310USB-D3.9-PLUS-D9
SINCEREFIRST
This Mini Camera Module features a 3.9mm Endoscope Camera Module equipped with a VGA Sensor and built-in digital signal processor to deliver real-time, high-definition imaging. Designed for precision diagnostics and industrial inspections, this USB Camera Module outputs YUV2 and MJPEG formats, ensuring sharp and accurate visuals. It supports USB2.0 and OTG protocol, enabling seamless integration with Android, Windows, and Linux systems. Compact and waterproof (IP67), this HD Camera Module is ideal for minimally invasive medical procedures, veterinary diagnostics, and confined-space industrial applications. |  |
Features ◢
1. Ultra-Compact 3.9mm Diameter Design
The Mini 3.9mm Endoscope Camera Module offers superior access to narrow spaces within the human body or mechanical structures. Its ultra-thin profile ensures minimally invasive entry for medical endoscopy, dental diagnostics, or industrial pipeline inspections, outperforming bulkier competitors in tight-space accessibility.
2. High-Definition Imaging with VGA Sensor
Equipped with a 1/10 inch VGA Sensor, this HD Camera Module captures crisp, detailed visuals suitable for high-precision applications. The image processor and advanced algorithms deliver enhanced color fidelity and contrast, meeting medical imaging standards for internal examinations.
3. Built-in LED Lighting for Low-Light Operation
This Camera Module with LED light includes adjustable LED illumination, providing excellent visibility in dark or enclosed environments. Whether inside human cavities or machinery, the lighting ensures consistent image clarity without the need for external light sources.
4. USB2.0 & UVC Plug-and-Play Compatibility
The USB Camera Module supports USB2.0 and is fully UVC-compliant. It requires no additional drivers and supports OTG, offering direct plug-and-play functionality across Windows, Android, and Linux systems. Ideal for mobile diagnostics and on-site inspections.
5. Waterproof and Durable for Harsh Environments
With an IP67 waterproof rating, this Borescope Camera Module is protected against dust and water immersion, making it suitable for demanding environments like wastewater pipe inspection or wet surgical procedures. Durable design ensures long-term performance.
6. Flexible Length & Depth of Field
Available in 1/2/3 meter cable lengths and featuring a depth of field (DOF) of 20-80mm, this module accommodates a wide range of applications from close-up tissue inspection to deep pipeline probing. Users benefit from flexibility without sacrificing image quality.
Application Of Endoscope Camera Module ◢
1. Medical Endoscopy (Gastroscope, Cystoscope, Laparoscope)
This medical endoscope camera module is tailored for minimally invasive diagnostics, allowing physicians to view internal organs such as the stomach, bladder, and abdominal cavity in real-time. Compared to standard endoscopes, our module provides enhanced image clarity and reduced procedural trauma due to its compact 3.9mm diameter.
2. Dental and Oral Inspections
Ideal for dental plaque detection and oral cavity monitoring, this Mini Camera Module provides dentists with clear imaging of hard-to-reach areas. It ensures accurate diagnosis and treatment planning, offering a competitive edge over traditional mirrors or bulky cameras.
3. Veterinary Endoscopy
For veterinary clinics, this USB Camera Module enables non-invasive examinations of animals’ internal organs. It supports mobile diagnosis in field conditions and offers excellent compatibility with existing veterinary software.
4. Industrial Borescope Inspections
The Borescope Camera Module is widely used in non-destructive testing for engines, pipelines, and machinery. It identifies corrosion, blockages, or structural issues without dismantling equipment. Compared with traditional inspection tools, our module delivers higher resolution and faster setup.
5. Sewer and Pipeline Monitoring
In plumbing and municipal inspections, this HD Camera Module enables quick fault identification inside narrow pipes. Its waterproof design and LED lighting provide reliable imaging in murky environments, improving service efficiency and safety.

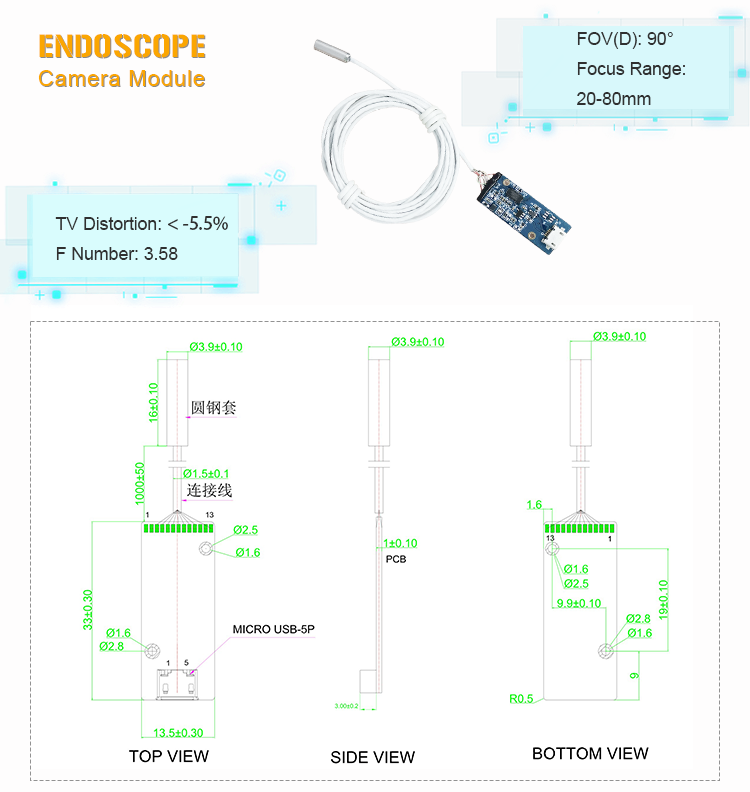

Product Details ◢
Keywords | 3.9mm USB Endoscope Camera Module |
Sensor | VGA |
LED | 4pcs LED |
Module Size | 3.9mm dia |
Focusing Range | 20mm-80mm |
Focal Length | 1.074mm |
FOV(D) | 90° |
TV Distortion | ＜-5.5% |
Output Format | YUV&MJPG |
F Number | 3.58 |
Output | USB2.0 UVC |
Features | Mini Endoscope Camera |
FAQ ◢
Q1: What is an endoscope camera module?
A1: An endoscope camera module is a miniature imaging device designed for internal visualization in confined or hard-to-access spaces. It captures high-resolution images for diagnostic or inspection purposes in medical, industrial, or research settings.
Q2: Are you a factory or trade company?
A2: We are a professional manufacturer specializing in smart camera modules. With 10 automated, dust-free workshops and strict QC procedures, we ensure product reliability and compliance with industry standards.
Q3: How is the endoscope camera module controlled?
A3: The module connects via USB to devices like computers or tablets. Users can manage settings such as focus, zoom, and resolution through compatible software, ensuring real-time adjustments and high-performance imaging.
Q4: What can an endoscope camera module see?
A4: It visualizes internal structures like digestive tracts, respiratory systems, or mechanical interiors. Its clarity enables accurate diagnosis of conditions such as inflammation or mechanical defects.
Q5: What customization options are available?
A5: We offer tailored options for lens diameter, cable length, waterproof casings, and lighting configurations. This ensures each camera module with LED light meets specific medical or industrial requirements.
