SF-C0310USB-D3.9-L20 V1.0
SINCEREFIRST

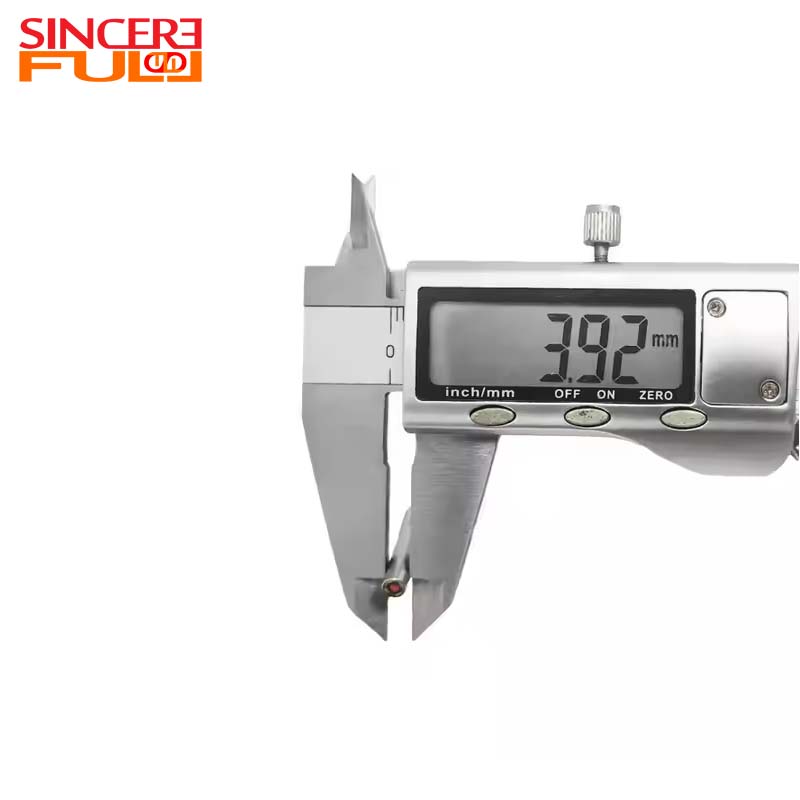

| This is a 3.9mm VGA Sensor Plumbing Inspection Type-C Interface Endoscope Camera Module, optimized specifically for pipeline and narrow space inspection applications. It is equipped with a high-performance VGA-grade CMOS sensor, capable of capturing clear 640x480 pixel images, and features an 85° field of view to provide a wide viewing range for inspection scenarios. The module adopts an Integrated design, which highly integrates the lens, sensor, light source and interface, completely eliminating the risks of loose connections, signal attenuation, dust and water ingress that exist in traditional split-type structures. It is particularly suitable for long-term operation in narrow and humid pipeline environments. With a lens diameter of only 3.9mm, it can easily pass through curved pipelines and narrow gaps. Combined with an 85° field of view, it balances the breadth of the viewing range and the ability to capture details. The front end of the lens is equipped with a durable Steel Shell, which effectively resists scratches from sharp foreign objects, chemical corrosion and accidental impacts inside the pipeline, significantly improving the service life and reliability of the device under harsh working conditions. The module integrates 4 0402 LED fill lights, providing uniform and bright lighting effects, and can present clear images even in completely dark environments. The interface adopts a standard Type-C design, supporting USB 2.0 high-speed transmission and UVC plug-and-play protocol. It is compatible with multiple operating systems such as Windows, Android and Mac OS, and no additional drivers or software need to be installed. The module meets the IP67 dust and water resistance rating, capable of withstanding immersion in 1-meter-deep water for 30 minutes, easily coping with humid, dusty or even submerged environments inside pipelines. The product has passed international authoritative certifications including CE, FCC, RoHS and Reach, and is manufactured using SMT (Surface Mount Technology) precision placement process and AA (Active Alignment) process, ensuring that each module has excellent performance and consistency. |  |
Clear and Wide Field of View: The VGA-grade CMOS sensor combined with an 85° field of view provides clear VGA image quality and a wide inspection range, suitable for observing internal details of various pipelines.
Durable and Robust: The lens features Steel Shell protection and IP67 dust and water resistance rating, ensuring long-term stable operation in harsh pipeline environments and resisting impacts and corrosion.
Convenient Plug-and-Play: The Type-C interface supports USB 2.0 speed and UVC protocol, requiring no additional drivers. It can be quickly connected to a variety of devices, simplifying the operation process.

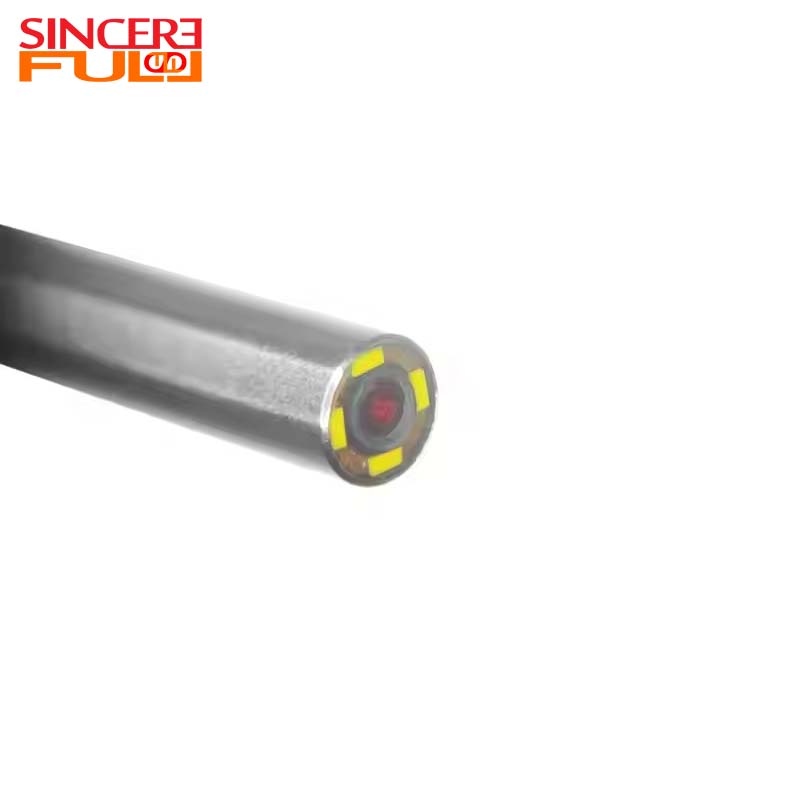

Intelligent Fill Lighting: Integrates 4 0402 LED fill lights that automatically adjust brightness, providing uniform illumination in dark or low-light pipelines to improve image quality.
High Reliability: Manufactured using SMT process and AA process to ensure module precision and consistency, reducing failure rates. It has passed international certifications such as CE and FCC to ensure product safety and environmental protection.
Compact Design: The Integrated structure and 3.9mm small-diameter lens facilitate integration into various inspection equipment, suitable for operation in narrow spaces.
Pipeline Inspection Equipment: Applicable to domestic tap water pipes, industrial heating pipes, air conditioning condensate pipes and gas transmission pipes. It can detect problems such as scale accumulation, corrosion damage and foreign object blockage inside the pipelines.
Precision Instrument Maintenance: Suitable for small gearboxes, micro-motor bearings and precision instrument gear sets. It can detect faults such as gear tooth surface wear, bearing raceway damage and internal part looseness.
Fuel System Inspection: Used for automotive fuel injectors, fuel pump filters and engine fuel pipelines. It can identify issues affecting fuel efficiency such as fuel injector carbon deposits and filter blockage.
Other Professional Scenarios: Adaptable to internal inspection of small industrial equipment, solder joint inspection of electronic components and inspection of small mechanical cavities, helping to accurately locate fault points.
Product Name | Type C Endoscope Camera Module |
Features | 3.9mm Endoscope Camera Module |
Interface | Type C |
Sensor | VGA |
Focusing Range | 20mm-60mm |
Led | 4pcs |
Focal Length | 1.72mm |
TV Distortion | <-5% |
F Number | 3 |
Fov(D) | 90° |

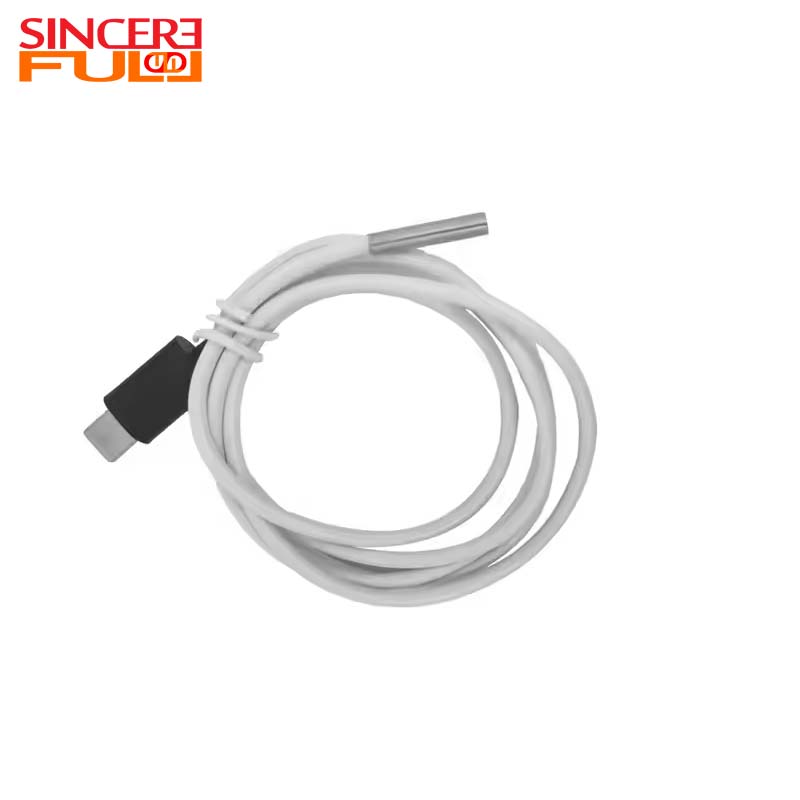

It supports devices with Type-C interfaces, such as smartphones, laptops and desktop computers. It is also compatible with the UVC protocol, enabling plug-and-play without the need for additional drivers.
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.

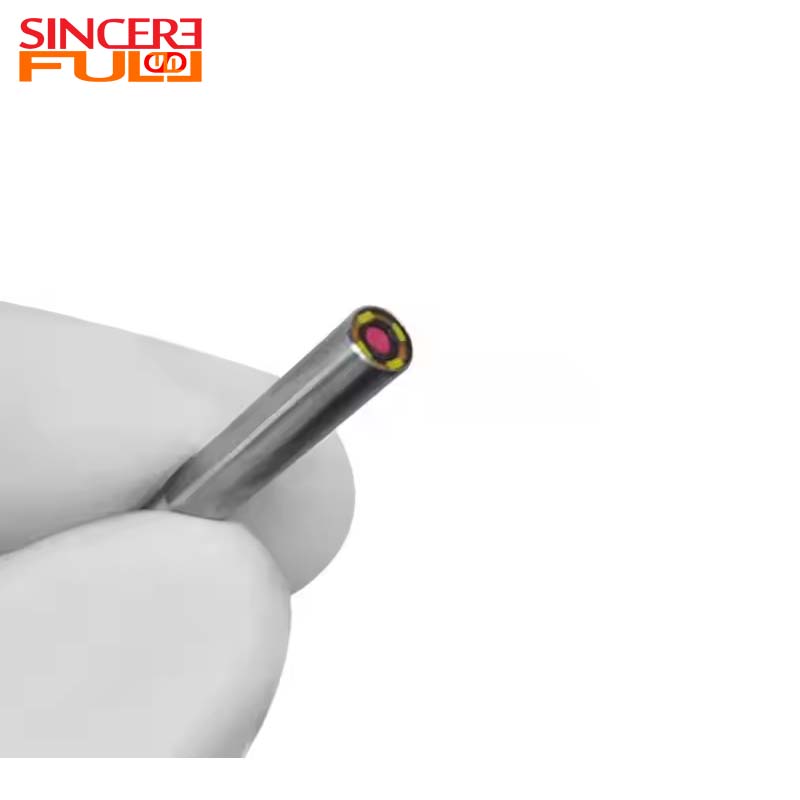

The Steel Shell can reduce direct friction between the lens and the inner wall of the pipeline, avoiding lens scratches. At the same time, it resists corrosion from chemical substances inside the pipeline, extending the service life of the module in pipeline inspection.
