SF-C0310USB-D3.6-D90-PLUS V1.0
SINCEREFIRST

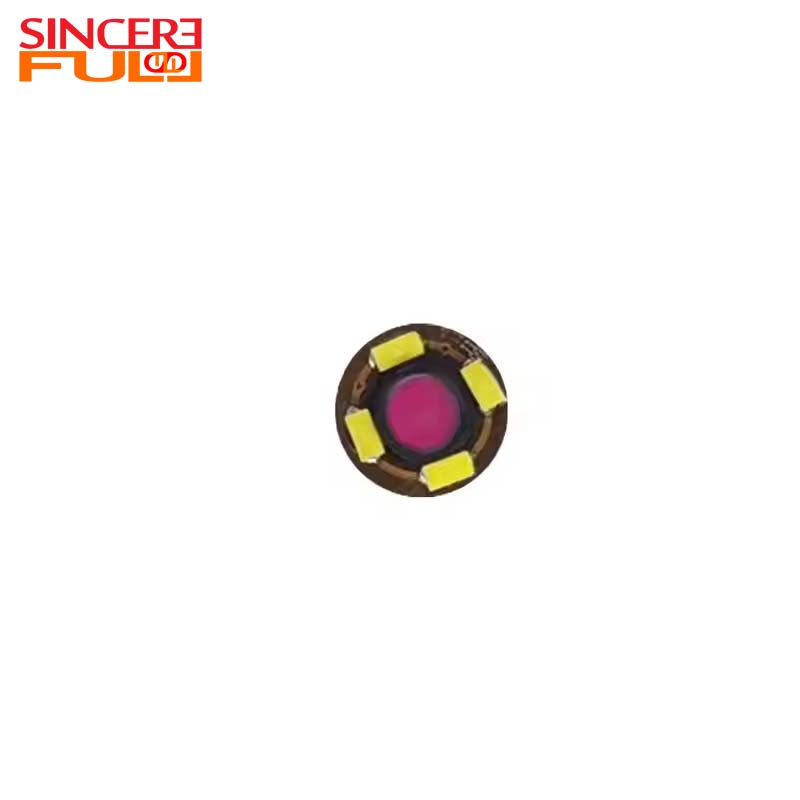

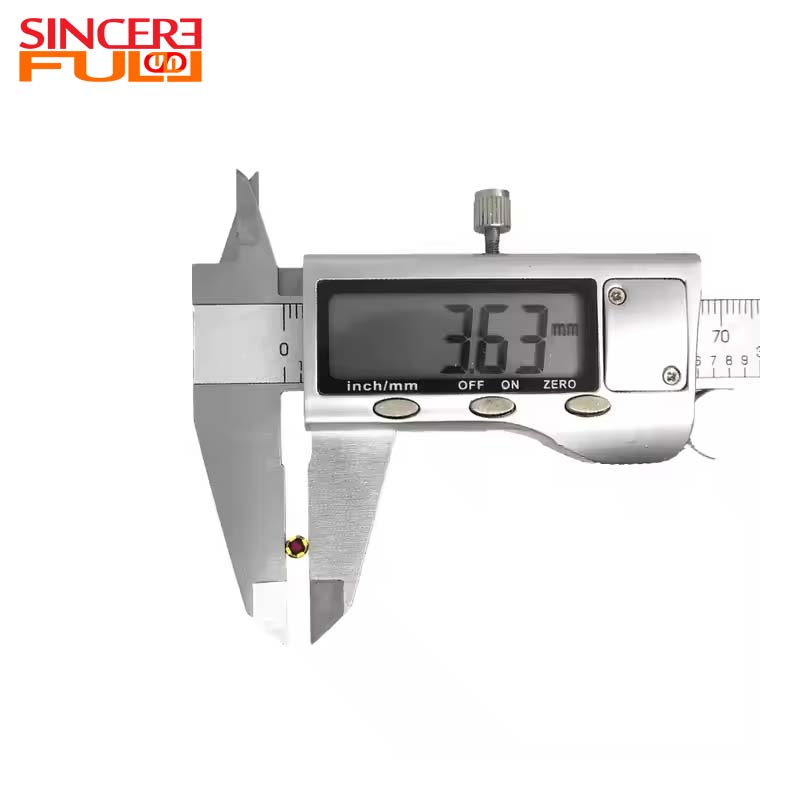

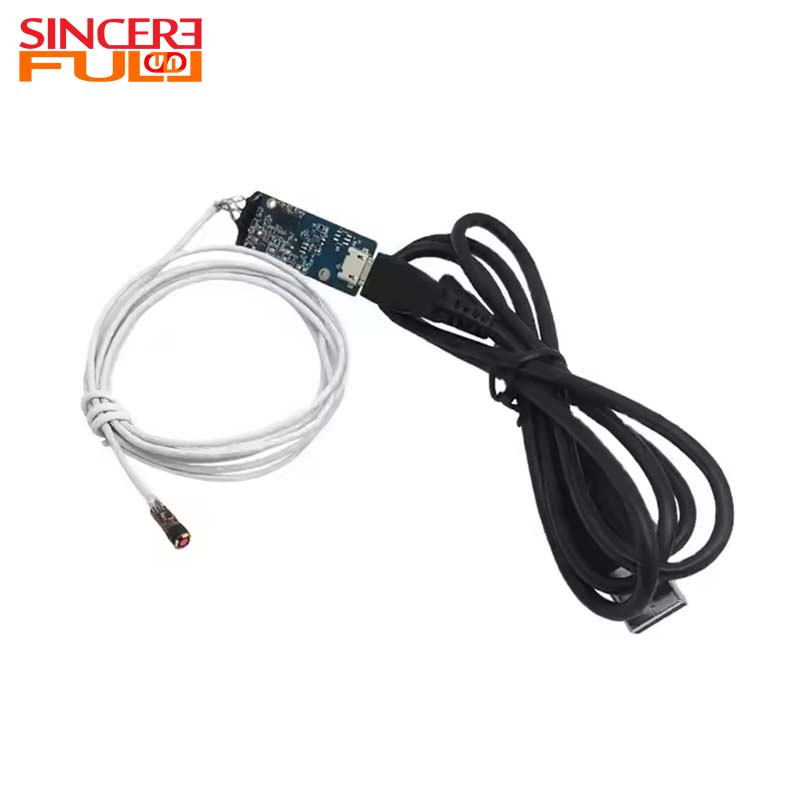

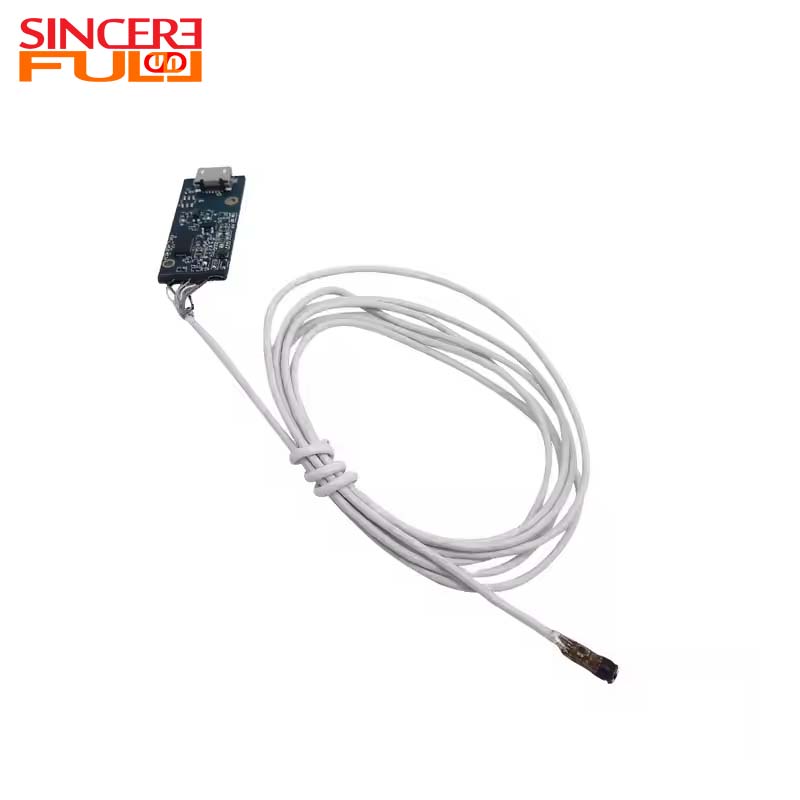

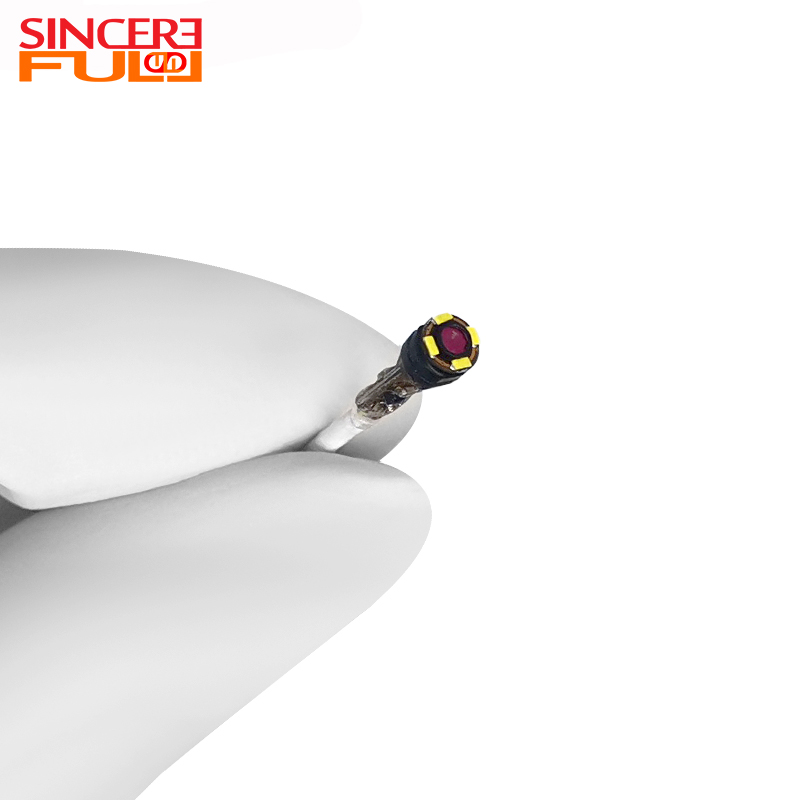

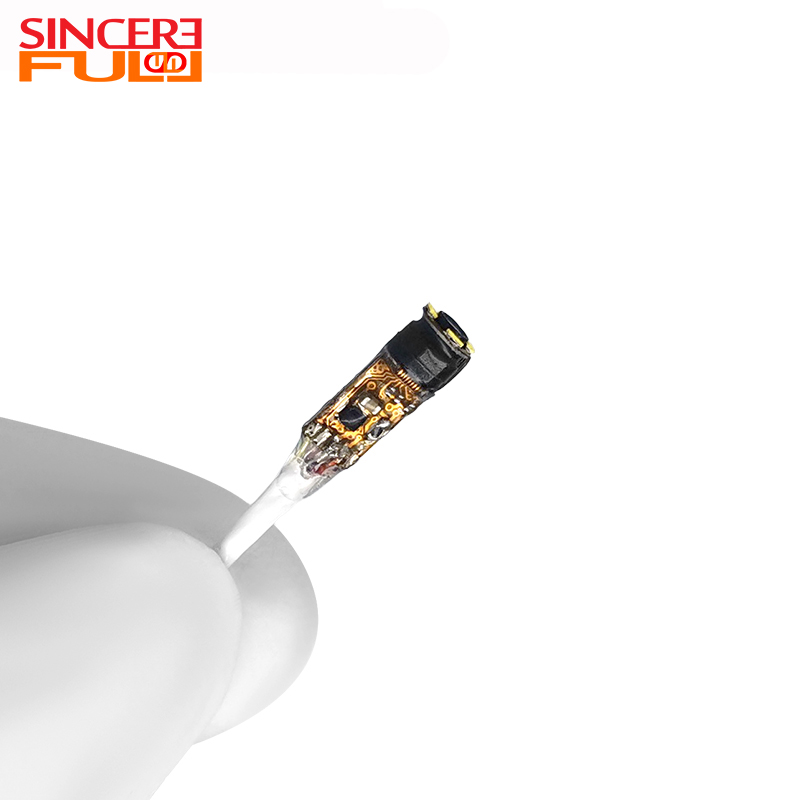

This 3.6mm USB endoscope camera module is equipped with a VGA image sensor, which can output a clear picture quality with a resolution of 640×480, and achieve stable data transmission through the USB2.0 high-speed interface. Its 1.074mm short focal length design with F3.58 large aperture provides excellent optical performance in the wide focusing range of 20-80mm, the 90° circular field of view Angle takes into account the wide Angle of view and detail capture, and the lens distortion control is better than the -5.5% standard to ensure the imaging geometric accuracy. The module integrates a high-brightness LED lighting system, which can adapt to complex scenarios such as industrial inspection, mechanical exploration and medical imaging, especially for precision inspection fields requiring medium-distance observation and high-precision imaging. |  |
1. Hd image quality upgrade: VGA sensor is 4 times more pixels than the basic model, which can clearly identify subtle cracks or part numbers.
2. Medium distance observation capability: 20-80mm focusing range covers deeper detection requirements, suitable for long pipelines and large machinery internal exploration.
3. Low light environment adaptation: F3.58 large aperture with LED lighting, in dim scenes (such as the internal corner of the device) can still maintain bright imaging.
4. Precision geometric reduction: TV distortion <-5.5% to ensure measurement level accuracy, meet industrial testing ISO standards.
5. Efficient data transmission: USB2.0 high-speed interface supports lossless image quality real-time transmission, compatible with mainstream detection software.
1. Industrial quality inspection: aircraft turbine blade detection, nuclear power equipment internal exploration.
2. Precision manufacturing: mold micro defect inspection, electronic components welding verification.
3. Protection of cultural relics: inspection of internal cracks of cultural relics and recording of restoration process.

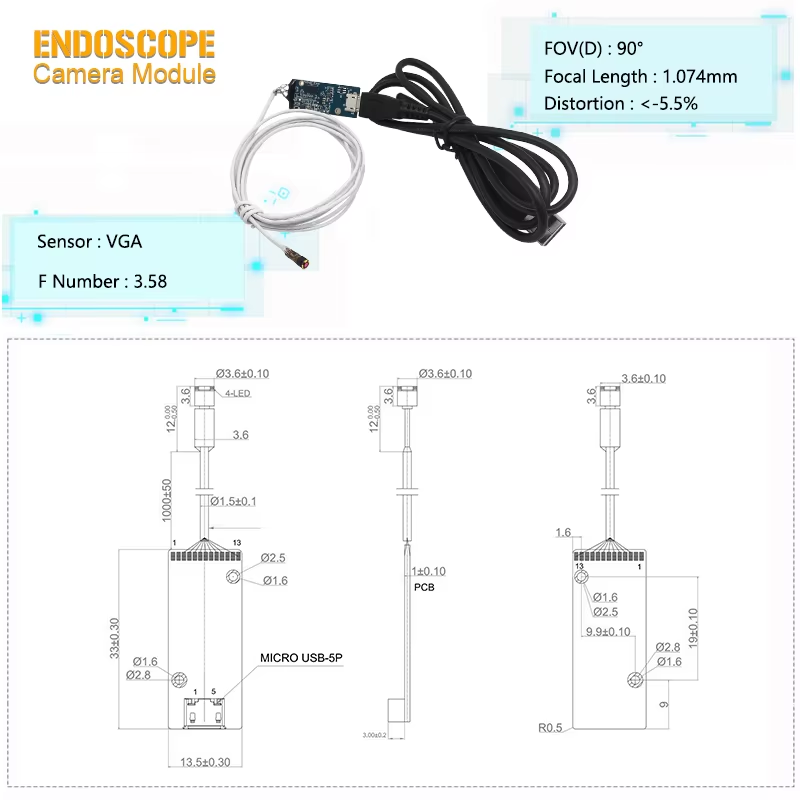

Product Name | Pipe Inspection Camera Module |
Features | 3.6mm Endoscope Camera Module |
DSP | USB2.0 UVC |
Sensor | VGA |
Focusing Range | 20mm-80mm |
Waterproof | IP67 |
Focal Length | 1.074mm |
TV Distortion | <-5.5% |
F Number | 3.58 |
Fov(D) | 90° |
FAQ
1. How to evaluate the cost performance of the module?
For comprehensive resolution, durability, and after-sales support (such as medical modules that require calibration services from manufacturers), industrial scenarios can prioritize MTBF (mean time to failure) indicators.
2. Can I buy a used medical endoscope module?
Sterilization history, sensor wear (e.g. number of hours on) must be confirmed, and must be re-certified by the original manufacturer, otherwise there is a risk of cross-infection or performance.
3. What are the typical requirements for custom modules?
Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
4. How does 3D endoscope achieve stereoscopic vision?
Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.
5. What is the trend of disposable endoscope modules?
In order to reduce the risk of cross infection, low-cost CMOS and injection molding housing are used, and the resolution remains above 720p, which is suitable for emergency or primary hospitals.
