SF-C0310USB-D3.9-D90-PLUS
SINCEREFIRST

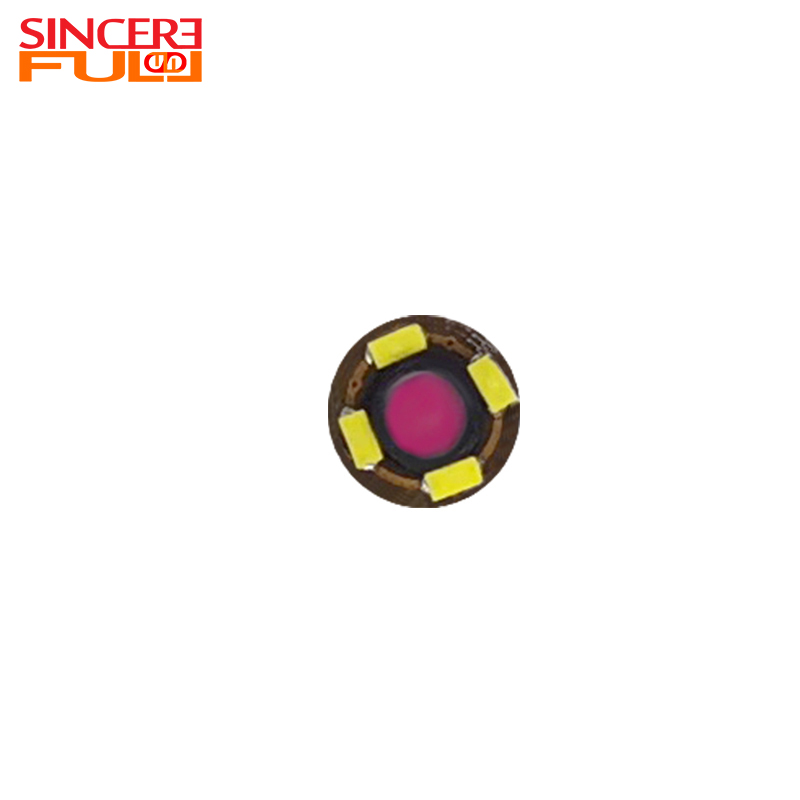

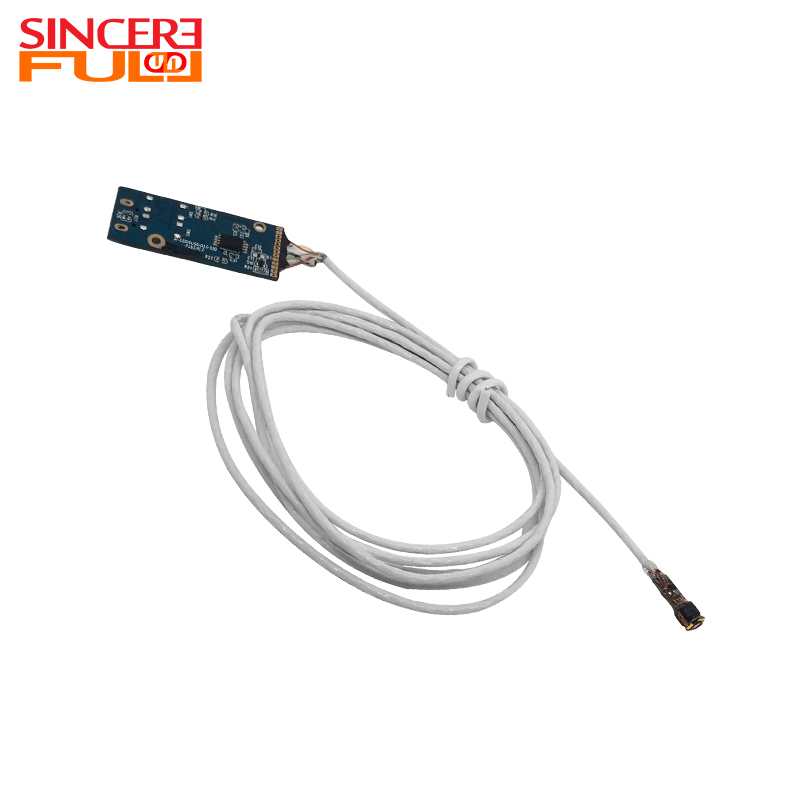

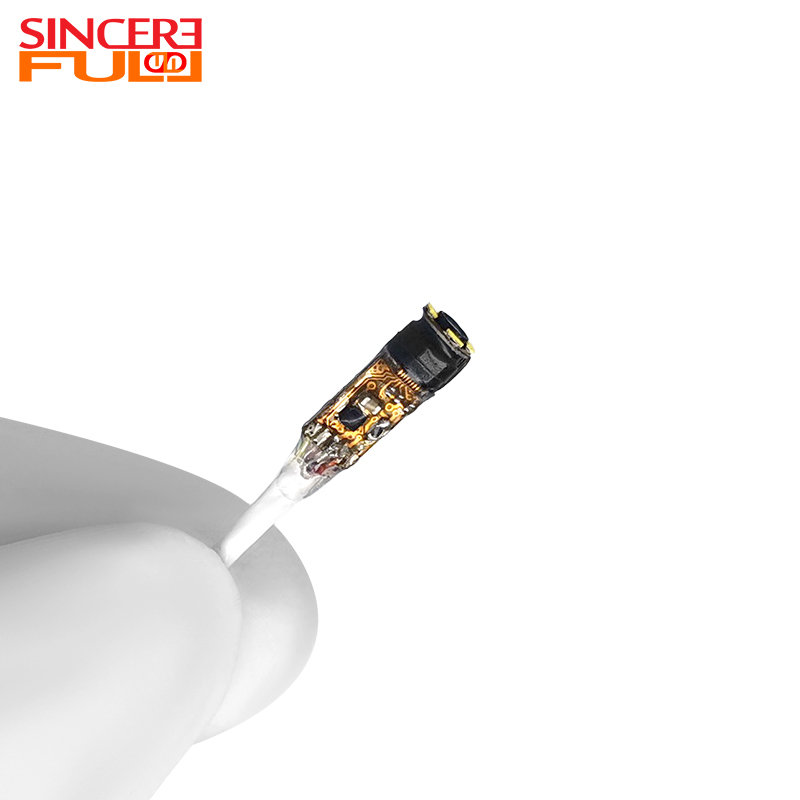

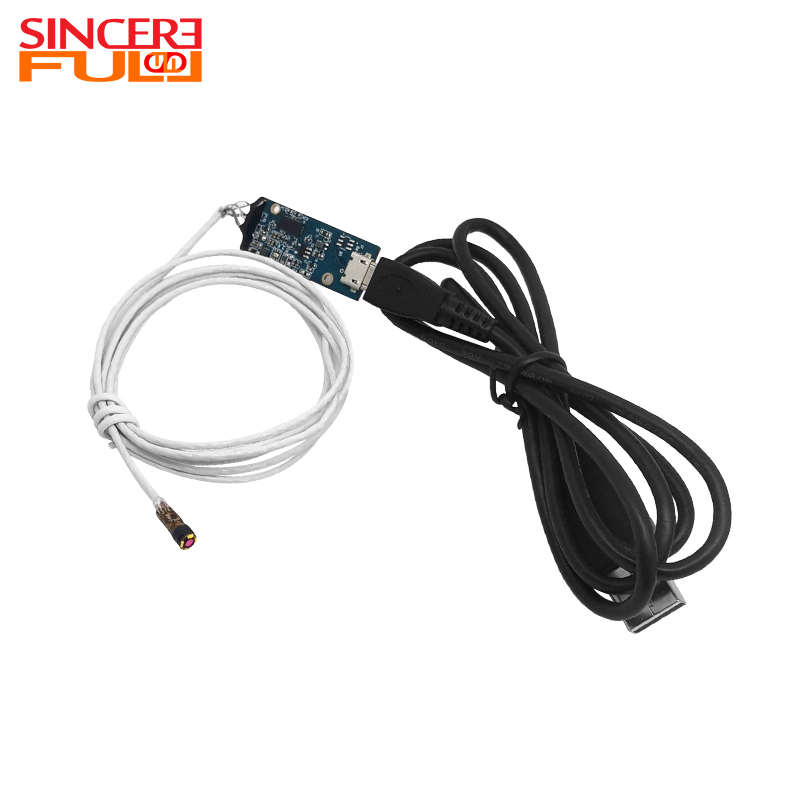

This product uses VGA sensor, through 3.9mm ultra-fine pipe diameter design, deep into various narrow Spaces to perform visual inspection tasks. With a resolution of 640×480 and an ultra-short focal length of 1.074mm, it captures details clearly in the 20-80mm focus range, and the F3.58 aperture balances brightness and depth of field to ensure stable image quality at different distances. The 90° wide field of view Angle covers a large range of observation areas, and the TV distortion rate is lower than -5.5%, restoring the real space proportion. USB2.0 high-speed interface to achieve plug and play, support real-time video transmission, compatible with mainstream detection software. The 3.9mm endoscope camera module is suitable for medical imaging, industrial inspection and other fields. |  |
1 High detection capability :3.9mm pipe diameter meets the requirements of narrow space detection, and can penetrate into mechanical cracks, pipeline interior and other hard-to-reach areas.
2. High-definition imaging performance: VGA sensor with 640×480 resolution, at 1.074mm ultra-short focal length clearly present details, 90° field of view Angle covers a large range of observation area, TV distortion rate is lower than -5.5% to ensure image geometric accuracy.
3. Flexible shooting:20-80mm focusing range with F3.58 aperture, balance brightness and depth of field at different distances, adapt to diverse detection scenes.
1. Industrial inspection: Explore the internal lubrication state of micro-bearings, the quality of electronic connectors solder joints, and replace traditional microscopes to improve efficiency.
2. Medical equipment: Observe the assembly accuracy of optical components inside the endoscope instrument and assist in fault location.
3. Cultural relics protection: Probe the crack depth inside pottery and the rust range of bronzes to provide data support for restoration programs.
Product Name | VGA Sensor Endoscope Camera Module |
Connector | Mini USB-5P |
DSP | USB2.0 UVC |
Format | YUV&MJPG |
Focusing Range | 20-80mm |
Focal Length | 1.074mm |
F Number | 3.58 |
FOV(D) | 90° |
TV Distortion | ＜5.5% |

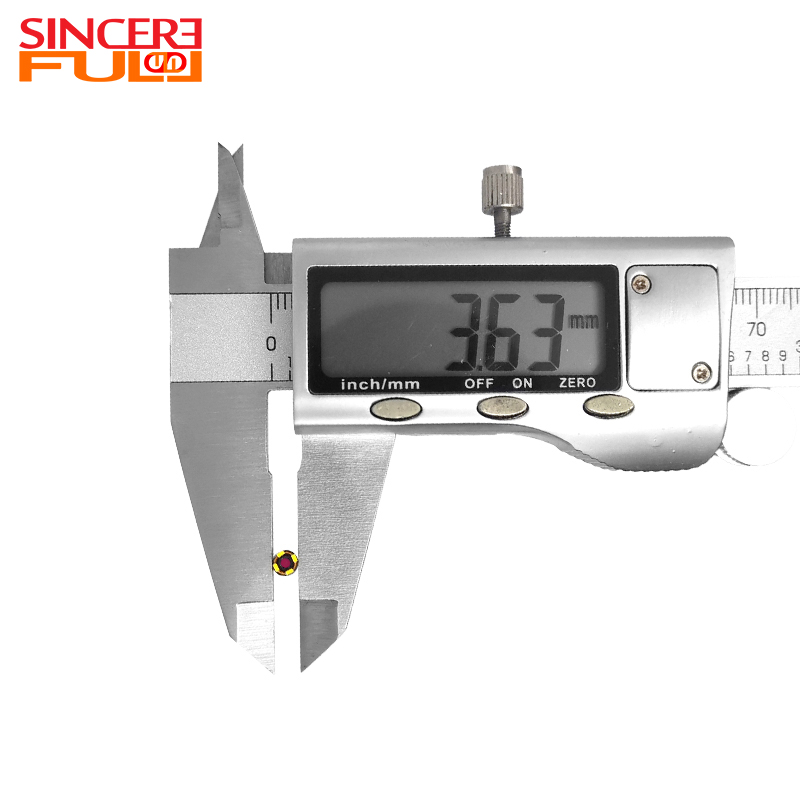

Diameter | 3.9mm |
1. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
2. Why does the image appear color bias?
The filter may need to be corrected or replaced by software due to uncalibrated white balance, mismatch of light source color temperature (such as LED mixed with daylight), or aging of the sensor.
3. What are the typical requirements for custom modules?
Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
Our company has several advantages that set us apart from our competitors and make us the first choice among our clients. Here are some of our key advantages:
1. High Quality Camera Module: We provide high-quality camera modules that meet customer needs. Our products undergo rigorous quality checks to ensure they are durable, efficient and reliable.
2. Innovation: We continuously strive to innovate and improve the functions of our new camera modules to meet the needs of our customers.
3. Strong partnerships: We have established strong partnerships with reputable suppliers and manufacturers. This enables us to offer our customers a diverse range of products that meet their needs.
