SF-C3010TV-D4.0
SINCEREFIRST

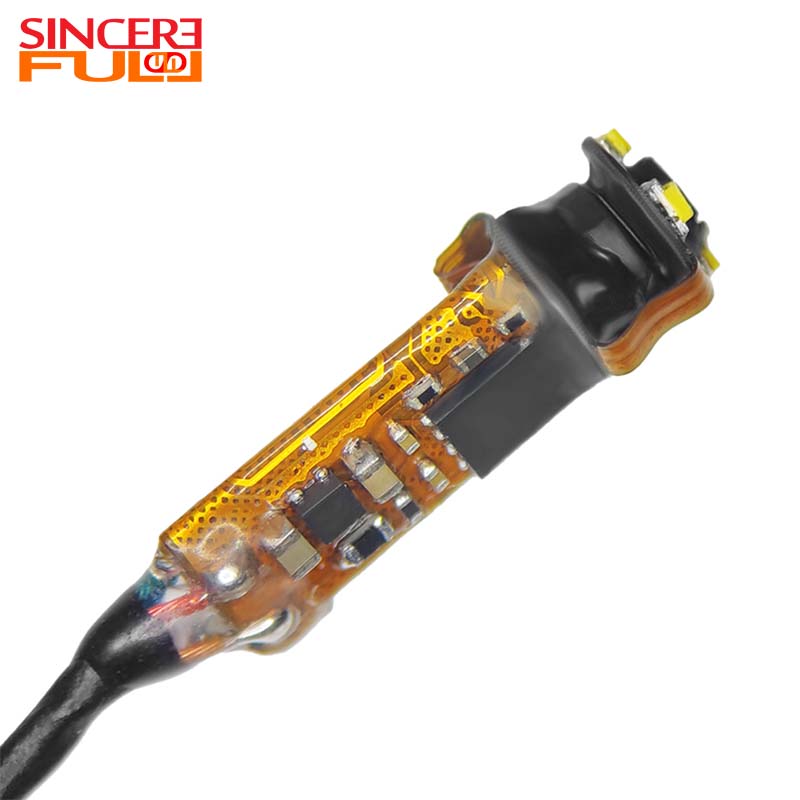

This is a 4mm diameter TV CVBS system VGA sensor medical endoscope camera module. It is equipped with a high-performance CMOS color image sensor, presenting clear and delicate color images with VGA resolution. The sensor size is 1/18 inch, ensuring stable imaging in a compact space. It boasts excellent optical performance, with a diagonal field of view (DFOV) of 65° and an F2.8 aperture, which can capture sufficient light in various scenarios. Combined with a 1.08mm focal length and a precise focusing range of 30~80mm, it can clearly present the details of close-range observation objects, and the distortion is controlled at a high-quality level of < -5%, resulting in low imaging distortion. The module adopts a convenient manual focusing design to meet the fine adjustment needs of different observation requirements. In terms of structure, the product features an integrated design with a lens diameter of only 4.0mm, which is small and compact, facilitating flexible operation in narrow spaces. It can also be optionally equipped with 4 integrated LED lamp beads to provide sufficient lighting support for dark environments. The production process strictly adopts SMT technology and AA process to ensure high-precision assembly and stable and reliable performance of the module. It is a professional endoscope camera solution with both a small size and high-quality imaging capabilities. |  |
High-Quality Imaging: The high-performance CMOS color sensor combined with VGA resolution ensures stable imaging even with the compact 1/18-inch size.
Excellent Optics: The 65° diagonal field of view provides wide coverage, and the F2.8 large aperture offers sufficient light supplementation. The 1.08mm focal length combined with the 30~80mm focusing range ensures clear details, and distortion < -5% guarantees accurate observation.

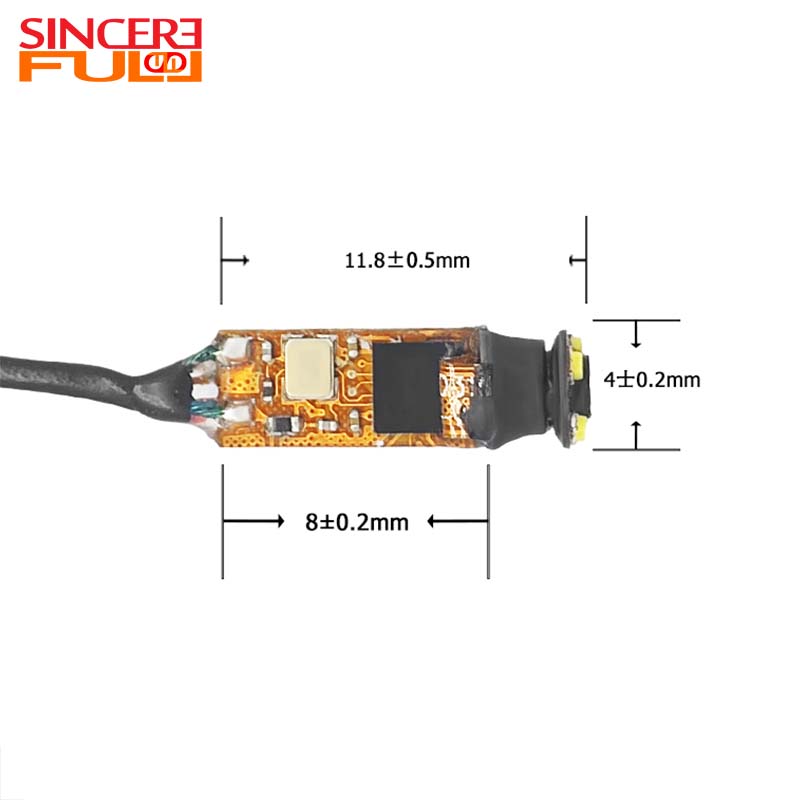

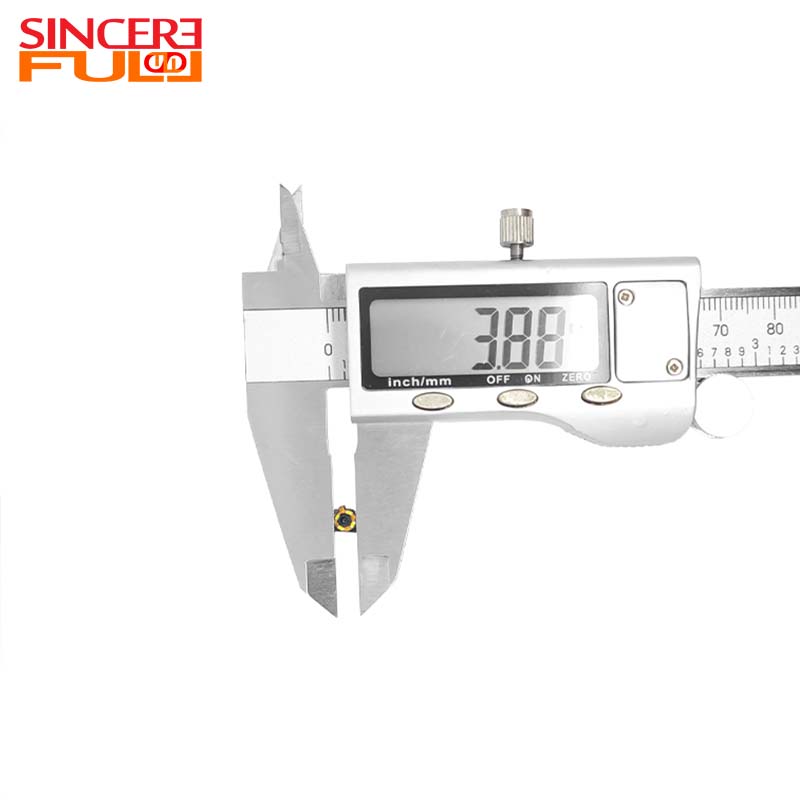

Flexible Operation: Manual focusing allows for fine adjustment. The 4.0mm diameter integrated design enables convenient operation in narrow spaces.

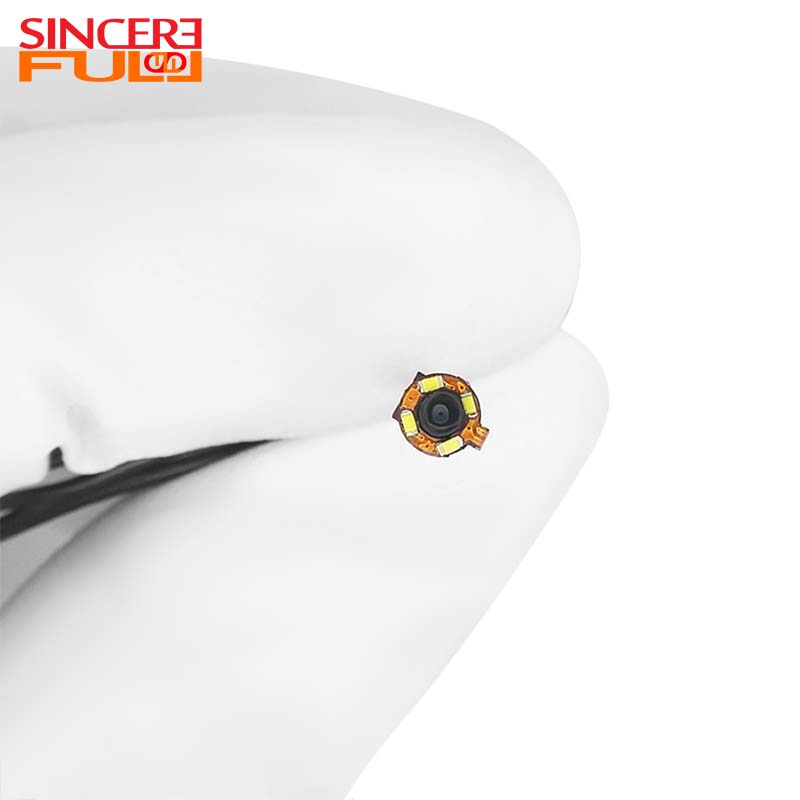

Environmental Adaptability: Optional 4 LED lamp beads provide sufficient lighting in dark and complex environments, ensuring clear images.
Reliable Quality: High-precision assembly through SMT technology and AA process ensures strong stability, meeting high medical requirements.
1. Otolaryngology Examination: The 4.0mm small diameter is suitable for nasal and ear canals. The 65° field of view combined with supplementary lighting clearly presents mucosal lesions and foreign bodies, assisting in the diagnosis of rhinitis and otitis media.
2. Gastrointestinal Endoscopy Examination: Manual focusing combined with the 30~80mm focusing range accurately captures gastrointestinal ulcers and polyps, and low-distortion imaging ensures accurate lesion judgment.
3. Minimally Invasive Surgery Assistance: The integrated design enables flexible operation, and stable imaging provides a clear field of view for laparoscopic surgeries such as cholecystectomy and appendectomy.
4. Urology Diagnosis and Treatment: Suitable for cystoscopes and ureteroscopes, it can move flexibly in narrow spaces, assisting in the detection of stones and tumors and guiding lithotripsy treatment.

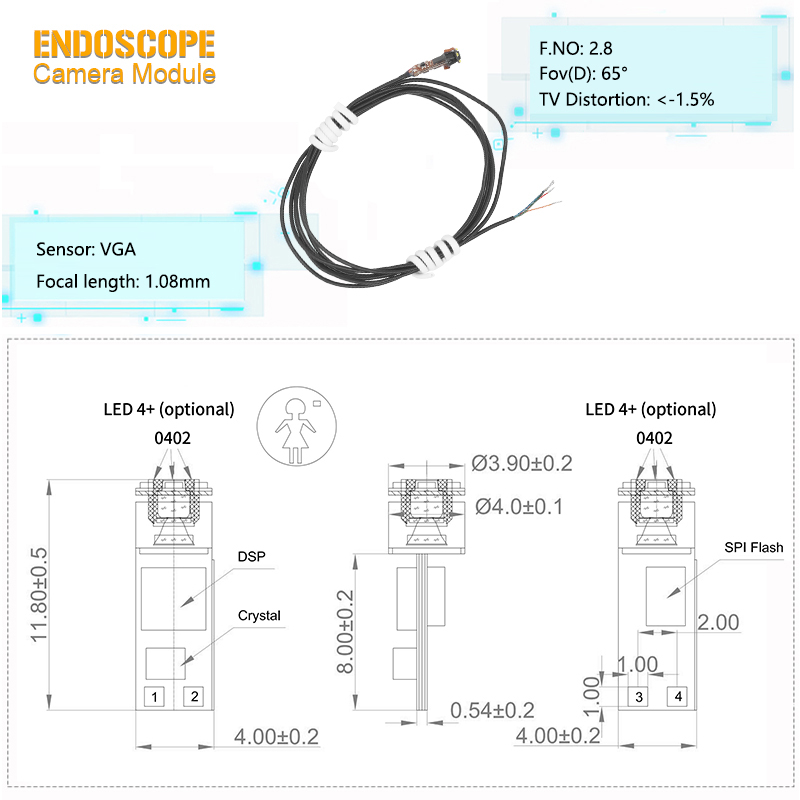

Product Name | 4mm Endoscope Camera Module |
Led | 4pcs |
Mounting Type | USB |
Sensor | VGA |
Focusing Range | 30-80mm |
Output Format | CVBS output |
Focal Length | 1.08mm |
Trademark | SINCERE FIRST |
F Number | 2.8 |
Fov(D) | 65° |
The endoscope camera module collects the internal image through the front optical lens, converts it into electrical signal by CMOS or CCD sensor, and then optimizes it through image processing chip for noise reduction and enhancement, and finally outputs high-definition video signal. Some modules support wireless transmission or fiber optic signal transmission, suitable for medical or industrial inspection scenarios.
Mainstream resolutions include 720p, 1080p, 4K, etc. Medical grade modules usually require more than 1080p to ensure diagnostic accuracy, while industrial modules may choose lower resolutions to reduce costs according to demand. Ultra-high resolution modules are mostly used in precision surgery or scientific research.
In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.
