SF-SJN1050-USB
SINCEREFIRST

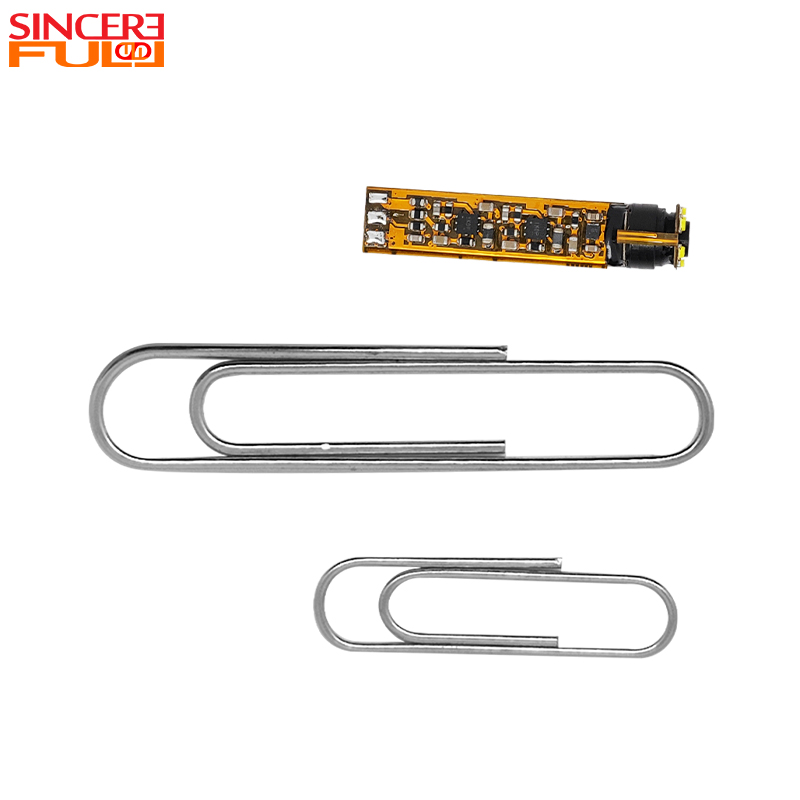

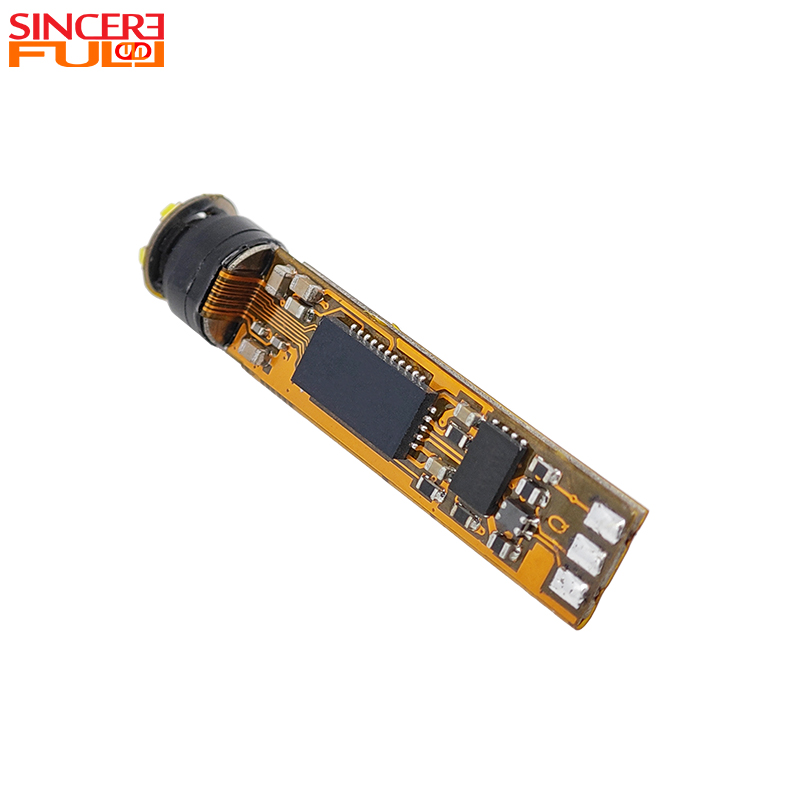

This 1/9-inch GC1009 Sensor High-Definition USB Endoscope Camera Module ，employs an advanced 1/9-inch optical lens system featuring an F2.8 large aperture and a 72° diagonal field of view (DFOV), delivering real-time high-definition 720P resolution images in extremely confined spaces. The module integrates six high-brightness LED illuminators on its front surface. Intelligent light control enables adaptive illumination in dark environments, ensuring clear, detailed, and uniformly bright images even in low-light inspection scenarios. Featuring an ultra-compact industrial design, the main body measures just 4.4mm in diameter and less than 18.5mm in length, supporting flexible integration into various confined device spaces. The electrical interface employs a standard three-wire design (VDD/DIO/GND) and is compatible with USB plug-and-play protocols. It enables rapid deployment on Windows, Linux, and Android platforms without requiring additional drivers. The module fully complies with RoHS environmental standards and undergoes strict tolerance control (±0.5° angular tolerance, ±0.3mm dimensional tolerance), ensuring stable optical performance and mechanical reliability even under complex conditions such as industrial vibration and temperature fluctuations. |  |

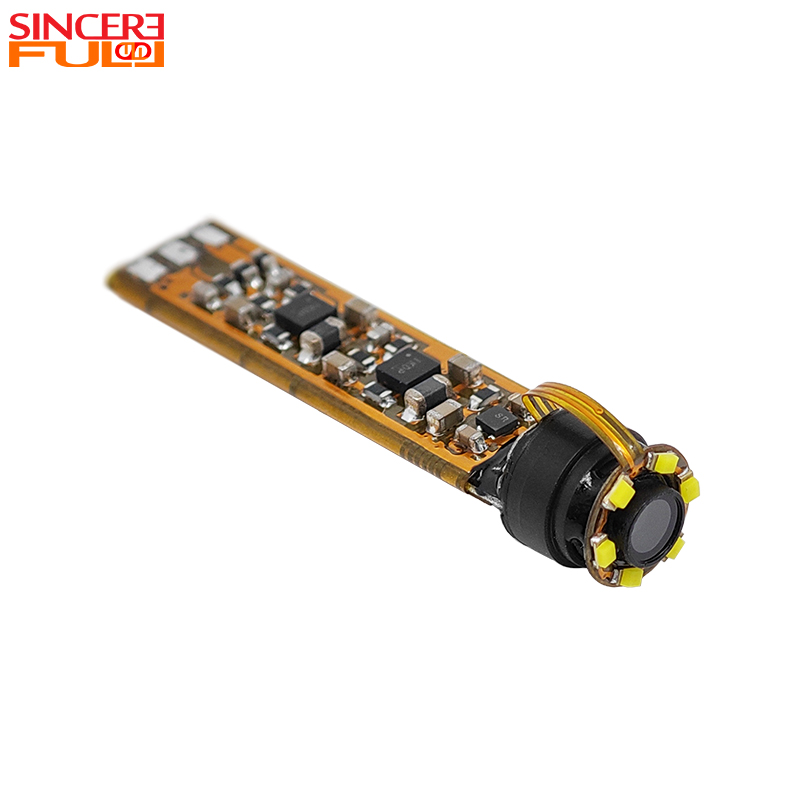

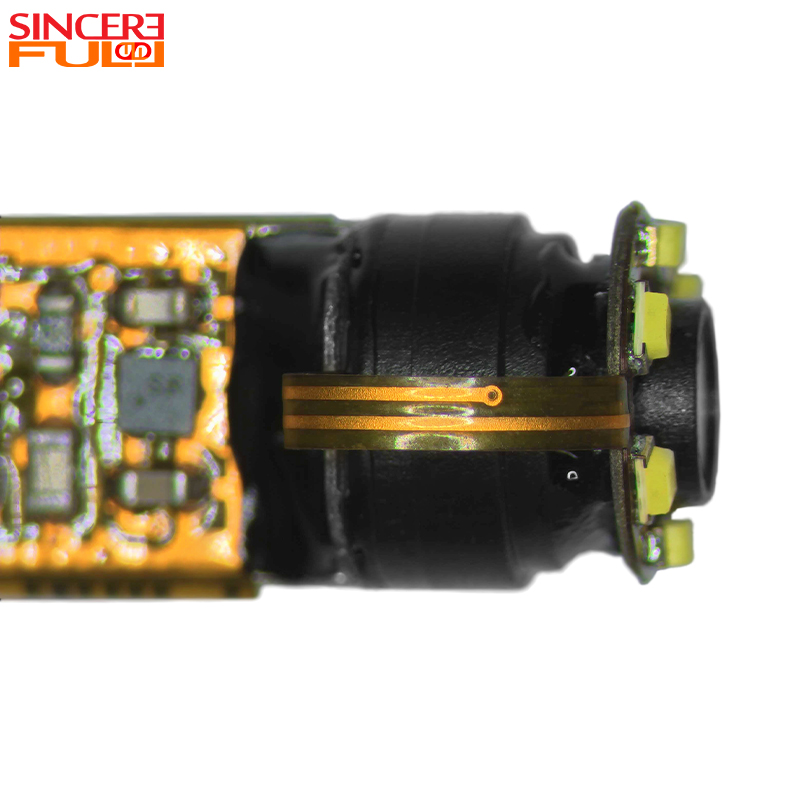

1.Six-Point Uniform LED Illumination System: Integrates six high-brightness white LEDs with precision optical design to deliver bright, uniform, shadow-free intraluminal illumination, providing a true and reliable visual environment for endoscopic observation.
2. 82° Wide Field of View with 30-80mm Depth of Field Coverage: Features an expansive 82° diagonal field of view and supports a continuous 30-80mm depth of field range, clearly displaying tissue details at varying distances to accommodate diverse endoscopic diagnostic and therapeutic scenarios.
3.Ultra-Compact Φ7.0mm Design: With an outer diameter of just 7.0±0.1mm, this highly integrated module supports dual 3.3V/5V power supply. Its compact structure facilitates seamless integration into flexible and rigid endoscopes, enabling lightweight and highly reliable designs.
1. Gastrointestinal Endoscopy: Suitable for gastrointestinal examination devices such as gastroscopes and colonoscopes. High-definition imaging combined with uniform illumination enables clear visualization of mucosal lesions, polyps, ulcers, and other pathologies, aiding in early diagnosis and minimally invasive treatment.
2. Urological and Gynecological Endoscopic Surgery: Used with instruments like cystoscopes and hysteroscopes, it provides a wide, clear surgical field within narrow cavities, supporting procedures such as stone removal, tissue biopsy, and intraoperative navigation.
3. ENT Endoscopic Examination: Integrated into nasopharyngoscopes, otoscopes, and similar devices, it enables physicians to visually inspect nasal cavities, vocal cords, and ear canal structures. Suitable for inflammation assessment, foreign body removal, and postoperative follow-ups.
4. Industrial Pipeline and Precision Equipment Endoscopic Inspection: Used for internal inspection in non-medical fields such as mechanical pipelines and precision instruments. Assists in defect detection, equipment maintenance, and quality monitoring, enhancing industrial inspection efficiency and safety.

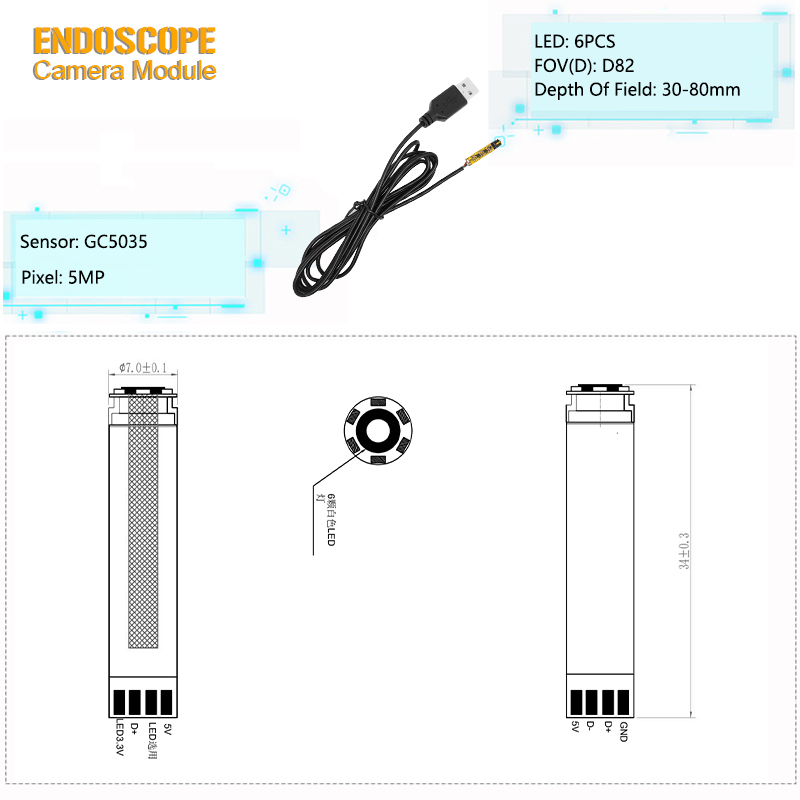

Product Name | Pipe Inspection Camera Module |
Features | 7mm Endoscope Camera Module |
Interface | USB2.0 UVC |
Sensor | GC5035 |
LED | 6 |
Pixel | 5MP |
Depth of Field | 30-80mm |
DVDD | 1.2V/1.8V |
Fov(D) | 82° |
1.What is SINCERE's core identity and business?
SINCERE is a leading high-tech enterprise in China, focusing on R&D, manufacturing, and sales of integrated optical devices, as well as providing overall solutions for optical imaging systems. Its brand "SincereFirst" is well-recognized globally.
2. What are the special requirements of laparoscopic surgical modules?
This module serves as a high-definition image acquisition core that can be integrated into laparoscopic systems compliant with medical standards. It delivers accurate color reproduction and crisp 720P images, facilitating the observation of tissue conditions.
3. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV). 4. Does this endoscope camera module require driver installation? No, it is completely driver-free. With a USB2.0 interface and UVC protocol support, it offers plug-and-play functionality on Windows, Mac, and Android systems.
