SF-N1050-V1 + SF-YL0320-V1
SINCEREFIRST
| This OV2740 CMOS Sensor 1080P@60fps Side View USB2.0 Driver Free Macro Endoscope Camera Module is a dedicated lateral macro imaging system built for high-frequency close-range side inspection. Equipped with a 1/6-inch OV2740 sensor featuring 1.4μm pixel size, the module outputs smooth 1080P@60fps footage via MJPEG and YUV2 formats to eliminate motion ghosting and restore intricate details during dynamic observation. Adopting exclusive side-view optical architecture, it directly captures sidewall details of cavities and pipelines without rotating the probe to effectively cut blind areas. With distortion controlled within 2% and 1lux minimum illumination sensitivity, it maintains authentic and clear visuals even in dim enclosed environments. Native AEC, AEB and AGC automatic tuning functions optimize exposure, white balance and gain in real time to adapt to fluctuating lighting conditions. The USB2.0 high-speed Type-C 5Pin interface integrates UVC and OTG protocols for driver-free connection across multiple mainstream operating systems. Powered by 5V DC voltage with 120–140mA working current, the module adopts sealed FPC and anti-static structure. It passes rigorous temperature cycling, vibration and drop tests, delivering outstanding stability for long-term deployment in medical devices and complex detection environments while complying with RoHS regulations. |  |
1080P@60fps High-FPS Imaging: Leverages OV2740 sensor to produce fluid high-resolution footage and prevent ghosting during dynamic inspection.
Dedicated Side-View Optics: Enables direct lateral shooting on inner pipe walls and cavity sidewalls to eliminate observation blind spots.
UVC & OTG Dual Support: Supports driver-free access for Windows, Linux and Android devices to lower integration barriers for embedded projects.
Enhanced Structural Reliability: Features sealed FPC and anti-static design to sustain stable performance in complex application environments.

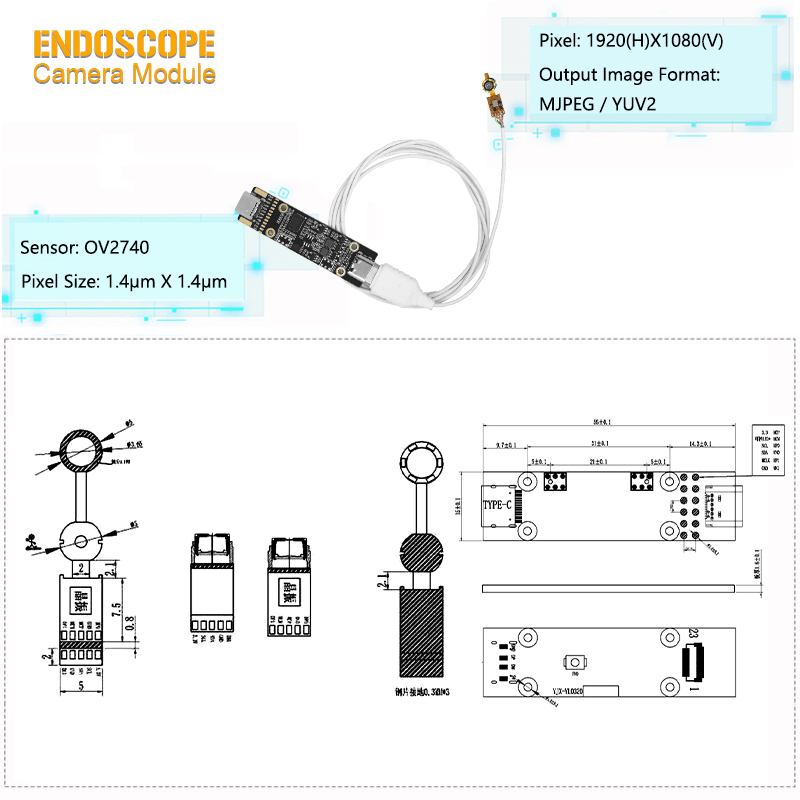

Keywords | Side View Endoscope Camera Module |
Sensor | OV2740 |
Sensor Size | 1/6inch |
Pixel size | 1.4um X 1.4um |
Pixel | 1920(H)X1080(V) |
Output Image Format | MJPEG / YUV2（YUYV） |
Resolution and Frame rate | 60fps1080Mjpeg |
Minimum illuminance | 1lux |
Output | USB2.0 UVC |
Support | OTG Protocol |
Interface mode | TYPE-C/5Pin 1.0 |
Drive Free Protocol | USB Video Class（UVC） |
Beauty & Skin Analysis: Can serve as a macro imaging core for blackhead removers and skin analyzers to capture subtle skin texture and pore details.
Embedded Medical Equipment: Can be integrated into minimally invasive devices to realize low-invasive lateral visual observation inside human cavities.
Confined-Space Side Detection: Can perform non-dismantling flaw checking for inner pipe walls, valve bodies and mold sidewalls via its side-view optical capability.
FAQ◢
1. How does this module eliminate blind spots when inspecting the sidewalls of cavities or pipes?
It features a dedicated side-view optical architecture that directly captures lateral details without needing to rotate the probe, effectively removing observation blind spots.
2. Can it capture clear, ghost-free images of fast-moving targets or during rapid probe manipulation?
Yes. It delivers 1080P resolution at 60fps, ensuring fluid, blur-free real-time imaging even during dynamic, high-speed inspections.
3. Does it support direct integration with both medical diagnostic systems and portable Android devices?
Yes. With dual UVC & OTG compatibility, it enables driver-free plug-and-play connection across Windows, Linux, and Android platforms.
4. How does the module maintain image clarity in dimly lit enclosed environments?
It combines 1lux low-light sensitivity with a 73.3dB dynamic range, supported by auto-tuning functions (AEC/AEB/AGC) to optimize exposure and reduce noise in real-time.
