How to Choose the Right Diameter for an Endoscope Camera Module

Quick Answer

The right endoscope camera module diameter is the smallest size that can still meet the project's imaging, illumination, mechanical protection and integration requirements. A smaller camera head can enter tighter spaces, but it normally leaves less room for the sensor package, lens, LEDs, shell and cable termination. A larger diameter can support more optical and structural options, but it may not fit the target device or inspection channel. SincereFull's covers directions from approximately 0.9 mm ultra-miniature modules to 12.5 mm autofocus designs, so diameter selection should start with the device envelope and working channel, then move to resolution, viewing direction, lighting, interface and environmental requirements.

Start with the Mechanical Envelope

Do not begin with the highest resolution or the newest sensor. First confirm the maximum camera-head diameter, available front-section length, insertion path, bend radius and whether the camera needs a steel shell. A 0.9 mm bare module and a 3.9 mm finished camera head solve very different mechanical problems even when both are used for close-range observation.

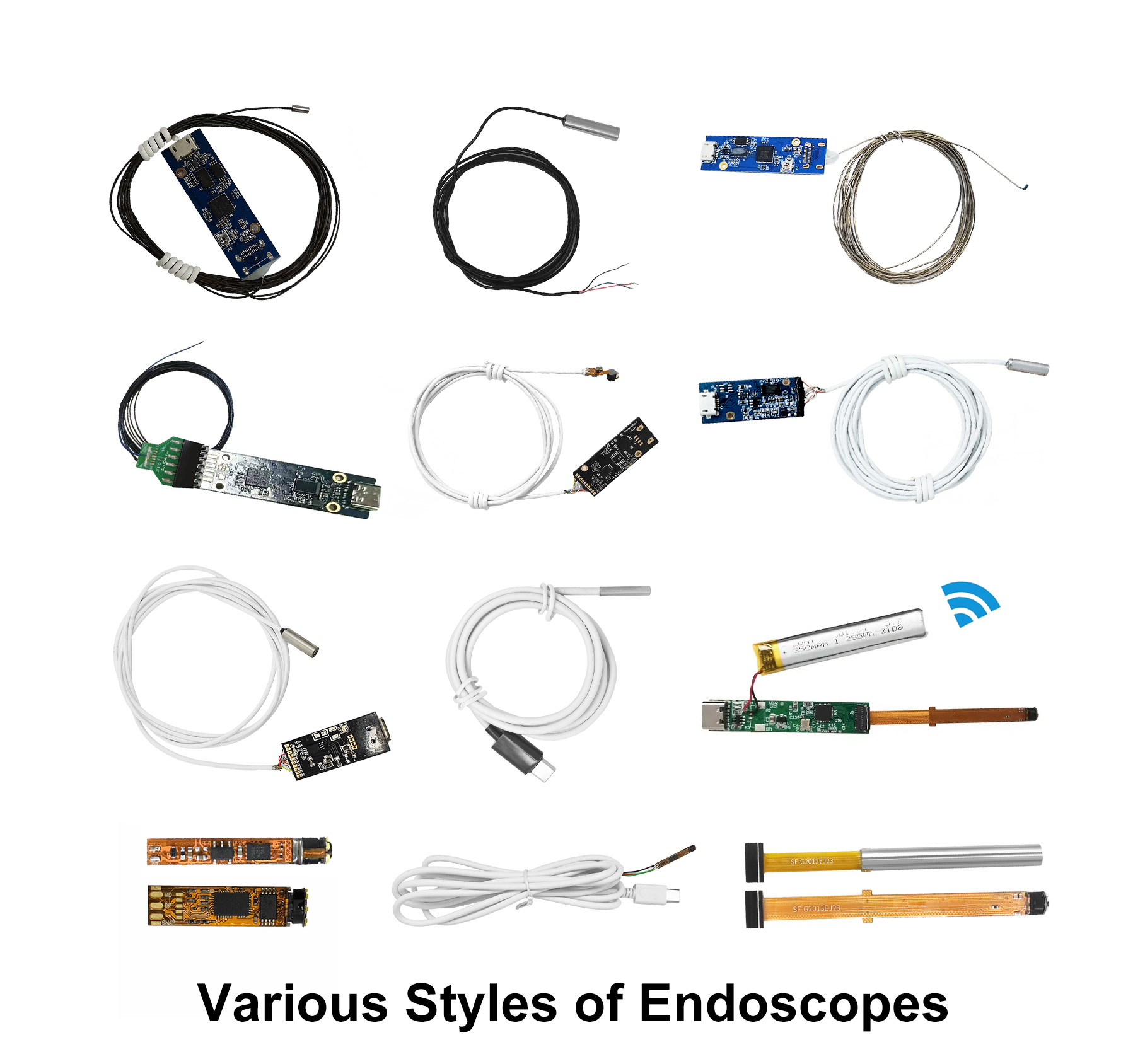

Practical Diameter Ranges

Diameter Is Only One Part of the Decision

· Viewing direction: direct-view cameras look forward, while side-view models observe walls, cavities and lateral surfaces.

· Illumination: the smaller the head, the harder it can be to place enough LEDs while controlling heat and reflections.

· Resolution and frame rate: higher output may require a larger sensor package, more bandwidth and greater thermal control.

· Protection: a bare module may fit a narrow device, while a steel shell adds mechanical protection and can support waterproof structures.

· Cable and board architecture: a separated head-and-DSP design may reduce front-end size, while an integrated design can simplify assembly.

A Simple Selection Workflow

1. Define the maximum outer diameter and front-section length allowed by the device.

2. Confirm whether the camera must pass through a straight channel, curved channel or movable probe.

3. Select direct-view, side-view or multi-view observation.

4. Confirm the required working distance, field of view and image-detail level.

5. Determine whether integrated LEDs, dimming, steel shell or IP67-related structure is required.

6. Confirm USB, Type-C, AV or another host connection and then validate the complete configuration with a sample.

Recommended Module Directions

For projects below 2.0 mm, prioritize mechanical feasibility and realistic image requirements. For 3.0-3.9 mm projects, compare sensor, viewing direction, shell and interface options rather than choosing by diameter alone. For 5.0-6.0 mm devices, consider 1080P60, long-cable and dimming configurations. Larger 7.0-12.5 mm designs can be evaluated when the application benefits from higher resolution, autofocus or multiple viewing directions.

RFQ Checklist

· Application and target device

· Maximum camera-head diameter and front-section length

· Required resolution and frame rate

· Direct-view, side-view or multi-view requirement

· Working distance and field of view

· LED, shell and waterproof requirements

· Interface, cable length and host platform

· Expected sample and mass-production schedule

FAQs

Is the smallest camera always the best choice?

No. The smallest diameter only helps when the device truly needs it. Choosing a smaller head than necessary can reduce the available space for optics, LEDs, shell and cable termination. The better target is the smallest diameter that still meets image, lighting, reliability and integration requirements.

Can a 0.9-2.0 mm camera provide the same image as a larger module?

Not necessarily. Ultra-small modules can provide useful visualization, but sensor size, pixel count, lens aperture and illumination are restricted by the mechanical envelope. Compare the required observation task instead of expecting identical performance from very different diameters.

Why are 3.9 mm camera modules common in endoscope projects?

Around 3.9 mm, manufacturers can often balance compact size with practical choices in 720P-class imaging, LEDs, steel shell, integrated or separated structures and different interfaces. It is not universally correct, but it is a flexible starting point for many OEM designs.

Does a steel shell change the required diameter?

Yes. The shell, sealing structure and assembly tolerance add to the final outer diameter. A bare module size should not be treated as the finished probe diameter. Confirm the complete mechanical stack before freezing the device design.

Should diameter be selected before resolution?

Usually yes. The device channel and front-end space are hard mechanical limits. After the feasible diameter range is confirmed, compare resolution, frame rate, field of view, LEDs and interface within that range.

Can SincereFull evaluate a custom diameter?

Diameter, lens, LED, shell, cable and connector options can be evaluated according to the project. Feasibility depends on the sensor package, optical design, required protection and production structure, so the target dimensions and imaging requirements should be submitted together.

Note: This article is for device design and camera module selection reference. Final medical device compliance should be evaluated according to the target market, application and applicable regulations.
