Choose direct view when the camera needs to navigate forward, observe the path ahead or inspect the end of a hole. Choose side view when the important surface is on the wall of a pipe, cylinder, cavity or bore. A side-view module can reveal lateral defects that a forward camera may pass without showing clearly, but it requires orientation control and careful lighting. SincereFull's catalog includes side-view directions from approximately 1.5 mm to 6.0 mm, including OVM6946, OCHFA10 and OV9734-based designs, as well as straight-and-side dual-view configurations for projects that need both navigation and lateral inspection.

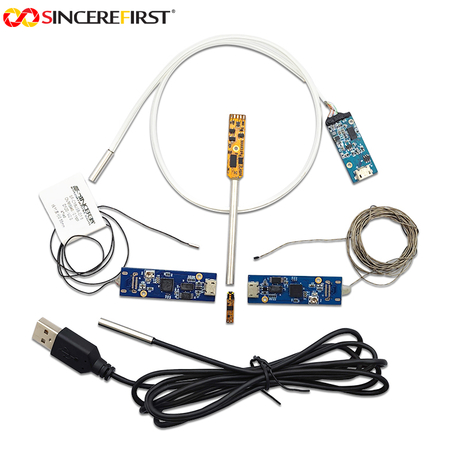

A direct-view camera looks along the insertion axis. It is effective for navigation, finding obstructions, observing the end surface of a cavity and guiding the probe. Most standard endoscope camera modules use this orientation because it is intuitive for the operator and easier to align with the probe body.
A side-view camera turns the optical axis toward the wall. The catalog includes SF-C16USB-D1.5-Side, SF-C50USB-D1.5-Side, a 3.5 mm OV9734 side-view direction and SF-C1019USB-D6.0-SV-PRO-L200 with a steel-shell side-view structure. These products address different diameter and protection requirements while sharing the same basic value: making the lateral surface the primary observation target.
Factor | Direct View | Side View |
Primary target | Path ahead and end surfaces | Pipe wall, bore wall and lateral surfaces |
Navigation | Easy to guide through the channel | Requires orientation awareness |
Lighting | LEDs can be arranged around the forward lens | Lighting must illuminate the side wall without strong reflection |
Typical use | General inspection, insertion and positioning | Cylinder wall, weld, pipe wall and cavity-side inspection |
Mechanical design | Optical axis follows the probe | Needs a lateral optical window or angled structure |
Operator workflow | Natural forward movement | May require rotation to scan the full circumference |
A straight-and-side design can combine forward navigation with lateral inspection. Catalog examples include SF-C1019USB-F&S-Dual and SF-C1019USB-DUAL-D5.5 directions. A multi-view system can reduce repeated insertion or probe exchange, but it also adds size, bandwidth, software and mechanical complexity. Confirm whether simultaneous output, switching logic or two USB paths are required.
· Target surface: end face, wall or both
· Required outer diameter
· Need to rotate the probe for full circumferential coverage
· Working distance from lens to wall
· Lighting angle and reflection behavior
· Steel shell or waterproof structure
· Single, switched or simultaneous video output
· Host display and operator interface
Can a wide-angle direct-view camera replace a side-view camera?
A wide-angle lens can show part of the surrounding wall, but the lateral surface may remain distorted, oblique or poorly illuminated. When wall inspection is the primary task, a dedicated side-view direction usually provides a more useful viewing geometry.
Does a side-view camera need probe rotation?
Often yes. A single side-view camera observes one direction at a time. Rotating the probe allows the operator to scan the full circumference. Some devices use multiple side cameras or mechanical orientation markers to simplify this process.
Can side-view modules be made in very small diameters?
The catalog includes side-view directions around 1.5 mm, but feasibility depends on the sensor, lens, optical turning structure, illumination and shell. Smaller size generally increases optical and assembly constraints.
Which view is better for pipe blockage inspection?
Direct view is usually better for navigating toward a blockage and seeing what is ahead. Side view is more useful for evaluating cracks, corrosion, welds or deposits on the pipe wall. Some devices benefit from both.
How should side-view lighting be tested?
Use the real pipe or cavity material and test at the expected wall distance. Check hot spots, reflections, shadow direction and uniformity while rotating the probe. A flat desktop target does not represent the final geometry.
Is dual view always better?
No. Dual view adds information but also increases size, cost, bandwidth, cable and software complexity. Choose it only when forward and lateral views both reduce inspection time or improve the device's function.
Tell SincereFull whether the target is ahead, on the wall or in both directions. Include the channel diameter, wall distance, lighting condition, shell requirement and host interface for a suitable viewing-direction evaluation.
