Endoscope Camera Module Integration Checklist for OEM Device Developers

Quick Answer

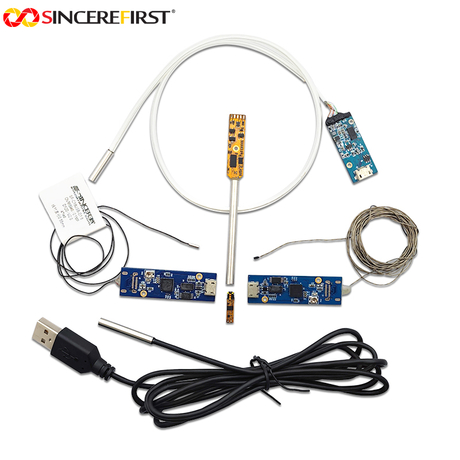

A camera sample should not be approved only because it produces an image on a PC. OEM integration requires a complete check of mechanical fit, optical performance, illumination, interface, cable routing, power, host compatibility, environmental protection and repeatability. The catalog includes bare modules, steel-shell cameras, integrated heads, separated camera-and-DSP structures, USB, Type-C, AV and WiFi-related directions, as well as long-cable and side-view configurations. These choices create different integration risks. The checklist below helps device developers confirm the full system before tooling, certification planning or mass-production preparation.

1. Mechanical Integration

· Confirm camera-head diameter, front-section length and PCB dimensions.

· Check mounting points, cable exit direction and strain relief.

· Evaluate whether a bare module, plastic structure or steel shell is required.

· For movable probes, verify bend radius and repeated flexing conditions.

· Ensure the lens and LEDs remain correctly positioned after final assembly.

2. Optical and Imaging Validation

· Test at the real working distance instead of only at a desktop target.

· Confirm field of view, image distortion and edge visibility in the actual cavity.

· Evaluate color, low-light performance and reflections with the final illumination.

· Check frame rate and output resolution on the target host.

· Use representative objects, surfaces, liquids or materials from the real application.

3. Illumination and Thermal Control

Integrated LEDs simplify dark-cavity imaging, but LED number alone does not define image quality. Test brightness range, uniformity, hot spots, reflections, color shift and temperature rise. Catalog directions include modules with integrated LEDs, optional dimming and a 6.0 mm 1080P60 model with a three-key dimming configuration. The final device should define whether brightness is controlled by hardware, software or an external board.

4. Interface and Host Compatibility

5. Cable and Signal Validation

Do not approve a short bench cable if the final device will use a long reach. Test the exact cable type and length, including any extension, connector or flexible section. The catalog includes 2,000 mm 5.0 mm and 6.0 mm 1080P60 directions, as well as a 2,500 mm separated configuration, which illustrates why cable architecture must be treated as part of the imaging system rather than a purchasing accessory.

6. Environmental and Reliability Requirements

· Clarify whether the project requires moisture resistance, washable structure or IP67-related support.

· Confirm operating temperature, cleaning method and chemical exposure only from validated project data.

· Define cable pull, connector cycles, vibration and repeated bending requirements.

· For medical projects, separate camera-module evaluation from final device compliance and market approval.

7. Sample Approval Checklist

1. Approve the exact sensor, lens, board, cable, connector, LED and shell combination.

2. Record host model, operating system, software and video settings.

3. Capture reference images under agreed lighting and working distance.

4. Confirm mechanical drawings and tolerance stack.

5. Define acceptance criteria for image, dimensions, cable and appearance.

6. Repeat the test on multiple samples before moving to production validation.

FAQs

Is a successful PC preview enough to approve a USB camera module?

No. A PC preview only proves that one host can receive an image under one condition. The final device may use different power, software, cable length, connector, operating system and enclosure. Approval should be completed on the target host and in the real mechanical structure.

Should the lens be tested before the housing is finished?

Yes, but the final optical test should be repeated after assembly. Housing position, protective window, shell tolerance and LED placement can change focus, reflections and field of view. The approved image should come from the final or representative mechanical stack.

Why do long cables need separate validation?

Longer cables increase signal loss, power drop and susceptibility to interference. The acceptable length depends on interface, cable construction, video mode, board architecture and host. Test the exact planned configuration rather than assuming that a cable can simply be extended.

Can the same module be used for both medical and industrial projects?

A module may be evaluated for both, but the selection logic differs. Medical device projects focus strongly on diameter, illumination, image consistency and compliance planning. Industrial projects may prioritize shell, waterproof structure, long cable, side view and environmental durability.

What should be frozen before mass-production planning?

Freeze the complete bill of materials and configuration: sensor, lens, focus, board, firmware, video format, LEDs, shell, cable, connector and labels. A model name alone is not enough when the product family contains multiple structures or customization options.

How many samples should be evaluated?

The quantity depends on project risk, but one sample is rarely sufficient for repeatability judgment. Use several samples across mechanical, optical and host tests, then define measurable acceptance criteria before pilot production.

Note: This article is for device design and camera module selection reference. Final medical device compliance should be evaluated according to the target market, application and applicable regulations.
