In an endoscope camera, LEDs are part of the imaging system rather than a simple accessory. Brightness, number, position, color, control method and distance from the target affect exposure, reflections, color consistency, heat and the final probe diameter. More LEDs do not automatically produce a better image. SincereFull's catalog includes compact modules with integrated LEDs, a 0.95 mm OCHTA10 direction with four LEDs, OV9734 designs with optional dimming and a 6.0 mm 1080P60 model with three-key dimming. These configurations should be selected according to the cavity, working distance, surface reflectivity and device power budget.
A high-resolution sensor cannot show detail that is not illuminated. In dark cavities, insufficient light increases exposure time, noise and motion blur. Excessive light can clip highlights and hide surface texture. The goal is not maximum brightness but controlled illumination across the expected working distance.
LEDs arranged around a forward-view lens can provide relatively balanced illumination, while side-view optics require a different placement to light the wall. In very small heads, the distance between lens and LEDs is limited, increasing the risk of bright rings, hot spots or internal reflections. A steel shell or protective window can also reflect light back into the lens if the geometry is not matched.
· Higher LED current increases brightness but also temperature.
· Long cables can increase voltage drop and change LED output.
· Small sealed heads have limited heat-dissipation area.
· Continuous operation can behave differently from a short sample test.
· The host USB port and power board must support both camera and illumination loads.
Control Direction | Advantages | Points to Confirm |
Fixed brightness | Simple hardware and consistent operation | May not suit changing wall distance or reflectivity |
Hardware dimming | Direct operator adjustment and independent control | Requires buttons, control board, cable conductors and enclosure space |
Software dimming | Can be integrated into the host interface | Depends on firmware, driver and supported control protocol |
Multi-key control | Supports practical brightness steps in handheld devices | Button logic, recording and other functions must be defined |

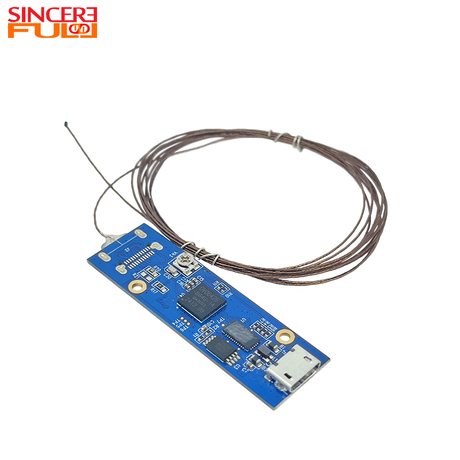

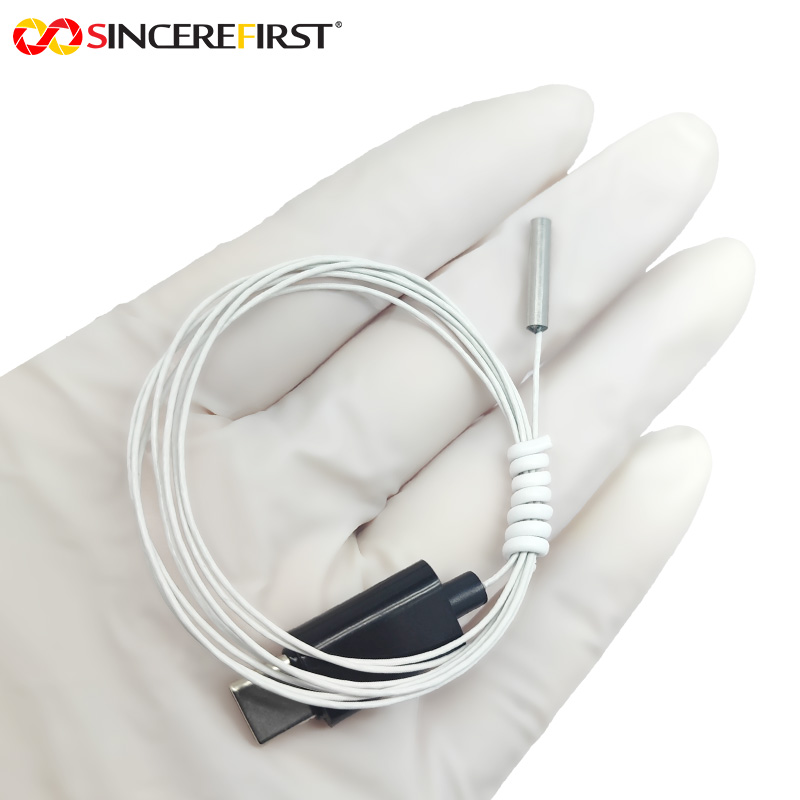

For ultra-small structures, SF-SAC016USB-DN-D0.95 demonstrates that multiple LEDs can be integrated even around a sub-1 mm direction, but the final optical and thermal result must still be tested. Several D3.6 and D3.9 OV9734 directions list optional dimming, which can support devices that face changing working distances. SF-C2016USB-1080P60-D6.0-3KEY provides a larger 1080P60 platform with a three-key dimming direction for handheld or controlled inspection systems.
· Test minimum, nominal and maximum working distance
· Use reflective, dark and textured target materials
· Measure image uniformity and hot spots
· Run continuous illumination to evaluate temperature
· Check brightness over the full cable length
· Confirm dimming steps and startup state
· Evaluate image color and exposure after shell assembly
Do more LEDs always improve an endoscope image?
No. More LEDs can increase available light, but poor placement may create hot spots, glare or uneven exposure. LED number should be matched with lens position, wall distance, current and the reflective properties of the target cavity.
Why does the image become white at close range?
The target may be overexposed because the LEDs are too bright for the short distance. Reflections from wet, metallic or glossy surfaces can increase the problem. Dimming, exposure control or a different optical arrangement may be required.
Can LED heat affect the camera sensor?
Yes. In a small sealed head, LED heat can raise the local temperature and change noise, color or long-term stability. Continuous tests are more meaningful than short demonstrations when evaluating thermal behavior.
Is software dimming better than hardware dimming?
Neither is universally better. Software control is convenient when the host application supports it. Hardware dimming is useful for independent operation. The choice depends on firmware, device controls, cable conductors and user workflow.
Should LED brightness be specified in the RFQ?
Yes, but a simple brightness number is often insufficient. Provide the working distance, target material, cavity size, desired control method and power limitations. Image samples under representative conditions are also useful.
Can a camera module use the device's existing light source?
Yes, some projects use external or device-level illumination instead of integrated LEDs. This can reduce front-head heat and space, but the light path, synchronization and image uniformity must be validated in the final device.
Note: This article is for device design and camera module selection reference. Final medical device compliance should be evaluated according to the target market, application and applicable regulations.
Send the cavity type, working distance, target material, LED-control method and power budget. SincereFull can evaluate integrated-lighting, dimming or lighting-flexible module directions.
