USB UVC Endoscope Camera Integration FAQs

Quick Answer

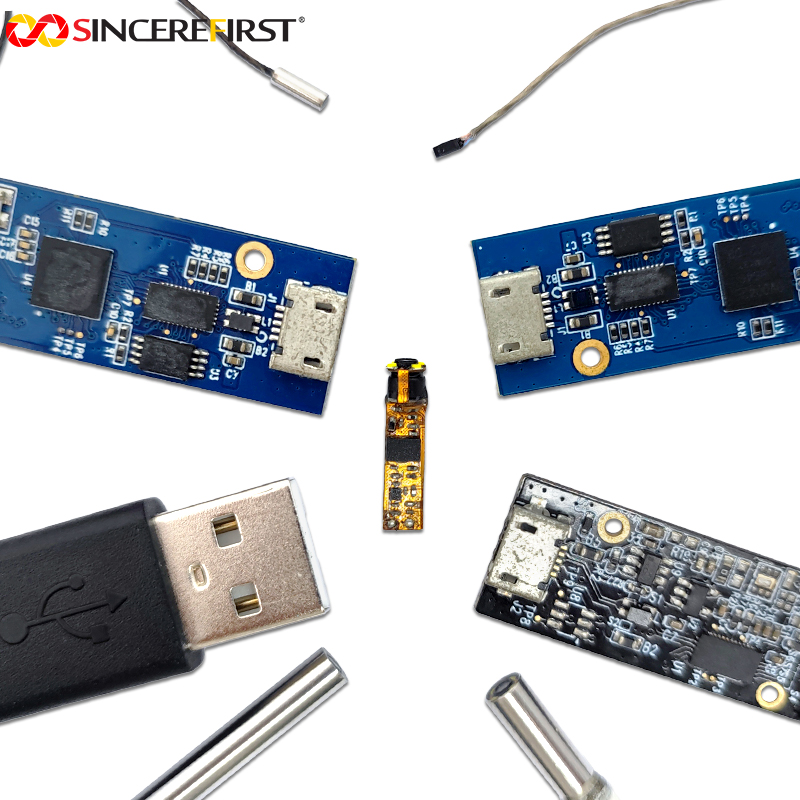

USB endoscope camera integration depends on more than the connector. OEM teams should confirm the actual USB protocol, supported video formats, host operating system, power, cable length, software access, frame rate and mechanical routing. Type-C describes a connector shape and does not automatically mean USB 3.0. SincereFull's catalog includes USB-A, Type-C, integrated, separated, long-cable, side-view and high-frame-rate product directions, so the host and complete configuration should be frozen before approval. The following FAQs address the questions most likely to affect sample testing and mass-production integration.

Frequently Asked Questions

1. Does every Type-C endoscope camera use USB 3.0?

No. Type-C is a reversible connector form. The underlying protocol may still be USB 2.0. Confirm the interface standard, supported video mode and host requirements for the target model rather than judging from the connector.

2. What does UVC mean for an OEM device?

USB Video Class allows compatible hosts to access a camera through a standardized video-device framework. It can simplify evaluation, but the operating system, video format, controls and application software still need testing on the target host.

3. Why is the camera recognized but no image appears?

Possible causes include unsupported video format, incorrect application settings, insufficient power, cable instability, firmware mismatch or the host opening an unavailable resolution. Read the device capability, test another application and confirm the approved mode.

4. Why does the frame rate drop on a long cable?

Long cables can reduce signal and power margin. The host may also struggle with the selected uncompressed format. Test the exact cable length, connector, format and USB port while monitoring dropped frames and reconnect behavior.

5. Can a USB endoscope camera work with Android?

Some USB/UVC-oriented modules can be evaluated with Android hosts that support USB host mode and suitable camera applications. Compatibility varies by device, operating system, power policy and software, so the target terminal must be tested.

6. Can the camera work with Windows without a custom driver?

Many UVC-oriented cameras can use the operating system's standard video framework, but supported controls, formats and stability should still be validated. A successful preview does not replace target-software testing.

7. What is the difference between USB-A and Type-C versions?

The connector, cable direction, host compatibility and mechanical design may change. The video protocol may remain the same. Compare the complete specification rather than assuming Type-C provides higher image quality or speed.

8. How should YUV and MJPEG be selected?

YUV provides uncompressed or less-compressed image data but uses more bandwidth. MJPEG reduces USB data load but introduces compression. Choose according to image-processing needs, cable length, host performance and supported firmware modes.

9. Can LED brightness be controlled through USB?

Some configurations may support software control, while others use hardware buttons or a separate dimming board. Confirm the control method, firmware and standard product configuration before designing the user interface.

10. What should be included in a USB integration RFQ?

Provide the host device, operating system, connector, total cable length, required resolution and frame rate, video format, software environment, LED-control method and mechanical space. Include whether the camera is integrated or separated from the DSP board.
