SF-C1019USB-D6.0-SV-L25-D140(Glass Lens)
SINCEREFIRST

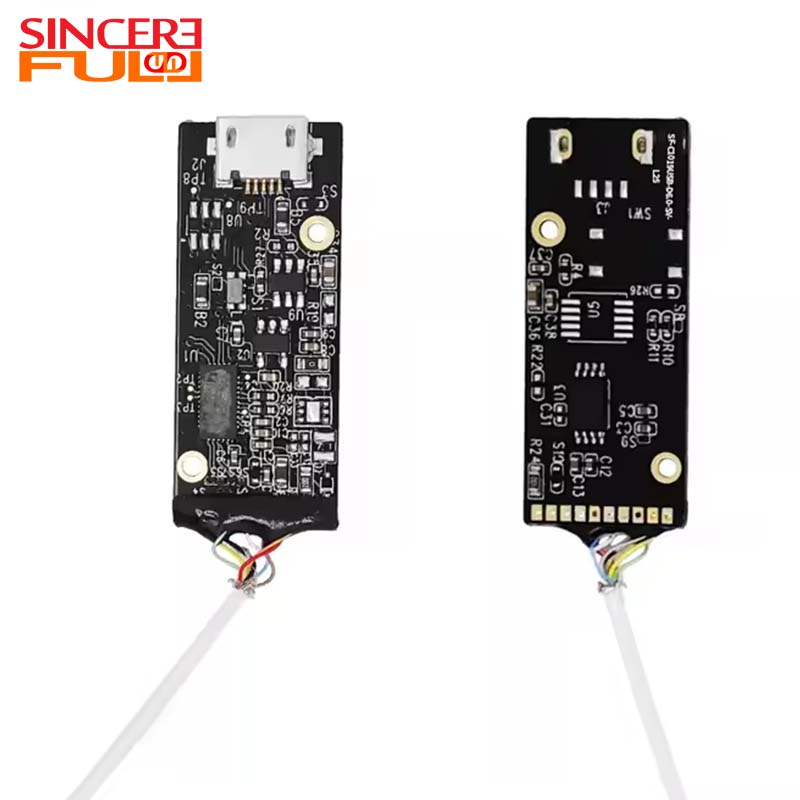

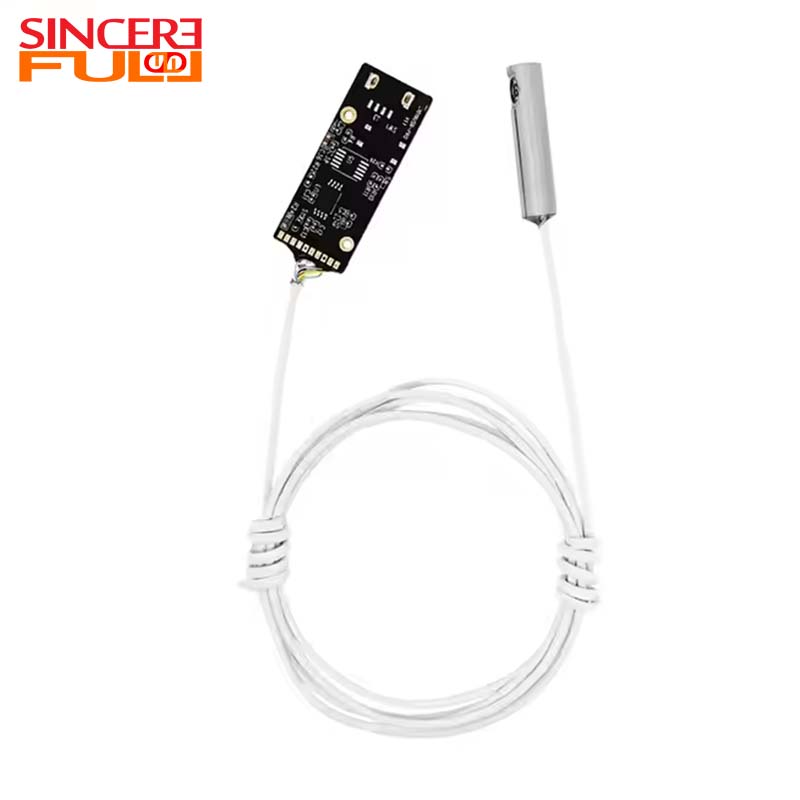

This is a 1MP Endoscope Camera Module featuring the Sensor OV9734. This Micro Camera Module is designed for precision in medical inspection and industrial applications. With a compact 6mm diameter, this endoscope camera module offers exceptional versatility, ideal for oral, gynecological, and automotive inspections. The All Glass camera module provides optimal image clarity with a resolution of 1280x720 at 30fps. Available in 95°, 110°, and 140° diagonal FOV options, it allows easy exploration of hard-to-reach areas. The unique single-head side-view design enables effective visualization of corners, ensuring comprehensive inspections. With a fixed focus lens and a focusing range of 10-100mm, this Medical Endoscope Camera Module is equipped with four adjustable bright LEDs to enhance visibility in varied lighting conditions. Its IP67 waterproof rating ensures reliable functionality in diverse environments. |  |
Resolution: 1MP Endoscope Camera Module with 1280x720 resolution at 30fps.

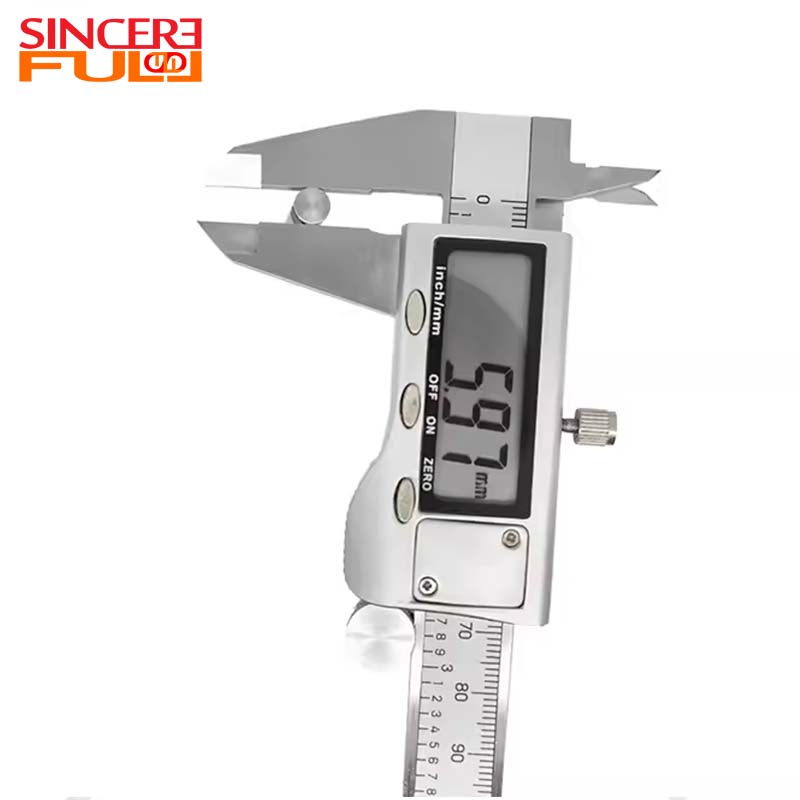

Compact Size: 6mm diameter for easy maneuverability in tight spaces.
Versatile FOV: Options of 95°, 110°, and 140° diagonal fields of view.
Durable Design: IP67 waterproof rating and four adjustable bright LEDs for enhanced visibility.
Product Name | side view endoscope camera module |
Features | Medical endoscope camera module |
Pixel Size | 1MP |
Sensor | OV9734 |
Resolution | 720P Max 30fps |
Output | USB2.0 UVC |
FOV(D) | 95°, 110°, 140° |
Trademark | SINCERE FIRST |
Interface | USB2.0 |
Focus | Fixed |
FAQ
1. Why is low illumination performance important for endoscope modules?
In case of insufficient light in the body or pipeline environment, the module needs a high sensitivity sensor and a large aperture lens, and the noise reduction algorithm ensures the clarity of the dark field. Some products use infrared fill light or HDR technology to improve low light performance.
2. What is the significance of the depth of field range of the module?
Large depth of field (such as 5mm to 50mm) can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.
3. How to achieve waterproof and sterilization design?
The medical-grade module uses IP68 waterproof seal, the housing material is resistant to high temperature and pressure (such as epoxy resin), and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design (IP54).
