SF-C0115USB-D2.8-PRO V1.1 0.08MP LED
SINCEREFIRST

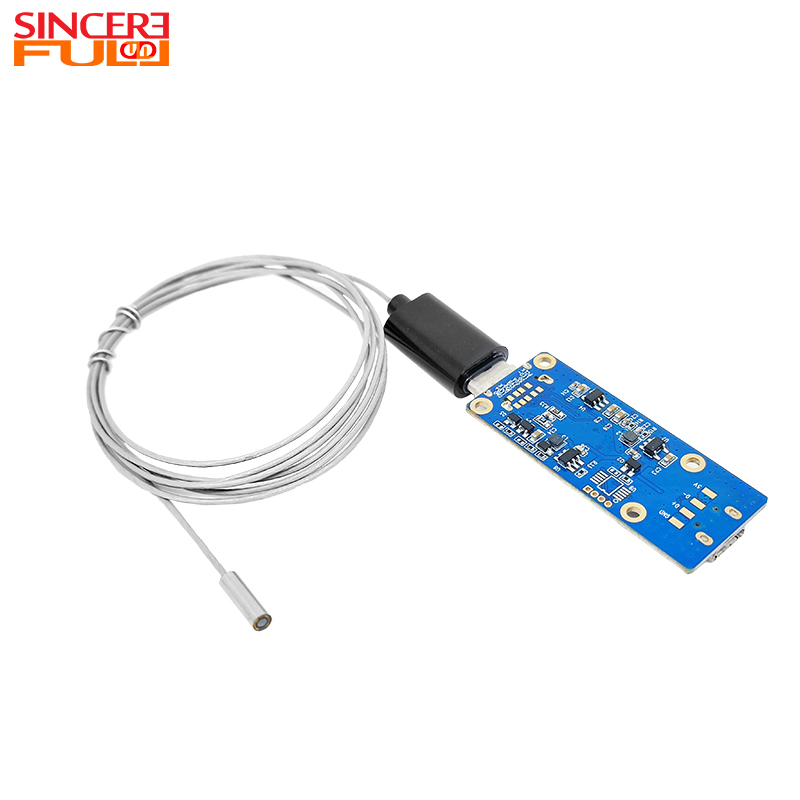

This USB endoscopic camera module features white LEDs, a 3-50mm focus range and 0.5mm focal length, and the USB plug-and-play and detachable design is compatible with all major operating systems and portable. The detachable design allows the probe and cable to be detached, making it easy to replace the probe with one of different lengths (1-5 meters available) or angles, and the detachable design makes the sub-camera module easy to fit into a toolkit, making it convenient to carry with you anywhere! More applications for engineers, automobile mechanics and doctors. |  |
1. Intelligent focusing: 3-50mm wide range focus + 0.5mm ultra-macro, whether it is a narrow gap or deep space, can accurately capture key details

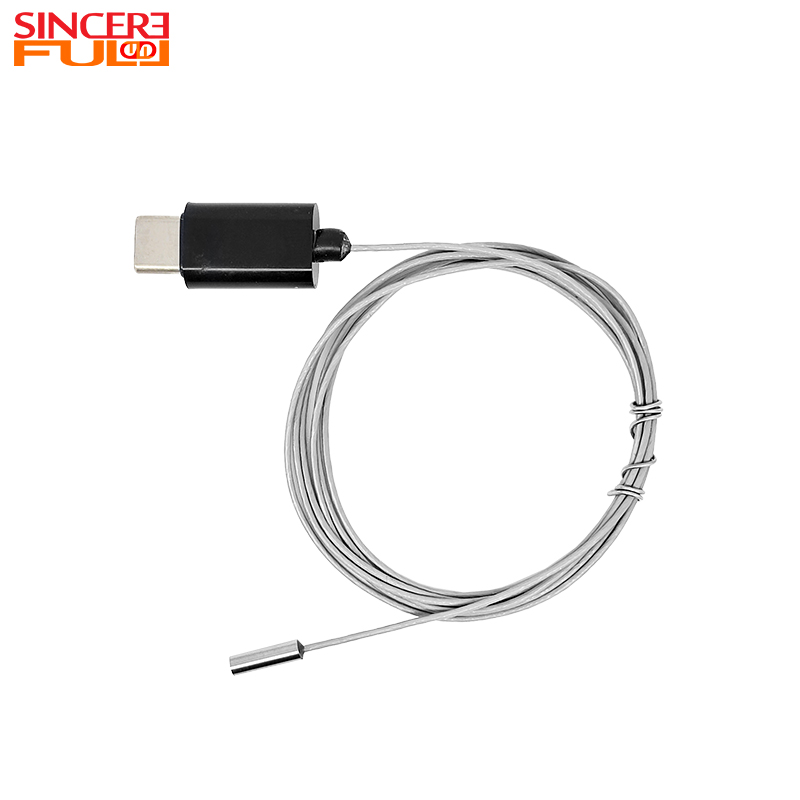

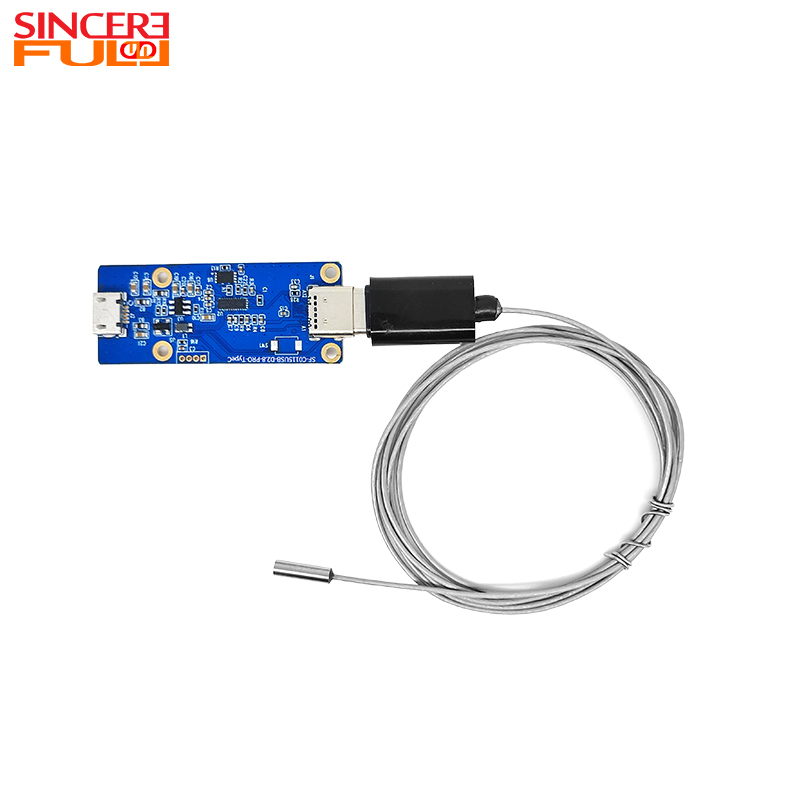

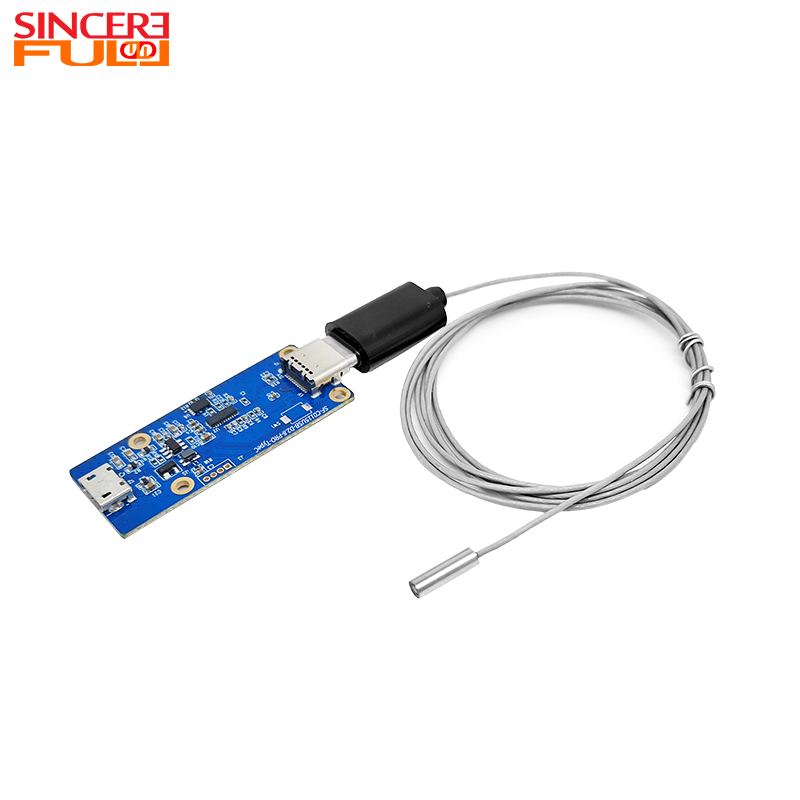

2. Modular design: probe and cable can be separated, support the replacement of different lengths or angles of the cable or probe, adapt to the complex space
1. Industrial Inspection and Equipment Maintenance: Mechanical internal inspection, using 3-50mm focus range and 0.5mm short focal length, deep inside the engine, gearbox and other equipment, check wear, cracks or assembly problems.
2. Medical diagnosis and minimally invasive surgery: ENT examination of ear canal cerumen impaction, nasal polyps, throat inflammation. Dentistry to assist root canal treatment, observe the depth of periodontal pockets.
3. Security and anti-snooping detection: checking hidden cameras in hotels, locker rooms and other places. Probe whether eavesdropping devices are implanted inside the device.
Product Name | Camera Module Separation |
Basic tolerance | ±0.1mm |
DSP | USB |
LED | 0201 LED |
Focusing Range | 3-50mm |
Focal Length | 0.5mm |
F Number | 4.5 |
FOV(D) | 1.5° |
TV Distortion | ＜-11% |
Connector | Mini USB-5P |
1. Which devices can this module be connected to?
This module can be connected via the USB interface to most computers (including Windows, Mac OS, and Linux systems), laptops, and some tablets that support USB devices. As long as the device has a USB interface and can recognize external devices, this module can be used.
2. Can LED lights be customized?
Yes, the LED light can be customized.The LED light is configured with multiple light sources, either white light (standard), infrared (night vision) or ultraviolet (special detection), to meet the diversified needs of medical, industrial and other scenarios. The medical version adopts shadowless lamp design to avoid localized overexposure; the industrial version strengthens heat dissipation to ensure long-time working stability.
3. Can the images and videos be saved?
Yes, the operation software on the connected device generally provides the function of saving images and videos. You can save the captured images and videos to the hard disk or other storage media of the device for subsequent viewing, analysis, and archiving.
