Sensor OV9734 30FPS USB Endoscope Camera Module

The HD Endoscope Camera with Sensor OV9734 is a professional Endoscope Camera Module equipped with 1/9 inch CMOS sensor, 1.4μm×1.4μm large pixel size design,Delicate and clear images even in low light.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-N735V3 D3.5

  • SINCEREFIRST

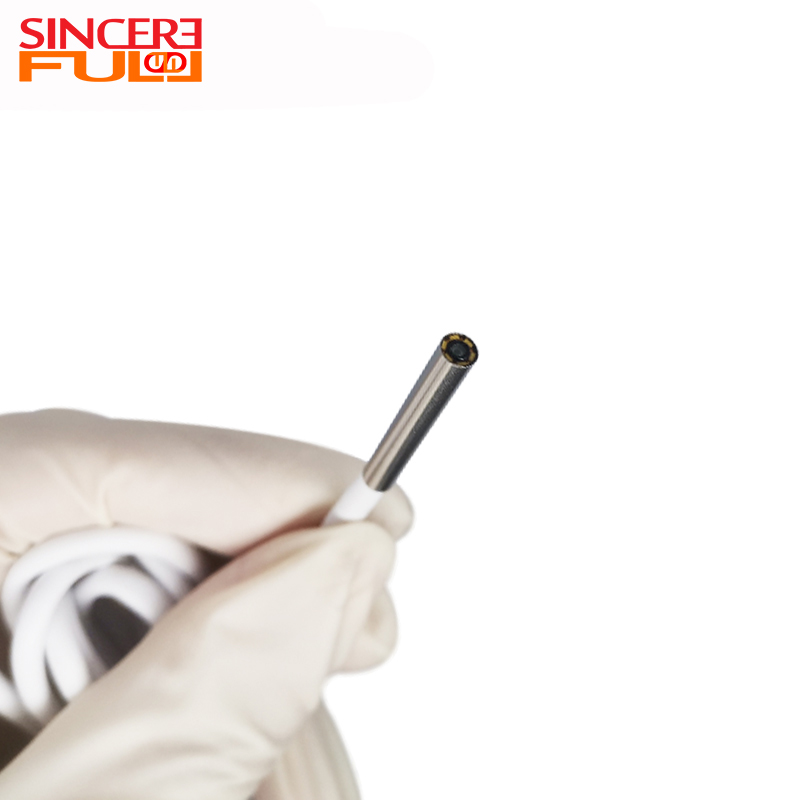

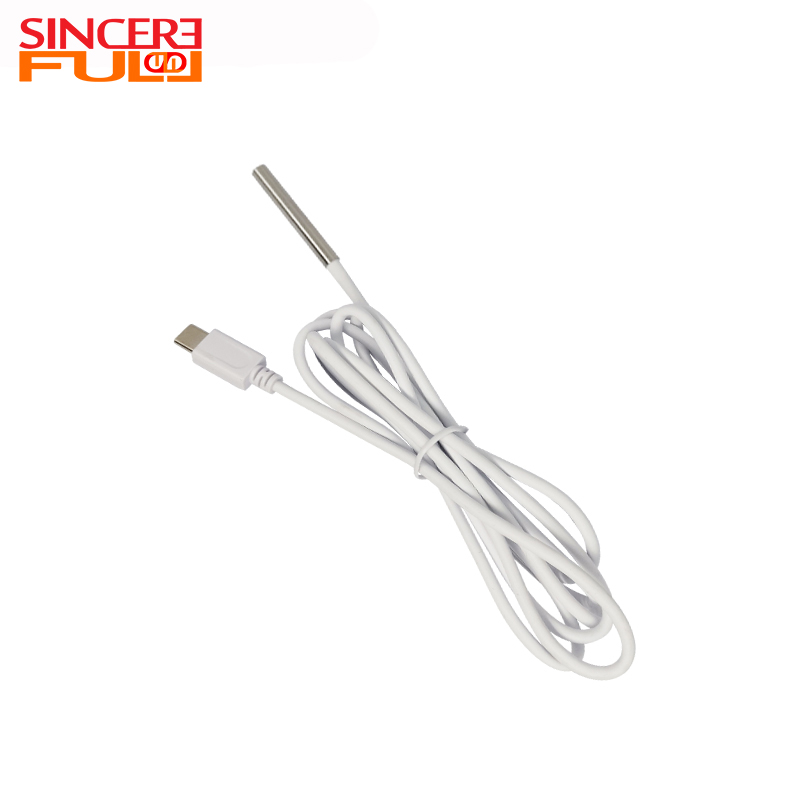

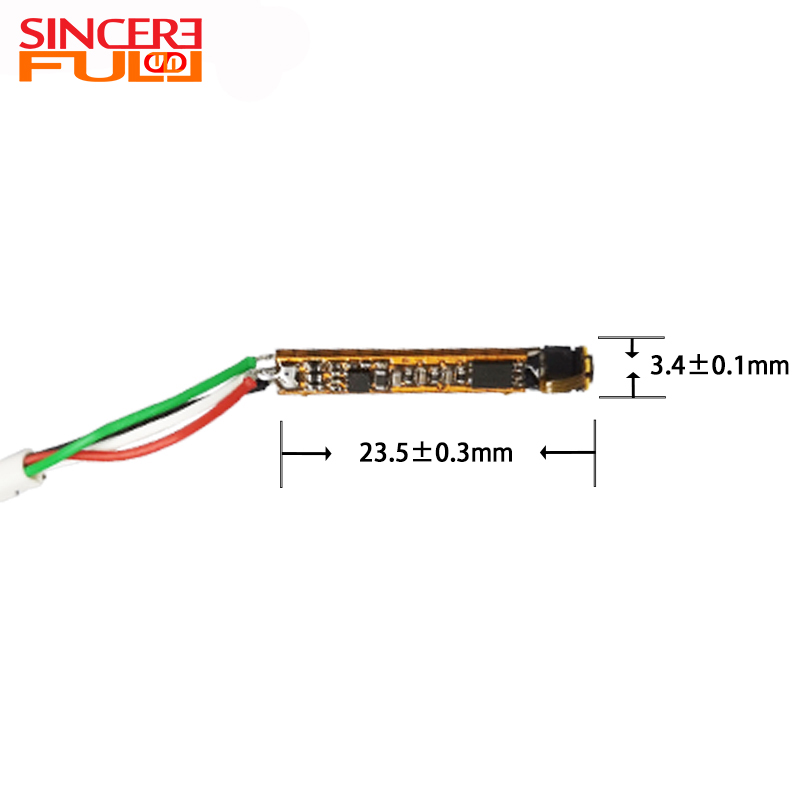

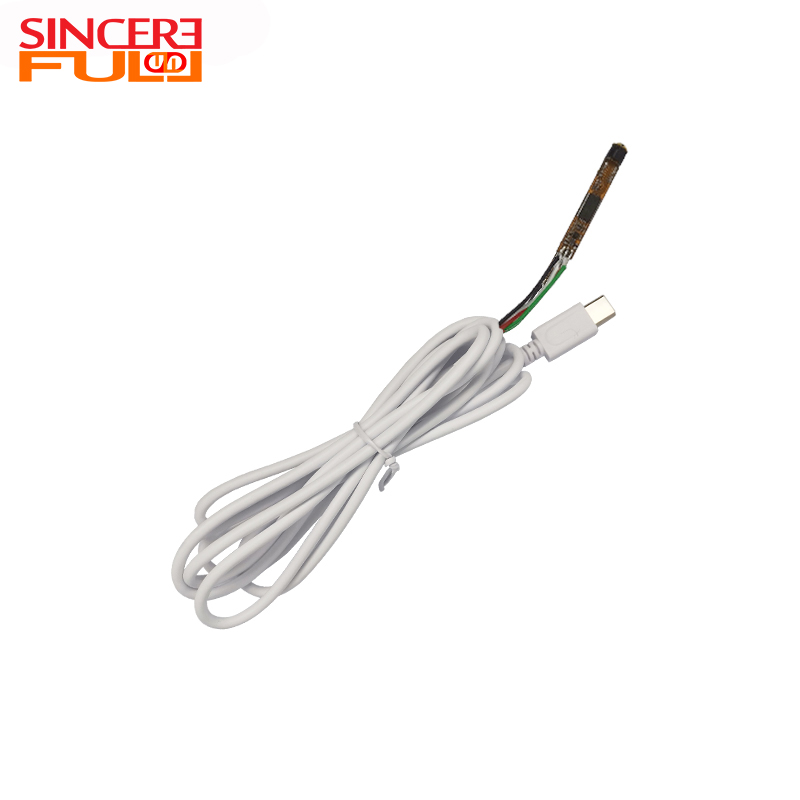

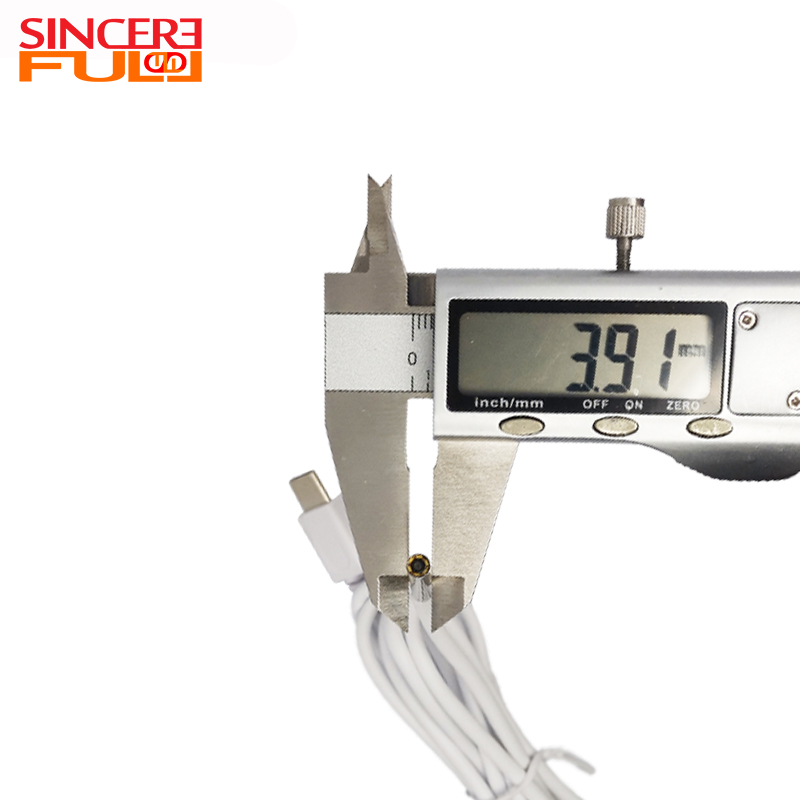

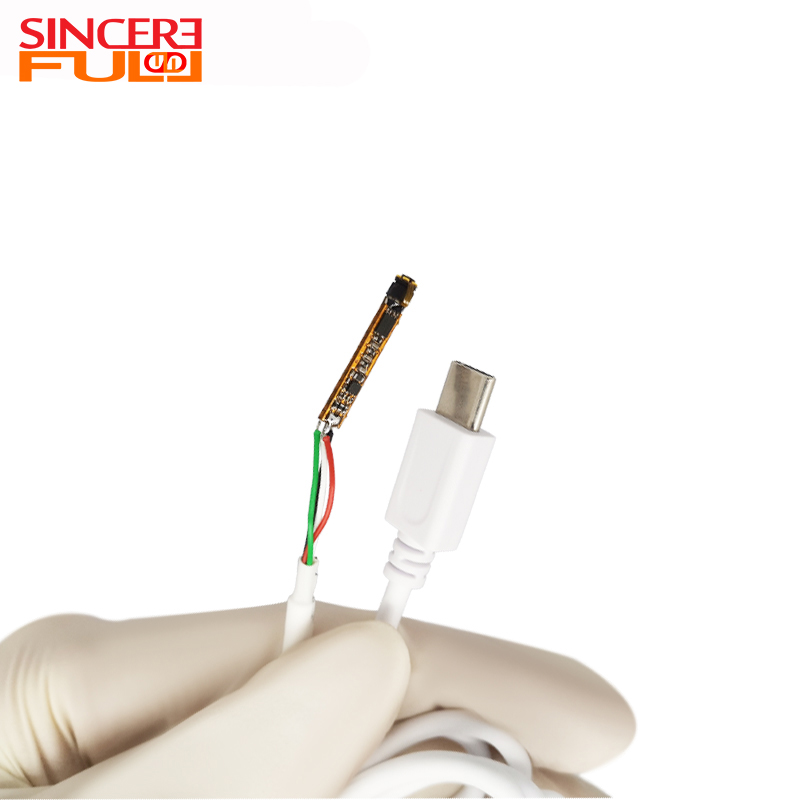

The HD Endoscope Camera with Sensor OV9734 is a professional Endoscope Camera Module equipped with 1/9 inch CMOS sensor, 1.4μm×1.4μm large pixel size design,Delicate and clear images even in low light. As a Professional Inspection Camera, it supports 30FPS smooth video output to ensure dynamic detection without delay, and achieves real-time high-definition image transmission with USB2.0 High Speed interface.

规格图


Product Advantage ◢

1. Excellent imaging performance: The OV9734 sensor provides superior image quality to meet the needs of precision inspection


2. Wide temperature working range: -20℃ ~ 70℃ environmental adaptability, suitable for a variety of harsh conditions


3. Plug and play: Standard USB Camera Module design, compatible with mainstream operating systems



Application of Endoscope Camera Module

1. Industrial testing field: precision machinery internal defect detection, electronic product assembly quality inspection.


2. Medical diagnostic applications: visual aid for minimally invasive surgery, root canal therapy in stomatology.


3. Automobile engine maintenance


4. Security concealed space inspection


Technical Parameters ◢

Product Name

30FPS ENDOSCOPE Camera Module

Image Sensor

OV9734

Lens Size

1/9 inch

Pixel Size

1.4um X 1.4um

Maximum effective pixel

1280(H)X720(V)

Interface type

USB2.0 High Speed

OTG protocol is supported

USB2.0 OTG

Supported resolution and frame rate

30fps VGA YUV MJPEG / 30fps QVGA YUV

Lens

Hd lens/fixed focus

Operating temperature

-20~70℃


FAQ


1. How does the endoscope camera module work?

The endoscope camera module collects the internal image through the front optical lens, converts it into electrical signal by CMOS or CCD sensor, and then optimizes it through image processing chip for noise reduction and enhancement, and finally outputs high-definition video signal. Some modules support wireless transmission or fiber optic signal transmission, suitable for medical or industrial inspection scenarios.


2. How does the Field of view (FOV) of the module affect the use effect?

The field of view Angle determines the imaging range. The wide Angle (above 120°) is suitable for observing a large area, but the edge may be distorted. Narrow angles (below 60°) provide a more focused picture. The selection should be based on the application scenario, such as laparoscopic surgery commonly used 70°-90° balanced field of view and detail.


3. What are the interface types of the module?

Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices integrate dedicated medical image interfaces (such as DVI-Med).
