Best Price Mini BF20A6 Sensor 4.5mm 5mm USB Medical Endoscope Inspection Camera Module

The BF20A6 Sensor Endoscopy Camera module is an inexpensive camera module designed for medical and industrial endoscopy applications.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-SJN345

  • SINCEREFIRST

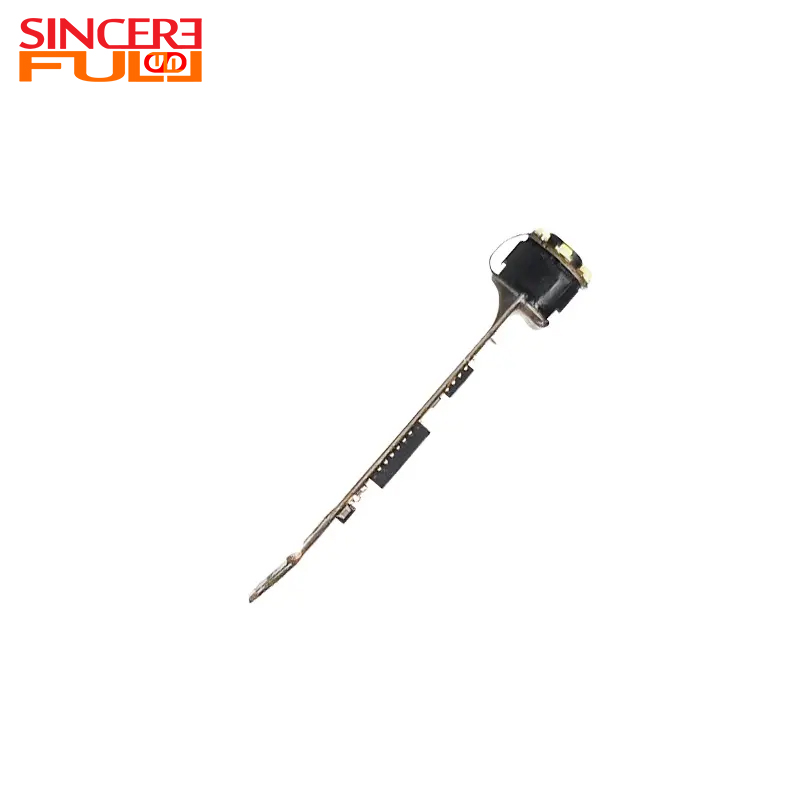

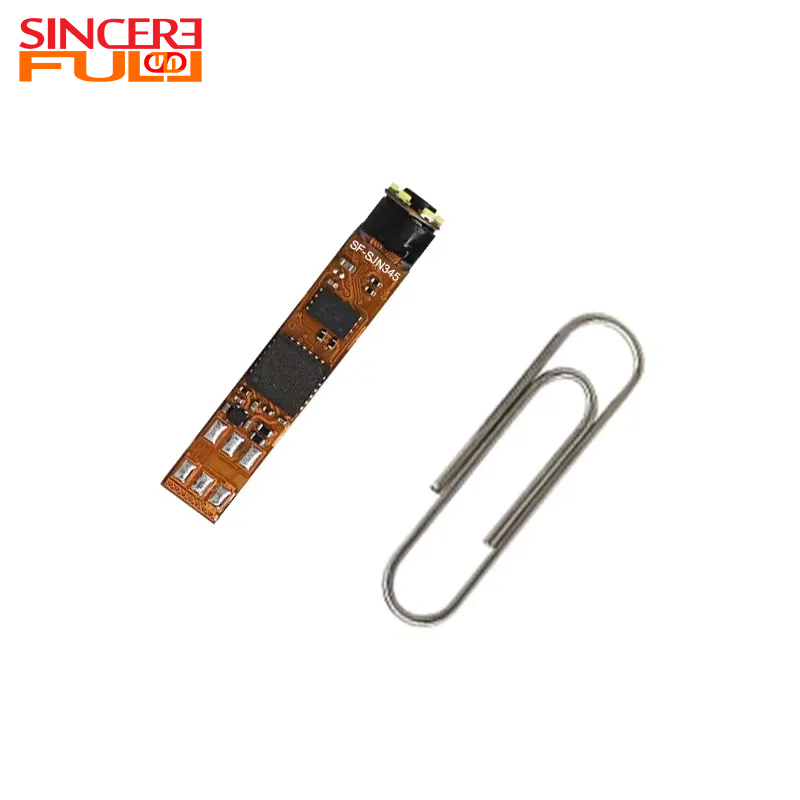

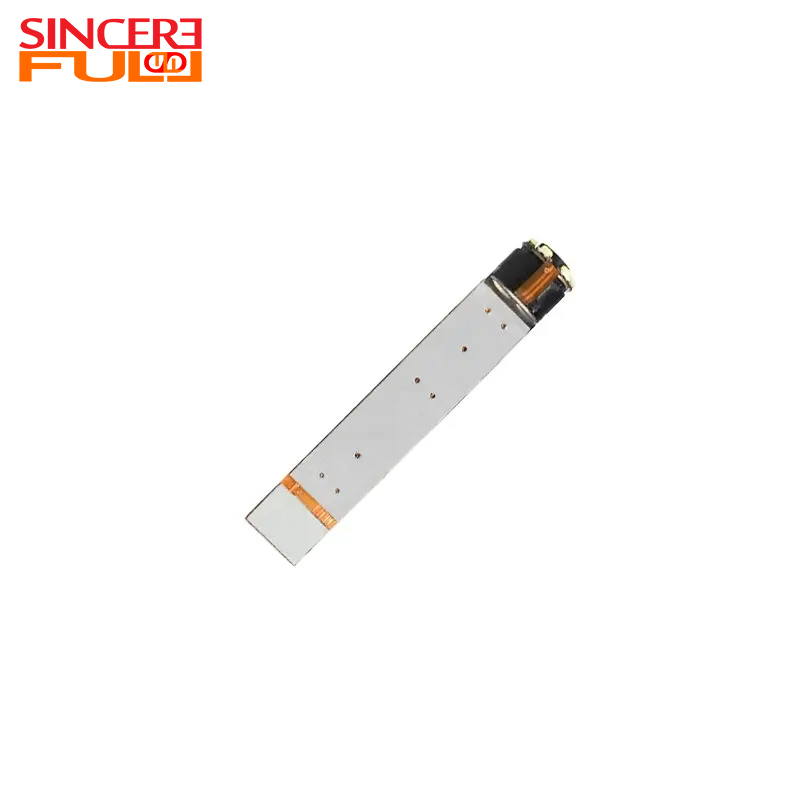

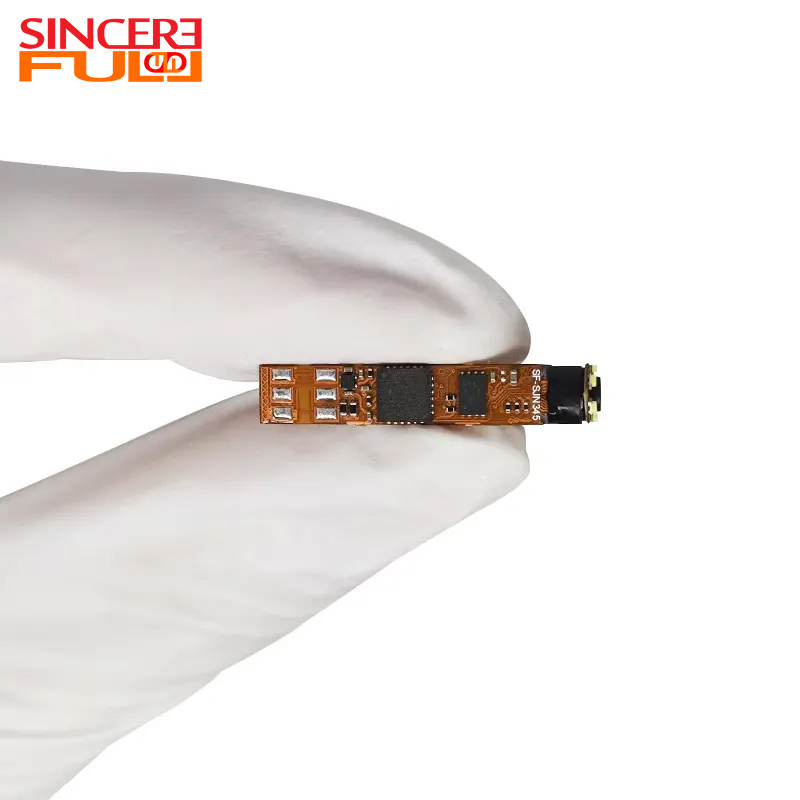

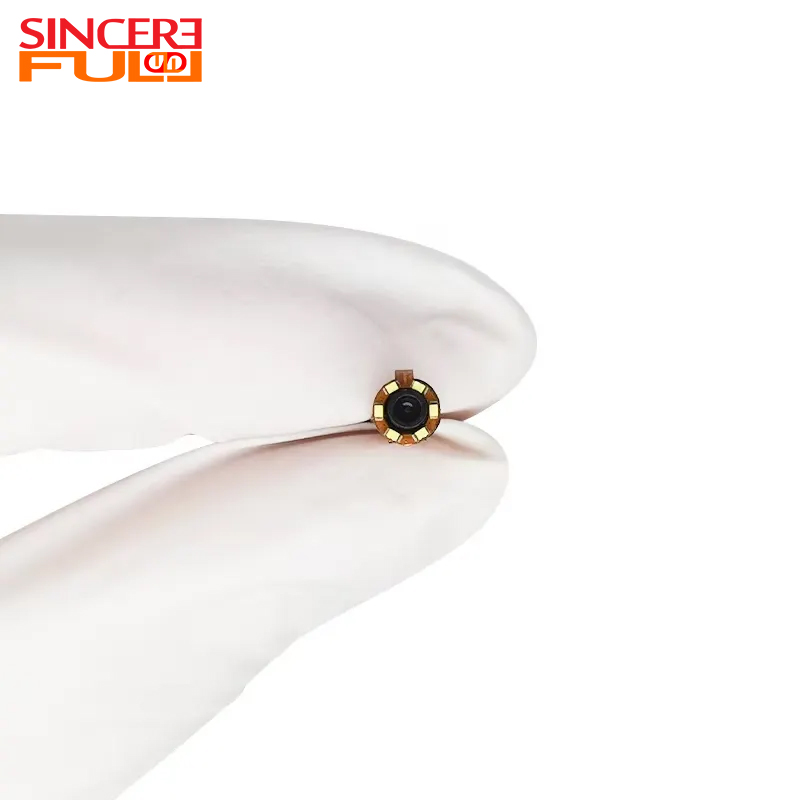

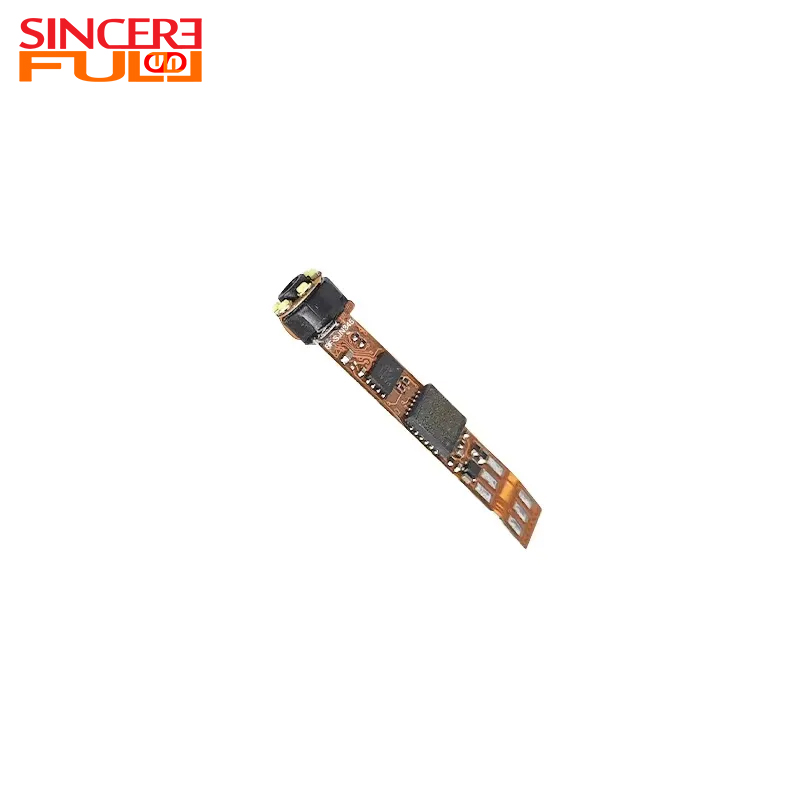

This is a cheap price 0.3MP integrated endoscope camera module, BF20A6 CMOS Sensor, 1/10 inch, resolution ‌VGA (640x480 pixels), 30fps frame rate ‌, USB2.0 interface, output format ‌YUV2/MJPEG, suitable for medical industrial endoscopes and other equipment requiring high-definition image transmission.


endoscope camera


Product Advantage ◢

  • 0.3MP resolution provides clear images.

  • Ultra-small design for easy integration.

  • With or without steel sleeve, 4.5mm or 5mm.

  • Real-time video streaming is supported to help doctors perform precise operations.


Technical Parameters ◢

Product Name

0.3MP Endoscope Camera Module

Features

Micro Endoscope Camera Module

Pixel

1.6um*1.6um

Sensor

BF20A6 sensor

Diameter

4.5mm or 5mm

Interface

USB2.0

FOV

72°

Connector

USB 5PIN

F.NO

2.8

Warranty

10 Years


Product Uses ◢

  • Laparoscopic

  • Arthroscopic

  • Hysteroscopic

  • Dental Endoscopy


FAQ

1. What are the interface types of the module?

Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices are multi-integrated dedicated medical image interfaces.


2. What are the common specifications of the resolution of the endoscope camera module?

Mainstream resolutions include 720p, 1080p, 4K, etc. Medical grade modules usually require more than 1080p to ensure diagnostic accuracy, while industrial modules may choose lower resolutions to reduce costs according to demand. Ultra-high resolution modules (such as 4K) are mostly used in precision surgery or scientific research.


3. How does the Field of view (FOV) of the module affect the use effect?

The field of view Angle determines the imaging range. The wide Angle is suitable for observing a large area, but the edge may be distorted. Narrow angles provide a more focused picture. The selection should be based on the application scenario, such as laparoscopic surgery commonly used 70°-90° balanced field of view and detail.
