SF-N1070(with steel shell)
SINCEREFIRST

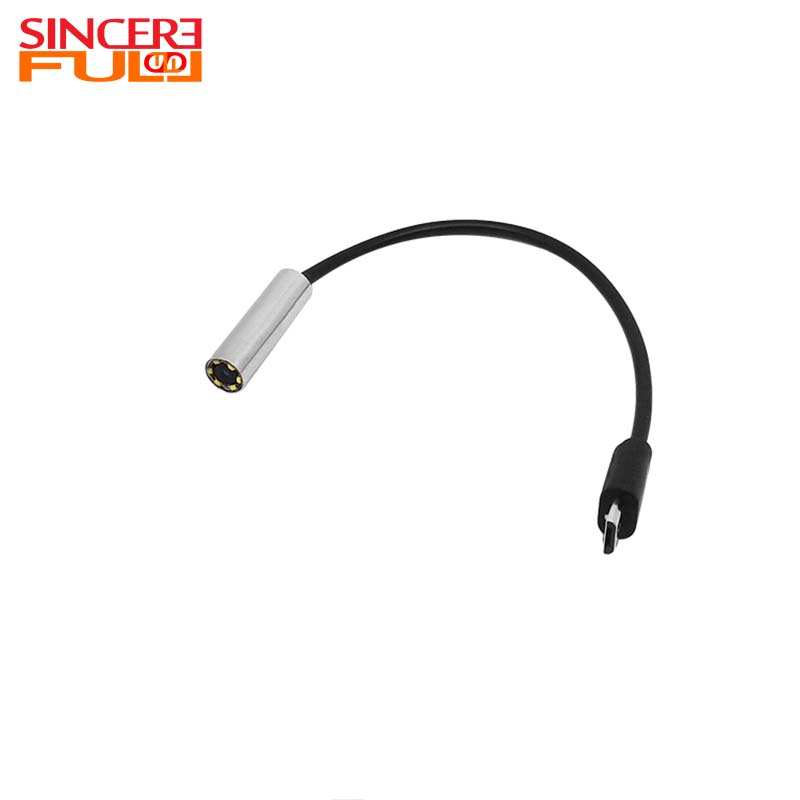

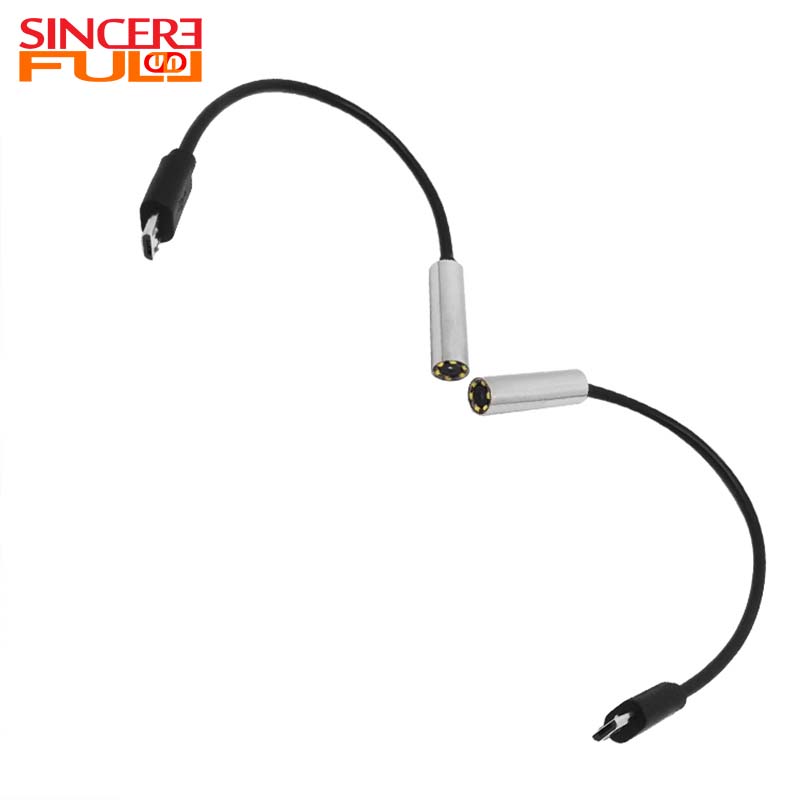

This CMOS sensor ultra low light 7mm diameter 1080P Type-C endoscope camera module with steel shell， utilizes the GalaxyCore GC2755 CMOS color image sensor, delivering 1080P@30FPS high-definition fluid output with 2MP resolution (1920×1080). Featuring a 1/6-inch sensor size and 1.6μm×1.6μm large pixel design, it integrates advanced low-light imaging technology to capture clear images in environments as dim as 0.1Lux minimum operating illumination, substantially enhancing detail performance in dark scenarios. The module incorporates six high-brightness LED fill lights and manual focus functionality, ensuring precision visualization during surgical or inspection procedures. Equipped with a Type-C interface and USB 2.0 transmission protocol, it supports UVC standard and OTG functionality for plug-and-play operation. The integrated structural design, coupled with a 7mm steel-shell lens, balances durability with miniaturization requirements. Manufactured using SMT (Surface Mount Technology) and AA (Active Alignment) processes, it guarantees optical assembly precision and consistency, making it ideal for medical endoscopy, industrial inspection, and other professional applications. |  |
Outstanding Low-Light Imaging Capability: With a 1.6μm large pixel size and 0.1Lux low-light algorithm, it can still present clear images even in nearly dark environments (such as body cavities), reducing the reliance on supplementary lighting.

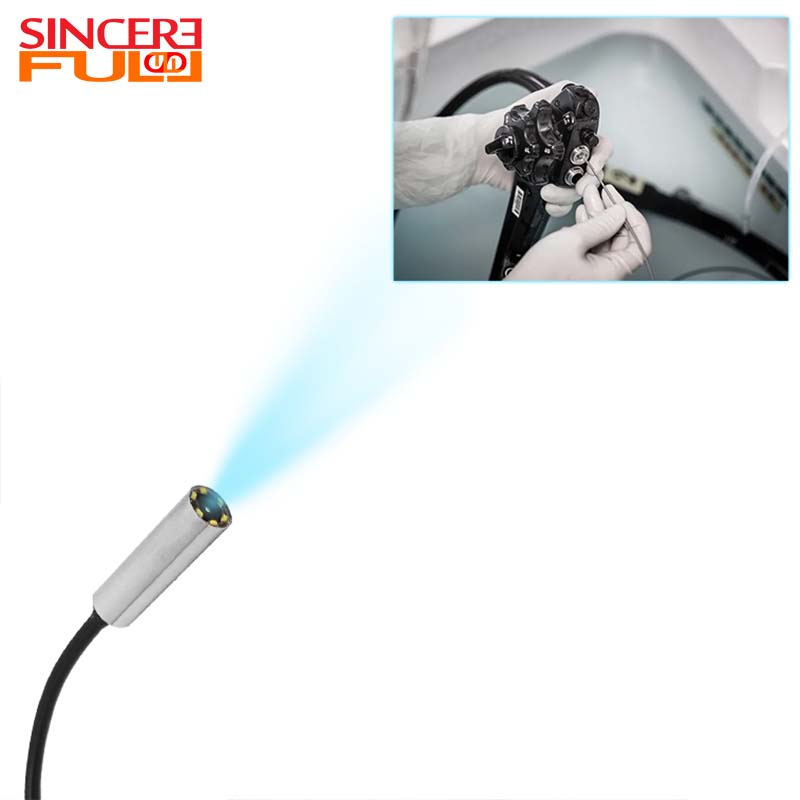

High-Brightness LED Lighting: Integrated with 6 LED light beads, it achieves bright lighting to ensure visual clarity throughout the surgery/detection process.

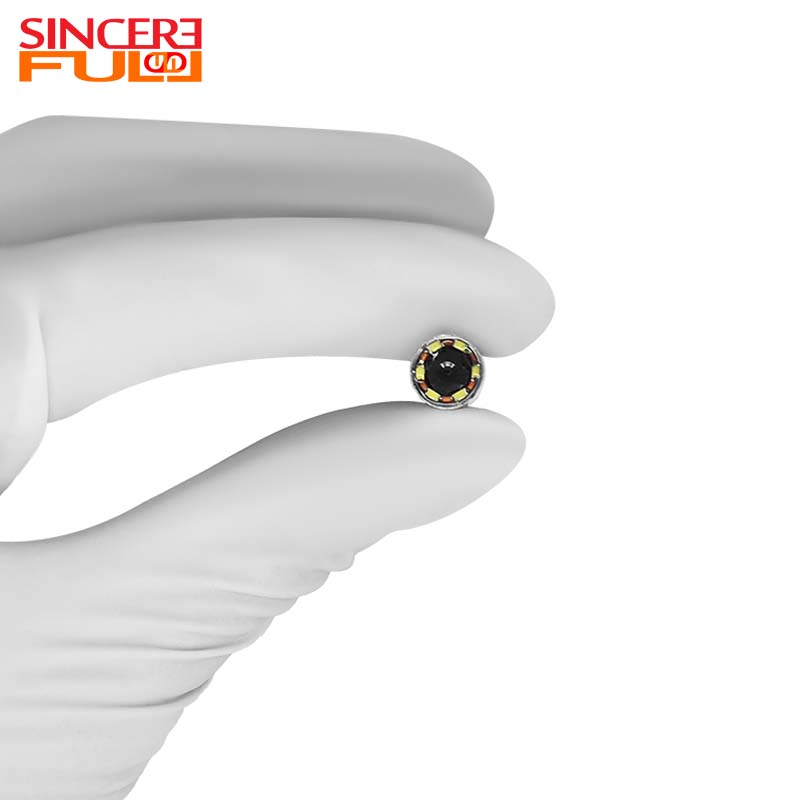

Precise Structural Design: Anti-corrosion steel sleeve packaging, capable of withstanding high-temperature disinfection, with a diameter of only 7mm yet achieving ultra-precision penetration.
Stable and Reliable Quality: AA (active alignment) process + SMT technology, ensuring no image distortion and stable performance.
Plug-and-Play Compatibility: UVC protocol + Type-C interface enables driver-free compatibility across Windows, Mac, and Android systems. USB 2.0 transmission has zero latency. Supports OTG mobile device direct connection.
Scene-Specific Professional Adaptation: Manual focusing combined with 1080P@30FPS image output, 2MP resolution is sufficient for recording lesion details, suitable for minimally invasive surgeries or pipeline inspections.
1.Dental Diagnostics:Manual focus (±0.02mm) allows precise examination of subgingival caries, while 6-LED adaptive lighting eliminates oral cavity shadows. AA-processed optics prevent image distortion during root canal inspections.
2. Disaster rescue: detection of vital signs in debris crevices and remote assessment of dangerous goods leakage site
3. Intelligent hardware integration: robot automatic inspection (the following waterway cleaning robot vision module).
4. Aerospace Engine Maintenance: The SMT-encapsulated module resists vibration (up to 15G) and high temps (85°C), ideal for turbine blade crack detection in confined spaces (Φ≥7mm pipelines).

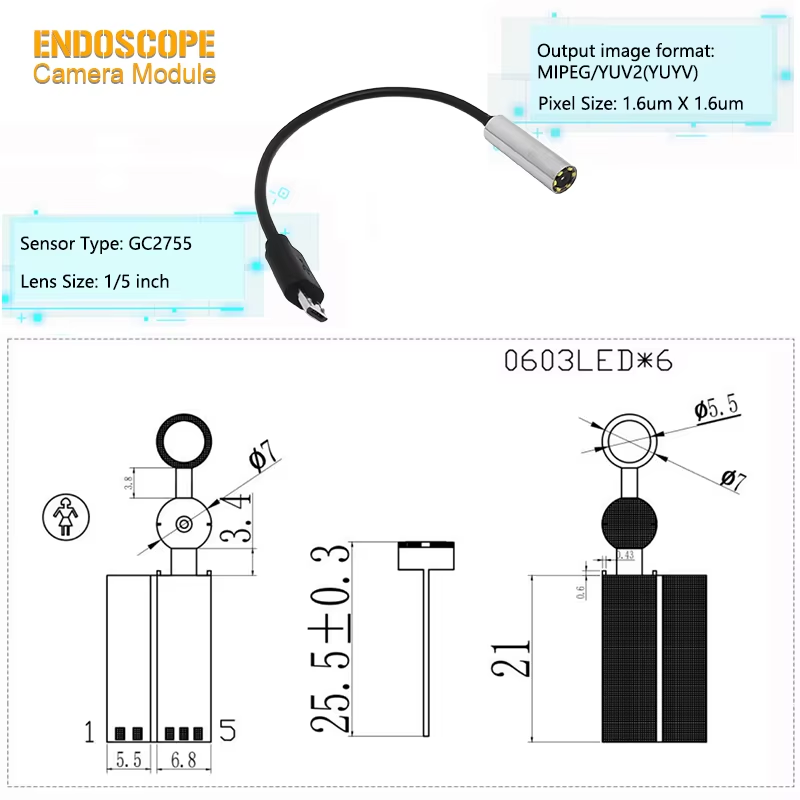

Product Name | Medical or Industrial Endoscope Camera Module |
Features | 2MP Camera Module |
Pixel | 1.6um*1.6um |
Sensor | GC2755 sensor |
Diameter | 7mm |
Interface | USB2.0 |
Output Image Format | MJPG/YUV2(YUYV) |
Model Number | SF-N1070(with steel shell) |
Lens Size | 1/5 inch |
Interface | 6PIN Soldering |
FAQ
1. What are the typical requirements for custom modules?

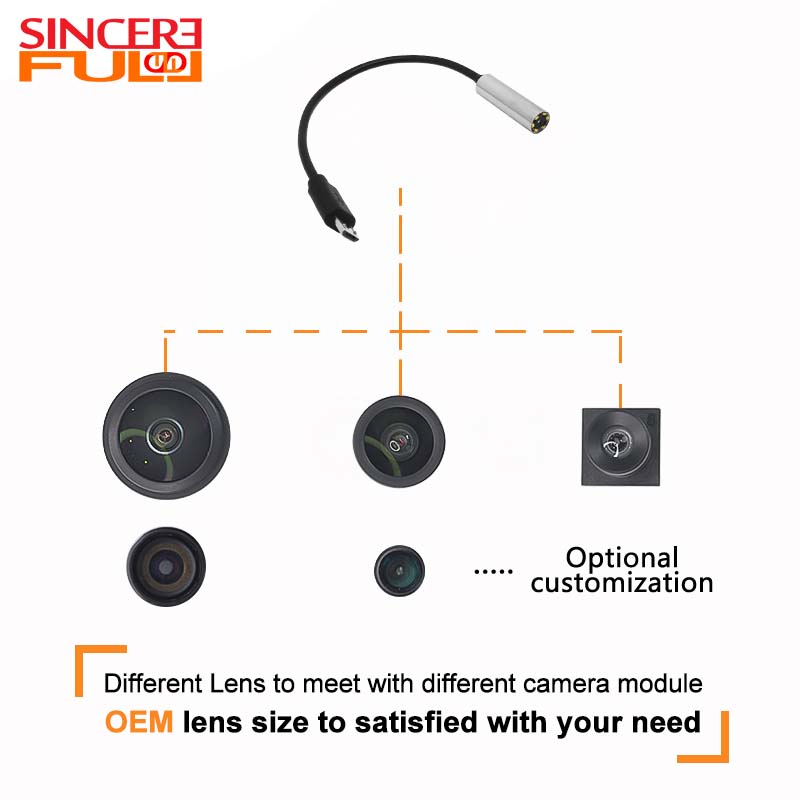

Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
2. How to evaluate the cost performance of the module?
For comprehensive resolution, durability, and after-sales support (such as medical modules that require calibration services from manufacturers), industrial scenarios can prioritize MTBF (mean time to failure) indicators.
3. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
