SF-C1019USB-D6.0-SV-PRO-L200
SINCEREFIRST

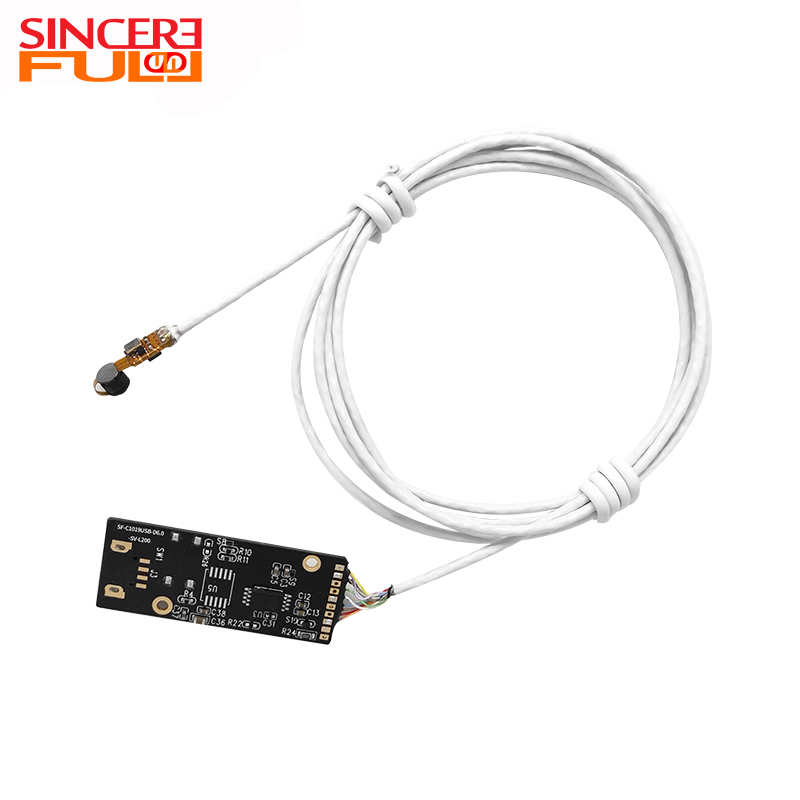

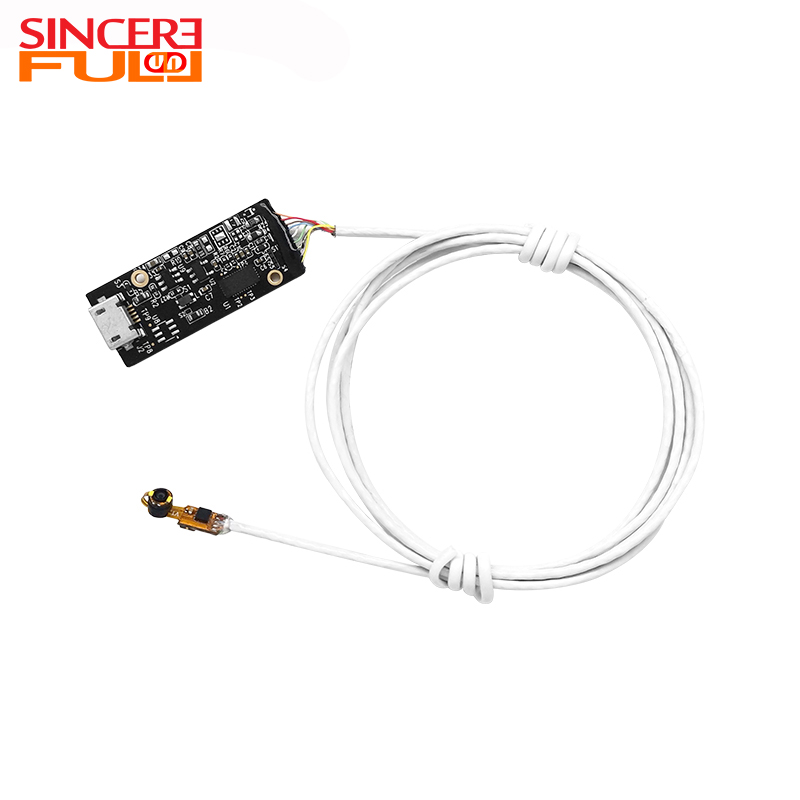

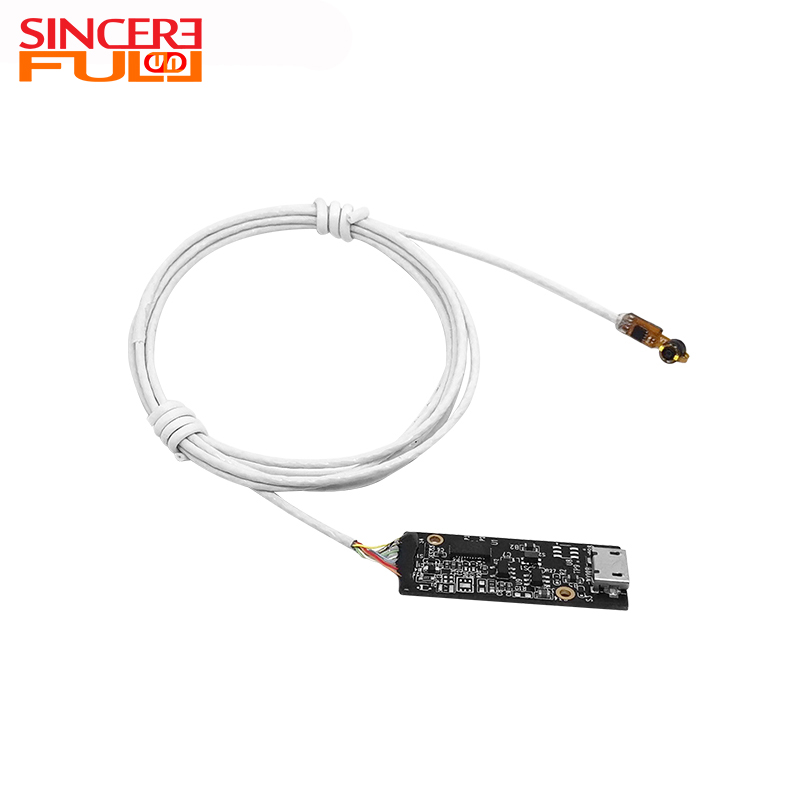

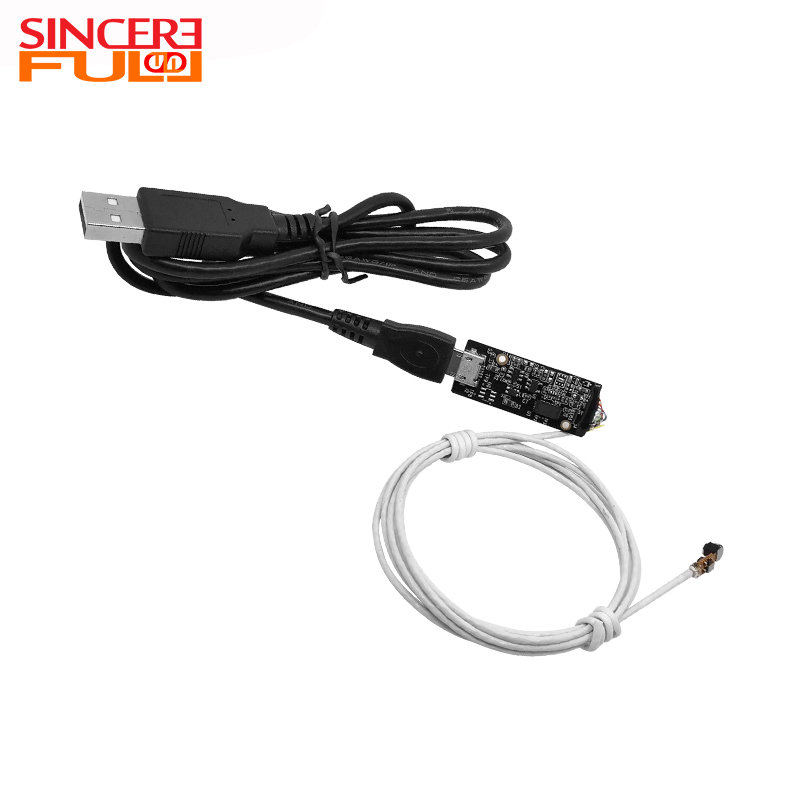

The OV9734 Industrial Side View Endoscope camera module is a professional-grade USB endoscope inspection device with a high-performance OV9734 sensor that delivers 720P HD image quality. With a 6mm ultra-fine diameter design and a 1.08mm ultra-short focus lens and a large aperture of F4.0, this side-looking endoscope module supports a wide range of 10-100mm for sharp images in small Spaces. Its unique 98°(D)×85°(H)×43.5°(V) multi-axis wide viewing Angle with <-10% ultra-low distortion rate ensures true image distortion. As an Inspection Camera with Light, the module has a built-in 0402LED array to provide sufficient lighting for dark environments. Plug and play through USB2.0 interface, compatible with a variety of operating systems, is ideal for industrial pipeline inspection, mechanical fault diagnosis and medical endoscopy. With its compact structure, high definition picture quality and excellent environmental adaptability, this endoscopic camera module has become a professional solution in the field of precision inspection. |  |
HD Camera Module with Sensor OV9734 delivers clear images at 720P.
6mm Endoscope Camera Module allows for easy access in tight spaces.
95° FOV with a focus range of 10mm to 100mm for versatile inspections.
Features 4 adjustable LEDs for enhanced visibility.
IP67 waterproof rating ensures reliability in challenging environments.
1. 720P HD imaging: Using the OV9734 sensor, providing 1280×720 resolution, the details are clearer.

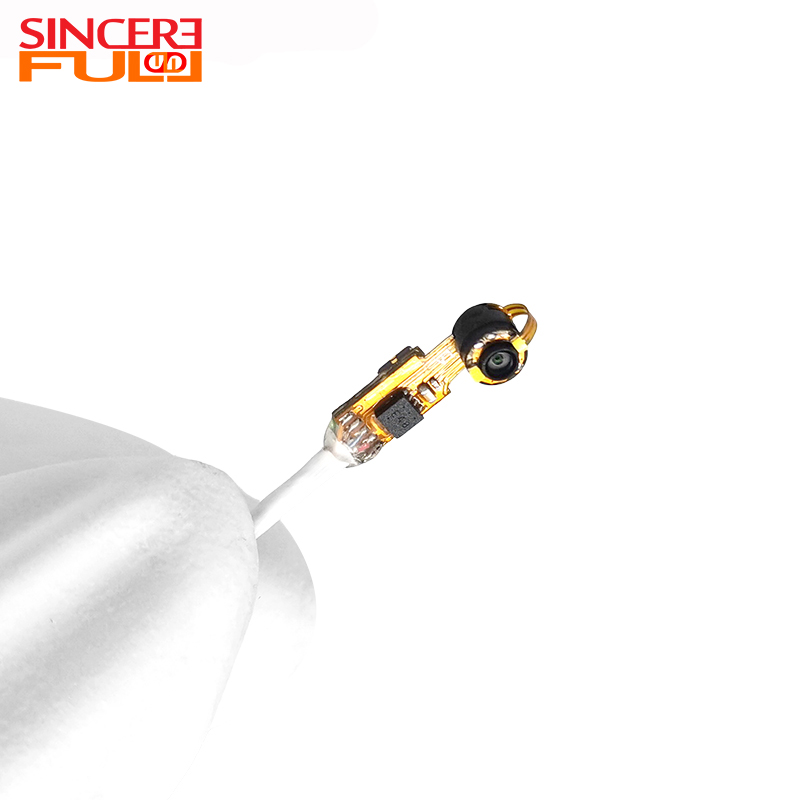

2. Side-view 90° deflection optical design: especially suitable for observing the side walls of pipelines, mechanical interior and other areas that are difficult to see directly.

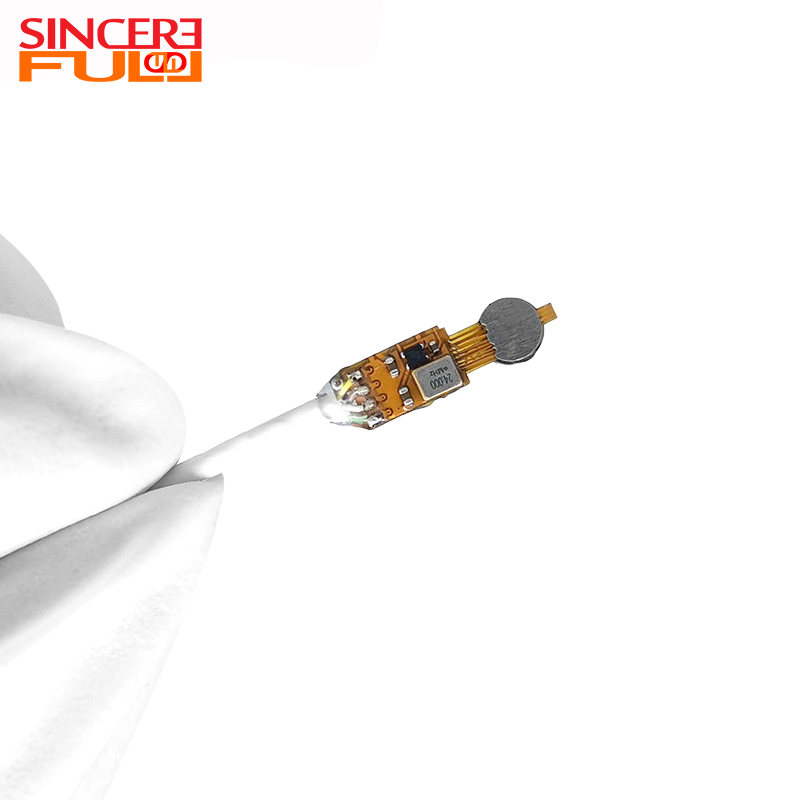

3. Integrated 0402 LED array: adjustable brightness, adapt to different environmental lighting conditions.
Product Name | ENDOSCOPE Camera Module |
Image Sensor | OV9734 |
FOV（D*H*V） | 95°*85°*43.5° |
Focusing Range | 10-100mm |
Focal Length | 1.08mm |
F Number | 4.0 |
Product Type | Endoscope Camera Module |
Led | 0402 Led |
TV Distortion | <-10% |
Feature | Side-View Endoscope Camera Module |
FAQ
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
2. How to evaluate the cost performance of the module?
For comprehensive resolution, durability, and after-sales support (such as medical modules that require calibration services from manufacturers), industrial scenarios can prioritize MTBF (mean time to failure) indicators.
3. How does 3D endoscope achieve stereoscopic vision?
Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.
