SF-C016USB-D1.4
SINCEREFIRST

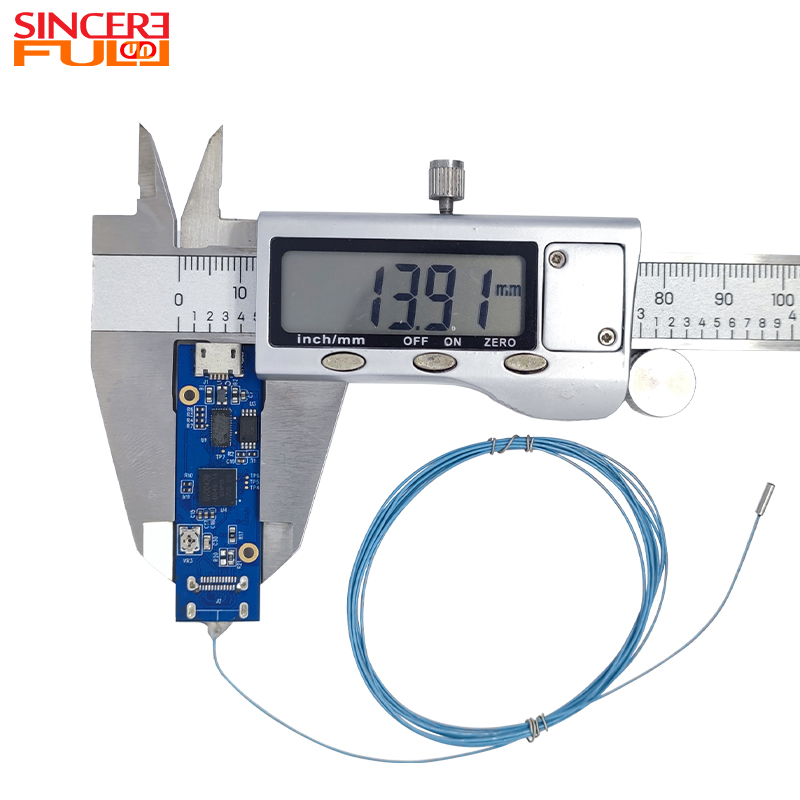

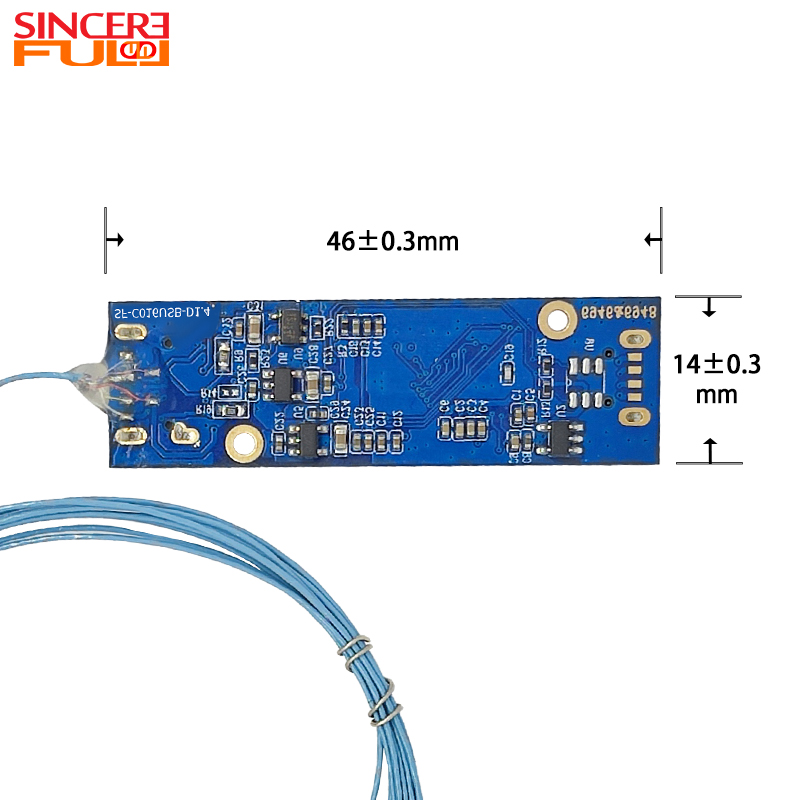

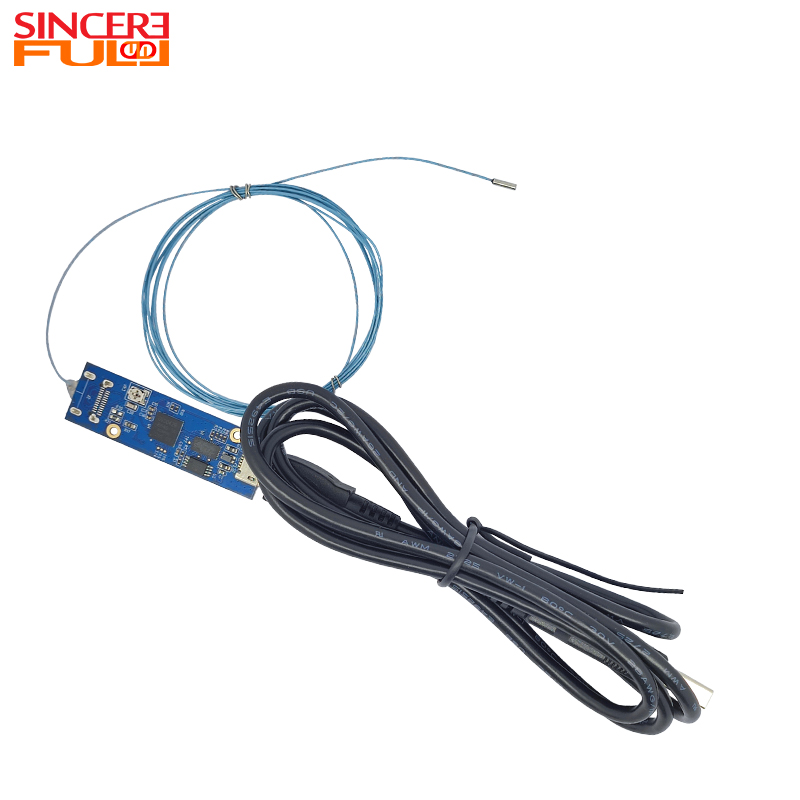

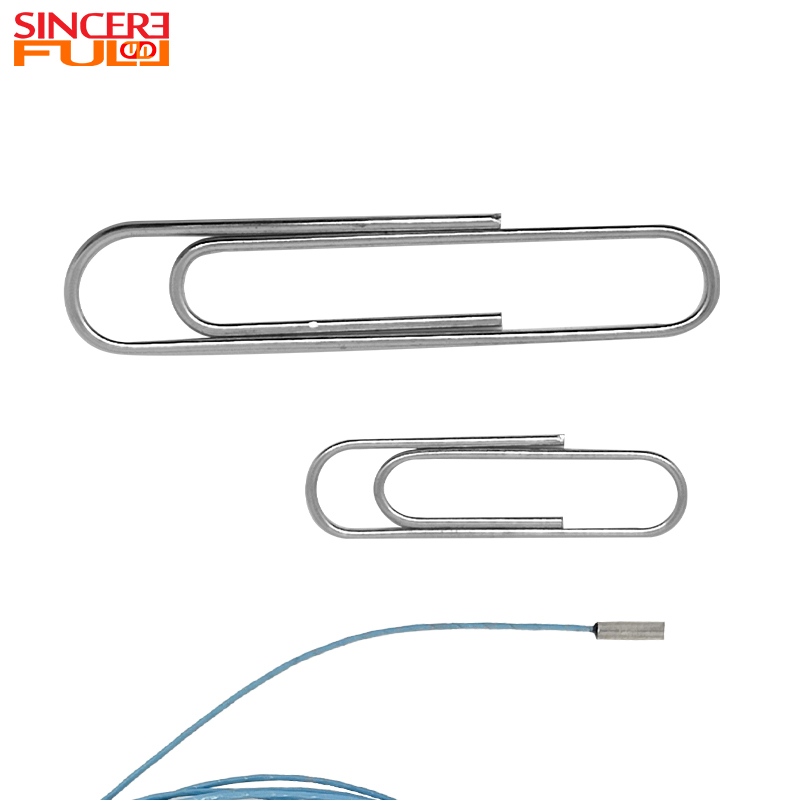

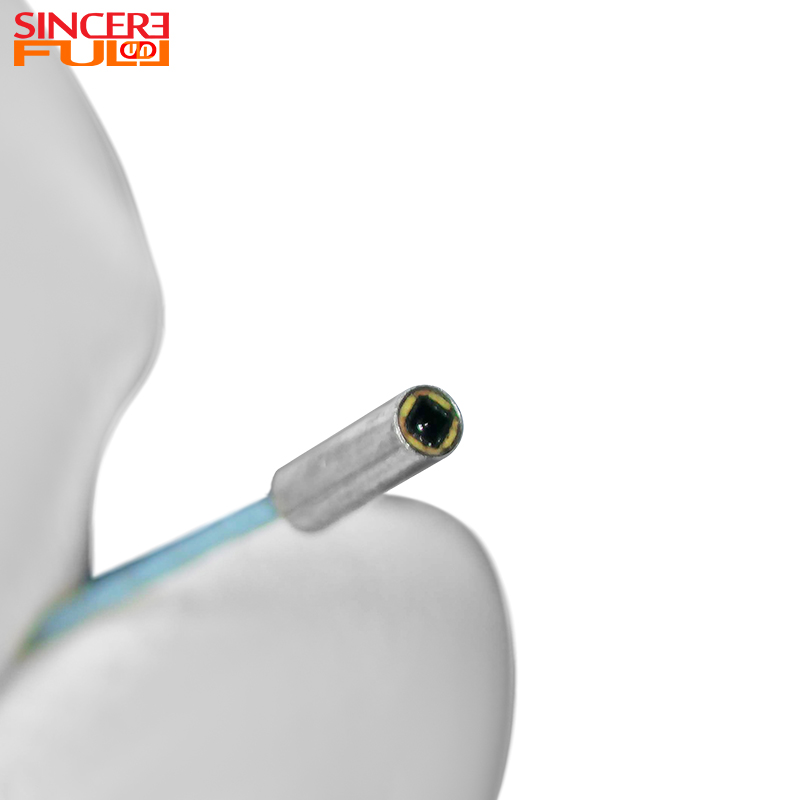

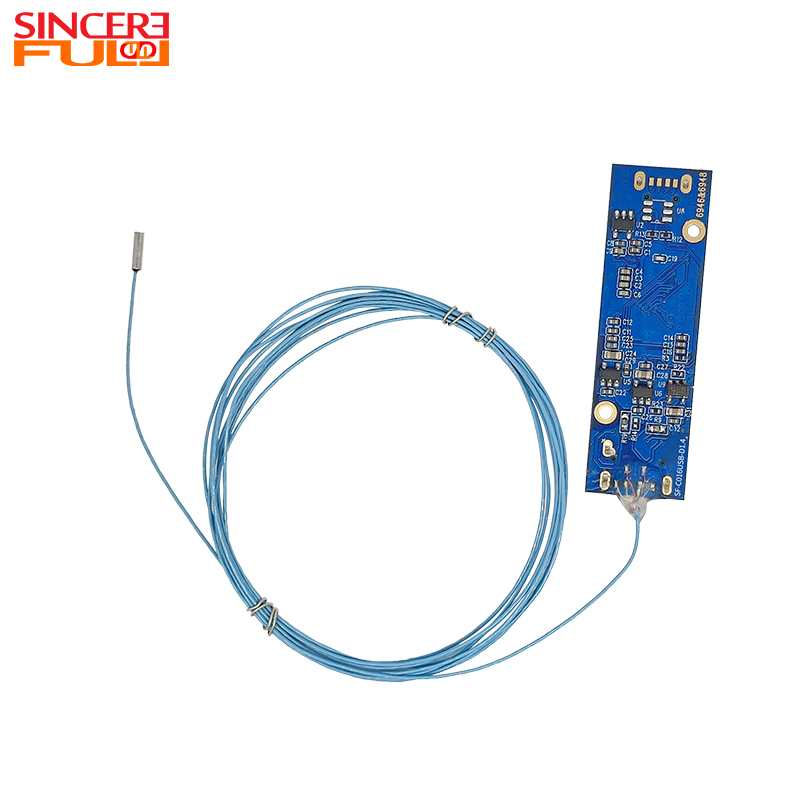

This 1.2mm USB Borescope features an LED light, a 3-30mm focus range, and a 0.175mm focal length.The USB plug-and-play design is compatible with leading operating systems. Its miniature probe diameter of only 1.2 mm combined with the ultra-short focal length of 0.175 mm makes it easy to reach into extreme confined spaces such as blood vessels and microelectronic components for high-definition imaging. Built-in high-brightness LED lighting system, through a special light guide design to ensure that the observation area of light uniformity, with high light transmission optics to present a clear image without distortion. The product is widely used in minimally invasive surgery, dental treatment, precision instrument inspection and scientific research observation, providing medical, industrial and scientific research workers with an excellent performance of ultra-miniature endoscopic inspection tools. |  |
Excellent imaging quality: 3-30mm continuously adjustable focal length with high light transmission optics ensures clear imaging from microscopic details to the overall structure, meeting the needs of observation at different distances.
Wide range of applications: from medical minimally invasive surgery to industrial precision testing to scientific research observation, it can provide professional visualization solutions.
1. Precision dental treatment: microscopic observation of the root canal, periodontal pocket depth detection and minimally invasive treatment guidance, microleakage detection around the implant.
2. Precision machinery maintenance: dynamic detection of clock gear train, carbon deposit inspection of aviation engine fuel nozzle, monitoring of micro-bearing lubrication status.
3. Minimally invasive vascular intervention: It can carry out real-time imaging into the tiny blood vessels of more than 1.5mm, assist vascular stent placement, thrombus removal and other fine operations, and be a navigation tool for the treatment of vascular malformations in neurosurgery.
Product Name | Miniature endoscope camera module |
Basic tolerance | ±0.1mm |
DSP | USB |
Sensor | OCHTA10 |
Focusing Range | 3-30mm |
Focal Length | 0.175mm |
F Number | 3.58 |
FOV(H*V) | 100°*100° |
TV Distortion | ＜-11% |
Connerctor | Micro USB-5P |
1. What is the significance of the depth of field range of the module?
Large depth of field (such as 5mm to 50mm) can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.
2. How to achieve waterproof and sterilization design?
The medical-grade module uses IP68 waterproof seal, the housing material is resistant to high temperature and pressure (such as epoxy resin), and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design (IP54).
3. What are the interface types of the module?
Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices integrate dedicated medical image interfaces (such as DVI-Med).
