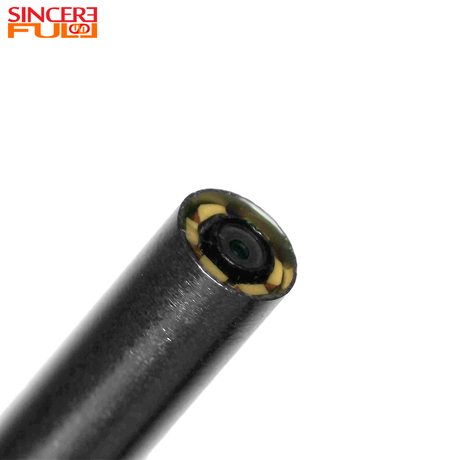

This miniature endoscope camera equipped with the OV9734 Sensor. Its 1-megapixel sensor supports a resolution of 1280×720, capable of clearly capturing details even in low-light conditions. With an 88° wide field of view, it covers a wider detection area. The depth of field range is 10-40mm, catering to both close-range microscopic defect recognition and mid-range scene scanning requirements. Combined with a micro steel pipe probe with a diameter of only 3.5mm, it can operate in narrow Spaces.
It is equipped with 6 0402 specification LED supplementary lighting groups. Through an intelligent light control algorithm, dynamic brightness adjustment is achieved, effectively solving the problem of imaging in the dark environment of the inner wall of the pipe or the human body cavity. In the industrial field, this module is applicable to the detection of internal cracks in precision machinery and the troubleshooting of micro-pipe blockages. In medical scenarios, its plug-and-play USB interface and low-invasive features meet the real-time image transmission requirements of minimally invasive surgeries, significantly enhancing operational accuracy and patient comfort.
