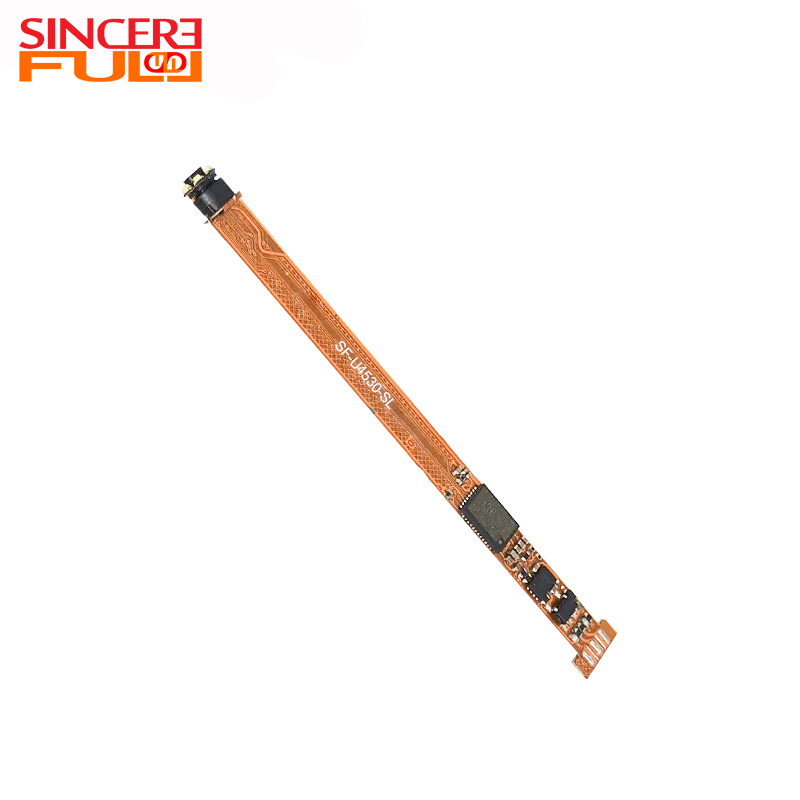

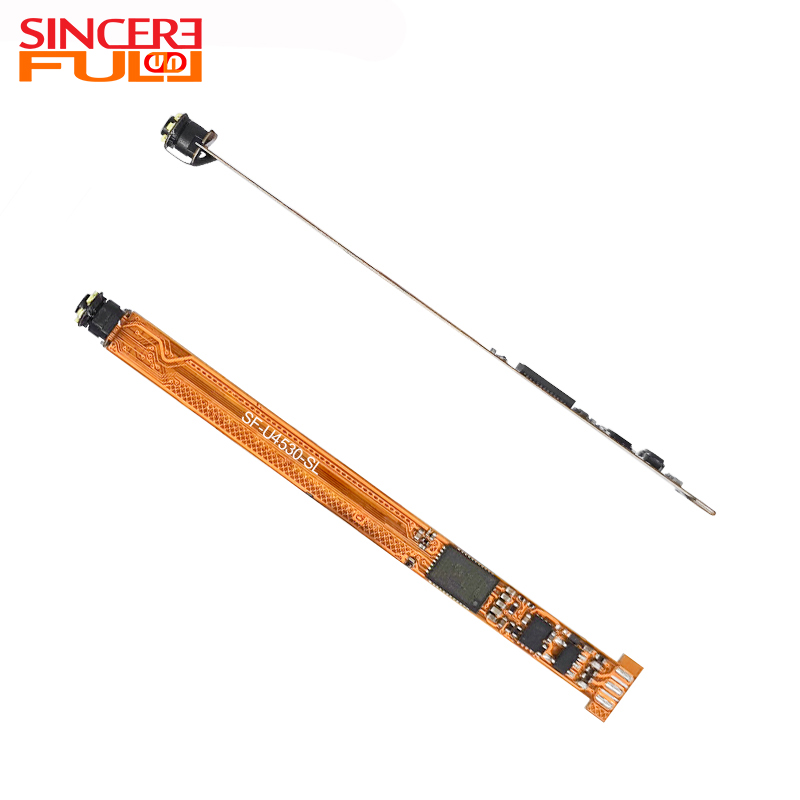

SF-U4530-SL-V3
SINCEREFIRST
The 0.3MP USB HD waterproof Industrial endoscope camera module features an advanced 1/9-inch BF2013 photosensitive chip for excellent imaging performance in a compact size. The module is equipped with a high-brightness adjustable LED fill system and supports automatic white balance to ensure accurate and detailed images in different ambient light. USB2.0 interface design and implementation of plug and play, compatible with Windows/Linux/Android and other multi-platform systems, greatly improve the detection efficiency. The module has a depth of field range of 15mm-50mm (±2%) and an effective focal length of 1.5cm-5cm (±2%), combined with a resolution of 300,000 pixels, to clearly capture micrometer defects and fine structures. The HD anti-fall endoscope camera module is designed to withstand the harsh industrial environment such as wet and oil. The 1/9-inch miniaturized sensor chip makes the overall size of the module more compact, which can easily penetrate into the narrow space that is difficult to reach with traditional inspection equipment, and its excellent environmental adaptability and stable image quality provide a reliable vision solution for the industrial inspection field and medical imaging field. |  |
Product Advantage ◢
High integration: The BF2013 sensor combines CMOS image sensor and image signal processing capabilities.
Low noise and high sensitivity: Achieve ultra-low dark noise and high sensitivity imaging.
Rich data formats: Multiple data formats are supported, such as Bayer RGB and YCBCR.
Flexible control: Complete user control and programming through a two-wire serial interface.
1. Otolaryngology: Complete the removal of foreign bodies in the external ear canal, the evaluation of tympanic membrane perforation and the examination of sinusitis
2. Oral therapy: assisted visual root canal therapy and dental implant surgery navigation
3. Pipeline detection: internal exploration of water supply and drainage pipelines and oil and gas transmission pipelines
4. Aviation maintenance: aircraft hydraulic system and small space structure inspection
Technical Parameters ◢
Product Name | USB Endoscope Camera Module |
Features | BF2013 Endoscope Camera |
Pixel | 8MP |
Sensor | BF2013 |
F.NO | 2.8 |
Focus Range | 10-100mm |
Focal Length | 3.75mm |
Trademark | SINCERE FIRST |
Fov(D) | 67° |
TV Distortion | <1.0% |
FAQ ◢
1. What is the significance of the depth of field range of the module?
Large depth of field (such as 5mm to 50mm) can clearly show near and far objects at the same time, reduce the need for frequent focusing, suitable for endoscopic surgery; Shallow depth of field is used to highlight specific plane details, such as skin inspection.
2. How to achieve waterproof and sterilization design?
The medical-grade module uses IP68 waterproof seal, the housing material is resistant to high temperature and pressure (such as epoxy resin), and can withstand 134°C steam sterilization. Industrial modules may require only a splash proof design (IP54).
3. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
4. Why do pipeline inspection modules need long cables?
The cable length is usually 10-30 meters, including Kevlar tensile layer and waterproof connector, which supports real-time transmission while resisting internal friction and chemical corrosion of the pipeline.
5. What are the typical requirements for custom modules?
Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
6. How does 3D endoscope achieve stereoscopic vision?
Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.
