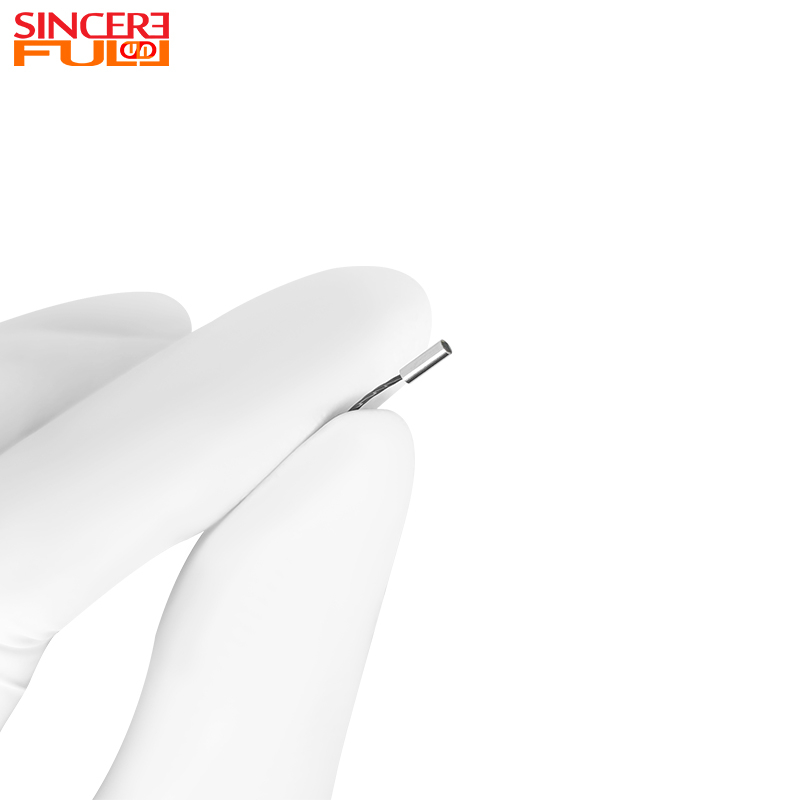

SF-C50USB-D1.6 with Shell
SINCEREFIRST
| This 1.6mm Diameter IP67 Waterproof OCHFA10 CMOS Sensor USB2.0 Interface Separate Endoscope Camera Module, is an ultra-micro endoscope camera module equipped with the OCHFA10 sensor, featuring an 86° horizontal and 86° vertical field of view (H86°/V86°) and distortion ＜-11%, specially designed for close-range visual inspection of ultra-thin channels, microcavities and precision narrow spaces as an ultra-miniaturized imaging component. Its 1.6mm ultra-micro probe maximizes accessibility in tiny spaces, easily accessing ultra-thin pipes that conventional devices cannot reach. The ultra-wide angle (H86°/V86°) expands close-range coverage, reducing blind spots in single observations. It adopts a Micro USB-5P interface and USB2.0 technology, integrating power supply and signal transmission into one, adapting to mainstream devices and lowering integration thresholds. Its ultra-small flexible structure enhances adaptability to curved paths, enabling more flexible deployment in complex narrow spaces. Compliant with RoHS standards, it balances ultra-compact size, wide adaptability and convenience, perfectly fitting various close-range detection scenarios in tiny and precision spaces. |  |
Miniaturization + Durability: The 1.6mm lens with Steel Shell not only meets the penetration needs of extremely narrow spaces but also enhances shock and wear resistance through Steel Shell protection, avoiding the damage-prone issue caused by slim design and adapting to high-frequency use scenarios.
Multi-format HD Imaging: The 720P@30FPS frame rate ensures smooth images; the 1.008μm pixel size, combined with LED fill lights, can still capture clear details in low-light environments. Dual output formats can flexibly match the needs of real-time transmission (YUV) and high-definition storage (MJEPG), offering stronger practicality.
Full-Scenario Adaptability: The IP67 dustproof and waterproof design resists erosion by liquids and dust; the 5~50mm wide focusing range covers near and long-distance detection needs; the 86° FOV can fully present the detection area, balancing adaptability to complex environments and imaging integrity.
Quality + Compliance: Adopting SMT process and AA Active Alignment Process ensures consistency and precision in mass production. Full-series international certifications enable terminal products integrated with this module to enter major global markets without barriers, significantly reducing customers' market access threshold.
Ultra-Wide Angle Imaging: H86°/V86° field of view expands close-range coverage and reduces observation blind spots.
USB Direct Plug-and-Play: USB2.0 interface integrates power and signal transmission, adapting to mainstream devices and lowering integration thresholds.
Product Name | LED USB Endoscope Camera Module |
Focal Length | 0.418mm |
DSP | USB Board |
Sensor | OCHFA10 |
Focusing Range | 5-50mm |
Diameter | 1.6mm |
F Number | 5.0 |
LED: | 4pcs |
Resolution | 30fps |
FOV | H86°*V86° |
| Resolution | 700*700 |
| Interface | USB2.0 UVC |
| Waterproof | IP67 |
| Certificate | CE RoHS Reach |
Disposable Ear Endoscope: The 1.6mm slim lens can reach deep into the ear canal; the IP67 waterproof design facilitates post-operation disinfection. LED fill lights combined with high-definition imaging help doctors clearly observe tympanic membrane lesions and avoid cross-infection.
Tiny Electronic Component Inspection Endoscope: The lens can probe into tiny spaces such as chip pins and circuit board gaps; the 720×720 high resolution can accurately identify subtle defects like solder joint cold soldering and pin oxidation, improving the inspection precision of electronic devices.
Miniature Industrial Robot Vision System: Integrated at the front end of miniature robotic arms with a diameter of less than 2mm, it provides real-time visual feedback for precision operations such as micro-assembly and micro-welding. Its strong depth of field adaptability ensures clear images within complex working distances.
Pipeline Inspection Endoscope: For precision industrial pipelines with a diameter of 5~50mm, the 1.6mm lens can pass through bends smoothly; the IP67 dustproof and waterproof design resists oil and impurities in pipelines; LED fill lights solve detection blind spots in dark areas, helping locate tiny blockages or corrosion points.
It has an IP67 rating, resisting liquid immersion and dust erosion. Suitable for scenarios like post-operative disinfection, oil-polluted industrial pipelines, and wet inspection environments.
The 1.6mm lens (with Steel Shell) enables penetration into ultra-narrow spaces (e.g., ear canals, electronic component gaps, root canals) that conventional lenses cannot reach. The Steel Shell also enhances shock and wear resistance, solving the "slim lens fragility" issue.
It uses a Micro USB interface, supports USB2.0 speed and UVC protocol (plug-and-play), and is compatible with mainstream operating systems (Windows, Linux, etc.).
