When engineers choose an endoscope camera module for a compact device, the first question is rarely “What is the highest resolution?” More often, the real questions are: Can the camera head fit into the device? Is there enough light inside the cavity? Can the module work at close distance? Is the structure waterproof enough for the application? Is the connection easier to integrate during prototype testing?

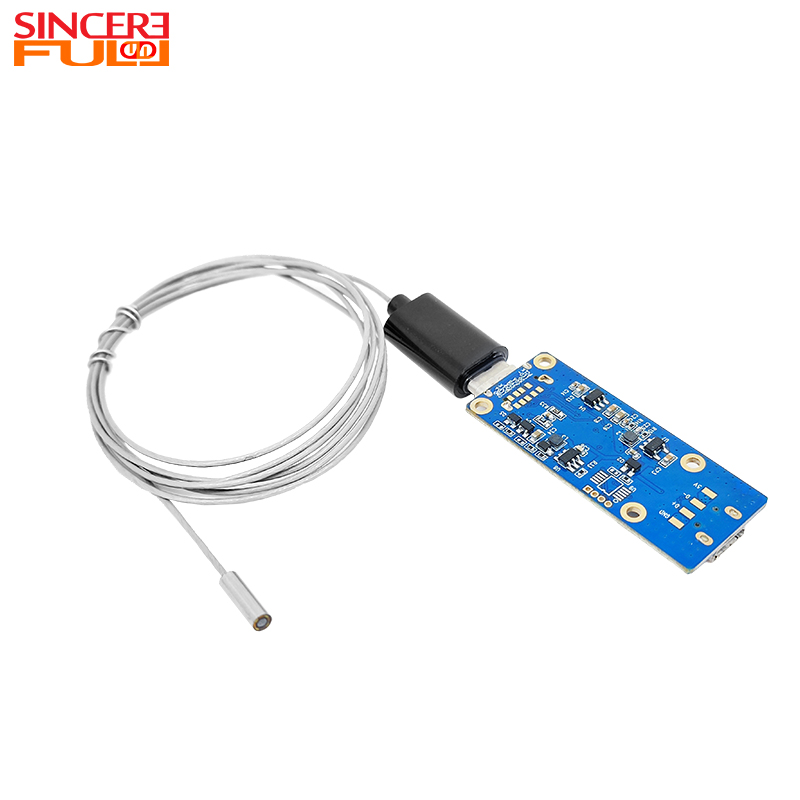

The SF-C0115USB-D2.8-PRO-TypeC V1.2 is a compact 2.8mm Type-C USB endoscope camera module designed for close-range visualization in narrow spaces. It supports 240×320@30fps YUV / MJPEG output, 4pcs 0201 LED illumination, 105° field of view, 3–50mm focusing range and IP67 support.
This module is suitable for OEM teams developing compact medical visualization devices, industrial inspection tools, dental or veterinary observation devices, and small-diameter USB endoscope systems that need a practical balance between probe size, illumination, waterproof design and connection convenience.
For many compact endoscope devices, the available front-end space is limited. A larger 5mm, 6mm or 8mm camera head may provide higher resolution, but it may not fit into the target structure. A 2.8mm module gives engineers a smaller imaging core for narrow-access device design.
At the same time, customers do not only need a small lens. They also need a complete module that can support real application testing. This is where the Type-C connection, built-in LED illumination, USB output and IP67 support become important.
The SF-C0115USB-D2.8-PRO-TypeC V1.2 is not positioned as a high-resolution imaging module. Its value is in compact visualization, close-range observation and easier project evaluation for devices where size and integration are more important than pixel count.
The SF-C0115USB-D2.8-PRO-TypeC V1.2 is best positioned as:
A compact 2.8mm USB endoscope camera module for narrow-space visualization
A Type-C connection version for easier structural integration discussion
A close-focus inspection module for 3–50mm working distance
An IP67-supported camera module for moisture-sensitive or enclosed environments
A practical evaluation option for compact medical and industrial OEM devices
This positioning is important because customers often make the mistake of comparing only resolution. In small-diameter endoscope design, diameter, lighting, focusing range, waterproof support and connector structure can be more important than choosing the highest pixel count.
The 2.8mm diameter helps product developers design slimmer probes and smaller inspection tools. It is suitable for applications where the camera needs to enter narrow cavities or fit into compact housings.
The Type-C connection version gives engineers another connection option when evaluating device layout and cable routing. For OEM projects, connector form is not only a convenience feature; it affects assembly, mechanical reliability and device structure.
The module supports 240×320@30fps output in YUV and MJPEG formats. This is suitable for basic close-range observation where compact size and stable visualization are the main requirements.
The 4pcs 0201 LEDs provide local illumination for dark or enclosed spaces. In endoscope applications, lighting design often determines whether the image is usable, especially when the camera works inside cavities with no external light source.
The 105° FOV helps users see more surrounding context at short distance. This is useful for compact inspection devices because the camera usually works close to the target surface.
The 3–50mm focusing range supports short-distance observation. This fits many narrow-cavity visualization applications where the object is close to the camera head.
The IP67-supported design makes the module suitable for projects that may involve moisture, cleaning, fluid exposure or sealed inspection environments. Final waterproof performance should always be verified after the module is assembled into the customer’s complete device.
This 2.8mm Type-C USB endoscope camera module can be evaluated for:
Compact medical visualization devices
Dental and oral inspection tools
Veterinary endoscope devices
Portable USB inspection equipment
Industrial borescope tools
Small cavity inspection devices
Pipe, tube and component inspection
OEM endoscope prototype development
For medical applications, the module should be evaluated as an imaging component for device integration. Final product compliance, safety testing and certification should be handled according to the target market and application requirements.
This model is suitable when the customer needs:
A compact 2.8mm camera head
USB image output
Type-C connection structure for integration evaluation
Built-in LED illumination
Short-distance visualization
IP67-supported design
Basic visual observation rather than high-resolution detail capture
A separate-type endoscope camera module for OEM development
It is especially suitable for customers who are developing a compact device and need to quickly verify whether the diameter, lighting, working distance and waterproof structure can meet their project requirements.
This model may not be suitable if the project requires:
1080P or higher resolution
Fine image detail recognition
Long-distance observation
Adjustable LED dimming
AI visual analysis
High-speed motion capture
Large-area scene monitoring
For these projects, a 1MP, 2MP, 5MP or larger-diameter endoscope camera module may be more appropriate.
Customers should choose the SF-C0115USB-D2.8-PRO-TypeC V1.2 when the project priority is compact access, close-range visibility, waterproof support and practical USB integration.
Customers should not choose it simply because it is small. They should first confirm whether 240×320 resolution is enough, whether 3–50mm working distance matches the application, whether 105° FOV is suitable, and whether the connector structure fits the device design.
To help SincereFull evaluate the project quickly, customers should provide:
Target application
Medical or industrial use case
Required camera head diameter
Working distance
Required image detail level
Need for IP67 or waterproof support
Cable length requirement
Connector preference
Host device or display system
Sample quantity
Estimated production volume
Special mechanical structure requirements
Clear RFQ information helps avoid repeated communication and makes it easier to recommend the right module.
The SF-C0115USB-D2.8-PRO-TypeC V1.2 is a practical compact endoscope camera module for OEM projects that need a small 2.8mm front-end structure, USB output, Type-C connection consideration, built-in LED illumination, close-range observation and IP67 support.
For customers developing compact medical, dental, veterinary or industrial inspection devices, this module can be used as an evaluation option when the project requires a balance between size, lighting, waterproof structure and integration convenience.
Need a compact 2.8mm Type-C USB endoscope camera module for your medical or industrial device?
Send your application, working distance, diameter requirement, waterproof requirement and connector layout to SincereFull. Our team can help evaluate whether SF-C0115USB-D2.8-PRO-TypeC V1.2 is suitable for your project or recommend another endoscope camera module direction.
