For medical, industrial and portable inspection device developers, a 7mm endoscope camera module is often selected when the project needs a more balanced structure than ultra-micro 1.5mm–3.9mm modules. It provides more space for image sensor integration, LED illumination and mechanical layout, while still keeping the camera head compact enough for many inspection devices.

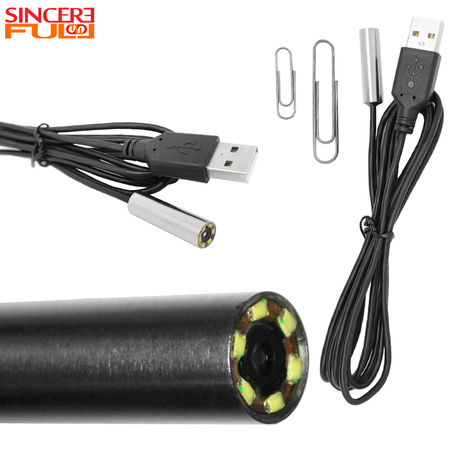

The SF-N1070-V3 is a 7mm USB endoscope camera module built with a GC2755 2MP image sensor, supporting 1936×1096@30fps image output through YUV / MJPEG format. With 6pcs 0603 LEDs, an 80° field of view, a 25.5mm front-end length and Type-A / Type-C connection options, this model is suitable for OEM projects that need practical image quality, compact structure and direct USB-based device integration.
The SF-N1070-V3 is suitable for projects that need a compact but not ultra-miniature endoscope camera module. Compared with smaller diameter modules, the 7mm structure gives device developers more room for illumination and mechanical design. Compared with larger camera heads, it remains practical for handheld tools, portable inspection instruments and compact visual devices.
It can be evaluated for industrial inspection tools, veterinary inspection devices, oral observation instruments, equipment maintenance tools and general visual inspection systems.
In endoscope camera module selection, the smallest diameter is not always the best choice. Ultra-small modules are useful for very narrow spaces, but they may have limitations in illumination, image detail, structure strength or integration flexibility.
A 7mm endoscope camera module provides a more balanced option. It is still compact, but it allows more space for:
A 2MP image sensor
LED illumination around the front end
More stable mechanical structure
Easier device assembly
USB output integration
More practical handling in handheld devices
For many OEM projects, 7mm is a useful middle-ground size. It is small enough for compact inspection equipment, while offering more stable usability than ultra-micro camera heads.
The SF-N1070-V3 uses a GC2755 2MP sensor and supports 1936×1096@30fps image output. This makes it suitable for 1080P-class visual inspection where the customer needs more detail than low-resolution inspection modules, but does not require a high-cost imaging system.
The module includes 6pcs 0603 LEDs, helping support close-range viewing in low-light inspection environments. Its 80° FOV provides a moderate viewing range, suitable for applications where the user needs a clear central image without an overly wide-angle look.
The product supports Type-A / Type-C connection options, making it easier to integrate into different USB host devices or product structures.
Item | Specification |
|---|---|
Model | SF-N1070-V3 |
Product Type | USB Endoscope Camera Module |
Diameter | 7.0mm |
Sensor | GC2755 |
Pixel | 2MP |
Output Format | YUV / MJPEG |
Max Resolution & Frame Rate | 1936×1096@30fps |
LED | 6pcs 0603 LEDs |
Front-End Length | 25.5mm |
Lens Material | Plastic |
Field of View | 80° |
Connector Options | Type-A / Type-C |
The GC2755 2MP sensor supports 1080P-class image output, which is useful for inspection tools that need clearer visual feedback than basic low-resolution modules. For equipment manufacturers, this helps improve the user’s ability to observe surfaces, internal structures and object details.
A 7mm camera head gives more integration space than micro-diameter modules. This can make the product easier to assemble, easier to protect mechanically and more practical for handheld or portable devices.
The 6pcs LED structure helps provide lighting in dark inspection environments. For endoscope devices, illumination is often as important as resolution because many inspection spaces do not have external light.
An 80° field of view provides a balanced viewing angle. It is wide enough for general inspection, but not so wide that image edges dominate the observation experience. This can be useful in tools where the operator needs a more controlled and centered image.
The Type-A / Type-C options make this module suitable for USB-based inspection systems, handheld devices, portable displays and computer-connected testing platforms.
The SF-N1070-V3 can be evaluated for industrial equipment maintenance tools, internal structure inspection, production equipment observation and general cavity inspection. Its 7mm size and LED support make it practical for many standard inspection tools.
Automotive inspection tools often need a compact camera to observe engine areas, internal parts, narrow gaps or difficult-to-access spaces. The 2MP output and LED illumination can support visual checking during repair and maintenance.
Veterinary tools may need compact cameras for oral, ear, skin or small cavity observation. The 7mm diameter is easier to handle than very small probe structures and may be suitable for handheld veterinary equipment.
For oral observation or general close-range imaging tools, this module can provide a practical balance of camera size, LED lighting and USB output.
This model can also be used in portable inspection devices where the manufacturer needs an integrated LED USB camera core for general observation.
Factor | Medical / Veterinary Device Projects | Industrial Inspection Projects |
|---|---|---|
Key Need | Compact visualization and stable close-range imaging | Durable inspection tool structure and visible image feedback |
Main Concern | Image clarity, lighting, device structure and user comfort | LED brightness, camera size, cable layout and easy integration |
Why 7mm Helps | Easier handheld design and more room for illumination | More practical than ultra-small modules for standard tools |
Best Fit | Oral, veterinary and general observation devices | Maintenance tools, cavity inspection and equipment checking |
For medical-related projects, this module should be considered as an OEM imaging component for device development. Final compliance depends on the complete device design and target market requirements.
This module is a good fit if your project needs:
A 7mm USB endoscope camera module
1080P-class image output
Integrated LED illumination
Moderate 80° viewing angle
Type-A or Type-C connection
Compact handheld or portable device integration
Medical, veterinary or industrial visual inspection
Another module may be more suitable if your project requires:
A smaller diameter below 5mm
Higher resolution such as 5MP or 12MP
A very wide-angle lens
Steel Shell or confirmed IP67 structure
Side-view structure
Special cable length or customized mechanical protection
To evaluate whether SF-N1070-V3 is suitable, customers should provide:
Target application
Required camera head diameter
Viewing distance
Lighting environment
Required connector type
Host device or display system
Mechanical space limitation
Whether waterproof or protective shell is needed
Sample quantity
Estimated production volume
It supports 1936×1096@30fps, which can be understood as a 1080P-class image output for practical visual inspection.
The 7mm structure provides a balance between compact size and practical integration space, especially for LED illumination and handheld device design.
Yes. It can be evaluated for equipment inspection, maintenance tools, cavity observation and portable visual inspection products.
It can be evaluated as an OEM imaging component for medical or veterinary device development. Final compliance depends on the complete device design.
Endoscope devices often work in dark or enclosed spaces. LED illumination helps improve visibility during close-range inspection.
The catalog lists Type-A / Type-C connection options, making it suitable for different USB device structures.
The SF-N1070-V3 7mm GC2755 USB endoscope camera module is a practical imaging solution for OEM projects that need compact structure, 2MP image output, LED illumination and USB-based integration.
It is especially suitable for industrial inspection tools, veterinary devices, oral observation instruments, automotive repair tools and portable visual inspection products. For customers who need a balanced endoscope camera module rather than an ultra-micro structure, this 7mm model provides a useful starting point for project evaluation.
