Unnecessary teardowns and exploratory dismantling cost businesses thousands in lost labor and downtime. Mechanics and field technicians often waste valuable hours opening sealed systems just to identify a minor fault. Standard inspection tools routinely fail in wet, dark, or heavily restricted environments. Furthermore, integrated handheld units often force operators into unsafe or non-ergonomic viewing positions to clearly see the screen. A waterproof endoscope camera ip67 with a separate design provides the extreme durability needed for harsh work environments. It separates the probe from the display unit, allowing safer and far more precise diagnostic maneuvers. The purpose of this article is to provide a strict evaluation framework for selecting a separate-design industrial borescope. You will learn how to assess true optical clarity, understand realistic waterproof limits, and choose correct cable mechanics. We will guide you through practical criteria to ensure you select an instrument perfectly matched to your operational demands.
Form Factor Advantage: "Separate design" models allow operators to manipulate the probe independently while mounting or holding the screen in a safe, visible location.
IP67 Realities: An IP67 rating guarantees protection against dust and temporary water submersion (up to 1m for 30 minutes), but does not automatically equal resistance to corrosive chemicals or high-heat engine oils.
Must-Have Specs: For industrial use, prioritize semi-rigid cables (e.g., 6.6ft minimum), adjustable LED arrays (6+ lights), and dual-lens configurations for perpendicular viewing without probe rotation.
Deployment ROI: Properly matching the camera specs to the environment (HVAC, plumbing, automotive) drastically reduces inspection times and prevents diagnostic errors.

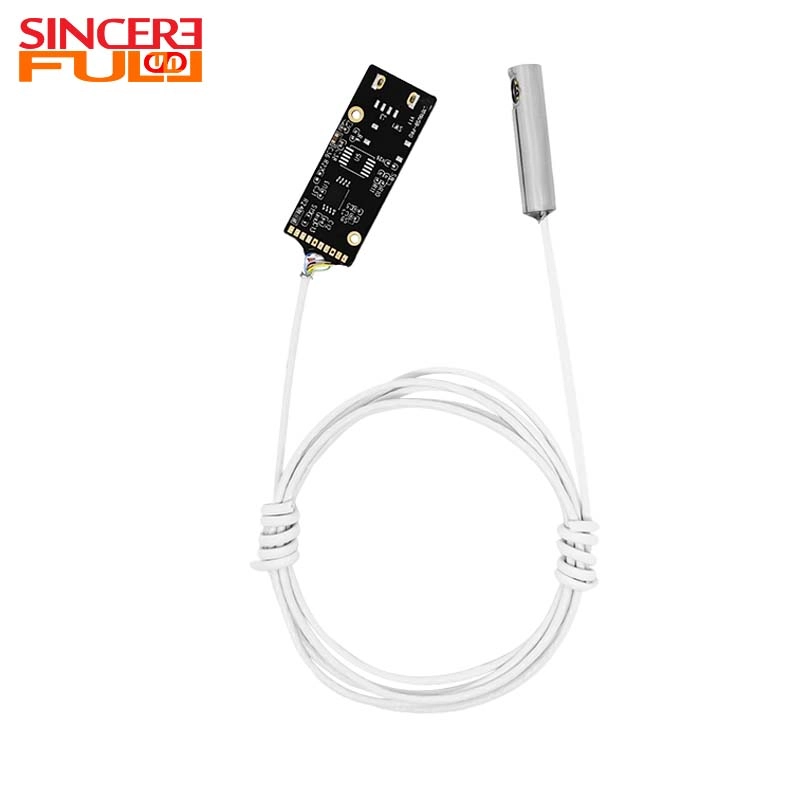

Understanding the fundamental architecture of your inspection equipment dictates how efficiently you can work. We define a "separate design" by its physical decoupling of the camera lens assembly from the viewing screen. This category generally splits into two distinct formats. You will find modular display units utilizing detachable screens via heavy-duty wired connections. Alternatively, you will encounter wireless transmitter boxes routing signals to a secondary smart device via localized WiFi. Both configurations share a core goal: removing the bulky screen from the handle you manipulate.
Decoupling the screen drastically improves operator ergonomics and safety. Consider a technician inspecting a vehicle's undercarriage or a complex HVAC ducting network. Tight spaces severely restrict body movement. Holding an all-in-one handheld unit often requires twisting your wrists or craning your neck into unnatural angles just to view the live feed. A separate endoscope camera eliminates this physical strain. You can mount the display magnetically to a nearby metal surface. You can prop it on a workbench at eye level. This frees both hands to push, twist, and guide the camera cable through winding pipe bends.
Component lifespan represents another massive operational advantage. Industrial environments destroy equipment rapidly. Technicians crush cables under toolboxes. They pinch wires in heavy machinery doors. Integrated, all-in-one devices force you to discard the entire unit—including the expensive LCD screen and processing chip—when the cable breaks. Separate designs support fast, cost-effective probe replacements. You retain the high-value display base and simply attach a fresh camera wire. This modularity ensures minimal downtime when inevitable accidents occur on the shop floor.
Best Practice: Always keep a backup camera probe in your kit. Swap it out immediately if you notice severe scuffing on the lens coating or kinks in the internal wire core.
Marketing materials frequently highlight waterproof ratings without clarifying their practical limits. Deconstructing the Ingress Protection (IP) 67 baseline specification is crucial for preventing equipment failure. The "6" indicates total protection against solid ingress. It guarantees absolute dust-tightness, making it safe for drywall inspection or dusty ventilation shafts. The "7" signifies protection against temporary liquid immersion. Specifically, the device can withstand submersion in water up to 1 meter deep for exactly 30 minutes. It does not certify the camera for deep-water diving or prolonged underwater pipe routing.
A critical misunderstanding occurs regarding fluid types. Manufacturers test an IP67 endoscope in clean, ambient-temperature fresh water. Industrial environments rarely feature pristine water. Plumbers encounter highly acidic drain cleaners. Mechanics submerge probes in harsh brake fluid, unburned gasoline, or synthetic motor oils. Standard IP67 PVC sheathing offers zero guaranteed chemical resistance. Polyglycol ethers in brake fluid easily dissolve the waterproof adhesives holding the lens cover in place. If you must inspect systems containing caustic fluids, you must employ specialized chemical-resistant sheathing or thoroughly clean the probe with isopropyl alcohol immediately after extraction.
Thermal constraints pose another hidden risk. Rapid temperature shifts compromise visual clarity despite flawless waterproof seals. Imagine pulling a cold camera probe from an air-conditioned truck and pushing it straight into a recently drained, hot boiler pipe. The sudden thermal shock causes the trapped air inside the sealed lens module to condense. Condensation coats the inside of the glass. This completely blinds the camera until the internal temperature stabilizes. You cannot simply wipe internal fog away. You must wait for the unit to equalize.
Fluid Immersion Reality Check vs. IP67 Rating | ||
Fluid Type | Standard IP67 Resistance | Real-World Impact on Camera Probe |
|---|---|---|
Fresh Water (Ambient) | Excellent (Up to 1m / 30 mins) | Safe for standard use. Rinse and dry after inspection. |
Hot Engine Oil (150°F+) | Poor (Not Rated for Heat) | Melts lens adhesives. Voids warranty. Allow engine to cool first. |
Acidic Drain Cleaners | Poor (Not Rated for Chemicals) | Corrodes PVC cable sheathing. Degrades LED covers rapidly. |
Brake Fluid / Gasoline | Very Poor (Solvents) | Dissolves waterproof seals instantly. Liquid enters sensor cavity. |
The internal structure of your cable dictates where the camera can physically travel. You will generally choose between flexible and semi-rigid cables. Flexible cables act like heavy string. They rely entirely on gravity. They work well for dropping a lens straight down a vertical sewer line, but fail entirely in complex spaces. You cannot push a flexible cable horizontally across a ceiling void without it sagging into a useless loop.
Semi-rigid, shape-retaining cables are mandatory for modern industrial diagnostics. They feature an internal wire spine. You can bend the cable into a hook shape to navigate past a junction. You can push it straight up a vertical exhaust pipe without it folding back on itself. Selecting the optimal length requires matching the tool to the trade. A 6.6ft (2m) semi-rigid cable represents the sweet spot for automotive mechanics. It offers enough length to reach engine valves without leaving coils of excess wire to trip over. Conversely, plumbers navigating household mainline blockages should look for lengths exceeding 16.5ft (5m).
Older camera systems rely heavily on single, forward-facing lenses. These setups work fine for looking straight down an empty pipe. However, they fail spectacularly in narrow environments requiring lateral inspection. If you slide a forward-facing camera into an engine cylinder, you see the top of the piston. You cannot see the scored cylinder walls. Historically, technicians attached tiny, 45-degree screw-on mirrors to the probe tip to fix this. These physical mirrors frequently unthread and drop into delicate engine internals, causing catastrophic damage.
A dual-lens industrial inspection camera completely eliminates this risk. It features one lens looking forward and a second independent lens looking sideways. You switch between the two views by pressing a button on the handle or screen. You capture perpendicular views immediately without rotating the entire wire or relying on dangerous mirror attachments. Keep in mind that side-view lenses often feature shorter focal lengths specifically calibrated for extreme close-up wall inspections.
Darkness surrounds internal components. The quality of your integrated lighting dictates the clarity of your CMOS image sensor. A minimum of 6 to 8 adjustable LED lights around the primary lens is an industry standard. However, maximum brightness means very little without precise dimming control. Dimming capabilities prevent severe glare and image blowout. If you shine eight LEDs at maximum output directly at a highly reflective, polished metal cylinder wall, the camera sensor becomes blinded by white light. You need a physical rotary dial or smooth stepping buttons to dial back the intensity until the texture of the metal becomes clear.
Comparison Chart: Cable Dynamics | ||
Feature | Semi-Rigid Cable | Flexible Cable |
|---|---|---|
Horizontal Pushing | Excellent; retains structural shape over gaps. | Poor; sags and folds under its own weight. |
Vertical Dropping | Requires manual straightening beforehand. | Excellent; unspools naturally with gravity. |
Corner Navigation | Allows pre-bending to hook around 90-degree elbows. | Relies entirely on pipe geometry to guide the tip. |
Investing in appropriate hardware yields immediate returns when tailored to specific environments. Different trades encounter highly distinct physical challenges that test specific camera features.
Automotive Diagnostics: Mechanics rely on the waterproof borescope to inspect cylinder scoring, detect carbon buildup on intake valves, and check AC evaporator coils. This work requires pushing probes through spark plug holes. A dual-lens configuration shines here. Mechanics demand short focal lengths (roughly 1 to 4 inches) to maintain sharp focus in tightly confined engine blocks. Furthermore, doing this without removing the entire dashboard saves hours of billed labor.
Plumbing & Drain Inspection: Plumbers operate exclusively in wet, messy environments. Navigating complex P-traps and identifying deep blockages requires robust gear. True IP67 reliability ensures the tool survives temporary submersion in muddy water. Longer semi-rigid cables (exceeding 15 feet) provide the push-strength necessary to overcome sludge resistance deep within residential sewer lines.
HVAC & Industrial Maintenance: Technicians checking commercial heat exchangers for micro-cracks or inspecting ductwork for mold face severe ergonomic challenges. They frequently work on ladders near high ceilings. The separate design proves invaluable here. The operator safely rests the display monitor on a ladder shelf while using both hands to maneuver the probe upward into dark, dusty ventilation shafts.
Procuring reliable diagnostic equipment requires seeing past marketing buzzwords. You must evaluate the long-term viability of the hardware before purchasing. Employ these specific mitigation strategies to avoid buyer’s remorse.
Avoiding App/Software Rot: Many wireless separate designs rely on companion smartphone applications via localized WiFi. Evaluate the manufacturer's software track record. Check the App Store or Google Play Store. When did they last update the app? If the app hasn't been updated in three years, newer iOS or Android operating system updates will likely break compatibility. Hardware is useless if the required app crashes on launch.
Battery Autonomy: Examine the battery life of the display or transmitter unit critically. Manufacturers quote maximum runtime under ideal conditions. Running dual high-resolution cameras simultaneously while pushing eight LEDs at maximum brightness drains lithium-ion batteries rapidly. Look for units boasting at least 2500mAh to 3000mAh capacities. This guarantees you will actually get two to three hours of realistic field use between charges.
Warranty & Replacement Realities: Camera probes endure tremendous physical abuse. They scrape against rusted cast iron and push past sharp metal burrs. The outer protective lens will inevitably scratch. Prioritize vendors offering straightforward, modular replacement parts. If a vendor does not sell standalone replacement probes, you will eventually have to throw the entire system in the trash. High-wear consumables must be easily replaceable in professional settings.
Common Mistake: Never coil a semi-rigid cable tighter than the original manufacturer packaging. Forcing it into a tight circle breaks the internal wire spine, rendering the directional control useless.
A waterproof endoscope camera IP67 stands far apart from generic, consumer-grade gadgets. It serves as a precision diagnostic instrument designed to save time and prevent catastrophic teardowns. Its true value relies heavily on three specific pillars: a separate design for superior physical ergonomics, a semi-rigid cabling system for precise spatial navigation, and a grounded understanding of its waterproof limitations. Buying the right tool requires matching focal lengths, lighting setups, and lens configurations directly to your daily tasks.
As a next step, carefully audit your primary inspection environment before pulling the trigger on a purchase. Determine the average depth of your inspections to select the exact cable length you need. Identify the specific industrial fluids your probe will routinely contact. Finally, assess the ambient lighting conditions you typically work in to ensure you select a device with a highly adjustable LED array. Making an informed decision here dramatically cuts down diagnostic errors and accelerates your workflow.
A: No. IP67 certifies fresh water submersion at ambient temperatures. Hot oil can melt the lens seal and degrade the cable housing. Engines must be cooled, and oil exposure should be minimized or verified against manufacturer chemical resistance specs.
A: Separate designs allow the operator to route the probe with both hands while keeping the screen stationary at eye level, which is critical for complex maneuvers in cramped spaces.
A: Flexible cables act like heavy string and rely on gravity, making them only useful for vertical drops. Semi-rigid cables contain an internal wire that holds its shape, allowing it to be pushed horizontally or upwards.
A: Not inherently, but the side camera often has a different fixed focal length than the front camera. Users must check the focal range specs for both lenses to ensure clarity in their specific application.
