Choosing a Bare 3.1mm USB Endoscope Camera Module for Custom Lighting and Device Integration

Introduction

Many endoscope camera module buyers first ask whether a module has LEDs, waterproof structure or a finished probe. But for many OEM device manufacturers, a bare module without standard built-in LEDs can actually be useful. It gives the engineering team more freedom to design the illumination system, probe housing, sealing structure, cable routing and final product layout.

The SF-C1019USB-D3.1-PLUS is a bare 3.1mm OV9734 USB endoscope camera module for customers who do not simply need a ready-made inspection camera. It supports 1280×720@30fps YUV / MJPEG output, uses a glass lens, offers 100° / 120° FOV options, supports 5–100mm or 10–100mm focusing range configurations, and has a compact 33×13.5mm main board.

This article focuses on a practical question that many OEM buyers care about: when should you choose a bare 3.1mm USB endoscope camera module instead of a finished LED waterproof probe?

Why Some OEM Customers Prefer a Bare Module

Finished endoscope modules can be convenient, but they may not match every product design. The probe diameter may be wrong, the LED brightness may not fit the target surface, the cable direction may conflict with the housing, or the waterproof shell may not match the customer’s assembly method.

A bare module gives the customer more control.

For custom medical, industrial, veterinary, dental or compact inspection devices, the product team may already have its own:

Lighting structure
Probe housing
Cable routing design
Mechanical protection
Sterilization or cleaning concept
Display or host system
Handle structure
Waterproof or sealing method
Brand-specific device appearance

In these cases, the camera module is only one part of the full product design. The SF-C1019USB-D3.1-PLUS can be used as an imaging core inside a customer-defined structure.

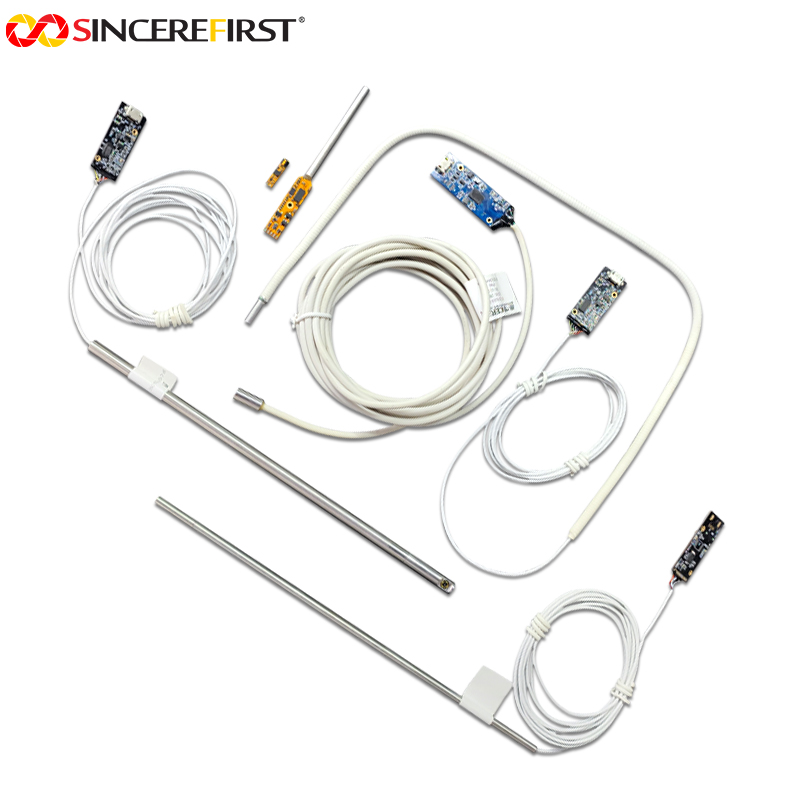

Product Overview

The SF-C1019USB-D3.1-PLUS is a separate-type USB endoscope camera module with a 3.1mm diameter camera head. It uses the OV9734 1MP sensor and supports 1280×720@30fps output through YUV / MJPEG.

Key product characteristics include:

3.1mm diameter
OV9734 1MP sensor
1280×720@30fps output
USB interface
YUV / MJPEG format
Glass lens
100° / 120° FOV options
5–100mm / 10–100mm focusing range
1.5m standard cable
4m maximum cable length
33×13.5mm main board
Bonding wire front connector
Micro USB back connector
Dimming optional for project evaluation

The standard configuration does not include LEDs, so illumination should be evaluated according to the final device design.

Customer Pain Point 1: “The standard LED design does not fit our application.”

In endoscope imaging, lighting can create as many problems as the camera itself. Some customers need strong lighting. Some need soft light. Some need external side lighting. Some need to avoid reflection on wet, shiny or curved surfaces. Some need lighting separated from the camera head.

A standard built-in LED structure may not solve these problems.

Because the SF-C1019USB-D3.1-PLUS is a bare module without standard LEDs, it can be evaluated for projects where the customer wants to design the illumination system separately. This is useful for OEM products where the lighting design must match the final device housing and target surface.

Customer Pain Point 2: “We need a compact camera but also better detail.”

Ultra-small 0.16MP or 0.5MP modules are useful for very small spaces, but some customers find that the image detail is not enough for their application.

The OV9734 1MP platform gives this 3.1mm module a stronger imaging position. It can provide clearer visual feedback while keeping the camera head compact.

This makes it suitable for customers who need better observation than low-resolution micro modules, but still cannot use a larger 5mm or 6mm camera head.

Customer Pain Point 3: “We need to build our own waterproof or mechanical structure.”

The catalog does not mark this model as IP67. That means customers should not treat it as a finished waterproof probe.

However, for OEM projects, this may not be a disadvantage. Many customers prefer to design the waterproof, sealing or protective structure themselves because the final device may have specific requirements.

The key is to evaluate the camera module as an imaging core and then design the complete device structure around it. If waterproof performance is required, sealing and validation should be handled at the final product level.

Customer Pain Point 4: “We are not sure whether the FOV is right.”

The module offers 100° / 120° FOV options. This matters because endoscope users often work at short distance, and the viewing angle affects what they can see.

A wider FOV helps users see more surrounding context. This is useful in narrow cavities or compact inspection spaces. A narrower option may be more suitable when the customer needs more focused observation of a smaller area.

The correct choice depends on working distance, target size, image detail requirement and how the device will be used.

Customer Pain Point 5: “Cable and board layout often cause redesign.”

Many camera module projects fail not because of image quality, but because the board or cable cannot fit into the final product.

The SF-C1019USB-D3.1-PLUS has a 33×13.5mm main board, 1.5m standard cable and up to 4m maximum cable length. OEM customers should confirm these details early.

Before selecting this module, engineering teams should check:

Can the board fit inside the device?
Is the 1.5m standard cable enough?
Is a longer cable needed?
Will the cable bend during use?
Does the connector position match the product layout?
Will the module be installed in a flexible or rigid probe?

These mechanical questions should be answered before sample approval.

Suitable Custom Integration Applications

This module can be evaluated for:

Custom medical visualization devices
Dental and oral inspection equipment
Veterinary endoscope devices
Industrial inspection tools
Compact borescope systems
Device-integrated camera probes
Robotic or handheld visual inspection devices
OEM endoscope development platforms

It is especially suitable for customers who already have their own device structure and need a compact USB imaging module to integrate into it.

Selection Logic: When to Choose This Bare Module

Choose the SF-C1019USB-D3.1-PLUS when your project needs:

A compact D3.1 camera head
OV9734 1MP imaging
USB output for easier testing
Custom lighting design
Customer-defined housing or probe structure
Glass lens
100° / 120° FOV options
Close-range observation
A bare module for OEM integration

Do not choose it as a finished waterproof LED endoscope probe. If your project needs a ready-to-use waterproof probe with built-in LEDs, another model may be more suitable.

OEM Integration Checklist

Before confirming this model, customers should evaluate:

Target application
Required camera head diameter
Lighting method
Waterproof or sealing requirement
Working distance
FOV preference
Board placement
Cable routing
Connector direction
Host system compatibility
Sample testing environment
Expected production volume
Regulatory or certification requirements

This checklist reflects how experienced OEM customers usually make decisions. They do not only ask for price. They confirm whether the module can survive the whole product development path.

Conclusion

The SF-C1019USB-D3.1-PLUS is a practical bare 3.1mm OV9734 USB endoscope camera module for customers who need compact imaging, USB integration and flexible device-level design.

Its best-fit customers are not looking for a finished consumer endoscope. They are developing their own medical, industrial, dental, veterinary or inspection device and need a camera core that can be integrated into a custom structure.
