| Quantity: | |
|---|---|

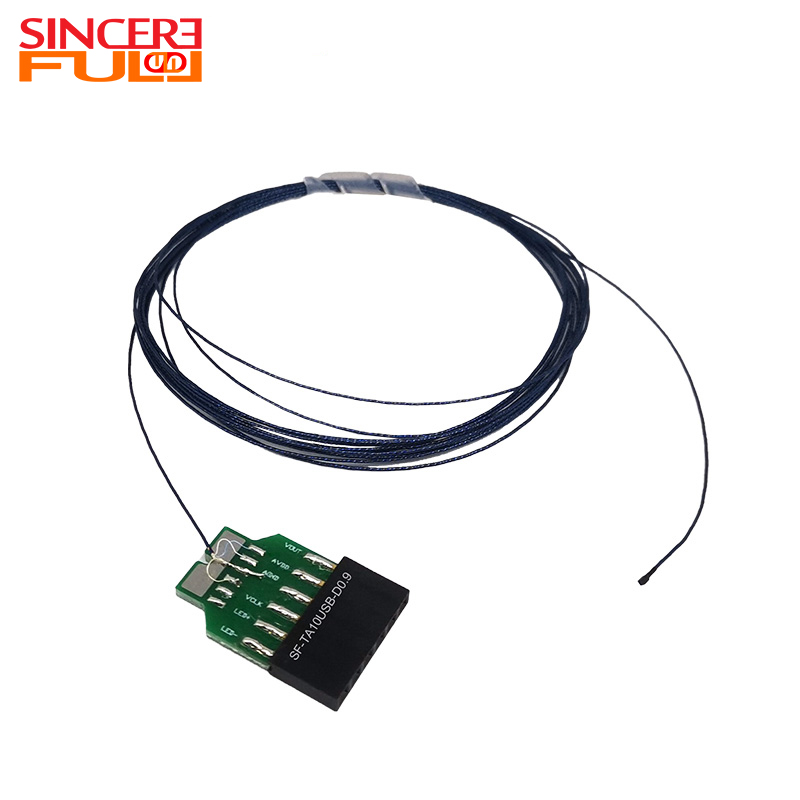

SF-TA10USB-D0.9
SINCEREFIRST
The OCHTA10 Micro Medical Endoscope Camera module is a revolutionary ultra-fine diameter medical imaging device using a professional-grade medical endoscope image sensor with a 400×400 high-precision pixel array and a large pixel size design of 1.008μm×1.008μm. Its ground-breaking 0.9mm diameter (1/31 inch) and 120° ultra-wide field of view Angle provide unprecedented minimally invasive and broad field of view for clinical examination, especially suitable for fine examination of narrow passages in otolaryngology, ophthalmology, dentistry, etc. The module supports USB2.0 plug and play (UVC protocol), is compatible with a variety of operating systems, and can be seamlessly connected to existing medical device systems. In terms of clinical application, it can not only significantly improve the detection rate of lesions in the ear canal, tear duct, bronchus and other parts, but also be applied to minimally invasive surgical navigation and early cancer screening. At the same time, its excellent imaging performance also makes it show unique value in industrial fields such as precision manufacturing and material research. |  |
0.9mm diameter
OCHTA10 sensor
1/31" inch
400x400 Resolution
120° DFOV
Designed for medical and industrial
High-quality image
UVC compliant, Plug & Play
Support USB2.0 UV
1. Otorhinolaryngology: Perform fine operations such as tympanic membrane examination, sinus exploration and vocal cord observation
2. Precision instrument: Detect internal defects of aero engine blades
3. Electronic manufacturing: Complete micron level circuit board solder joint inspection
4. Pet Clinic: Complete respiratory endoscopy for dogs and cats
Product Name | Endoscope Camera Module |
Image Sensor | OCHTA10 |
Diameter | 0.9mm |
Pixel | 400(H)*400(V) |
View Angle | 120°±6° |
pixel area | 411.264μm×411.264μm |
Replacement | 1 Year |
Interface | USB |
Brand | SincereFirst |
Format | YUV&MJPEG |
1. How does the endoscope camera module work?
The endoscope camera module collects the internal image through the front optical lens, converts it into electrical signal by CMOS or CCD sensor, and then optimizes it through image processing chip for noise reduction and enhancement, and finally outputs high-definition video signal. Some modules support wireless transmission or fiber optic signal transmission, suitable for medical or industrial inspection scenarios.
2. What are the interface types of the module?
Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices integrate dedicated medical image interfaces (such as DVI-Med).
3. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
4. Why do Otolaryngology departments need ultra-small diameter modules?
With narrow ear/nasal space, modules with a diameter of less than 3mm can reduce patient discomfort while maintaining high resolution (e.g., ≥300 line pairs /mm) to identify small lesions.
5: What can be customized for endoscope camera modules?
A5: The endoscope camera module can be selected as integrated or separated, and the diameter size, and whether it comes with a steel sleeve and LED light can also be customized.
