SF-C016USB-D0.9
SINCEREFIRST

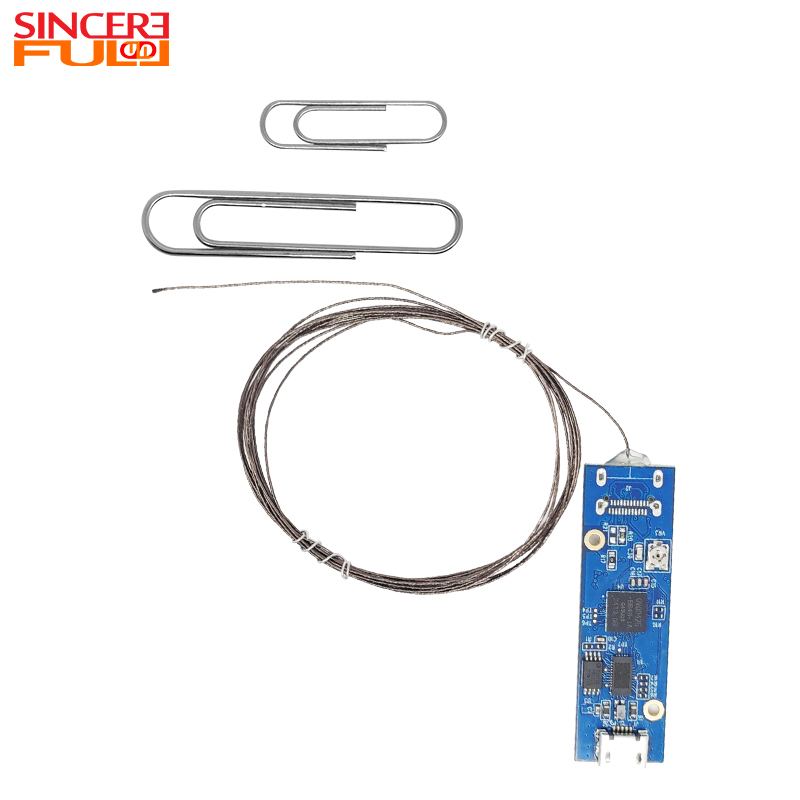

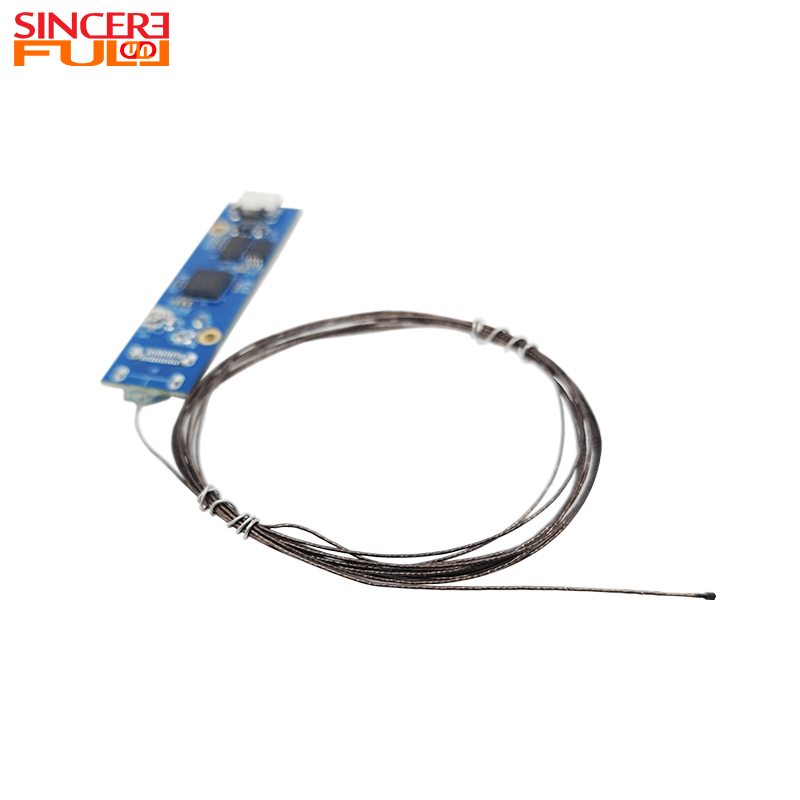

This is OCHTA10 image sensor ultra-miniature USB endoscope camera module. Its core feature is that the lens diameter is only 0.9mm. Combined with a compact optical structure, it significantly enhances spatial adaptability. This product is equipped with an OCHTA10 sensor, supports 400×400 pixel resolution output, and is compatible with dual format data transmission of YUV and MJPEG. The adjustable focal length range is 3-30mm, the aperture is F2.8, and the wide field of view Angle is 100°×100°, ensuring a wide coverage and clear imaging. The module achieves plug-and-play through the USB2.0 interface and can stably transmit clear images in real time.
 |

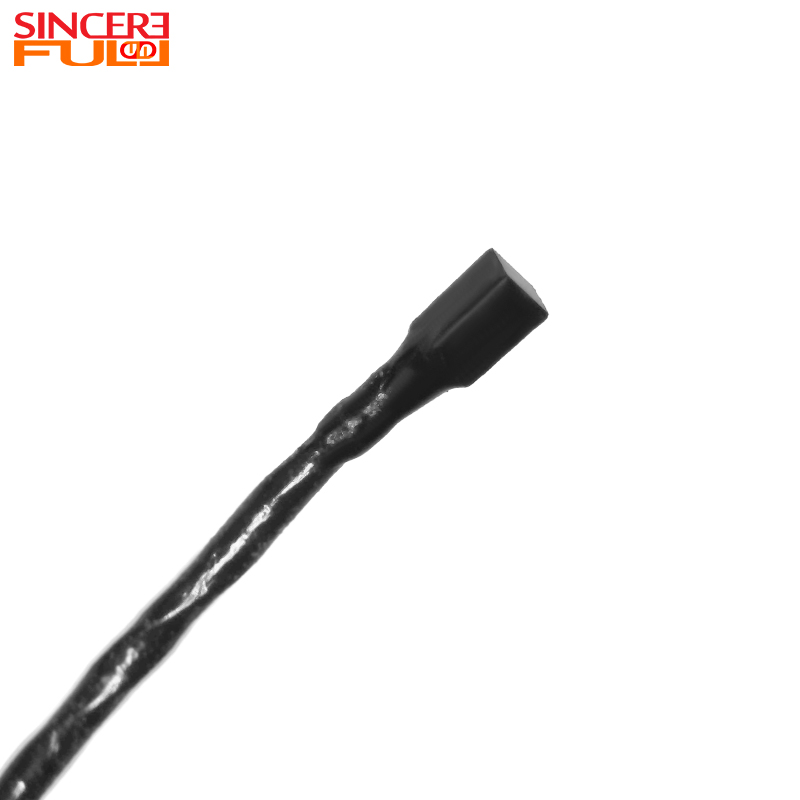

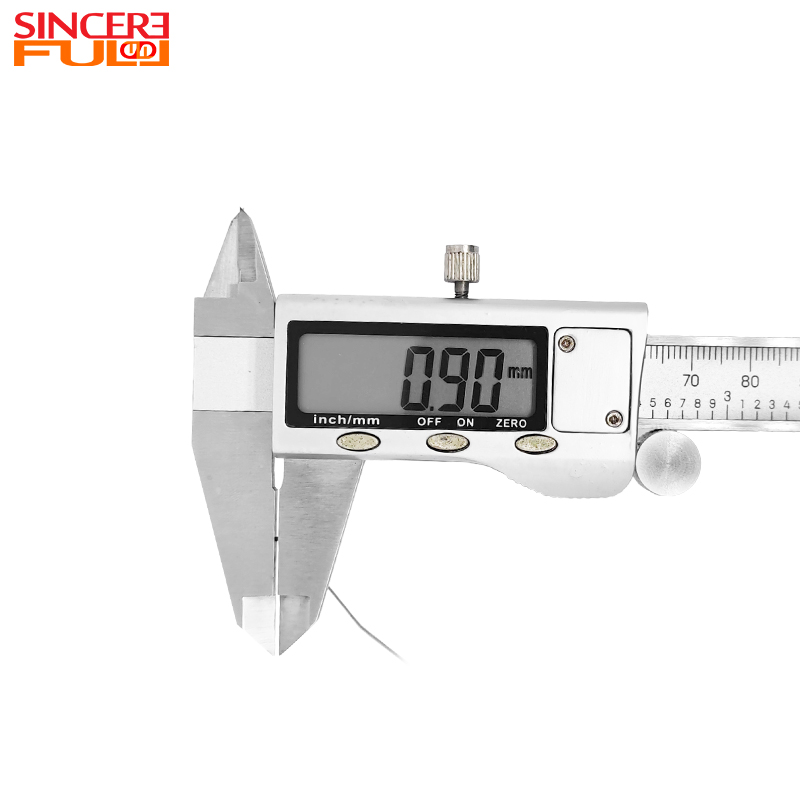

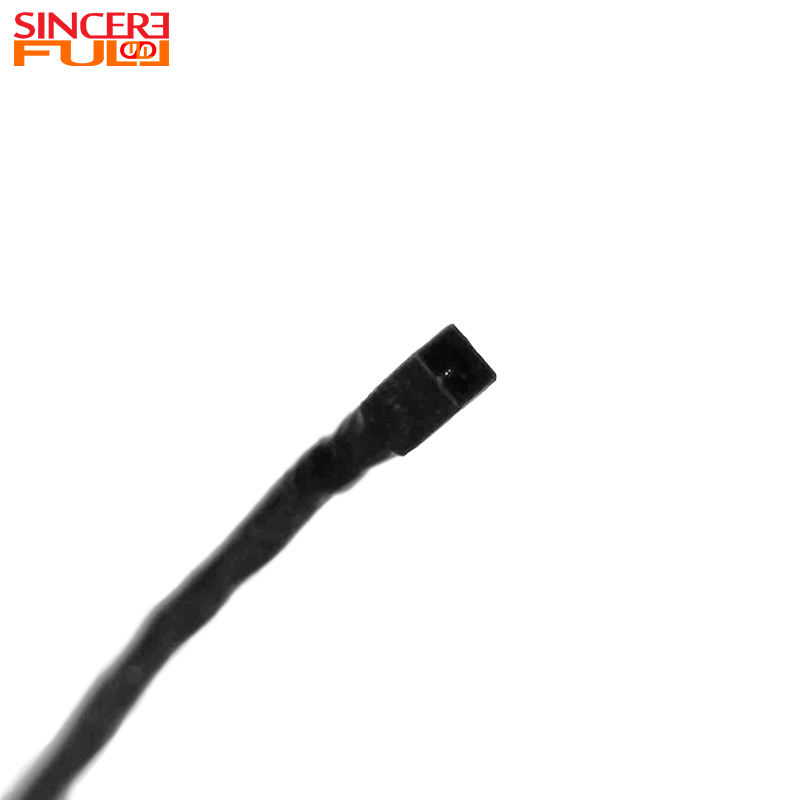

Extreme Miniaturization design : With a lens diameter as low as 0.9mm, it can be flexibly deployed in tiny gaps or confined Spaces, significantly expanding application scenarios.
High-definition image quality : The OCHTA10 sensor with a resolution of 400×400 pixels, combined with a low-distortion optical design of < -11%, delivers detailed, color-accurate image output.
Strong compatibility and versatility : Supports USB2.0 universal interface and UVC protocol, seamless adaptation to various mainstream operating systems; The dual output formats of YUV and MJPEG meet different data processing requirements and enhance system flexibility.
Superior optical performance : Adjustable focal length 3-30mm, F2.8 aperture design, suitable for variable light conditions; The 100°×100° field of view ensures that wide scenes are captured without blind spots.

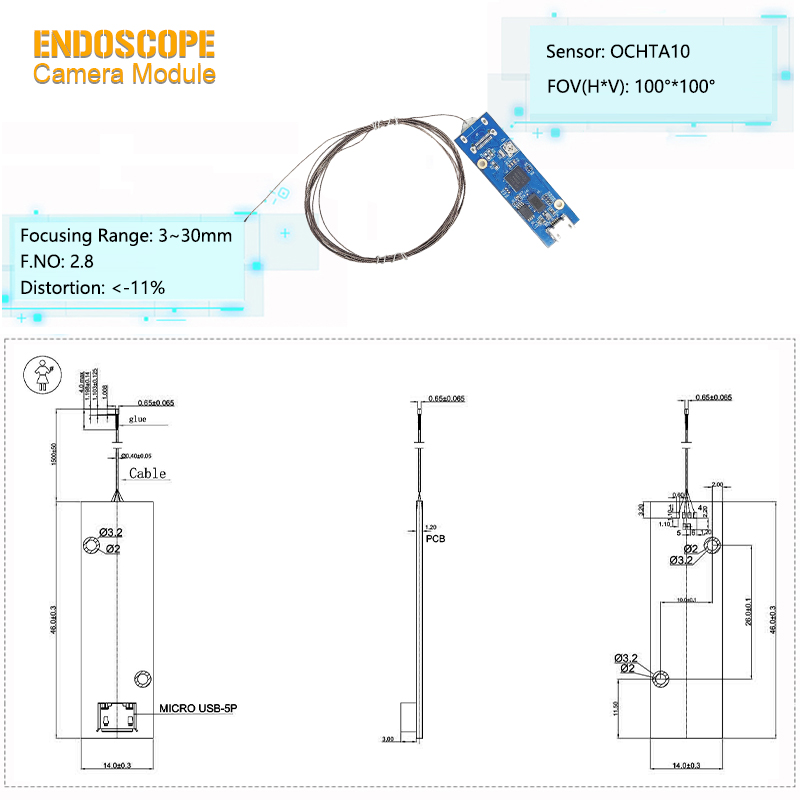

Product Name | Endoscope Camera Module |
Image Sensor | OCHTA10 |
Focusing Range | 3~30mm |
Focal Length | 0.175mm |
FOV（H*V） | 100°*100° |
TV Distortion | ＜-11% |
Replacement | 1 Year |
Interface | USB |
Brand | SincereFirst |
Format | YUV&MJPEG |
Medical equipment field : Integrated into endoscope or microscopic imaging systems for high-precision medical diagnosis such as minimally invasive surgery and in vivo tissue observation, improving resolution and ease of operation.
Industrial inspection and Automation : Applied to machine vision systems, such as quality inspection of electronic components, precision instrument defect identification, taking advantage of miniaturization to embed micro-probes for non-contact inspection.
Consumer electronics : Embedded smart wearable devices, miniature camera modules or portable instruments to expand mobile imaging capabilities, suitable for outdoor exploration or educational research tools.
Research and laboratory equipment : For high-resolution microscopic-assisted systems that support biological sample analysis or material research and optimize imaging accuracy and efficiency.
Q1: What is a endoscope camera module?
A1: An endoscope camera module is a small camera device attached to the end of an endoscope that is used to capture high-quality images of the inside of the body and transmit them to a monitor for viewing by medical professionals. An endoscope camera module consists of three main components: the camera sensor, the lens system, and the electronic circuitry.
Q2: Are you factory or trade company?
A2: We are factory and have our own production line with 10 levels of dust-free workshops professional trained production workers.
Q3: Is the ultra-small diameter detachable endoscope module suitable for single use?
A3: The ultra-small diameter detachable endoscope module is highly suitable for single use as it can significantly reduce the risk of cross-infection of medical devices, while simplifying the operation process and controlling long-term costs.
Q4: In which fields are endoscope modules with a diameter of less than 0.9mm suitable for use?
A4: Endoscope modules with a diameter of less than 0.9mm are mainly used in industrial precision inspection such as microelectronic components and internal flaw detection of turbines, medical minimally invasive surgeries such as vascular/biliary tract examinations, and scientific research fields such as microscopic structure observation of materials. Their ultra-fine size enables high-definition imaging in narrow Spaces that traditional equipment cannot reach.
Q5: What can be customized for endoscope camera modules?
A5: The endoscope camera module can be selected as integrated or separated, and the diameter size, and whether it comes with a steel sleeve and LED light can also be customized.
