SF-C016USB-D1.2
SINCEREFIRST

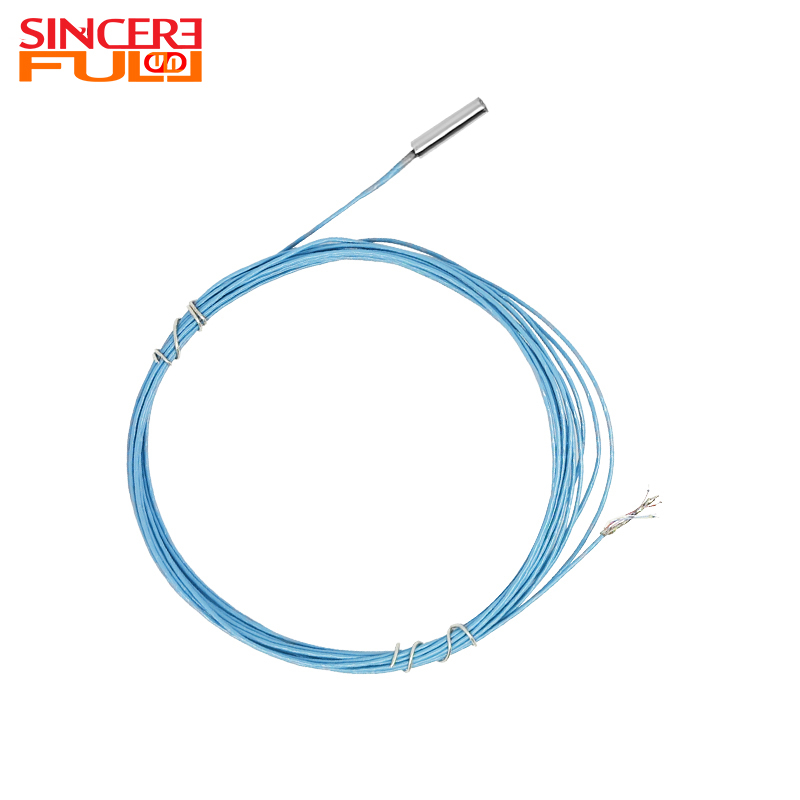

The 1.2mm 30FPS USB Endoscopic Camera Module with OCHTA10 Sensor and LEDs is a high-performance imaging device designed for precise detection across multiple scenarios. At its core, it adopts OmniVision’s advanced OCHTA10 CMOS sensor, paired with an F/2.8 large-aperture optical lens. Its ultra-slim 1.2mm±0.05mm diameter design breaks through the spatial limitations of traditional detection tools. The module features an ultra-close focusing capability of 0.175mm and supports intelligent zoom within the 3-30mm range—capable of capturing micron-level tiny defects while meeting mid-range observation needs. With a 100°×100° wide field of view (FOV) and TV distortion strictly controlled within -11%, it ensures consistent image quality from the edge to the center without obvious distortion. Equipped with 4 high-brightness LED fill lights, it delivers uniform, shadow-free illumination even in low-light or enclosed environments. The lens integrates a steel sleeve and supports IP67 dust and water resistance, enabling stable and continuous operation in harsh working conditions. For connectivity, it uses a USB2.0 interface (Mini USB-5P connector), supports the UVC protocol, and offers plug-and-play functionality without the need for additional drivers. It is fully compatible with four major operating systems: Windows, macOS, Linux, and Android. With a basic tolerance of ±0.1mm, it provides stable and reliable technical support for various precision detection scenarios. The module is manufactured using COB technology and AA (Active Alignment) process, and has obtained multiple international certifications including CE, FCC, RoHS, and Reach, complying with global standards. |  |
Strong Image Resolution: The 0.175mm ultra-short focal length, combined with a 1.008μm pixel size, enables 25μm-level defect detection. It is suitable for precision inspection scenarios such as BGA solder ball cold joints and wafer micro-scratches.
Low-Distortion Imaging: With TV distortion < -11%, it ensures measurement accuracy in edge areas. Paired with a 100° square imaging frame, it supports direct size quantification analysis via AI vision algorithms, eliminating the need for post-processing correction.
Uniform Fill Lighting: The 4 LED fill lights form a professional lighting system that automatically adapts to complex environments (e.g., low light, enclosures) to avoid shadow interference. It still delivers uniform, shadow-free images even in ultra-low illumination conditions.
Driver-Free Deployment: The USB2.0 plug-and-play design eliminates the need for driver installation. Its multi-system compatibility allows quick adaptation to different terminals such as computers, tablets, and industrial control devices. The Mini USB-5P connector offers strong versatility, significantly lowering the threshold for equipment integration and use.
Reinforced Structure: The stainless steel sleeve, manufactured via COB technology and AA process, provides 3x higher bending resistance. With an IP67 dust and water resistance rating, it adapts to harsh production line environments.
Microelectronics Manufacturing: Defect identification of solder joints in BGA rework stations; quality monitoring of gold wire ball bonding in chip bonders; verification of micro-hole copper layer integrity in PCB flying probe testers.
Precision Machining Tools: Real-time wear monitoring of tools in Swiss-type sliding head lathes; root cleaning inspection of deep-cavity structures in 5-axis machining centers; micro-crack detection on workpiece surfaces in precision grinders.
Medical Device Quality Control: Verification of channel cleanliness in endoscopic surgical robots; inspection of assembly accuracy for the tip of catheter positioning systems; analysis of inner-wall polishing quality of metal tubes in minimally invasive instruments.
Energy Power Equipment: Detection of blade root cracks on gas turbine hot gas path component inspection platforms; inspection of blockages in steam generator heat transfer tubes; evaluation of pitting corrosion on internal gear surfaces of wind turbine gearboxes.

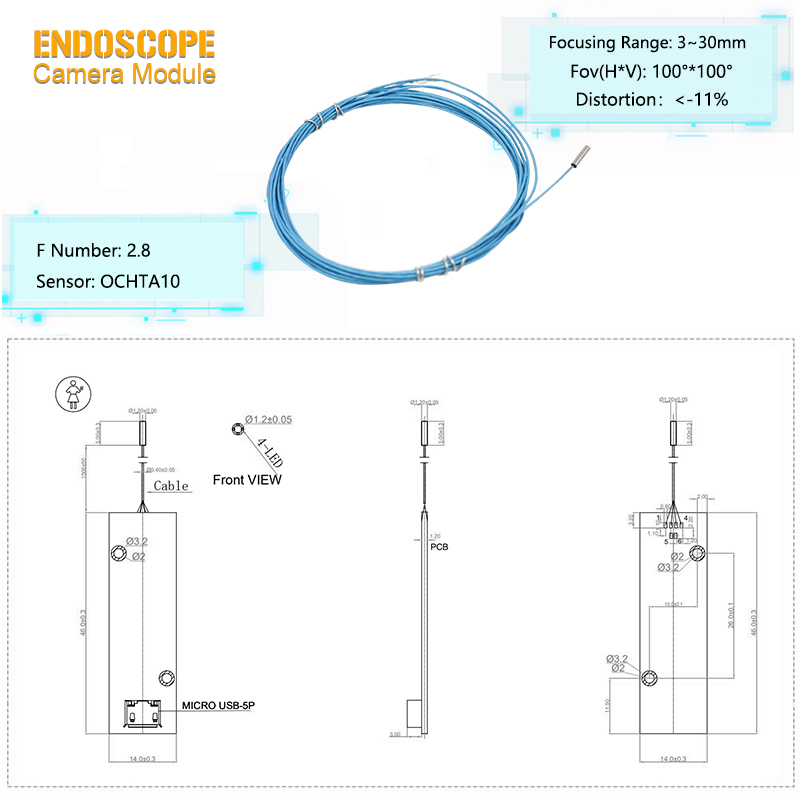

Product Name | LED Endoscope Camera Module |
Basic tolerance | ±0.1mm |
DSP | USB2.0 |
Sensor | OCHFA10 |
Focusing Range | 3-30mm |
Focal Length | 0.175mm |
F No. | 2.8 |
FOV(H*V) | 100°*100° |
TV Distortion | ＜-11% |
Connector | Mini USB-5P |
The core sensor is OCHTA10, a 1/31-inch, 400x400-pixel CMOS image sensor designed by OmniVision.
The module features IP67 dust and water resistance, making it suitable for harsh industrial environments such as high humidity.
It is fully compatible. The system’s built-in camera app can call the module directly. For better control experience, it is recommended to install AMCAP (for Windows) or USB Camera Pro (for Android).
The 1.2mm 30FPS USB Endoscopic Camera Module with OCHTA10 Sensor and LEDs is a high-performance imaging device designed for precise detection across multiple scenarios. At its core, it adopts OmniVision’s advanced OCHTA10 CMOS sensor, paired with an F/2.8 large-aperture optical lens. Its ultra-slim 1.2mm±0.05mm diameter design breaks through the spatial limitations of traditional detection tools. The module features an ultra-close focusing capability of 0.175mm and supports intelligent zoom within the 3-30mm range—capable of capturing micron-level tiny defects while meeting mid-range observation needs. With a 100°×100° wide field of view (FOV) and TV distortion strictly controlled within -11%, it ensures consistent image quality from the edge to the center without obvious distortion. Equipped with 4 high-brightness LED fill lights, it delivers uniform, shadow-free illumination even in low-light or enclosed environments. The lens integrates a steel sleeve and supports IP67 dust and water resistance, enabling stable and continuous operation in harsh working conditions. For connectivity, it uses a USB2.0 interface (Mini USB-5P connector), supports the UVC protocol, and offers plug-and-play functionality without the need for additional drivers. It is fully compatible with four major operating systems: Windows, macOS, Linux, and Android. With a basic tolerance of ±0.1mm, it provides stable and reliable technical support for various precision detection scenarios. The module is manufactured using COB technology and AA (Active Alignment) process, and has obtained multiple international certifications including CE, FCC, RoHS, and Reach, complying with global standards. | |
Strong Image Resolution: The 0.175mm ultra-short focal length, combined with a 1.008μm pixel size, enables 25μm-level defect detection. It is suitable for precision inspection scenarios such as BGA solder ball cold joints and wafer micro-scratches.
Low-Distortion Imaging: With TV distortion < -11%, it ensures measurement accuracy in edge areas. Paired with a 100° square imaging frame, it supports direct size quantification analysis via AI vision algorithms, eliminating the need for post-processing correction.
Uniform Fill Lighting: The 4 LED fill lights form a professional lighting system that automatically adapts to complex environments (e.g., low light, enclosures) to avoid shadow interference. It still delivers uniform, shadow-free images even in ultra-low illumination conditions.
Driver-Free Deployment: The USB2.0 plug-and-play design eliminates the need for driver installation. Its multi-system compatibility allows quick adaptation to different terminals such as computers, tablets, and industrial control devices. The Mini USB-5P connector offers strong versatility, significantly lowering the threshold for equipment integration and use.
Reinforced Structure: The stainless steel sleeve, manufactured via COB technology and AA process, provides 3x higher bending resistance. With an IP67 dust and water resistance rating, it adapts to harsh production line environments.
Microelectronics Manufacturing: Defect identification of solder joints in BGA rework stations; quality monitoring of gold wire ball bonding in chip bonders; verification of micro-hole copper layer integrity in PCB flying probe testers.
Precision Machining Tools: Real-time wear monitoring of tools in Swiss-type sliding head lathes; root cleaning inspection of deep-cavity structures in 5-axis machining centers; micro-crack detection on workpiece surfaces in precision grinders.
Medical Device Quality Control: Verification of channel cleanliness in endoscopic surgical robots; inspection of assembly accuracy for the tip of catheter positioning systems; analysis of inner-wall polishing quality of metal tubes in minimally invasive instruments.
Energy Power Equipment: Detection of blade root cracks on gas turbine hot gas path component inspection platforms; inspection of blockages in steam generator heat transfer tubes; evaluation of pitting corrosion on internal gear surfaces of wind turbine gearboxes.
Product Name | LED Endoscope Camera Module |
Basic tolerance | ±0.1mm |
DSP | USB2.0 |
Sensor | OCHFA10 |
Focusing Range | 3-30mm |
Focal Length | 0.175mm |
F No. | 2.8 |
FOV(H*V) | 100°*100° |
TV Distortion | ＜-11% |
Connector | Mini USB-5P |
The core sensor is OCHTA10, a 1/31-inch, 400x400-pixel CMOS image sensor designed by OmniVision.
The module features IP67 dust and water resistance, making it suitable for harsh industrial environments such as high humidity.
It is fully compatible. The system’s built-in camera app can call the module directly. For better control experience, it is recommended to install AMCAP (for Windows) or USB Camera Pro (for Android).
