SF-C016USB-D1.2
SINCEREFIRST

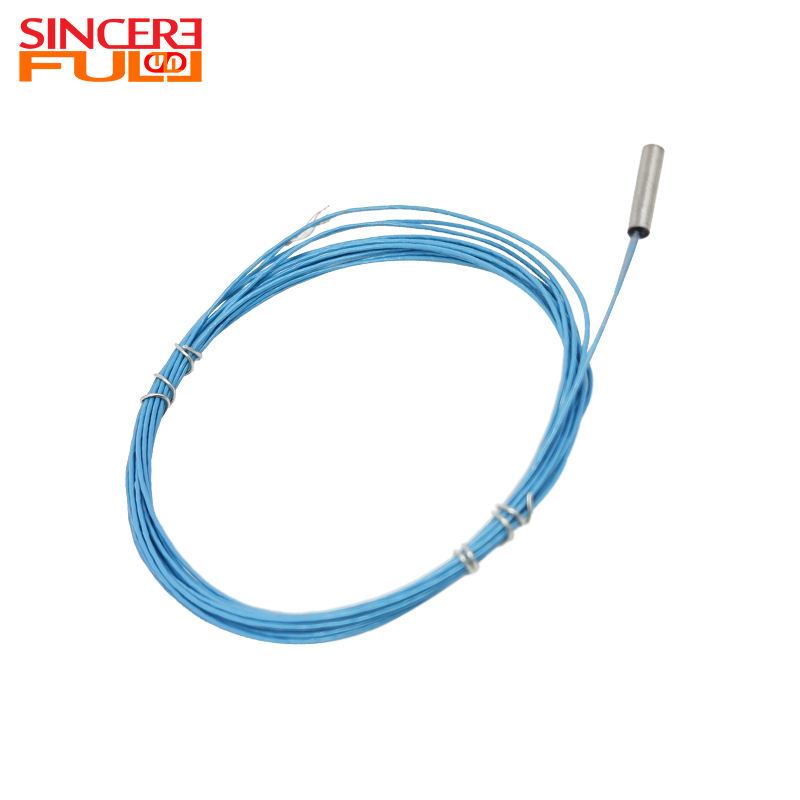

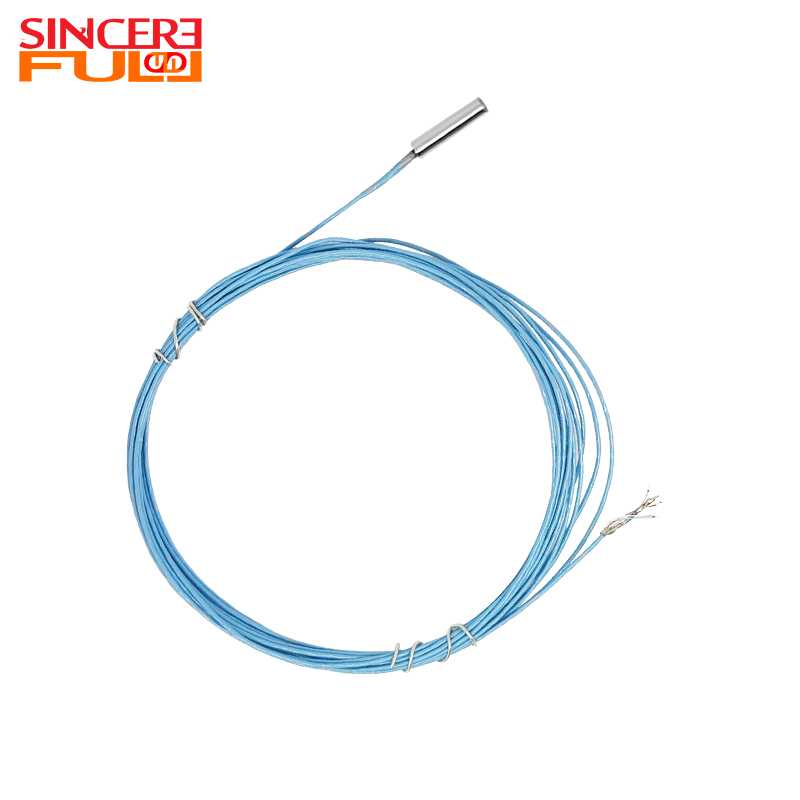

This is smallest 1.2mm diameter OCHTA10 CMOS medical seaprated LED endoscopic camera module with steel shell. It adopts OmniVision's OCHTA10 CMOS color image sensor, featuring a 400x400 resolution and a smooth frame rate of 30FPS. Equipped with a 1/31-inch sensor (1.008μm pixel size), combined with an F2.8 large aperture and an ultra-short focal length of 0.175mm, it enables manual focusing over a wide range of 3-30mm. Its core advantage lies in the 1.2mm diameter steel-shell lens design, which is precisely crafted through SMT technology and AA processes. The steel sleeve structure significantly enhances the lens's durability and sealing performance. The module is equipped with dual 100° wide viewing angles (horizontal/diagonal), integrates 4 LED fill lights to ensure imaging in low-light environments, adopts a USB2.0 interface and supports the UVC protocol. Its separated architecture facilitates integration into medical devices, providing a high-reliability imaging solution for minimally invasive surgeries. |  |

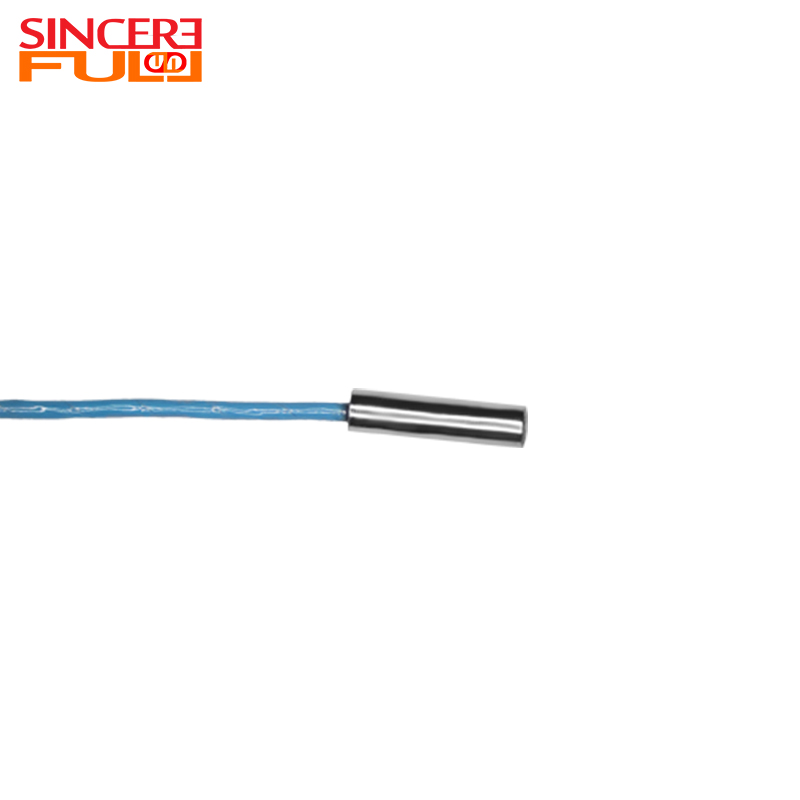

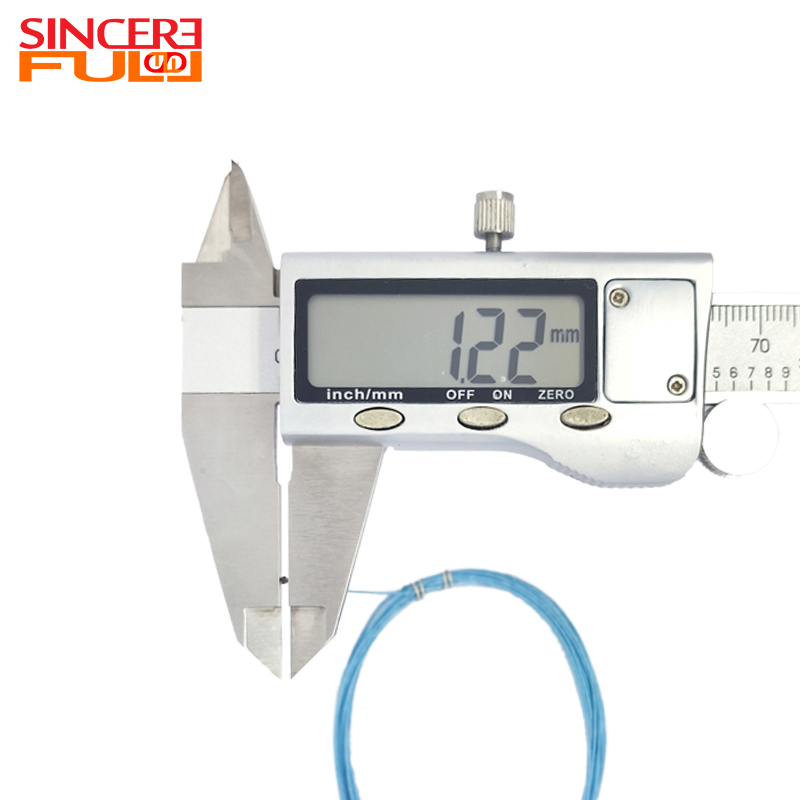

Ultimate Miniaturized Design:The lens with a steel sleeve has a diameter of only 1.2mm. While achieving an ultra-small size, it is precisely manufactured through SMT technology and AA process. It can not only meet the strict requirements for miniaturization of equipment in minimally invasive surgery but also ensure the precision of the structure.
Excellent Durability and Sealing Performance: The application of the steel sleeve structure greatly improves the durability of the lens, enabling it to adapt to complex medical environments. At the same time, it significantly enhances the sealing performance, effectively protecting the internal components of the module and ensuring long-term stable operation.
High-performance Imaging Capability: It adopts the OmniVision OCHTA10 CMOS color image sensor, with 400x400 resolution and 30FPS smooth frame rate. Equipped with an F2.8 large aperture and 0.175mm ultra-short focal length, it can achieve a wide range of manual focusing from 3mm to 30mm, ensuring clear imaging and rich details. The 100° horizontal/diagonal dual wide viewing angles can provide a broader observation range, offering a comprehensive view for surgical operations.
Excellent Low-light Adaptability: Integrated with 4 LED fill lights, it can ensure imaging quality in low-light environments, solving the impact of insufficient light on imaging in medical scenarios.
1. Microelectronic components testing: BGA package solder spot virtual welding detection (0.175mm focal depth can identify 25μm defects), chip gold wire bonding state analysis, PCB microhole copper plating integrity check.
2. Energy equipment maintenance: gas turbine blade root crack early identification, boiler heat exchange tube corrosion assessment, compressor crankcase internal wear inspection.
3. Automatic equipment debugging: manipulator end actuator calibration, linear module guide foreign body detection, precision feeding mechanism card analysis.
Product Name | LED Endoscope Camera Module |
Basic tolerance | ±0.1mm |
DSP | USB2.0 |
Sensor | OCHFA10 |
Focusing Range | 3-30mm |
Focal Length | 0.175mm |
F No. | 2.8 |
FOV(H*V) | 100°*100° |
TV Distortion | ＜-11% |
Connector | Mini USB-5P |
1. How to choose the module suitable for car maintenance?
It is necessary to have an oil-proof lens, adjustable focal length (such as 10-100mm), LED strong light, some with magnetic probes or 360° rotating head to check the engine dead Angle.
2. What are the possible causes of noise in the image?
If the sensor is overheating, signal transmission interferes, or the ISO is too high in low light, check the heat dissipation design, cable shielding, or enable the noise reduction mode.
3. How to evaluate the cost performance of the module?
For comprehensive resolution, durability, and after-sales support (such as medical modules that require calibration services from manufacturers), industrial scenarios can prioritize MTBF (mean time to failure) indicators.
