SF-C016USB-D0.9
SINCEREFIRST

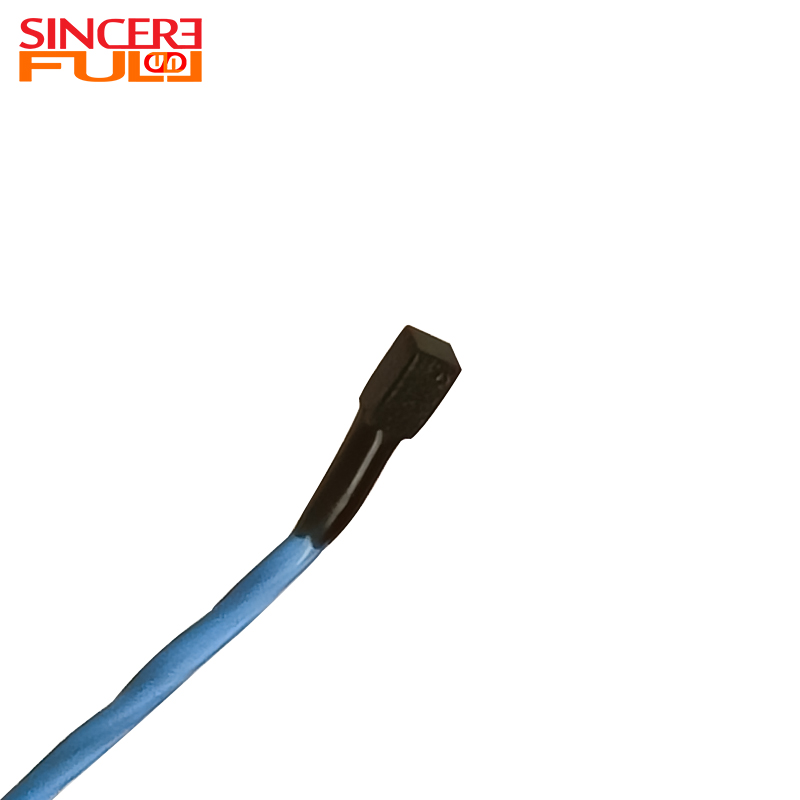

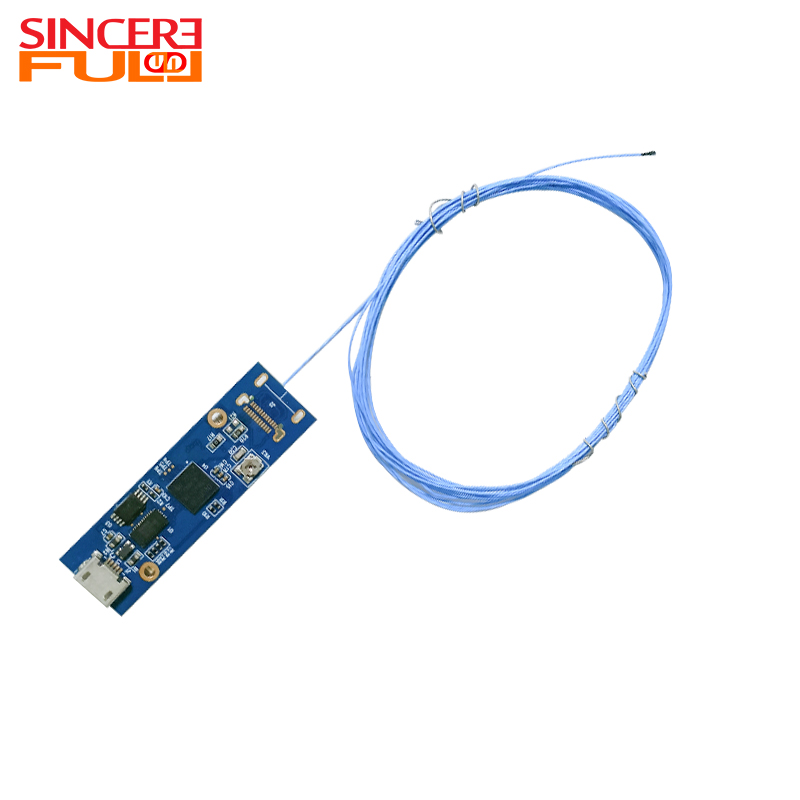

This is a mini 0.9mm endoscope camera inspection flexible module. Its sensor is OCHTA10 with 1.0 micron pixels and 1/31 inch optical format. The resolution can reach 400 x 400 pixels, 30 frames per second, and the angle is 100°. Its higher resolution improves the visualization of internal tissues and other fine details of the human body, allowing surgeons to see clearer images during surgical procedures such as neurology, ophthalmology, ENT, heart, spine, urology, gynecology and arthroscopy, as well as dental and veterinary diagnosis and surgery. |  |
Product Advantage ◢
0.9mm dia(no LEDs)
OCHTA10 sensor
1/31" inch
400x400 Resolution
100° DFOV
3-30mm DOF
Designed for medical and industrial
High-quality image
UVC compliant, Plug & Play
Support USB2.0 UVC

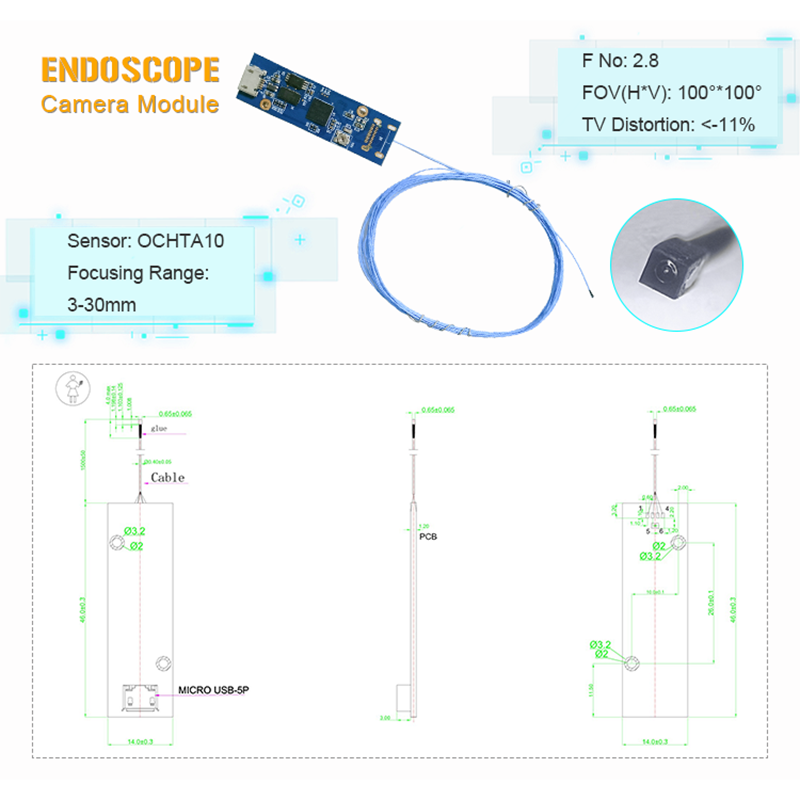

Technical Parameters ◢
Product Name | Mini Endoscope Module |
Image Sensor | OCHTA10 |
Diameter | 0.9mm |
Focusing Range | 3-30mm |
Focal Length | 0.175mm |
F No. | 2.8 |
FOV(H*V) | 100°*100° |
TV Distortion | ＜-11% |
Output | USB2.0 UVC |
Format | YUV&MJPEG |
Product Uses ◢
Gastrointestinal Examination
Respiratory Examination
Urinary System Examination
Medical Diagnosis
Industrial Testing
FAQ ◢
Q1: What is a endoscope camera module?
The endoscope camera module is a sophisticated device designed to capture high-definition images and videos of narrow internal structures. It is widely utilized in various fields, including medical, industrial, and scientific research. In the medical field, its high-speed transmission interface enables real-time data transmission via network connections, facilitating remote consultations and analysis. This technology helps doctors observe internal organs and tissues, allowing them to identify potential lesions and health issues. In practice, tools like gastroscopy and colonoscopy enable doctors to directly examine the digestive tract, perform biopsies, and provide immediate feedback, enhancing diagnostic accuracy and treatment timeliness. In the industrial sector, endoscopic inspections of mechanical equipment and pipelines allow engineers to detect wear, corrosion, and blockages.
Q2: Are you factory or trade company?
A2: We are a leading camera module manufacturing company focused on providing high quality smart camera products. Our production facilities are equipped with ten dust-free and aseptic automated workshops to ensure efficient and clean every step. After strict training, employees abide by the operating procedures and wear special dustproof clothing to ensure the safety and cleanliness of the production environment. Each endoscope module is subjected to multiple rigorous tests to ensure that the product always maintains a high qualification rate. Our R&D team continues to innovate, keep up with market demand, promote technological progress, provide customers with excellent solutions, and win market trust and support.
Q3: How to control an endoscope camera module?
A3: When performing endoscopic operations, it is especially important to understand the device characteristics and operation steps to ensure the best image quality and data recording. Familiarity with software and equipment will help improve productivity. The operation of the endoscopic camera includes data transfer, software setup, image processing and display, and the seamless collaboration of hardware and software is essential. The camera usually operates within a specific voltage range, and it is necessary to avoid voltage fluctuations affecting performance. Connected to the device via USB, micro-USB, HDMI, and Wi-Fi interfaces, users can install related software based on camera compatibility, adjust image parameters, and monitor and dynamically optimize image effects in real time
Q4: What does an endoscope camera module see?
A4: The endoscope camera module can capture high-definition images or videos of a wide range of surrounding environments in real time. These stored photos or videos are then transmitted to the display screen, so that doctors or technical staff can see and analyze problems inside the body, pipes, engines or other areas, and make targeted interventions. In terms of medical use, endoscopes can penetrate the organs of the human body that are difficult to directly observe, such as the digestive tract, lungs, ears, esophagus, nose, etc., and can also be used for inspection of pipes or pipes, such as pipes or industrial systems, engine rooms or mechanical areas, air conditioning compressor bin areas, flexible or rigid endoscopes can be used, cameras are usually equipped with LED lights and other functions. To illuminate dark areas, and there may be additional tools, such as suction or grasping, clipping tools, to aid in surgery.
Q5: What can be customized for endoscope camera modules?
A5: The endoscope camera module offers versatile options to meet specific needs, available in both integrated and separated configurations. You can choose the diameter size that suits your application, ensuring optimal fit and performance. Additionally, customization options include the choice of whether the module comes with a durable steel sleeve for extra protection and whether it is equipped with built-in LED lighting for better visibility in dark or confined spaces.
