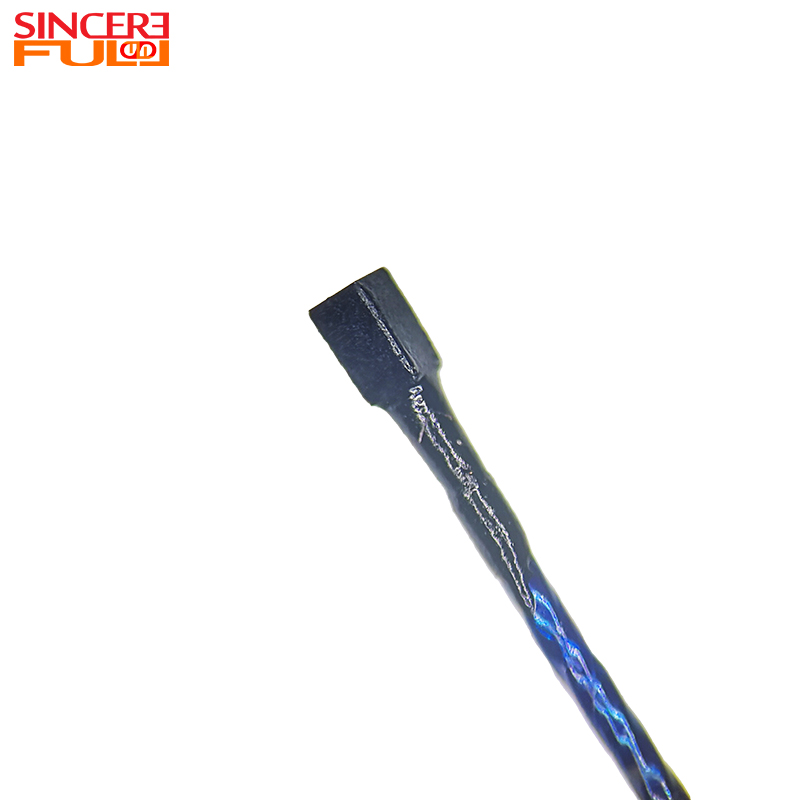

OCHTA10 Sensor Low-light Micro USB Medical Endoscope Camera Module

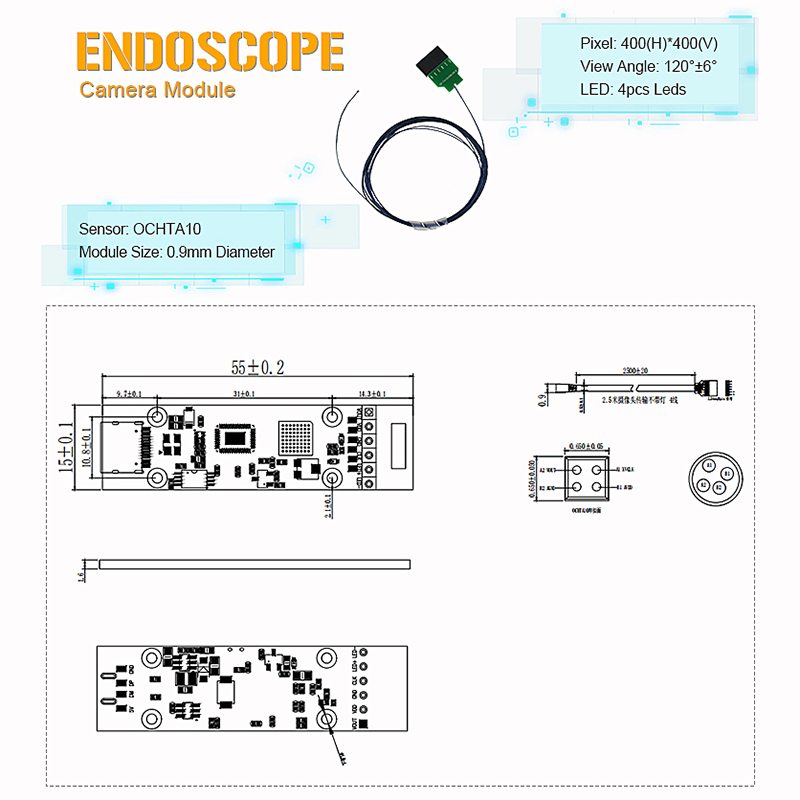

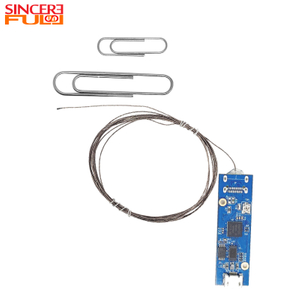

This is a low-light macro USB medical endoscope camera module developed based on the OmniVision OCHTA10 CMOS image sensor. It adopts a bare module and Separate design, requiring an additional matching DSP board for use, and is connected via a USB 5PIN interface. The entire product is manufactured in accordance with the AA (Active Alignment) process in a Class 100 cleanroom, and has passed multiple international tests and certifications including CE, FCC, RoHS, and Reach, ensuring reliable quality. With a module diameter of only 0.9mm and a 120°±6° wide-angle lens, it can cover a broad field of view and effectively reduce detection blind spots. The sensor pixel array reaches 400 (H)*400 (V), with a single pixel size of 1.008μm×1.008μm, enabling it to capture high-definition images even in low-light environments. The product supports YUV & MJPEG image formats and realizes data transmission based on the USB2.0 UVC (USB Video Class) protocol. The standardized feature of the UVC protocol allows the bare module to quickly achieve compatible connection with various specifications of DSP boards without the need for additional development of dedicated drivers. The DSP board can flexibly select high-performance decoding solutions according to the needs of terminal devices, greatly reducing system integration difficulty and development cycles. It is perfectly compatible with various medical imaging host platforms and is an ideal choice for medical endoscope devices to launch quickly.

Product Advantage ◢

1. Ultra-Miniature Bare Module Design: Built based on the OmniVision OCHTA10 sensor, the module has a minimum diameter of 0.9mm, achieving a true "chip-level" endoscope front-end and providing unprecedented accessibility for minimally invasive diagnosis and treatment.

2. Flexible Separate Architecture: Adopts a Separate design of the sensor bare module and DSP decoding board, connected via a standard USB 5PIN interface. It allows customers to freely select DSP solutions according to the positioning of terminal products, balancing cost and performance to adapt to the needs of medical devices at different levels.

3. Plug-and-Play: Fully supports the USB Video Class protocol, no need to install dedicated drivers, and is compatible with mainstream operating systems and medical imaging software platforms. It significantly shortens product development and verification cycles and lowers the threshold for clinical use.

4. Manufactured with AA Process in Class 100 Cleanroom: The module is produced using the AA (Active Alignment) process in a Class 100 cleanroom, ensuring precise matching between the lens and the sensor, guaranteeing consistency between the center and edge of the image, and meeting medical-grade quality standards.

5. Excellent Low-Light Imaging Performance: Equipped with 1.008µm back-illuminated pixel technology, it has significantly improved sensitivity compared to previous-generation products. Combined with a 120° wide-angle lens and 4 high-luminous-efficiency LEDs, it provides clear and uniform lighting effects within a typical working distance of 3-100mm.

6. International Certifications: Has passed international authoritative tests and certifications such as CE, FCC, RoHS, and REACH, complying with electromagnetic compatibility, material safety, and environmental protection requirements, and helping customers' products pass regulatory approval quickly.

7. Full-Platform System Compatibility: Supports multiple operating systems including Windows, Linux, Android, and macOS, and provides a standardized SDK development kit, facilitating integration into existing hospital information systems (HIS) and picture archiving and communication systems (PACS).

Technical Parameters ◢

Product Application ◢

• Disposable Endoscope Systems: Compatible with modules with diameters ranging from 0.9mm to 1.6mm, used in disposable instruments such as bronchoscopes, ureteroscopes, and choledochoscopes to eliminate the risk of cross-infection.

• ENT Endoscopes: 1.4mm modules paired with DSP boards, suitable for sinus endoscopes, laryngoscopes, and otoscopes, providing clear cavity vision for examination.

• Urology Endoscopes: Including cystoscopes, transurethral resection of prostate (TURP) scopes, and flexible ureteroscopes. The IP67 waterproof design ensures reliable operation in intra-cavity fluid environments.

• Gynecology Endoscopes: Applied in hysteroscopes and falloposcopes, the low-power consumption feature reduces the risk of thermal damage during examination.

• Arthroscopes & Spine Endoscopes: 1.6mm modules provide high-quality intra-operative images for knee arthroscopes and intervertebral foramen scopes, assisting in precise surgical operations.

• Dental & Oral Endoscopes: The ultra-small diameter is suitable for root canal scopes and periodontal probes, with high-resolution imaging supporting precise diagnosis and treatment.

• Veterinary Endoscopes: Suitable for pet digestive tract and respiratory tract examinations, the cost-effective solution promotes the standardization of veterinary diagnosis.

• Catheter & Guidewire Visualization: 0.9mm modules can be integrated into cardiovascular catheters and neurointerventional guidewires to achieve real-time positioning and navigation.

FAQ ◢

Q1: Does the module include a DSP board?

A1: No, it does not. This is a bare module with a Separate design, and users need to configure a dedicated DSP board additionally for normal use.

Q2: Can the OCHTA10 bare module be directly connected to a computer for use?

A2: The module is designed as a bare sensor and needs to be connected to a matching DSP decoding board via a USB 5PIN interface first to output UVC standard video signals. The DSP board, as a signal conversion bridge, is a necessary component for connecting to a computer or host.

Q3: Does the product comply with relevant international standards?

A3: Yes, it has passed international tests and certifications including CE, FCC, RoHS, and Reach, and complies with relevant industry standards.

Q4: What is the low-light performance of the module? Can it be used in dark environments?

A4: Based on the OCHTA10 sensor, the module has high sensitivity and can provide clear images under low-light conditions of 0.1 lux or below, making it very suitable for low-light medical applications such as endoscopes.

Q5: What optional DSP board solutions are available? Are there any recommended configurations?

A5: It is recommended to use the OmniVision official OV426 high-performance decoding board, which supports stable output at 30fps. For cost-sensitive applications, a general USB 2.0 UVC decoding solution can also be selected. Our technical support team will provide selection suggestions based on your requirements for frame rate, latency, and power consumption.
