SF-C1019USB-D6.0-SV-PRO-L200
SINCEREFIRST

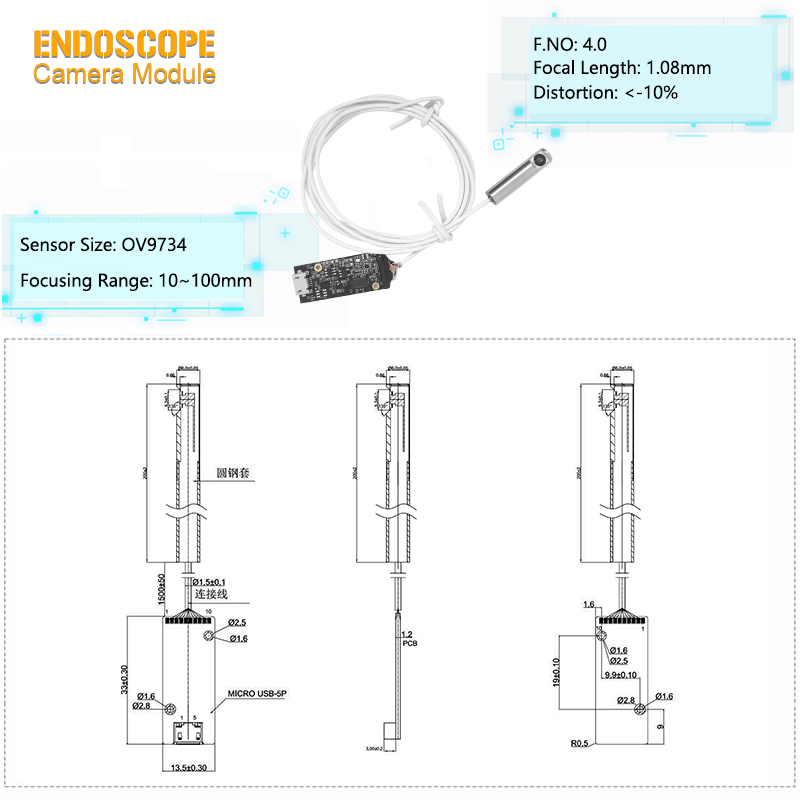

| ThisOV9734 6.0mm Side-View USB Endoscope Camera Module with 200mm Steel Sheel, For side-wall inspection, image direction matters before resolution. A forward-view camera can see what is ahead of the probe, but it may not provide the required angle when the target is located on the pipe wall, bore side or cavity surface. This OV9734 module uses a side-view structure with D95° × H85° × V43.5° FOV for lateral observation. This Ø6.0 ± 0.05mm round steel sheel with a length of 200 ± 2mm. The optical configuration includes a 10–100mm focusing range, 1.08mm focal length and F4.0 lens, while USB2.0 UVC outputs YUV/MJPEG at up to 720P 30fps. Four 0402 LEDs are listed as an optional configuration. Difference: Choose this model when the inspection target is on a pipe wall, bore side or cavity surface and the device needs a Ø6.0 ± 0.05mm side-view head with a 200 ± 2mm round steel sleeve, D95° FOV and a confirmed 10–100mm focusing range. | ![]() |
1. Ø6.0 ± 0.05mm × 200 ± 2mm steel sheel: Gives this page a distinctive mechanical selection task in addition to the side-view optical direction.
2. Side-view optical direction: Solves a different target-position problem from a forward-view camera and gives this page a clear independent selection task.
3. D95° × H85° × V43.5° FOV: Defines the confirmed field coverage without incorrectly calling 95° the horizontal FOV.
4. 10–100mm focus range: Helps engineers check whether a side-wall target falls within the confirmed viewing-distance range.
5. 720P Max 30fps: Provides the confirmed video-output level; no VGA45 mode is claimed in this version.
6. Optional 4 × 0402 LED: Allows lighting to be discussed as an optional configuration rather than a standard built-in feature.
7. USB2.0 UVC: Supports UVC-based host evaluation while final compatibility remains project-specific.
Parameter | Details |
Product Name | Medical 720P Side-View Endoscope Camera Module |
Image Sensor | OV9734 CMOS |
Pixel Size | 1.4μm |
FOV (DHV) | 95°×85°×43.5° |
Focusing Range | 10–100mm |
Focal Length | 1.08mm |
F Number | 4.0 |
TV Distortion | < -10% |
LED Type | 0402 LED |
Interface | USB 2.0 UVC |
Brand | SincereFull |
1. Pipe inner-wall inspection: The side-view optical direction allows observation of the wall while the probe remains aligned with the pipe axis.
2. Mechanical bore side-surface checking: The lateral view can inspect side surfaces that are not directly in front of the camera.
3. Cavity-side visual inspection: D95° field coverage and a 10–100mm focus range support close-range lateral observation.
4. Long side-view probe integration : The confirmed 200 ± 2mm round steel sleeve gives OEM engineers a specific mechanical structure to evaluate for lateral inspection.
FAQ◢
1. When should I choose side view instead of direct view?
Choose side view when the target is mainly on the wall or side surface of a pipe, bore or cavity. If the target is directly ahead, a direct-view model is usually the more natural direction.
2. What video output is confirmed for this model?
The uploaded specification confirms USB2.0 UVC, YUV/MJPEG and 720P Max 30fps.
3. What field of view is confirmed?
The confirmed FOV is D95° × H85° × V43.5°.
4. Are the four LEDs standard on this model?
No. The uploaded specification lists four 0402 LEDs as an optional configuration.
5. Is an IP waterproof rating confirmed?
The uploaded specification does not state an IP rating. If waterproofing is required, it should be confirmed separately for the final probe structure.
6. What mechanical dimensions should I check first?
Confirm that the device can accommodate the Ø6.0 ± 0.05mm diameter and 200 ± 2mm round steel sleeve before evaluating the optical performance.
7. What information should I provide before sample evaluation?
Please provide the target position, available probe diameter, allowable steel-sleeve length, expected working distance, lighting requirement, cable requirement and host system.
To evaluate this 6.0mm OV9734 side-view module, please send us the target position, available probe diameter, allowable steel-sleeve length, expected working distance, lighting requirement, cable requirement and host system. We will verify whether the confirmed Ø6.0 ± 0.05mm × 200 ± 2mm structure, D95° side-view optics and 10–100mm focus range fit the inspection task.
