Introduction
Have you ever taken a photo that is sharp in the centre but blurry at the edges? Or noticed that straight lines look bent near the corners? A hidden cause is optical axis alignment. In any camera module, the lens and image sensor must share a common axis – the optical axis. If they are even slightly off – by a fraction of a degree – image quality drops dramatically. This is especially critical in tiny devices like an endoscope camera module, where tolerances are measured in microns. This article explains what optical axis alignment means, why it matters, and how it is achieved in modern cmos module camera designs.
What Is Optical Axis Alignment?
The optical axis is an imaginary line through the centre of the lens and the centre of the sensor. Optical axis alignment is the process of positioning the lens and sensor so that this line is perfectly perpendicular to the sensor plane and centred on the active area. Manufacturing tolerances – lens holder shape, glue thickness, sensor placement – cause small misalignments.
When the optical axis is misaligned, the image is shifted, tilted, or defocused. This leads to Image distortion, uneven sharpness, and colour fringing.
Why Alignment Matters
Problem | Caused by Misalignment |
|---|---|
Soft corners | Lens tilted relative to sensor |
Centre sharp, edges blurry | Lens not centred |
Asymmetric vignetting | Light cone shifted off‑centre |
Image distortion (bent lines) | Tilt causes perspective errors |
For a hd camera module (1080p or 4K), a tilt of just 0.1° can ruin the edges. In a micro endoscope camera module (under 2 mm diameter), a 5 µm shift makes the image unusable.
How Alignment Is Achieved: Active Alignment
The industry standard for high‑quality camera module assembly is Active Alignment (AA). Unlike passive methods that rely on mechanical stops, Active Alignment uses a live image to adjust the lens in real time.
The process:
The sensor is fixed on the PCB.
The lens holder is placed above with temporary adhesive.
A test chart is placed at a known distance.
A machine moves the lens in six axes (X, Y, Z, tilt, pitch, yaw) while analysing sharpness.
Once the optimal position is found, the lens is glued with UV‑curing adhesive.
This compensates for all mechanical tolerances. It is used for all high‑end USB Camera Module, UVC camera module, and endoscope camera module products.
Consequences of Poor Alignment
Soft corners – One corner blurry, the opposite sharp.
Centroid shift – Image centre not aligned with pixel array.
Field curvature – Focus plane is not flat.
**Increased Image distortion (asymmetrical barrel/pincushion).
Resolution loss at edges, reducing effective resolution of a hd camera module.
In a micro endoscope camera module, poor alignment can shift the field of view sideways, making navigation impossible.
Alignment in Different Module Types
Module Type | Tolerance | Method |
|---|---|---|
USB Camera Module (webcam) | ±0.2° / ±20 µm | Active (high‑end) or passive (cheap) |
UVC camera module (industrial) | ±0.1° / ±10 µm | Active Alignment |
Endoscope camera module (medical) | ±0.05° / ±5 µm | Active Alignment (critical) |
Micro endoscope camera module | ±0.03° / ±3 µm | Specialised AA |
Hd camera module (1080p) | ±0.1° / ±10 µm | Active Alignment recommended |
Spotting Misalignment Without Tools
View a checkerboard – if one side is soft, alignment is off.
Photograph a symmetrical building – if it leans differently left vs right, the lens may be tilted.
Look for uneven vignetting – one corner darker than others.
For reliable quality, always choose a manufacturer that uses Active Alignment.

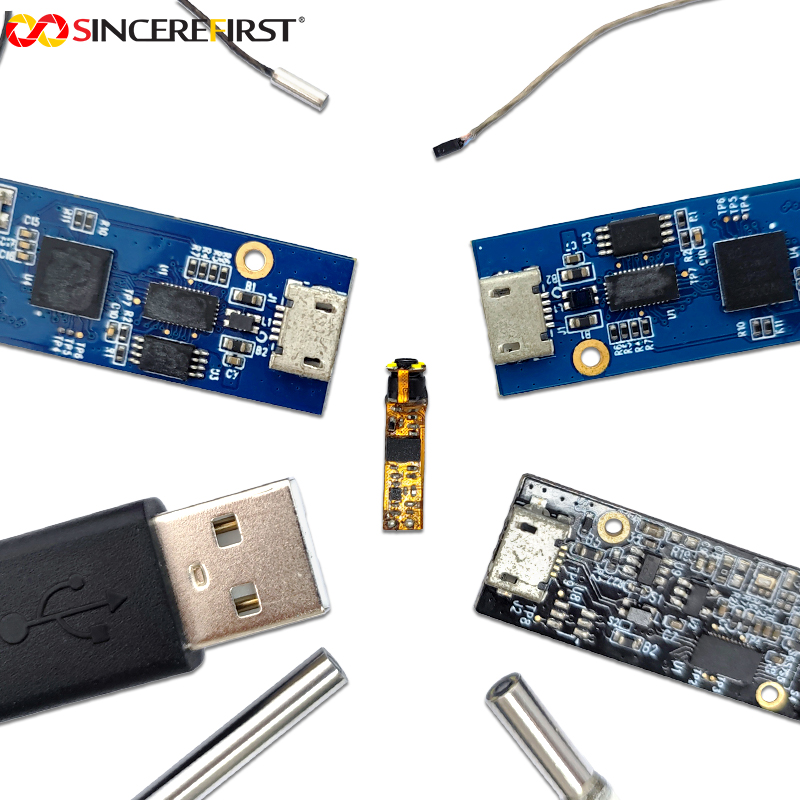

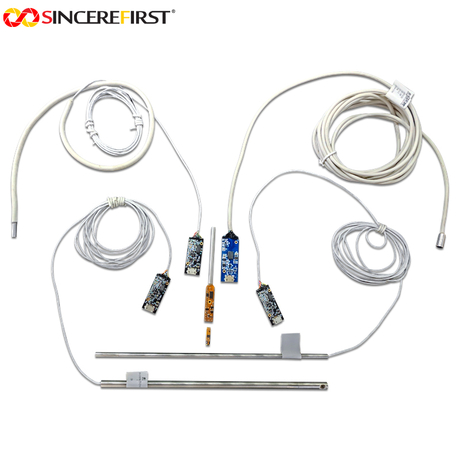

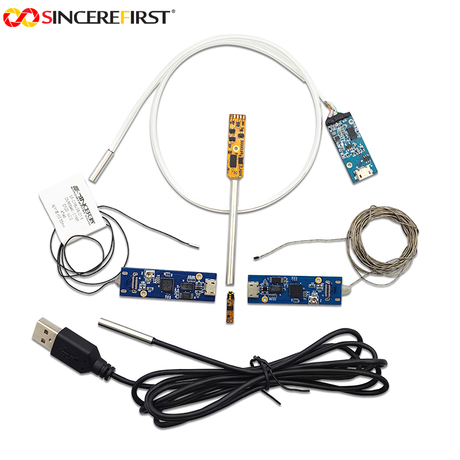

Sincere’s Optical Axis Alignment Capabilities
At Sincere, we perform Active Alignment on every precision camera module:
Endoscope camera module – Sub‑pixel alignment for medical and industrial scopes.
USB Camera Module – Cost‑effective (passive) and high‑precision (AA) versions.
Optical axis alignment – Guaranteed within 0.05° tilt and 5 µm centering.
Hd camera module – 1080p and 4K aligned for edge‑to‑edge sharpness.
UVC camera module – Plug‑and‑play with factory AA.
Micro endoscope camera module – Specialised AA for lenses under 2 mm.
Cmos module camera – All sensors aligned with live feedback.
Summary
Optical axis alignment is the precise centring and levelling of the lens relative to the sensor. It ensures sharp, distortion‑free images. Without it, even a high‑resolution cmos module camera will suffer soft corners, asymmetric blur, and Image distortion. The gold‑standard method is Active Alignment, which is critical for endoscope camera module, micro endoscope camera module, and hd camera module products. Whether you need a USB Camera Module for a webcam or a UVC camera module for industrial inspection, proper alignment makes every pixel count.
Contact Sincere to discuss your camera module alignment requirements.
