SF-YL0320-V1+SF-N1050-V1
SINCEREFIRST

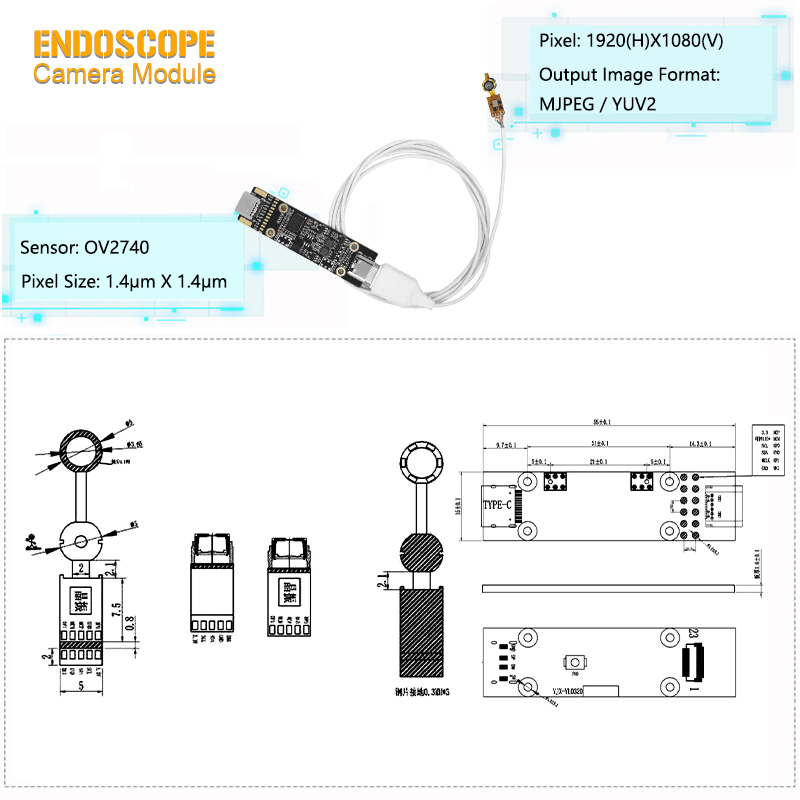

The OV2740 Sensor Separated Mini USB Endoscope Camera Module (Model: SF-YL0320-V1+SF-N1050-V1) is a high-performance imaging solution launched by SincereFull, tailored for medical and industrial high-precision inspection scenarios. Equipped with the advanced OV2740 sensor and a revolutionary 1.4μm large pixel design, this 2-megapixel module supports 1920×1080 full high-definition (FHD) output and adopts an innovative MJPEG/YUV2 dual format encoding architecture. It balances superior image quality with efficient data compression and transmission, eliminating latency issues during real-time observation. Integrated with 6 high-brightness LED fill lights, the module delivers clear, detail-rich images even in extremely low-light environments. With a compact 5mm diameter and 140° wide field of view, it meets the strict space and clarity requirements of medical procedures and industrial inspections, becoming a reliable choice for professionals in multiple fields.
The module’s 1.4μm large pixel sensor ensures 1080P FHD resolution and 60fps smooth frame rate, capturing every subtle detail without distortion. The 6 built-in high-brightness LED lights provide adjustable supplementary lighting, which can be customized according to different scenarios to ensure clear imaging in dark cavities such as human digestive tracts and industrial equipment interiors. This feature directly improves the accuracy of medical diagnosis and industrial defect detection.
The 140° ultra-wide FOV design expands the observable range, reducing the need for frequent adjustment of the endoscope’s position during operation. It effectively eliminates blind spots in medical gastroscopy and industrial pipeline inspections, improving work efficiency and reducing operational risks.
With support for TYPE-C and 5Pin 1.0 interfaces, the module is compatible with a variety of devices such as medical workstations and industrial control computers, realizing flexible connection and quick deployment. Its 5mm ultra-small diameter allows easy access to narrow spaces, which is especially suitable for minimally invasive medical surgeries and precision industrial component inspections.
Parameter | Details |
Product Name | Small USB Endoscope Module |
Brand | SincereFull |
Model | SF-YL0320-V1+SF-N1050-V1 |
Lens Size | 1/6inch |
DSP | USB |
Sensor | OV2740 |
Focusing Range | 10-30mm |
Diameter | 5mm |
F Number | 4.0 |
LED Quantity | 6pcs |
Resolution & Frame Rate | 1920×1080, 60fps |
FOV (D) | 140° |
Encoding Format | MJPEG/YUV2 |
The OV2740 medical endoscope camera module is widely used in video gastroscopy and other minimally invasive diagnostic procedures. Its high-definition imaging capability helps doctors accurately identify gastrointestinal lesions, and the compact size reduces patient discomfort during the examination.
It is applicable to internal inspection and maintenance of automotive manufacturing, aerospace, and power equipment. The wide FOV and low-light adaptability enable technicians to detect hidden defects in engine parts, aircraft components, and power equipment pipelines quickly.
With the advantages of low power consumption and high resolution, the module supports multiple image processing algorithms. It can be used for real-time monitoring of key equipment and narrow space security, providing stable and clear imaging data.
Common interfaces include USB3.0, HDMI, and SDI. Industrial scenarios may use PoE power supply interfaces, while medical devices mostly integrate dedicated medical imaging interfaces to meet industry standards.
A large depth of field can clearly present both near and far objects simultaneously, reducing the need for frequent focusing and is ideal for endoscopic surgery. A shallow depth of field highlights specific planar details, such as epidermal examinations.
Mainstream resolutions include 720p, 1080p, and 4K. Medical-grade modules usually require 1080p or higher to ensure diagnostic accuracy, while industrial modules may choose lower resolutions to reduce costs. 4K ultra-high-resolution modules are mostly used in precision surgeries or scientific research fields.
Are you looking for a reliable high-definition endoscope camera module for medical diagnosis or industrial inspection? Contact us now to inquire about the OV2740 Sensor Separated Mini USB Endoscope Camera Module! Click the Inquire button to submit your needs, or add the product to your basket directly. Our professional team will respond to you promptly and provide customized solutions to meet your requirements. Don’t miss the chance to get high-quality products with timely delivery and excellent after-sales service!
