1080P60fps Wide Angle USB2.0 Interface UVC Protocol Endoscope Camera Module

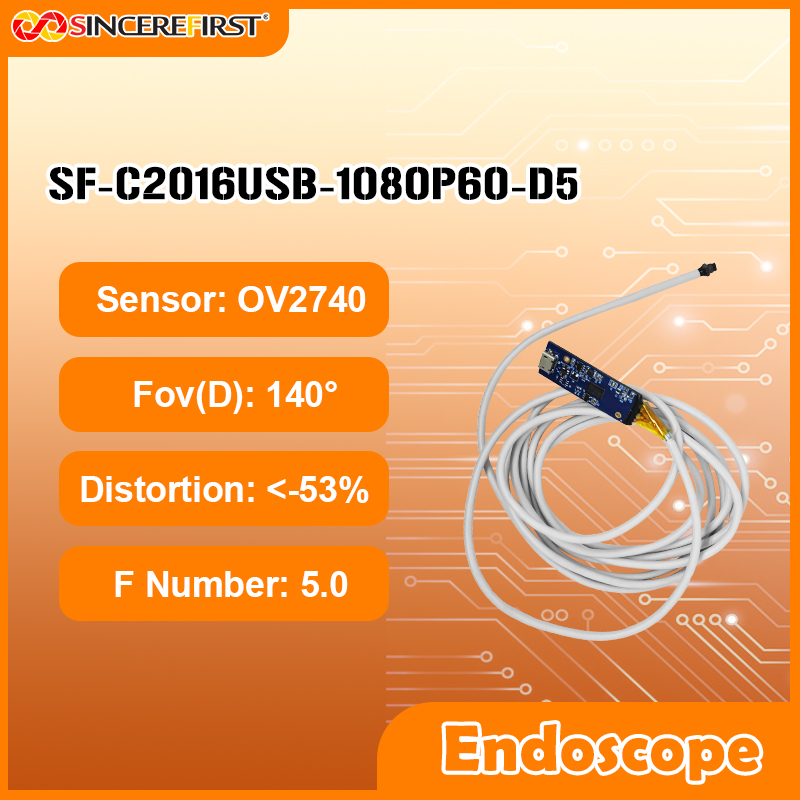

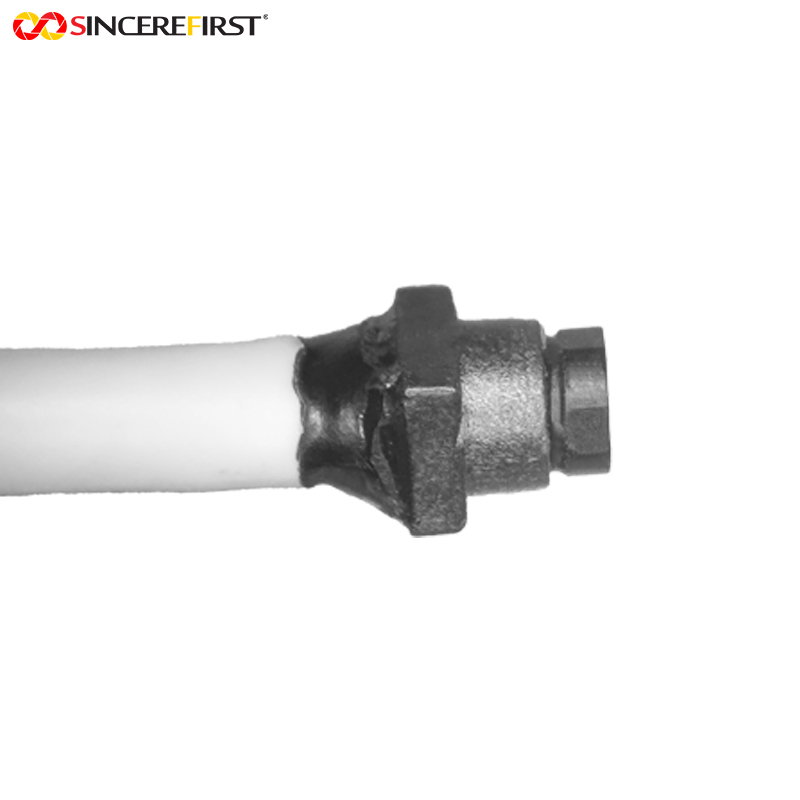

This is a 1080P 60fps Wide Angle USB2.0 Interface UVC Protocol OV2740 Sensor Endoscope Camera Module. It features a dedicated DSP chip supporting the USB2.0 UVC protocol, utilizing a 4-pin USB interface for integrated power and signal transmission. Compatible with both YUV and MJPEG dual-format output, it delivers smooth imaging at 60fps high frame rate in 1080P resolution. Optically, it employs a 1.29mm short-focus fixed-focal-length design optimized for an 8–80mm working distance. Within thi s range, subjects can be captured with sharp detail without manual focusing. TV distortion is controlled within -53%, meeting specific distortion tolerance requirements for close-range imaging. Critical structural dimensions are strictly controlled within ±0.1mm tolerances. Components are neatly arranged and comply with RoHS environmental standards. Without integrated LED illumination or waterproofing, it focuses on specialized applications requiring 1080P@60fps and close-range fixed-focus performance—such as high-speed industrial line inspection, macro high-definition photography, and laboratory sample imaging. Its plug-and-play, driver-free design enables rapid integration with various industrial control platforms and operating systems.

Product Advantage ◢

1. Core Performance: Supports up to 1080P@60fps high-definition, high-frame-rate output with dual YUV & MJPEG formats. Image orientation defaults to landscape. TV distortion < -53%, meeting distortion tolerance requirements for close-range imaging.

2. Optical Parameters: Fixed-focus design with 8–80mm focal range and 1.29mm focal length, engineered for close-range capture. No explicit field-of-view angle specification.

3. Interfaces & Hardware: 4-pin USB interface with pin definitions: 5V, GND, DP, DM. Integrated power supply and signal transmission. Features USB 2.0 UVC-dedicated DSP chip paired with specialized capture lens and sensor.

4. Structural Specifications: Base dimensions tolerance ±0.1mm, critical dimensions precisely marked. PCB layout is orderly. No LED fill light or waterproofing design. Complies with RoHS standards.

5. Core Attributes: Plug-and-play operation without additional drivers. Focuses on high-definition, high-speed imaging at close range. A specialized module tailored for niche applications.

Application Of Endoscope Camera Module ◢

1. High-Speed Visual Inspection for Industrial Production Lines: Ideal for detecting cosmetic defects and measuring dimensions in electronic components and precision parts. 1080P@60fps high frame rate output clearly captures dynamic details of fast-moving targets, while the 8–80mm fixed focal length range accommodates common working distances on production lines.

2. Macro High-Definition Photography and Sample Imaging: Ideal for capturing high-resolution images of laboratory biological samples, material surface textures, and microscopic structures. The 1.29mm short focal length maintains high resolution at close distances, meeting scientific research and quality inspection demands for detailed microscopic reproduction.

3. Desktop High-Speed Imaging System: Ideal for document scanning, receipt capture, and desktop video recording. Plug-and-play operation via driverless UVC protocol. Dual YUV/MJPEG format output ensures compatibility with diverse capture software, enhancing desktop productivity and digital processing efficiency.

4. Compact Device Close-Range Dynamic Vision Solution: Integrates seamlessly into medical auxiliary observation equipment, self-service terminals, and embedded inspection instruments. Its compact structure and precise tolerance control facilitate system assembly. A 60fps high frame rate ensures smooth dynamic imaging, making it ideal for specialized equipment demanding both real-time performance and high clarity.

Technical Parameters ◢

FAQ ◢

1. Advantages of AI-assisted endoscope modules?

It integrates real-time lesion marking, surgical navigation, automatic exposure and other functions, and relies on edge computing chip to achieve low latency processing.

2. How to clean the endoscope camera lens?

Use a sterile soft cloth and special lens cleaner to avoid alcohol damage to the coating. Industrial modules can be blown with air to remove dust, oil environment should be combined with oil resistant solvent.

3. What are the features of the dental endoscope module?

Integrated high color rendering ring LED light, resolution ≥1080p, some equipped with wireless handheld design, easy to take multi-angle photography in the mouth and connect to the diagnosis and treatment system.

4. What are the distortion parameters of the module?

TV distortion < -53%, meeting distortion tolerance requirements for close-range imaging and fulfilling imaging needs in specialized scenarios.

5. Does the module comply with environmental standards?

The product meets RoHS environmental standards, with component layout adhering to specifications, satisfying industry requirements for environmentally responsible production and use.

6. What are the core application scenarios for this module?

Core application for 8~80mm close-range high-definition, high-speed imaging scenarios, such as: - High-speed inspection of industrial micro-components - High-definition macro photography - High-speed imaging of precision laboratory samples.

7. What interface does the module use? Does it require driver installation?

Features a 4-pin USB interface with USB 2.0 UVC protocol. Plug-and-play with no drivers required. Directly compatible with mainstream hardware devices like computers and industrial control systems.
