In embedded vision integration, industrial simple inspection, and smart interactive terminal development, imaging system selection often faces a practical dilemma: equipment internal space is tight and irregular, while traditional all-in-one camera modules are rigid and difficult to adapt. When the probe needs to reach deep inside equipment but the main control board must stay away from heat or electromagnetic interference, a module featuring a separate structure, OV9734 sensor, 720P HD output, and USB2.0 UVC driver-free operation becomes an engineering solution worth evaluating. This article provides a clear selection framework from five dimensions—separate architecture, optical performance, illumination design, interface compatibility, and typical applications—while incorporating key terms such as endoscope camera module, CMOS camera module, usb2.0 endoscope camera, Separate Endoscope, OV9734, and 3.3mm Diameter to help you precisely match internal equipment vision acquisition needs.
First step: Evaluate the available internal space, heat source distribution, and electromagnetic interference environment.

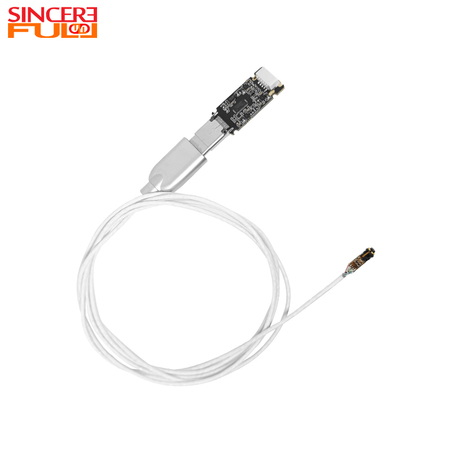

This module consists of an optical front end and a control main board, representing a typical Separate Endoscope design. The optical front end captures images, while the control main board processes signals and handles transmission, connected by a flexible cable. The engineering value of this architecture lies in:
The optical front end can reach narrow internal areas (diameter as small as 3.3mm Diameter) while the main board stays away from heat, vibration, or strong EMI, significantly improving system reliability.
The separate design allows flexible installation of the camera in irregular spaces without reserving a large regular area for the entire module, ideal for upgrading equipment with compact existing mechanical structures.
Lower repair and replacement costs—if the front end is damaged, only the optical part needs replacement, not the entire main board.
As a highly adaptable solution among endoscope camera module products, the separate structure is key to resolving the contradiction between “fitting in” and “staying stable.” When selecting, confirm: Does the optical front end diameter (as small as 3.3mm Diameter) meet accessibility requirements? Does the flexible cable length and bend radius suit the internal routing path?
Second step: Assess the requirements for detail resolution and dynamic range.
This module incorporates the OV9734 CMOS image sensor, stably outputting 720P HD images. As a mature CMOS camera module, its core value lies in:
720P resolution sufficiently reveals common internal details such as solder joint condition, wire harness connections, and foreign object attachments, meeting industrial and consumer inspection needs.
Paired with a 102°±5° ultra-wide angle, single-frame coverage is large, reducing probe movement and improving inspection efficiency.
Image signals are transmitted via MIPI to the main board and then output through USB2.0 UVC, maintaining low latency and high stability throughout.
When selecting, assess: If identifying micron-level cracks or precision measurement is needed, consider 1080P solutions; but for most internal equipment status inspections and embedded vision judgments, the 720P clarity provided by OV9734 is the most cost-effective choice.
Third step: Evaluate the lighting conditions inside the equipment and fill light requirements.
The optical front end integrates six 0201-sized micro LEDs, a high-density illumination configuration among endoscope camera module products. Its engineering value lies in:
The 0201 package size is only 0.6mm×0.3mm, allowing multiple light sources to be arranged in a very small front-end area, providing uniform, shadow-free fill light.
Six LEDs work together to ensure clear images even in completely dark equipment cavities, avoiding detail loss due to insufficient illumination.
The ring layout around the lens effectively suppresses the “tunnel effect” (center overexposure, edge underexposure), especially suitable for deep holes or narrow crevices.
When selecting, confirm: Does the LED color temperature and color rendering index match the inspected material (e.g., metal, plastic, PCB solder mask)? For battery-powered portable devices, assess the impact of LED power consumption on battery life.
Fourth step: Confirm the host platform interface type and driver development capability.
This module offers dual physical interfaces: a Type-C female socket and a 1.0mm-pitch 5PIN female socket, supporting MIPI high-speed signal transmission, with final data output via USB2.0 UVC protocol. As a standardized usb2.0 endoscope camera, its core advantages are:
No driver development required; automatically recognized as a camera device by Windows, Linux, Android, and other systems.
Dual interfaces provide flexible system connection options: Type-C for rapid prototyping and consumer electronics, 5PIN ribbon cable for deep embedded integration.
MIPI intermediate transmission ensures signal integrity from front end to main board, even with longer cables.
When selecting, verify: Does the target host support UVC (most modern devices do)? For embedded Linux or RTOS systems, confirm USB Host driver stack compatibility.
Application Scenario | Recommended Configuration | Selection Rationale |
|---|---|---|
Embedded smart device internal vision | 3.3mm front end + short flexible cable | Separate Endoscope structure fits tight internal spaces; 720P meets status recognition needs |
Production line simple vision inspection station | Fixed mount + standard USB | usb2.0 endoscope camera plug-and-play; low-cost part presence detection |
Smart interactive terminal face/gesture capture | Front end panel-mounted | 102° wide angle covers interaction area; 6 LEDs ensure stability under various lighting |
Equipment add-on camera module | 5PIN ribbon to main board | Standardized interface for quick integration without modifying existing hardware |
Medical equipment internal auxiliary observation | Disposable sheath + medical-grade cleaning | Separate structure facilitates disinfection protection; OV9734 clearly shows instrument status |
The core value of the separate OV9734 endoscope module lies in integrating the spatial flexibility of a Separate Endoscope, the stable image quality of a CMOS camera module, the plug-and-play convenience of a usb2.0 endoscope camera, and the powerful fill light of six 0201 LEDs—providing a cost-effective solution for internal equipment vision acquisition, embedded vision integration, and industrial simple inspection. When selecting, prioritize three questions:
How tight is the space? The optical front end diameter can be as small as 3.3mm Diameter; the separate structure reaches narrow areas while the main board sits in a spacious location.
How dark is the environment? Six 0201 LEDs provide powerful fill light, ensuring clear imaging even in complete darkness.
How to connect? Dual interfaces (Type-C or 5PIN ribbon) adapt to needs ranging from rapid prototyping to deep integration.
As a manufacturer with over 30 years of optical imaging experience, SincereFirst not only supplies standard endoscope camera module products but also customizes front end diameter, cable length, and LED configuration according to your equipment structure. We recommend obtaining engineering samples before mass production and conducting accessibility, image clarity, and UVC compatibility tests inside real equipment to ensure your selection is both scientifically sound and forward-looking.
