SF-C2016USB-1080P60-D6.0-3KEY
SINCEREFIRST

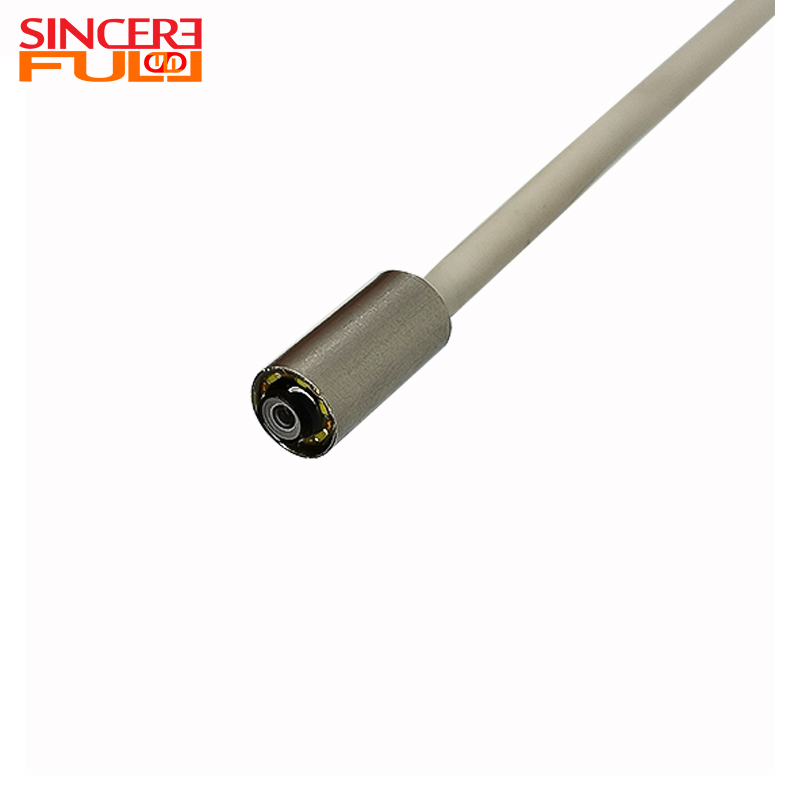

This 6mm USB 1080P 60FPS endoscope camera module OV2740 Sensor is developed based on OmniVision’s OV2740 image sensor, specifically designed for high-precision visual inspection scenarios. The core OV2740 sensor boasts a 1/2.9-inch physical size and 1.4μm×1.4μm pixel dimensions—this pixel size optimization enhances light-gathering capability, laying a solid foundation for clear imaging even in low-light environments. The module supports 1080P resolution output at a high frame rate of 60FPS, paired with dual output formats YUV & MJPEG, enabling it to adapt to different data processing needs while ensuring smooth, non-stuttering video playback. In terms of optics, it features an 8-80mm wide focusing range, which flexibly covers macro shooting to medium-to-long-distance shooting; its 1.05mm short focal length and F5.9 aperture balance depth of field and light intake, further optimizing image clarity. Additionally, the module is equipped with a 140° ultra-wide FOV, which fully expands the observation range for endoscopic detection, while TV distortion control of less than -50% effectively avoids image deformation and ensures natural restoration of the observed object. Structurally, the module’s lens is fitted with a steel sleeve to enhance mechanical durability and prevent accidental damage; it also meets IP67-level dustproof and waterproof standards, allowing stable operation in harsh environments such as humid industrial sites or medical disinfection scenarios. To address low-light challenges, the lens integrates 6 built-in LED light, which can supplement light on demand to maintain clear imaging in dark or dimly lit spaces. Through the USB2.0 UVC interface, the module outputs uncompressed raw image data in real time, providing stable, high-fidelity image support for professional fields such as industrial detection and medical equipment. |  |
1. Superior Resolution & High Frame Rate: The module is built around the OV2740 sensor (2MP, 1/2.9-inch size, 1.4μm×1.4μm pixels) and supports 1080P high-definition resolution and 60FPS high frame rate. The large pixel size improves light sensitivity, while the high frame rate eliminates video lag—together, they ensure detailed, smooth imaging, fully meeting the high-quality visual needs of professional inspection scenarios.
2. Flexible Focus & Excellent Optical Performance: With an 8-80mm wide focusing range, the module can easily handle both macro shooting and medium-to-long-distance shooting. Its 1.05mm short focal length enables close-up observation of small structures, and the F5.9 aperture ensures sufficient light intake; the 140° ultra-wide field of view covers a broad observation area, and TV distortion of less than -50% guarantees that the image of the observed object is not distorted, improving inspection accuracy.

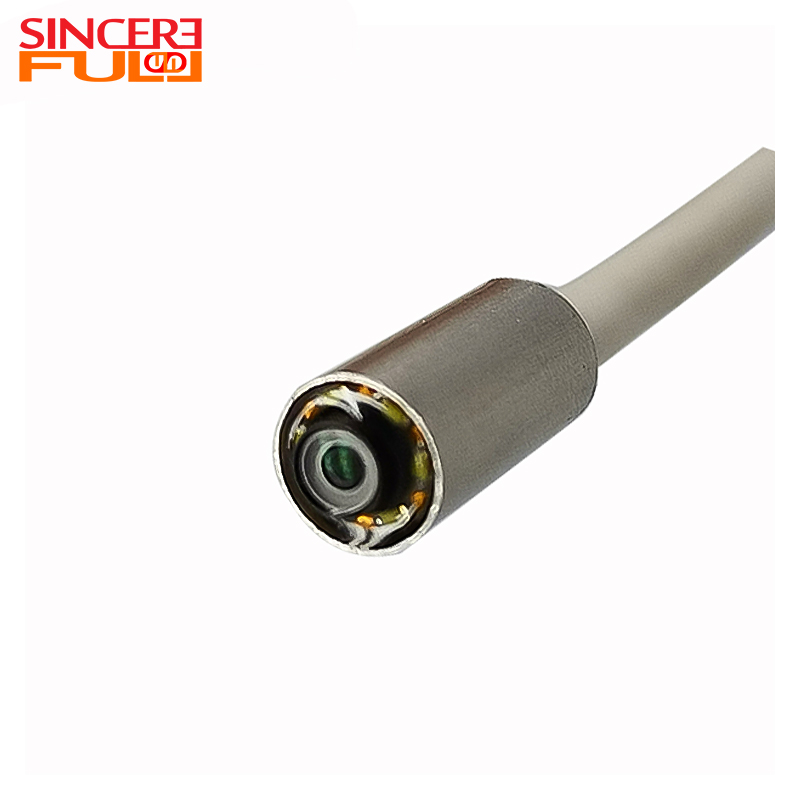

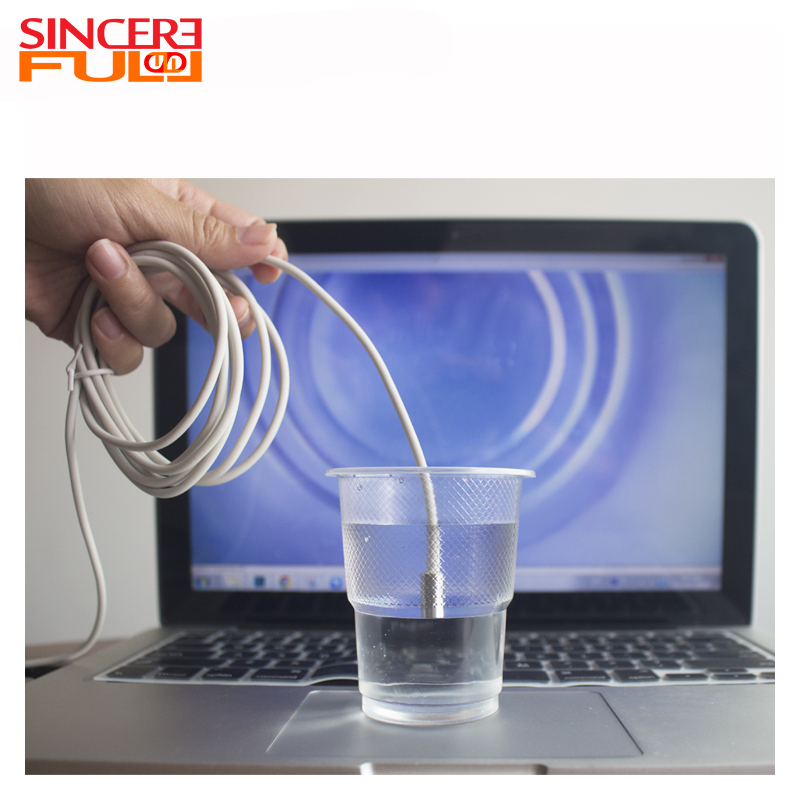

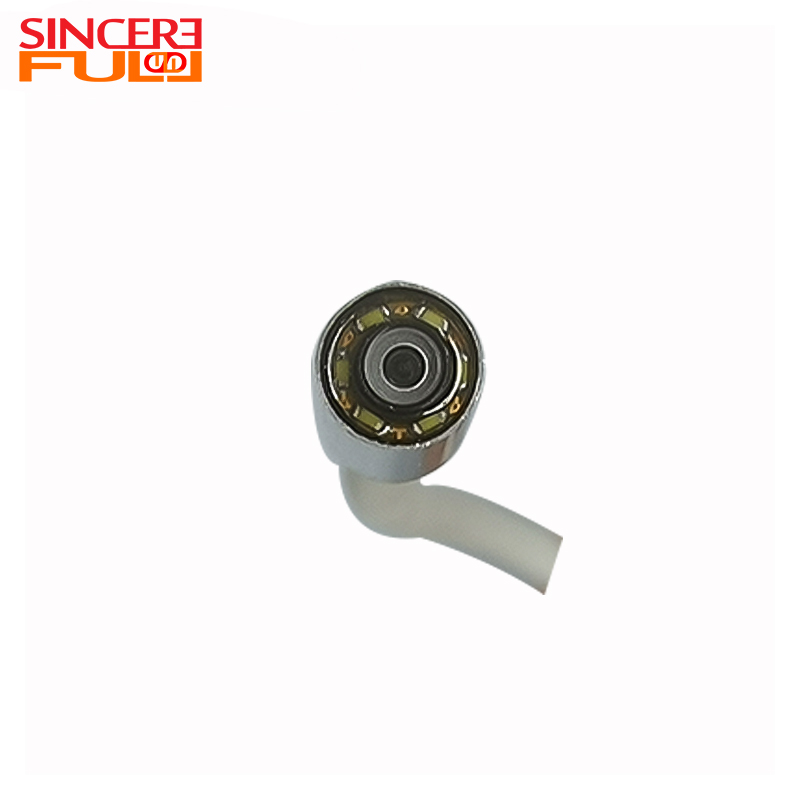

3. Strong Environmental Adaptability & Durability: The lens is protected by a steel sleeve, which enhances resistance to collision and wear, extending the module’s service life. It also supports IP67-level dustproof and waterproof performance, allowing normal operation in dusty industrial workshops, humid pipelines, or medical disinfection environments without being affected by external dirt or water. The integrated 6 LED light provides on-demand light supplementation, solving the problem of unclear imaging in dark environments.

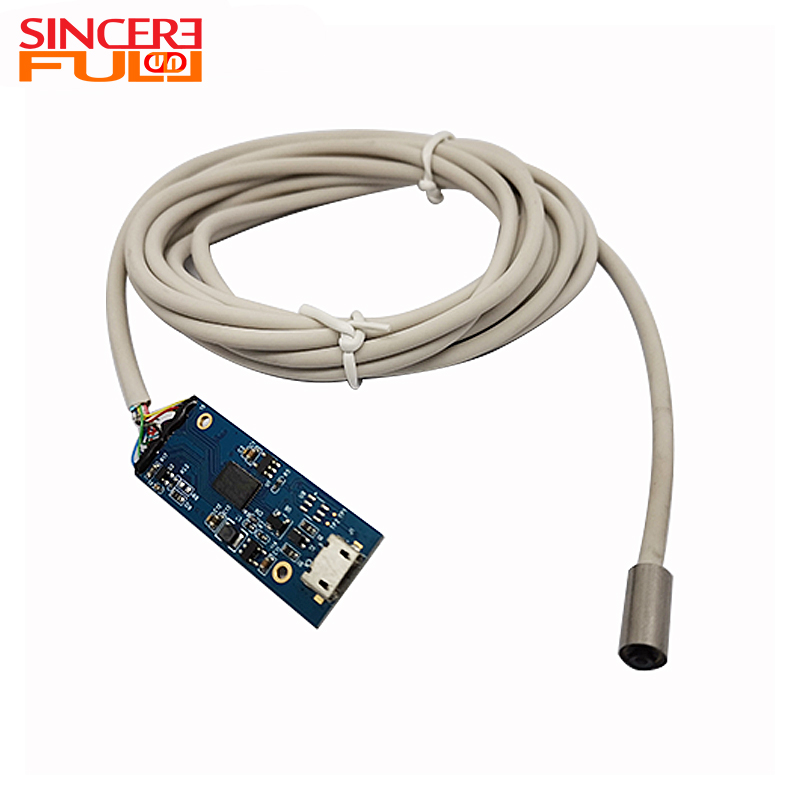

4. Diversified Output & High-Fidelity Image Transmission: The module supports YUV and MJPEG dual output formats, which can be matched with different backend processing systems according to actual needs. Through the USB2.0 UVC interface, it transmits uncompressed raw data in real time, avoiding image quality loss caused by compression, and ensuring that inspection personnel can obtain true, detailed image information.
1. Medical Equipment Field: Widely integrated into specific medical devices such as ear endoscopes , laryngoscopes, minimally invasive surgical endoscopes, and surgical microscopes. It provides doctors with clear, real-time high-definition images, assisting in accurate diagnosis of diseases and safe implementation of minimally invasive operations.
2. Industrial Testing Field: Applied to professional detection devices like industrial pipeline endoscopes and mechanical component internal inspection mirrors. It helps engineers quickly locate equipment faults or defects without disassembling large machinery, improving detection efficiency and reducing maintenance costs.
3. Security Monitoring Field: Used in high-definition narrow-space security monitoring endoscopes, which are suitable for monitoring hard-to-reach areas in high-security occasions—such as corner gaps in bank vaults, hidden spaces in jewelry store exhibition cabinets, or equipment compartments in important public facilities. It provides clear high-frame-rate video surveillance images, helping security personnel eliminate monitoring blind spots.
Product Name | 1080P 60FPS Endoscope Camera Module |
F Number | 5.9 |
Pixel | 2MP |
Sensor | OV2740 OmniVision |
Interface | USB2.0 UVC |
Focus Range | 8-80mm |
Focal Length | 1.05mm |
Brand Name | SINCERE FIRST |
Fov(D) | 140° |
TV Distortion | <-50% |
Images of the left and right eyes are captured through a dual lens module or a splitter prism, and synchronously output to a 3D display at ≥1080p/60fps to ensure smooth operation, suitable for minimally invasive surgery.
Check that the power adapter, interface, and fuse are loose. For wireless modules, check the battery level and pairing status.
The filter may need to be corrected or replaced by software due to uncalibrated white balance, mismatch of light source color temperature, or aging of sensor.
