In industries such as food production, pharmaceuticals, biotechnology, and medical device manufacturing, cleaning validation is a critical step. Residual bacteria, biofilms, or other contaminants not only affect product quality but can also threaten consumer health. Traditional cleaning validation methods often involve swab sampling, culture testing, or chromogenic reagents—processes that are time-consuming, complex, and incapable of providing on-the-spot results.
The Light On Cells device changes this landscape. It can directly detect bacteria, biofilms, and potential contaminants on surfaces without the need for chromogenic reagents, meeting hygiene inspection requirements for cleaning validation of production units and equipment, and enabling rapid corrective actions when necessary. At the heart of this capability is a camera module capable of reaching tight spaces and clearly capturing microscopic contaminants. The image quality, miniaturization, field of view, and illumination capability of the camera module directly determine whether the Light On Cells device can perform accurate hygiene inspections in complex production environments.
Unlike standard industrial cameras, cameras used for cleaning validation and hygiene inspection face a unique set of challenges:
Extreme Miniaturization: Must enter narrow spaces like pipes, valves, and fittings in production equipment; the camera diameter must be small enough.
Ultra-Wide Field of View: In confined spaces, a wider angle means larger single-frame coverage, improving inspection efficiency.
Macro Precise Focus: Needs to capture tiny contaminants like bacterial colonies and biofilms clearly at close range (5–50mm).
Low-Light Imaging: Equipment interiors are often poorly lit; requires built-in illumination that doesn‘t compromise image quality.
Plug-and-Play Compatibility: Needs quick connection to portable display devices (tablets, phones) for on-site inspection.
Based on our understanding of industrial inspection and hygiene monitoring applications, an Endoscope Camera Module truly suited for the Light On Cells device needs precise alignment across optics, sensor, interface, and illumination.
Pipes, valve interiors, and weld seams in production equipment are often hotspots for biofilm and bacteria growth, yet standard inspection tools cannot reach them.

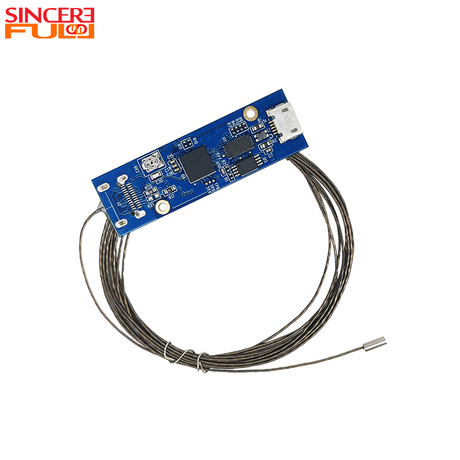

This CMOS Camera Module features an ultra-compact 2.0mm diameter design, allowing it to easily access:
Micro pipes with inner diameters of 2.5mm or more
Narrow gaps and dead corners inside equipment
Complex structures like valve seats and sealing rings
In the food and pharmaceutical industries, these "blind spots" are often the hardest to cover in cleaning validation. The 2.0mm micro probe enables the Light On Cells device to achieve truly comprehensive inspections—"no place left unseen."
Cleaning validation demands efficiency—operators want to cover large areas in one shot while still seeing tiny bacterial colonies or early-stage biofilms.
This HD Camera Module features a 120° ultra-wide angle optical design. Compared to standard endoscopes with 60-90° FOV, 120° means:
Approximately 40-80% increase in single-frame coverage area
Fewer shots needed to inspect the same region
Easier localization of the overall contaminant distribution
Additionally, it supports a 5-50mm macro precise focus range:
5mm minimum focus: Can be placed extremely close to the target surface, clearly capturing individual bacterial colony morphology and biofilm texture.
50mm far focus: Allows slightly wider area scanning for rapid assessment of overall equipment wall hygiene.
For Light On Cells‘ bacteria and biofilm detection applications, this means operators can quickly scan large areas and seamlessly switch to macro mode to verify suspicious points—without changing probes or adjusting equipment.
Within a 2.0mm diameter constraint, sensor choices are very limited. This USB2.0 Camera Module is built around the OVM6946 sensor, a high-performance CMOS image sensor designed specifically for micro medical and industrial endoscopes.
Key specifications and advantages:
400×400 resolution: Delivers 160k effective pixels at this tiny sensor size—sufficient to distinguish bacterial colony outlines and biofilm edge features.
30fps frame rate: Provides smooth, real-time video output; operators experience no lag when moving the probe, facilitating fast scanning and localization.
Optimized low-noise performance: Maintains clean images even in low-light conditions despite the tiny sensor size.
Combined with the 120° wide-angle lens and macro focus capability, this optical-sensor package achieves a balanced "wide, clear, stable" imaging performance at the extreme limit of a 2.0mm diameter.
Production equipment interiors typically lack natural light, and overly concentrated illumination can create glare or reflections that obscure contaminant details.
This OVM6946 sensor endoscope module features 4 independently controllable micro LEDs arranged around the lens. Advantages:
Uniform illumination: The ring-shaped distribution ensures no shadow dead zones.
Independent control: Each LED‘s brightness can be adjusted individually based on the target surface‘s reflectivity, preventing localized overexposure.
Stable low-light imaging: Delivers clear images even in low-reflectivity environments like dark pipe interiors or stainless steel equipment surfaces.
For Light On Cells‘ bacterial detection applications, uniform, controllable illumination means operators can clearly distinguish transparent or translucent biofilms and tiny colony clusters without glare interfering with judgment.
Cleaning validation often takes place on the production floor, requiring rapid deployment and simple operation.
This module uses a standard USB 2.0 interface and supports the UVC (USB Video Class) driver-free protocol. This means:
Plug-and-play with Windows, Android, Linux devices—no driver installation required.
Can connect to tablets, industrial handheld terminals, or laptops, flexibly adapting to different field environments.
Simple development integration; equipment manufacturers can quickly complete system integration.
For the Light On Cells device, UVC compatibility means inspection results can be displayed in real-time on a portable screen, allowing operators to make preliminary judgments without returning to the lab—significantly reducing cleaning validation response time.
1. Microchannel and Microcatheter Inner Wall Inspection: The 2.0mm probe can enter microchannels to check for blockages, damage, and wall deposits. Light On Cells can identify biofilm formation in these areas.
2. Precision Component and Solder Joint Inspection: In electronics manufacturing, used to inspect microchip solder joints and connector interiors for residual contaminants.
3. Minimally Invasive Medical Device Integration: Serves as the core imaging module integrated into minimally invasive surgical instruments or experimental devices, providing real-time, stable close-up imaging.
4. Pharmaceutical and Food Production Equipment Cleaning Validation: Enters dead corners of reactors, fermenters, and piping systems to detect bacteria and biofilms, meeting GMP hygiene inspection requirements.
The core value of the Light On Cells device lies in "rapid cleaning validation hygiene inspection without chromogenic reagents." And the starting point for all this is a camera module featuring a 2.0mm micro diameter, 120° ultra-wide angle, 5-50mm macro precise focus, OVM6946 sensor, 4 independently controllable LEDs, and UVC plug-and-play. It is more than just a hardware component; it is the key enabler for transforming cleaning validation from "lab culture" to "on-site instant judgment."
If you are developing cleaning validation equipment, hygiene inspection instruments, or other industrial inspection products requiring miniaturized vision capabilities, we offer comprehensive support in camera module selection, optical customization, system integration, and mass production delivery. Start with one module, and let your device “see” every corner that needs to be clean.
