In high-end inspection scenarios such as aero-engine blade inspection, automotive powertrain endoscopy, ENT medical diagnosis, and precision mold quality control, imaging systems need to achieve 1080P HD, 60fps smoothness, 140° wide angle, and IP67 protection within a 6mm diameter limit. When the inspection task demands stringent performance in image quality, frame rate, environmental adaptability, and ease of use, a module featuring 6.0mm diameter, OV2740 sensor, 1080P@60fps, and IP67 waterproofing becomes a professional solution worth evaluating. This article provides a clear selection framework from five dimensions—sensor and image performance, optical system, environmental protection, interface compatibility, and typical applications—while incorporating key terms such as endoscope camera module, Wide Angle camera module, usb2.0 endoscope camera, UVC Camera Module, OV2740, and 6.0mm Diameter to help you precisely match precision inspection needs in harsh environments.
First step: Assess the requirements for dynamic smoothness, low-light performance, and detail resolution.
This module incorporates the OV2740 CMOS image sensor with Back-Side Illumination (BSI) technology, outputting 1920×1080 Full HD resolution at 60fps, with an F5.9 aperture. As a high-performance representative among endoscope camera module products, the engineering value of this combination lies in:
60fps high frame rate captures clear images of fast-moving targets, ideal for dynamic crack monitoring on spinning aero-engine blades and piston motion gap measurement in automotive engines.
BSI technology moves the metal wiring layer to the back of the photosensitive area, significantly improving quantum efficiency and light intake, effectively reducing noise in low-light environments and ensuring clarity in deep cavities like ear canals and nasal passages.
1080P resolution reveals 0.02mm-level micro-cracks, mold burrs, and solder joint morphology, meeting precision inspection standards in aerospace, automotive, and medical fields.
When selecting, assess: For routine pipe blockage checks, 30fps and 720P may suffice; but for high-speed moving targets or micron-level defect identification, the 1080P@60fps of OV2740 is a necessary threshold. The F5.9 aperture balances light intake and depth of field; paired with dimmable LED fill light, it adapts to different materials such as highly reflective metals and weakly reflective mucosa.
Second step: Confirm typical working distance, field coverage, and distortion tolerance.
The optical system features a 140° ultra-wide field of view (characteristic of a Wide Angle camera module), a focus range covering 8–80mm, and TV distortion controlled within -50%. The engineering value lies in:
The 140° wide angle achieves extreme field expansion within a 6mm diameter probe, covering the entire ear canal or most of a cylinder wall in a single frame, reducing probe movement.
The 8–80mm wide focus range extends from ultra-close macro (8mm) to medium-distance observation (80mm), enabling scanning from detail to panorama without frequent focusing.
Negative distortion (barrel distortion) is acceptable in ultra-wide-angle endoscope designs as it expands peripheral vision; for precision measurement tasks, software correction can be applied.
As a wide-angle version of usb2.0 endoscope camera, this module is particularly suited for scenarios requiring both wide coverage and fine detail. When selecting, verify: Does -50% distortion affect defect size judgment? (Test with a standard grid pattern.) Does the 8mm minimum focusing distance meet ultra-close observation needs (e.g., mold ejector pin wear inspection)?
Third step: Evaluate risks of liquid contact, dust, oil mist, and mechanical impact in the inspection environment.
The probe diameter is 6.0mm Diameter, housed in an IP67-rated stainless steel shell, significantly improving compression, corrosion, and bending resistance. The engineering significance:
Adapts to harsh conditions such as high-temperature oil mist in aero-engines, coolant splash in automotive transmissions, and disinfectant wiping in medical devices.
The steel shell also provides drop and crush protection, suitable for collision-prone scenarios like field maintenance and production line inspections.
The 6mm diameter achieves high-performance 1080P imaging while still accessing most industrial and medical cavities (inner diameter ≥6.5mm).
Note: IP67 is not suitable for high-temperature liquids (>50°C) or high-pressure water jets; for contact with jet fuel or strong acids/bases, confirm the corrosion-resistant coating on the steel shell. This module has passed relevant reliability tests, meeting stringent requirements in aerospace, automotive, and medical fields.
Fourth step: Confirm the host platform type and system integration complexity.
This module uses a USB 2.0 interface and strictly follows the UVC driver-free protocol, making it a standard UVC Camera Module. Its core value lies in:
No driver installation required; automatically recognized as a camera device by Windows, Linux, Android, and other systems, directly connecting to mainstream endoscope hosts or industrial PCs.
Plug-and-play significantly reduces on-site deployment time; non-professionals can quickly get started.
Compatible with mainstream endoscope host systems from brands like Olympus, Pentax, Bosch, and Snap-on, facilitating equipment upgrades and replacements.
When selecting, verify: Does the target host support UVC (most modern devices do)? For aero-engine专用 inspection instruments, confirm USB power supply capability and protocol compatibility.
Application Scenario | Recommended Configuration | Selection Rationale |
|---|---|---|
Aero-engine blade crack inspection | 6mm steel probe + high-temp cable | 6.0mm Diameter fits cooling holes; OV2740 60fps captures spinning cracks; IP67 resists oil mist |
Automotive powertrain endoscopy | Oil-resistant cable + handheld host | 1080P detects piston carbon deposits and gear wear; 140° wide angle covers cylinder walls; 60fps dynamic gap measurement |
Medical ENT diagnosis | Disposable sheath + dimmable LED | 6mm diameter fits nasal/ear canals; BSI low-light clarity; IP67 facilitates disinfection |
Precision mold quality control | Fixed stand + ring light | 8mm macro identifies ±0.01mm burrs; wide dynamic range suppresses metal glare |
Industrial pipe weld inspection | Long cable + portable power | 1080P clearly shows weld morphology; 140° wide angle reduces movement; UVC direct to tablet |

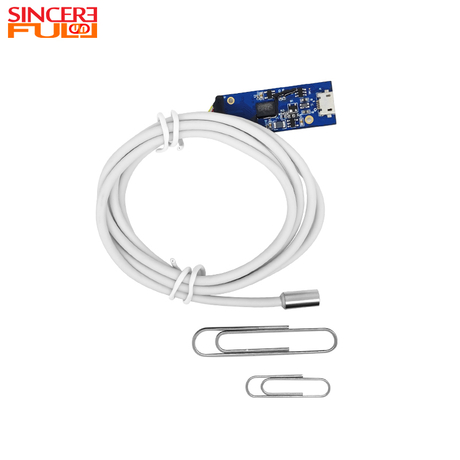

The core value of the 6mm 1080P OV2740 USB endoscope module lies in integrating the wide coverage of a Wide Angle camera module, the plug-and-play convenience of a UVC Camera Module, the compact diameter of an endoscope camera module, and IP67 industrial protection—providing a high-performance, high-reliability vision tool for aerospace, automotive, medical, and mold inspection. When selecting, prioritize three questions:
How fast is the motion? For high-speed targets (e.g., spinning blades, reciprocating pistons), the 60fps of OV2740 is necessary; for static observation, 30fps suffices.
How harsh is the environment? Oil mist, water, dust, and vibration demand the IP67 steel shell version; dry, clean environments may allow non-waterproof versions to reduce cost.
Is ultra-wide angle needed? The 140° wide angle significantly reduces probe movement, ideal for large cavities or deep holes requiring single-pass coverage.
As a manufacturer with over 30 years of optical imaging experience, SincereFirst not only supplies standard endoscope camera module products but also customizes cable length, LED color temperature, and probe protection levels according to your inspection scenario. We recommend obtaining engineering samples before mass production and conducting accessibility, image clarity, and environmental adaptability tests on real aero-engine blades, automotive cylinders, or medical models to ensure your selection is both scientifically sound and forward-looking.
