When selecting an imaging module for medical endoscopy, beauty equipment, or confined-space side inspection, engineers often face a dilemma: conventional forward-view endoscopes require probe rotation to observe sidewalls, which is mechanically complex and time-consuming; generic USB cameras lack the specialized optical design and high frame rate needed for dynamic macro observation. A side-view module based on the OV2740 Camera Module delivering 1080P@60fps high‑framerate video, native UVC support, and a 1/6‑inch CMOS sensor addresses these pain points directly. This guide provides a structured selection framework from five dimensions—optical architecture, imaging performance, interface & reliability, environmental adaptability, and typical use cases—while incorporating keywords such as endoscope camera module, HD Camera Module, 1080P Camera Module, 2MP Camera Module, mini Camera Module, UVC Camera Module, CMOS Camera Module, and OV2740 Camera Module to help you make an informed decision.
First step: Determine whether your inspection target is on the sidewall or at the tip.
The module features a dedicated side-view optical architecture, meaning the optical axis is perpendicular to the probe axis. Unlike forward-view modules that require bending or rotating the probe to look sideways, this design directly captures lateral details of pipe inner walls, cavity sidewalls, and vertical surfaces without mechanical steering. This eliminates blind spots, reduces operation time, and minimizes mechanical wear. For applications such as laryngoscopes, oral observation, or inner wall flaw detection, a side-view endoscope camera module is not just an option—it is the only efficient solution.
Second step: Evaluate requirements for motion clarity, resolution, and geometric fidelity.
The module integrates a 1/6‑inch OV2740 CMOS sensor with 1.4μm pixel size, outputting 1080P (2MP) video at 60fps via MJPEG and YUV2 formats. This 1080P Camera Module (also a 2MP Camera Module) provides:
60fps high frame rate – eliminates motion blur when the probe moves or the target is dynamic (e.g., vocal cord vibration, moving conveyor parts).
<2% distortion – ensures accurate shape reproduction for sidewall defects, critical for medical diagnosis and industrial measurement.
1lux low-light sensitivity – captures clear images even in dim enclosed spaces (e.g., body cavities, dark pipes).
As an HD Camera Module with high temporal resolution, it outperforms typical 30fps modules in dynamic scenes. Choose this if your task involves fast movement or requires precise geometric judgment from a lateral perspective.
Third step: Consider host platform compatibility and integration complexity.

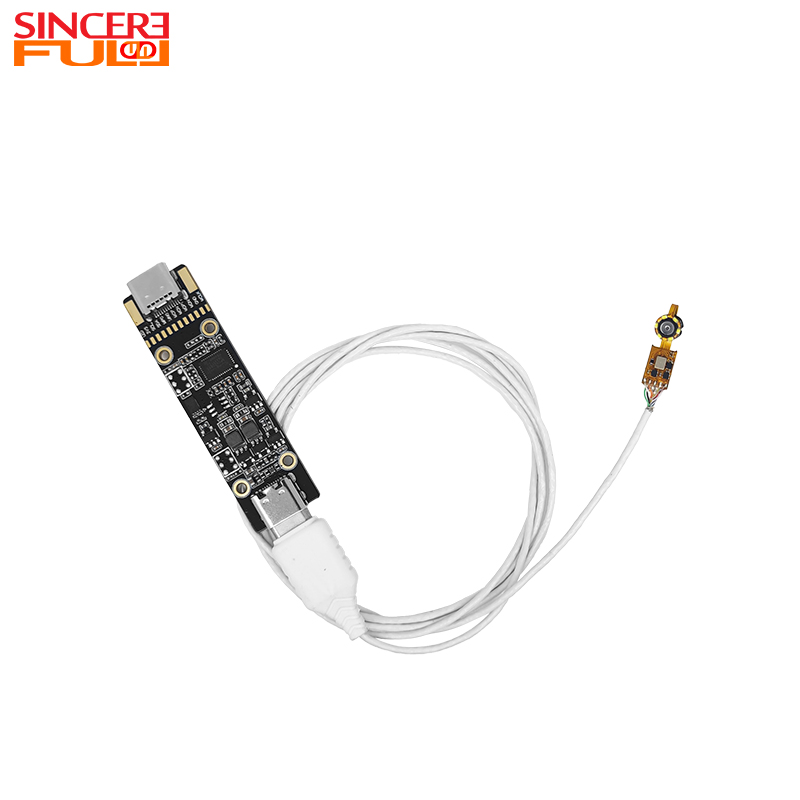

The module uses a USB2.0 High-Speed Type-C 5Pin interface, supporting both UVC and OTG protocols. This makes it a true UVC Camera Module – plug‑and‑play on Windows, Linux, Android (via OTG), and macOS without additional drivers. For embedded projects (e.g., portable medical devices or beauty instruments), this significantly reduces development time and eliminates driver maintenance costs. The low power consumption (5V DC, 120–140mA) allows direct USB bus power, further simplifying design.
Fourth step: Assess durability requirements for your operating environment.
The module features a sealed FPC and anti-static design, and it has passed rigorous temperature cycling, vibration, and drop tests. This mini Camera Module is built for long-term deployment in medical devices and complex industrial settings. It operates stably in humid, dusty, or vibration-prone environments, making it suitable for both clinical use and factory floors.
Application Area | Recommended Configuration | Key Rationale |
|---|---|---|
Minimally invasive medical (laryngoscope, oral scope) | Side-view, 1080P@60fps, UVC | Direct lateral imaging of vocal cords/mucosa; high frame rate captures dynamic vocal fold motion. |
Beauty & skin analysis (blackhead remover, skin scope) | Macro focus + side-view + 6‑LED optional | Reveals pore-level details on skin sidewalls; 1lux low‑light works in dark oral/nasal cavities. |
Industrial confined-space side inspection (pipe inner walls, valve bodies) | Robust sealed FPC, anti‑static | Non-dismantling flaw detection; 2% distortion ensures accurate crack measurement. |
Embedded medical equipment (minimally invasive instruments) | USB2.0 with OTG, low power | Direct connection to mobile devices or embedded boards; driver‑free integration accelerates time‑to‑market. |
The OV2740 Camera Module based side-view endoscope excels where lateral observation, high frame rate, and low distortion are paramount. Prioritize three questions before finalizing:
Do you need to see sidewalls without rotating the probe? → Mandatory side-view optics.
Is motion clarity critical? → 60fps is indispensable; 30fps may suffice for static scenes.
What host platform will you use? UVC support ensures plug‑and‑play across all mainstream OS.
SincereFirst, with over 30 years of optical imaging expertise, offers customization of cable length, LED configuration, and housing materials. We recommend obtaining engineering samples for real‑world testing in your target environment to validate accessibility, image quality, and compatibility.
