SF-C0115USB-D2.8-PRO V1.2 D105
SINCEREFIRST

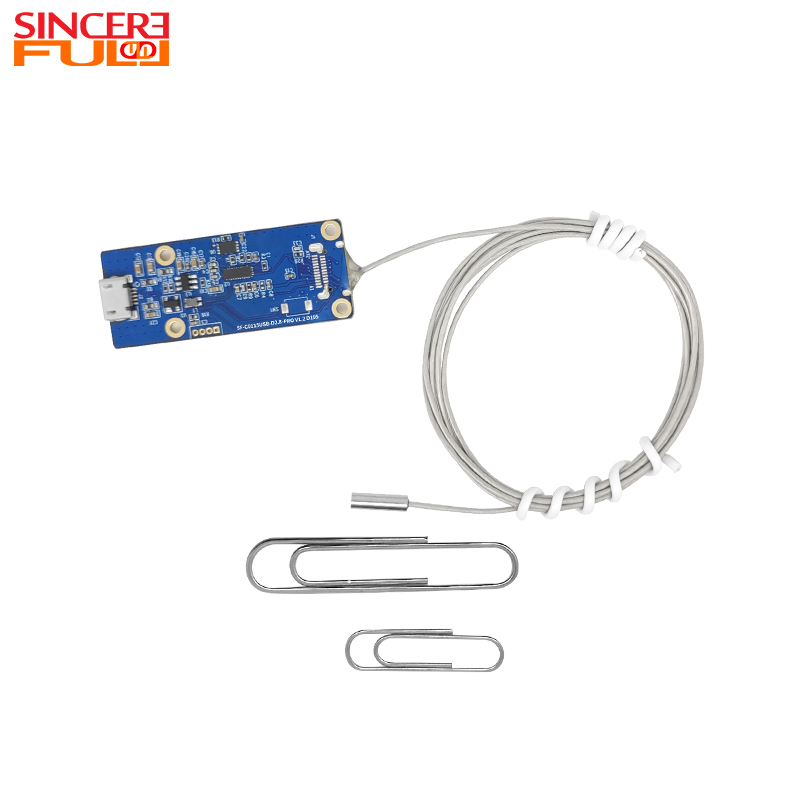

This 2.8mm Diameter Separate USB2.0 Interface UVC Protocol Driver Free Wide Angle Endoscope Camera Module adopts a separate wire-welding structure and a round steel sleeve for reinforcement, equipped with USB2.0 UVC driver-free protocol. With 3–50mm dedicated macro and 105° wide angle as its core advantages, it is specially designed for visual inspection in extremely small spaces, close distances and dark environments. Its 2.8±0.05mm ultra-small probe paired with a round steel sleeve not only ensures structural sturdiness but also can easily extend into tiny pipes, narrow gaps and other areas inaccessible to conventional equipment. The 3–50mm dedicated macro focusing optical design, combined with 0.5mm focal length and F4.5 aperture, can stably ensure close-range imaging clarity, with distortion controlled within -10%, and 240×320@30fps resolution adapts to endoscopic detection needs. The Mini USB interface, combined with SPI control and independent LED power supply, reserves 4 white LED fill lights, which can flexibly adapt to dark environment operations. The built-in UVC protocol realizes fast multi-platform access and driver-free direct output of YUV/MJPEG format images, complying with RoHS standards, balancing compactness, practicality and convenience, and is the preferred component for endoscopic detection in various tiny scenarios. |  |
Ultra-Small Diameter Probe: 2.8±0.05mm outer diameter, reinforced with round steel sleeve, greatly improving the accessibility of tiny pipes and narrow gaps.
Macro-Specific Optics: 3–50mm dedicated focusing range, stably ensuring close-range imaging clarity, suitable for endoscopic needs.
USB Driver-Free Direct Output: Built-in UVC protocol, no driver installation required, enabling fast multi-platform access and easy operation.
Configurable Fill Light: Reserves 4 white LEDs, flexibly adapting to dark environments and effectively improving low-light imaging quality.
1.Micro-Channel Endoscopic Detection: Can be used for tiny pipelines, deep holes, etc. With its ultra-small probe and sturdy design, it can realize visual observation of internal status.
2.Precision Component Detection: Can be used for inspection of micro parts and chip solder joints. With its macro optics, it can accurately detect close-range defects.
3.Minimally Invasive Medical Exploration: Can be matched with small minimally invasive instruments. With its compact size and clear imaging, it can serve as a close-range imaging unit.
4.Portable Detection Equipment: Can be integrated into handheld endoscopes and micro detection instruments. With its driver-free and compact features, it can serve as the core imaging module.
Technical Parameters ◢
Product Name | CMOS Endoscope Camera Module |
Image Sensor | CMOS Sensor |
Pixel | 0.08MP |
Focusing Range | 3-50mm |
Focal Length | 0.5mm |
F NO | 4.5 |
Product Type | Endoscope Camera Module |
Led | 0201 Led |
TV Distortion | <-10% |
Feature | CMOS sensor Endoscope Camera Module |
Use anti-bending cables with metal braid reinforcements. Avoid acute bends during use and wrap coils with a diameter greater than 10cm for storage. In industrial applications, consider adding protective spring tubes for strain relief.
For pipeline inspections, cables of 10–30 meters are common. They often include a Kevlar tensile layer and waterproof connectors, ensuring chemical resistance and real-time image transmission despite long-distance use.
The module complies with IP68 waterproof standards and can endure 134°C steam sterilization. Its housing material resists high pressure and temperature. While medical modules offer full sterilization compatibility, industrial versions may opt for basic splash resistance.
It features a 105° ultra-wide-angle lens paired with a 0.5mm ultra-short focal length. Even at the minimum 3mm focusing distance, it can clearly cover a large area for "close-proximity panoramic observation," eliminating repeated lens adjustments and boosting inspection efficiency.
It supports the UVC Protocol, enabling plug-and-play functionality with mainstream systems (Windows, Linux, Android, MacOS) without extra drivers. The Separated design also allows flexible arrangement of the lens and control board to fit installation spaces.
The 2.8mm-diameter lens has an outer Steel Shell for resistance to minor collisions and friction, plus IP67 dust and water resistance. It also integrates 4 0201-type LED fill lights to ensure bright imaging in dark cavities or pipelines.
Does the module support precise focusing, and what about image quality?
